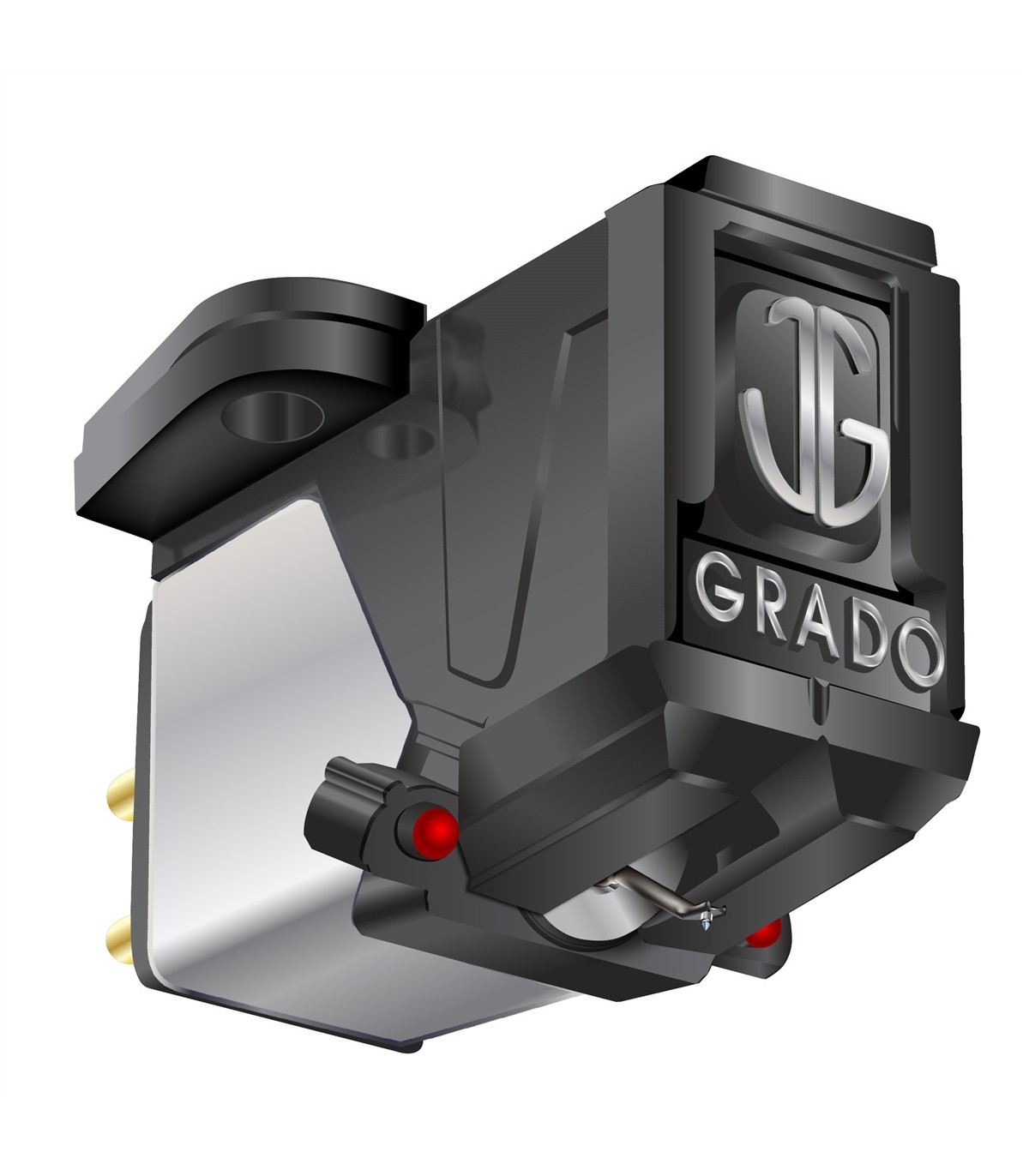

Grado Prestige Red 3 Phono Cartridge

2419

New product

150,82 €

Available for immediate shipping.
Warning: Last items in stock!

Brand: Grado


Description

Cartridge for turntables Grado series Prestige2 mod. Red

Our classic phono heads have taken a big step forward with the Prestige Series 2. It is the "third generation" of the Prestige series, which began with the entry level line of Grado dating back to 1953. In all these years we have dedicated to the reproduction of vinyl with our heads that allow high performance at an affordable price.

The newly Grado Prestige Red2 Cartridges uses a three piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.

Grado’s OTL, or optimized transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system. This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.

Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.

The Red2 are all hand assembled by our team in Brooklyn, with some builders having over 25 years of experience. With the recent development of the highly received Lineage Series of cartridges, we were able to have a trickle down of technology and bring a new technique to the Red2. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. Our coil winding techniques, using ultra high purity copper wire which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.

As in all Grado phono cartridges, the Red2 are powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Red2 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.

The development of the Epoch in the Lineage Series gave us an in-depth experience with using an outer housing as a damping device. This led to the creation of a process which de-stresses the chassis and dissipates unwanted energy & resonant frequencies, allowing the desired signal to travel freely.

Specifications

  • Frequency Response: 10-50
  • Principal: MI
  • Channel Separation at 1KHz: 30
  • Input Load: 47K
  • Output at 1KHz 5CM/sec.: 5mV
  • Recommended Tracking Force: 1.5
  • Stylus Type: E
  • Inductance: 45mH
  • Resistance: 475
  • Compliance CUs: 20
  • Stylus Replacement: U
  • Mounting: S/P
  • Weight: 5.5

"The Grado Prestige Red is proof that one does not have to spend large amounts of money for good sound from a phono cartridge."

James T. Frane / $ensible Sound magazine


Designer

Heritage Matters

Grado Labs is a Brooklyn based company that hand makes headphones and cartridges. Family run since 1953, Grado has seen three generations: Joseph, John, and Jonathan Grado. As Ars Technica says, “…on a quiet street in south Brooklyn is a manufacturing operation that produces some of the most renowned headphones… it's just the Grados in their narrow townhouse making the little-known, well-loved line of headphones.”

 Joseph John Jonathan Grado Three Generations 2016

1953-1989: Foundation and phono cartridges

Grado Labs was founded by Joseph Grado (1924-2015) in 1953 in Brooklyn. Over the past 61 years, Grado has become famous for their remarkable headphone and phono cartridge designs. Joseph Grado is responsible for more innovations in phono cartridge design than any other person in our lifetime, inventing the stereo moving coil phono cartridge and holding more than 48 patents.

Joseph Grado is responsible for more innovations in phono cartridge design than any other person in our lifetime. He was inducted into the Audio Hall of Fame in 1982.

Born in New York, Joseph Grado left vocational high school at age 16, where he had been studying watch-making and had been at the top of his class. He went to work for Tiffany & Company and also taught the craft of watch-making in the evenings. When he discovered hi-fi sound in the early fifties, he visited Saul Marantz to get help in improving the sound of his audio system. Impressed by Joseph's gifted ear, Marantz sent him over to Sherman Fairchild's floundering hi-fi division. With Saul Marantz making the introductions, Joseph promptly landed a top position in the company. As soon as he came up with a design for a viable product, he went out on his own. Scraping together $2,000, Joseph began to produce phono cartridges. In 1953 he started production of his cartridges on the kitchen table, Grado Labs’ first home. In 1955 Joseph opened a factory in Brooklyn on the site of his Sicilian born father's grocery business which, to this day, has been the home of Grado Laboratories.

In the early years Grado also produced speakers, turntables and the highly acclaimed wooden tone-arm, which came in several models. In 1963 all of Grado's resources were dedicated to creating the world's finest phono cartridges. Grado Labs ceased production of all other products and, for the next 21 years, focused only on cartridges. In 1976 phono cartridge design was taken to the next level and the first true high-end cartridges were created under the tutelage of Joseph Grado Signature Products. These new cartridges were very highly regarded and were the first to reach a price tag of $1,000. In 1984 Grado introduced the Joseph Grado Signature Tone-arm that was so well received that, even now, years after the last one was shipped, calls are still received inquiring whether any are available for sale.

In the late 1980s Joseph began the development of what was to become the first true high-end dynamic headphone. The introduction of the Joseph Grado Signature Series of headphones was a major event in the evolution of headphone design. Joseph's painstaking design process, combined with nearly a half century of experience manufacturing precision audio devices, astonished even the most critical reviewers. Joseph extended headphone performance to levels previously attained by only the very best full-range speaker systems in areas of dynamics, pitch control, harmonic accuracy and bass quality. In the process, he once again created a new category - true audiophile quality headphones. Now deceased, Joseph was inducted into the Audio Hall Of Fame in 1982.

1990-2012: Resurgence and first line of headphones

Taking the reins and becoming President & C.E.O. in 1990, John Grado, Joseph’s nephew, created and released Grado’s first line of headphones that the Brooklyn company is known for today. From Grado’s first headphone entry to 2014, John has created over 60 headphones. This Prestige Series of headphones went on to win more awards than any other headphone line in the world. He had come a long way from sweeping the floors of Grado in the ‘60s.

In the beginning, John lived with his family on the top floor of the factory. His wife, Loretta, and he would build  the headphone order themselves on a small worker’s bench everyday for the first few years. Around the same time of the introduction of the headphones, he built the Grado Towers: a twin set of six foot tall stack of 32 RS1 drivers (64 total) encompassed in a wooden body. Due to the immediate popularity of the headphones though, the Grado Towers remain unreleased to this day as there was no need to enter both the speaker and headphone space. The Towers are currently in Grado’s Listening Room, which WIRED calls, “the Magical Room Where the Best Headphones in the World Are Made”.

John Lived With His Family On The Top Floor Of The Factory. His Wife, Loretta, And He Would Build The Headphone Orders Themselves On A Small Worker’s Bench Everyday

With a new focus on headphones, John didn’t forget about Grado’s roots. He set out to redesign the entire Grado line of phono cartridges. John took the knowledge gained while designing the wooden Reference headphones and applied this in the cartridge designs. Grado’s system of damping has virtually eliminated resonant distortions in the magnetic and electrical circuits in the cartridge, bringing analog to a new level of performance. The wooden Reference and Statement Series of phono cartridges have been praised by analog aficionados as "the most significant advancement involving analog reproduction in the last thirty years", and honored with a Golden Note Award for analog design. Grado also revised the entry level cartridges with the Prestige Series which has been touted as the "Best Value" in phono cartridges in the world.

John has brought Grado’s headphone lines from one generation to the next, introducing every headphone that is available to this day. In 2008 he created The i Series, the second generation of Grado. For the first time, he also decided to enter the in-ear headphone market at the urging of his sons, Jonathan and Matthew. In 2011 the in-ears came to fruition. The boys realized the importance of this booming segment of the headphone market and that the third generation of Grado would be a part of it. Jonathan and Matthew were both instrumental in the process of voicing of the iGi, GR8 and the GR10.

2013-Present: Grado goes social and The e Series

Jonathan Grado is now Vice President of Marketing for Grado Labs, “I grew up on the top floor of Grado Labs,” says Jonathan, “so now I’m working with people who have known me all my life". Even though he’s John’s eldest son, Jonathan never felt pressured to join the family company. It was only in his sophomore year of college that he found a passion talking to Grado users, leading him to craft Grado’s social efforts and expand the company’s narrative.  Jonathan was in charge of the launch of The e Series, the third generation of headphones, in mid 2014. Although the new headphones look suspiciously similar to the older models, everything about them is improved. From the housings to the wiring, to the cones and coils, The e Series represents Grado’s third generation of audio excellence. With being named in the Top 8 Most Social Small Businesses in America, Grado has shown it can adapt while keeping their traditions deep rooted in family, quality, and Brooklyn

"I Grew Up On The Top Floor Of Grado Labs," says Jonathan, "So Now I’m Working With People Who Have Known Me All My Life"

John and Loretta Grado with sons Matthew (L) and Jonathan (R).

Write a review

Grado Prestige Red 3 Phono Cartridge

Write a review


Questions
  1. Tiziano Stella
    2021-01-06 17:20
    Non capisco se ha l\'attacco standard da 1/2 o se è il tipo P-Mount. Grazie
    • PlayStereo
      2021-01-06 17:34
      Attacco classico standard con doppia vite.
