Rega Apheta 3 MC Phono Cartridge

You can purchase this product in installments with Consel. Click here for more information.


New product

1 327,87 €

This article it's not in stock but can be ordered and it will take a number of days indicated into the Blue tab below, to be shipped to you. Please verify the availability for immediate shipping of other eventual versions of the same product.

Brand: Rega


Description

Apheta 3 moving coil

For more than 15 years Rega has been perfecting its unique designs of moving coil cartridges.
We have pioneered undamped micro mass generation systems coupled with high integrity jointless bodies. In recent times we have achieved new levels of power from rare earth magnets. This 15 year evolution using the latest technological manufacturing process and recognised laws (Flemings) bought us the hugely successful Apheta 2.

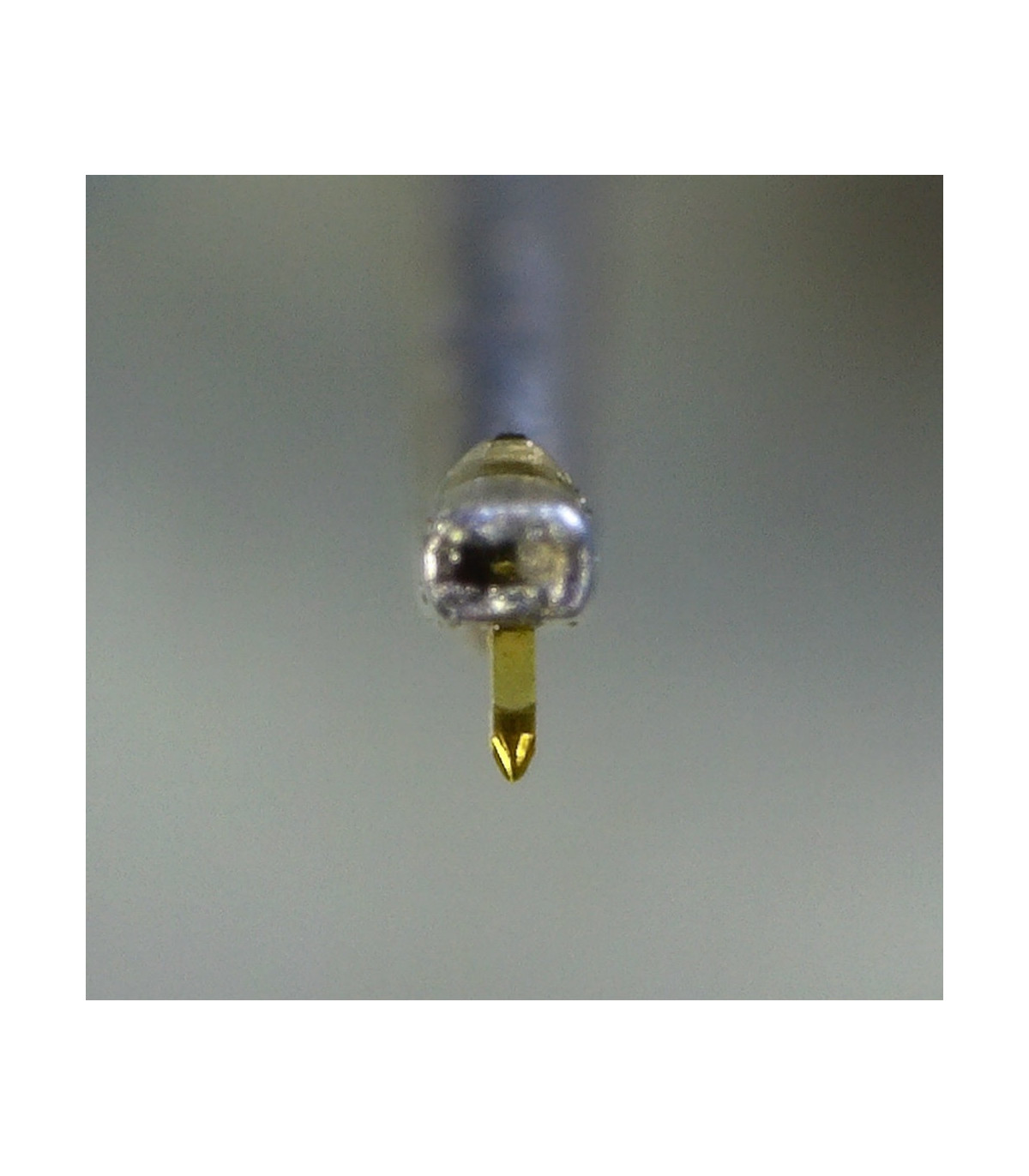

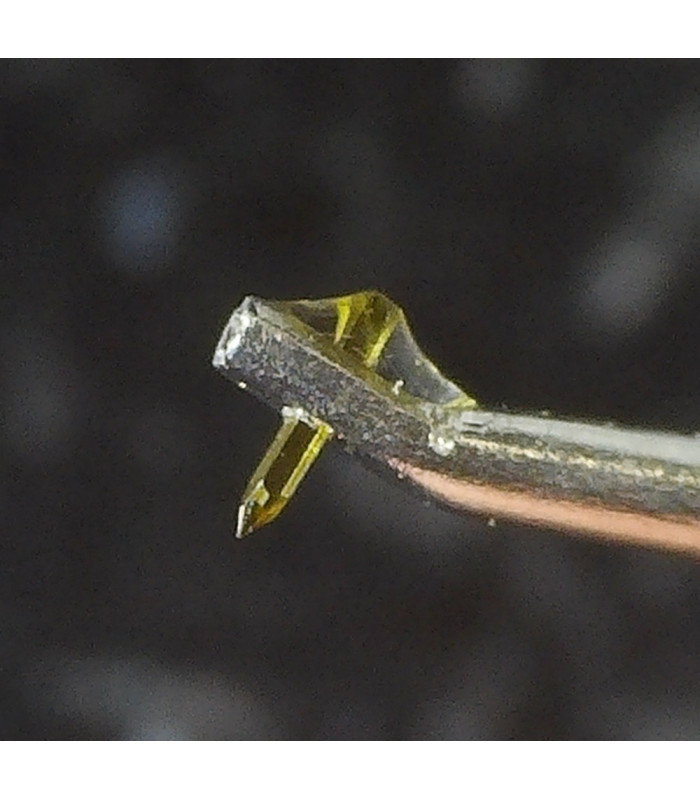

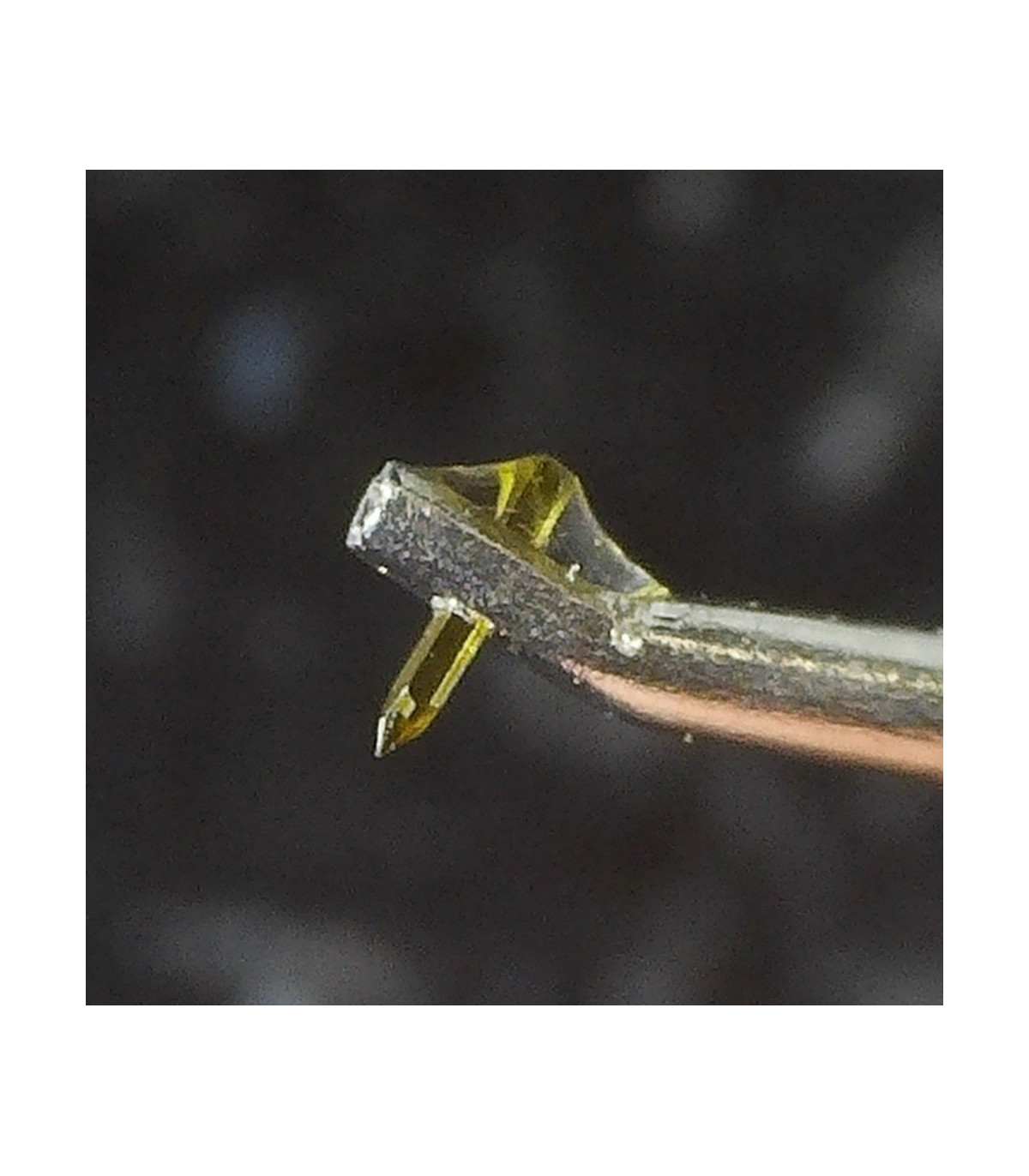

With the Apheta 3 we have pushed another boundary, for several years we have been developing state of the the art diamond profiles of a "Fine Line "design mounted through 90 degrees (the same technique used in our Aphelion reference model) this work has resulted in Apheta 3 extracting even more detail from the record groove which of course translates into more music.

Apheta 3 features a super high-powered, neodymium magnet and a coil meticulously hand wound on an iron cross that is fifty percent smaller than the MK1 model. This weight reduction allows us greater freedom to track the vinyl groove.

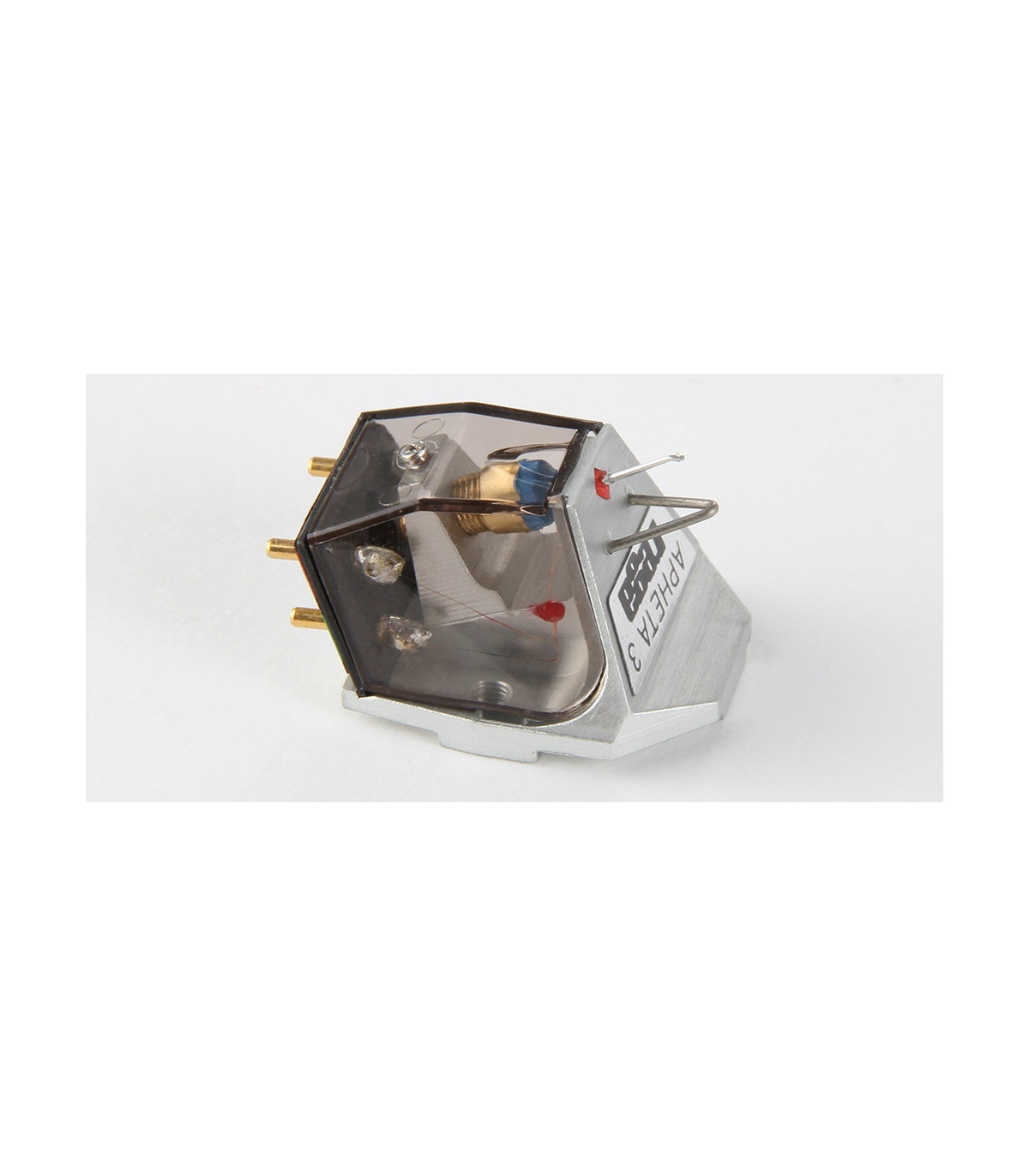

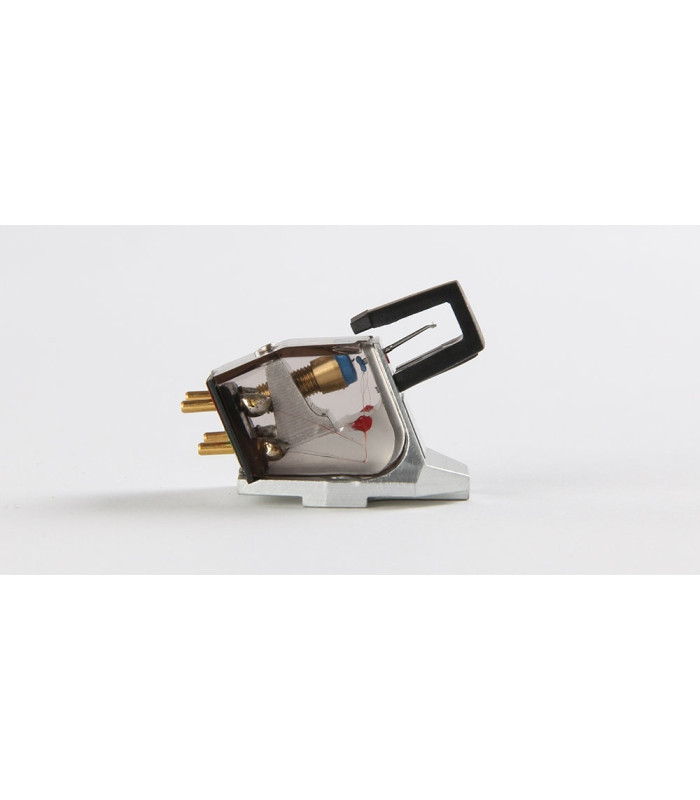

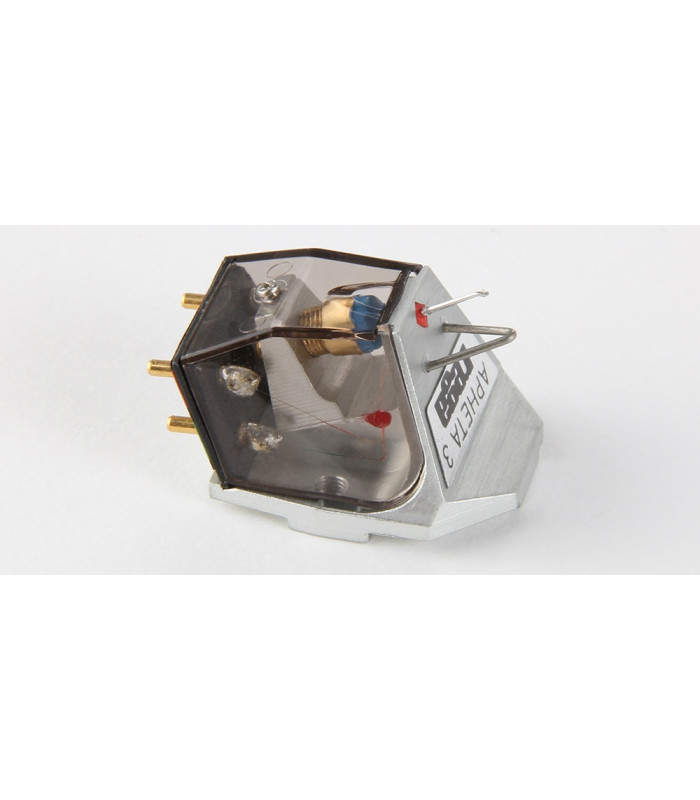

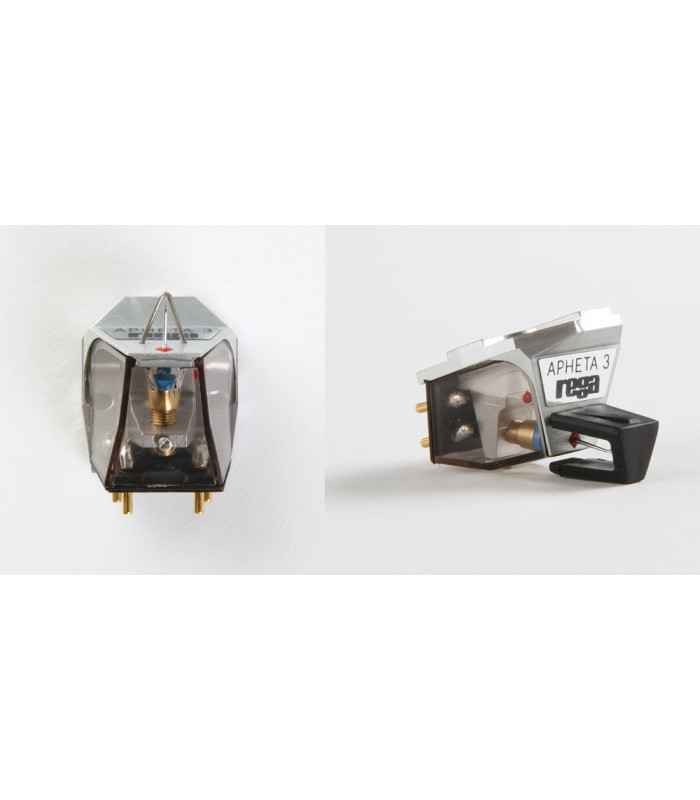

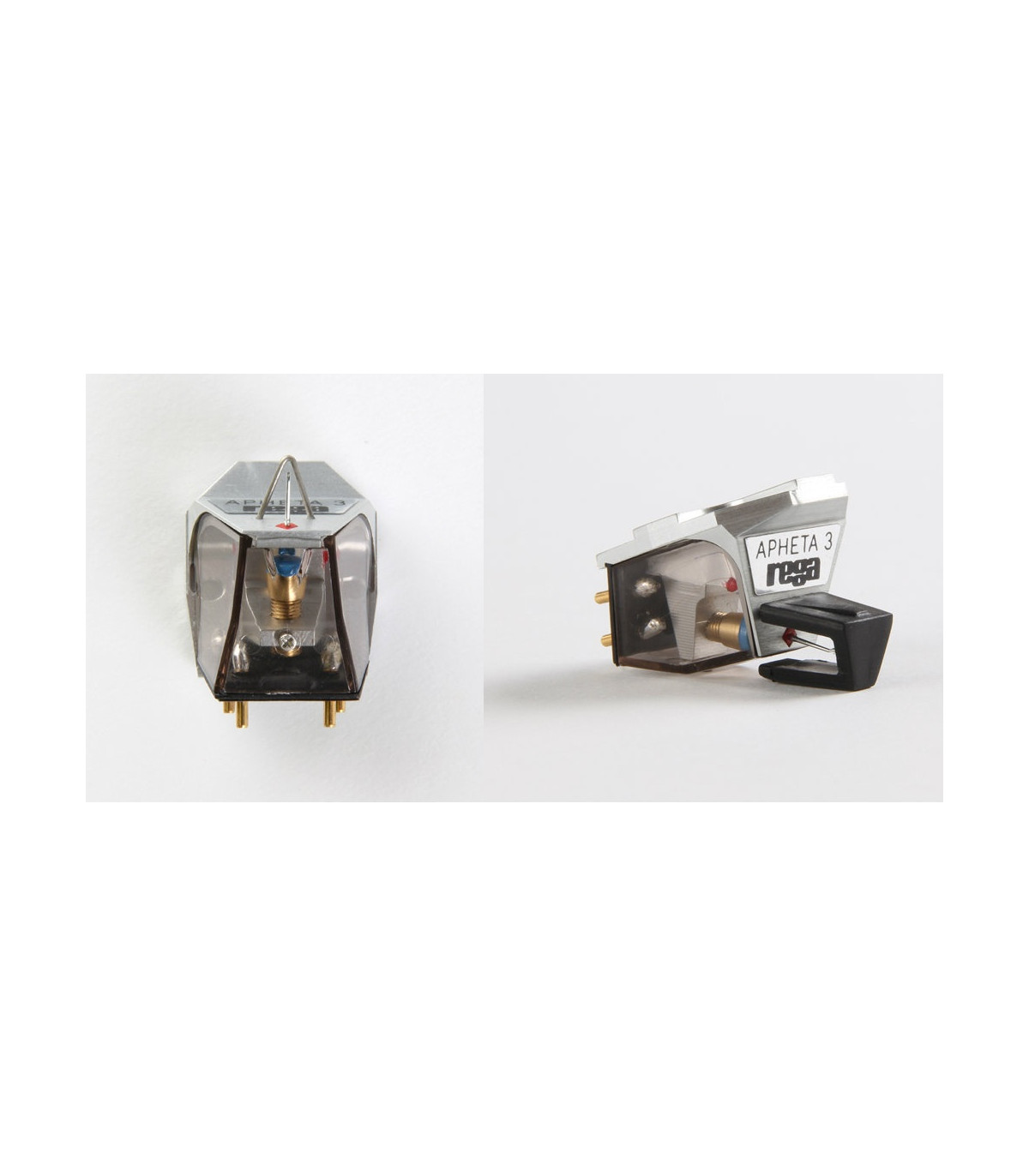

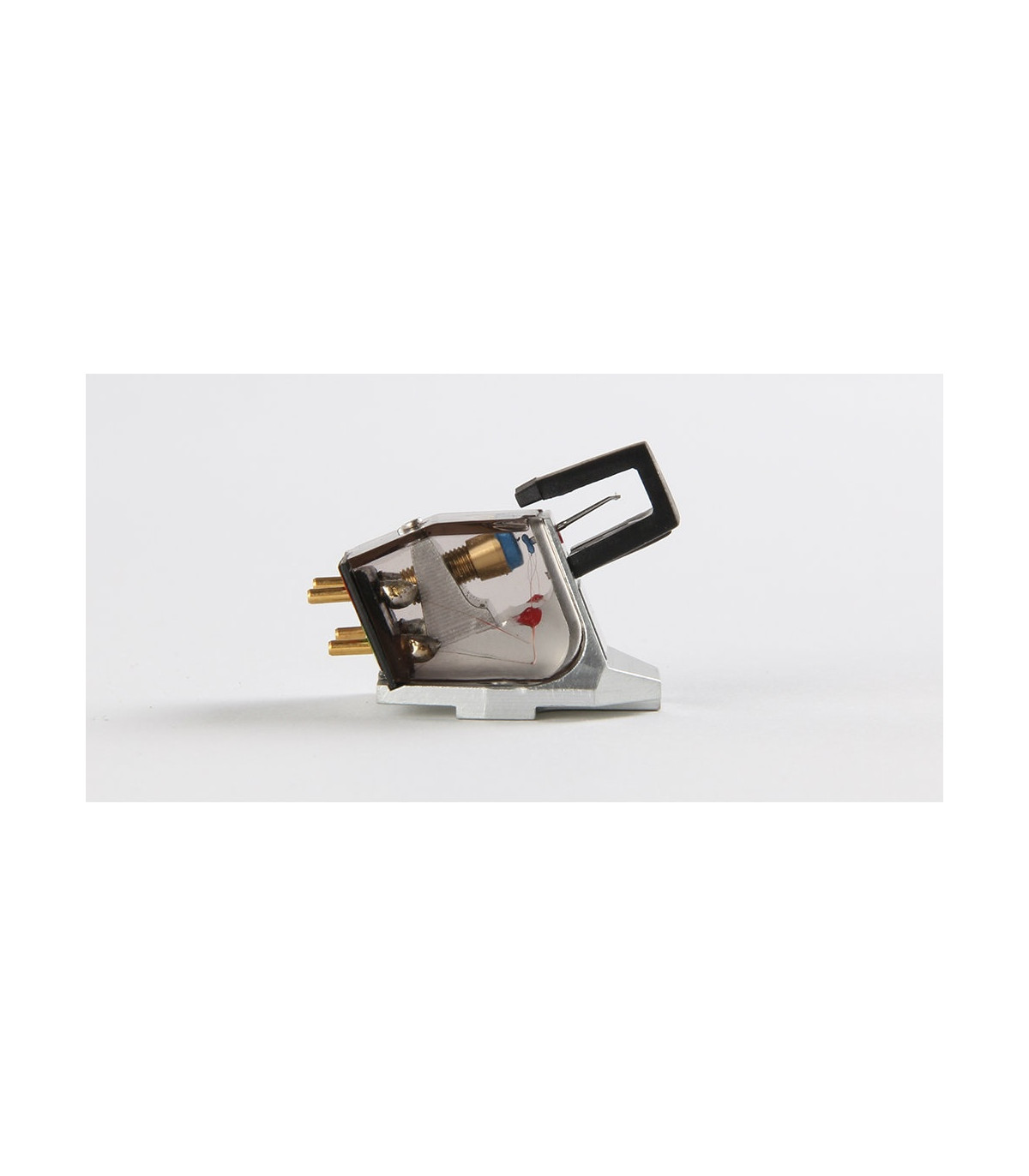

The Apheta 3 is housed within a completely redesigned, single piece, aluminium anodised body and protected by a CAD designed, smoked rigid cover to protect the internal fine wires, making handling whilst fitting, safe and risk free.

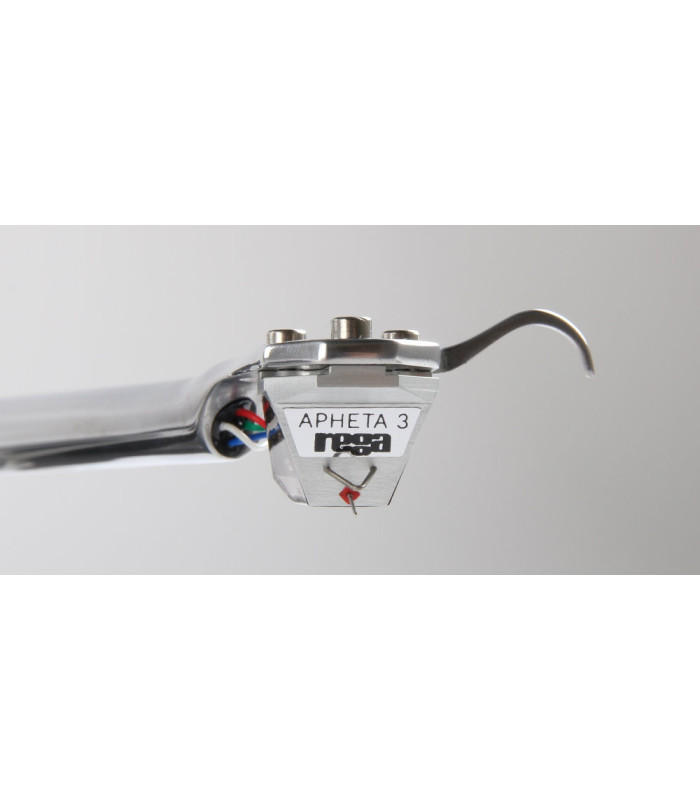

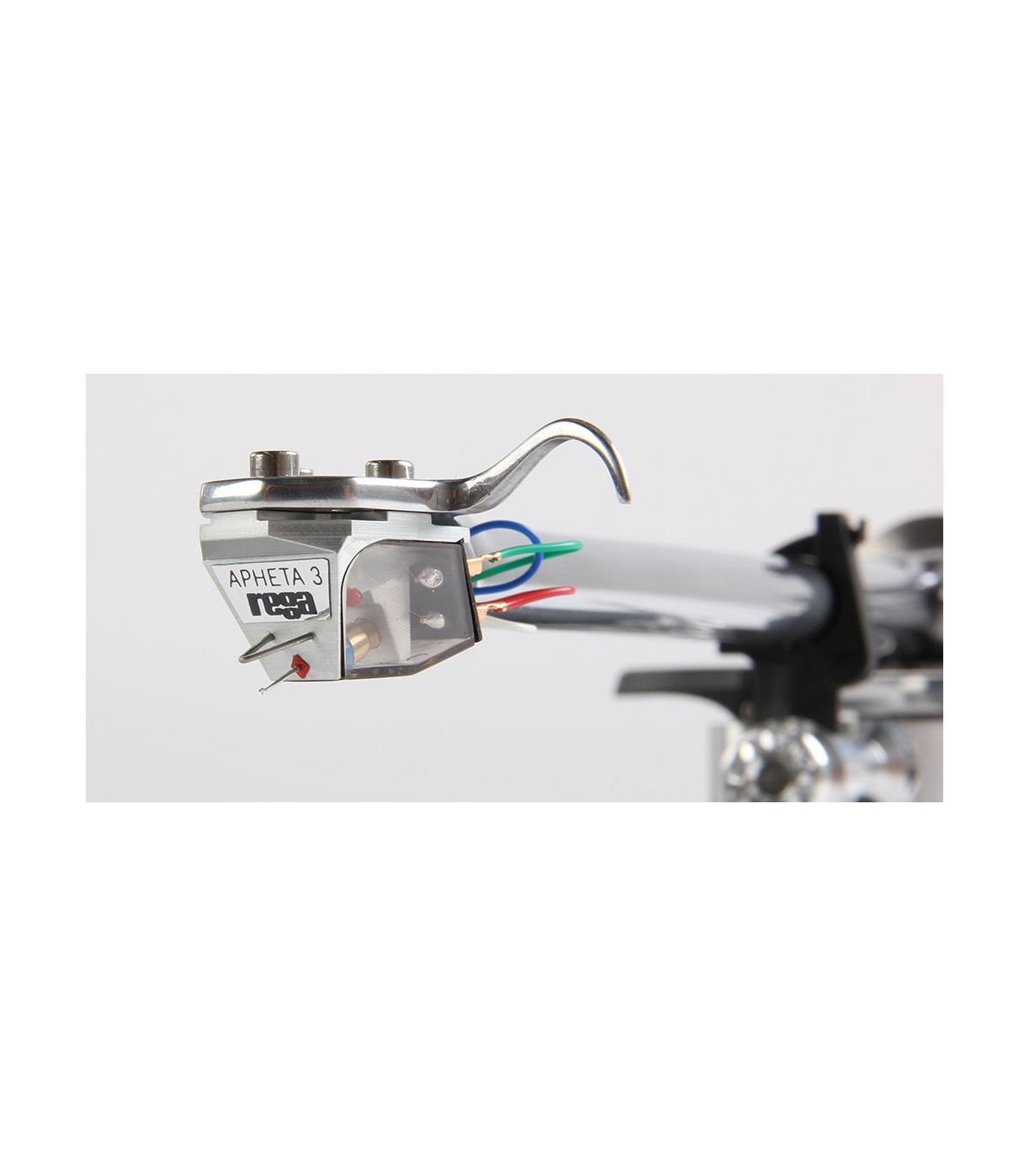

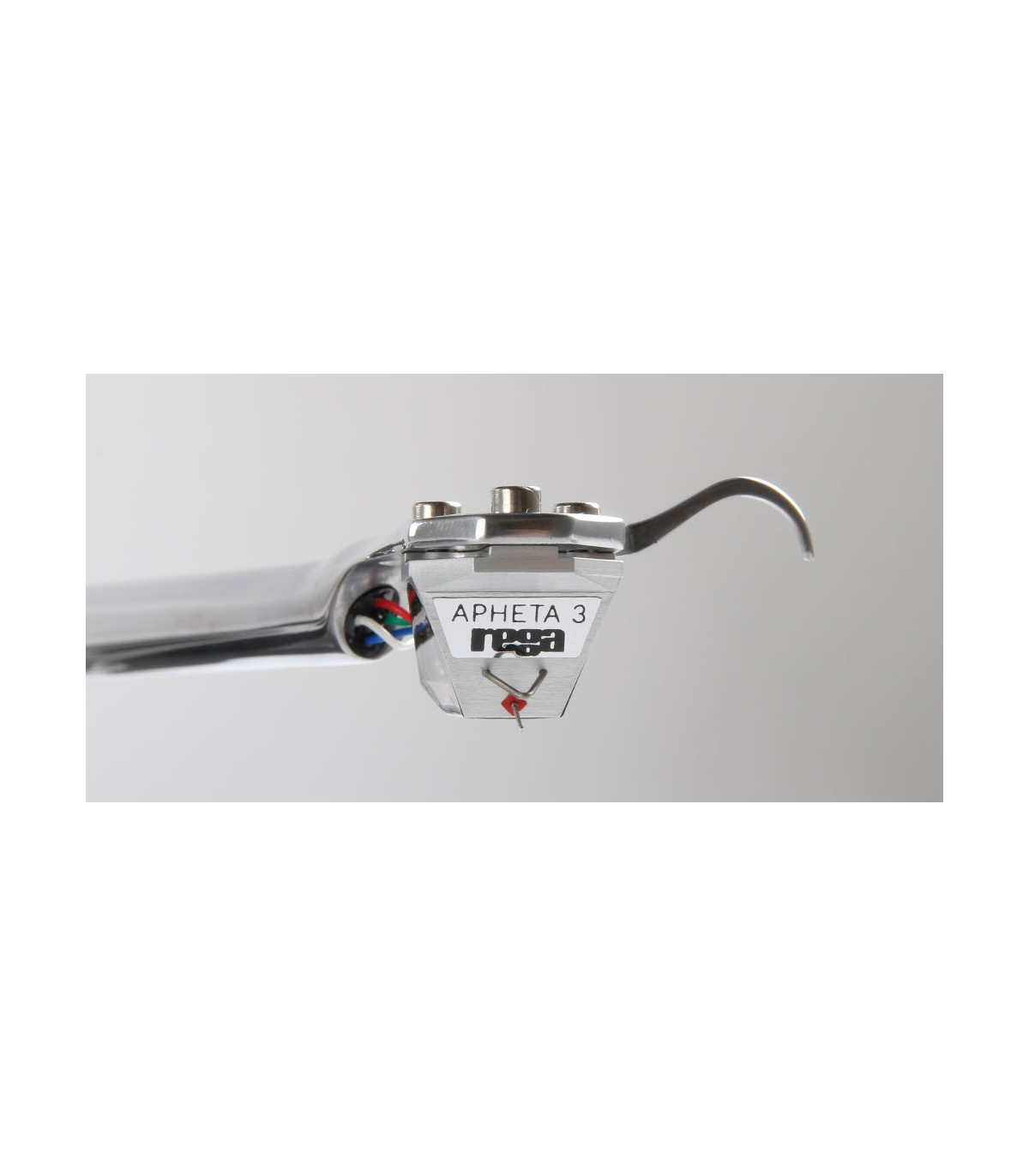

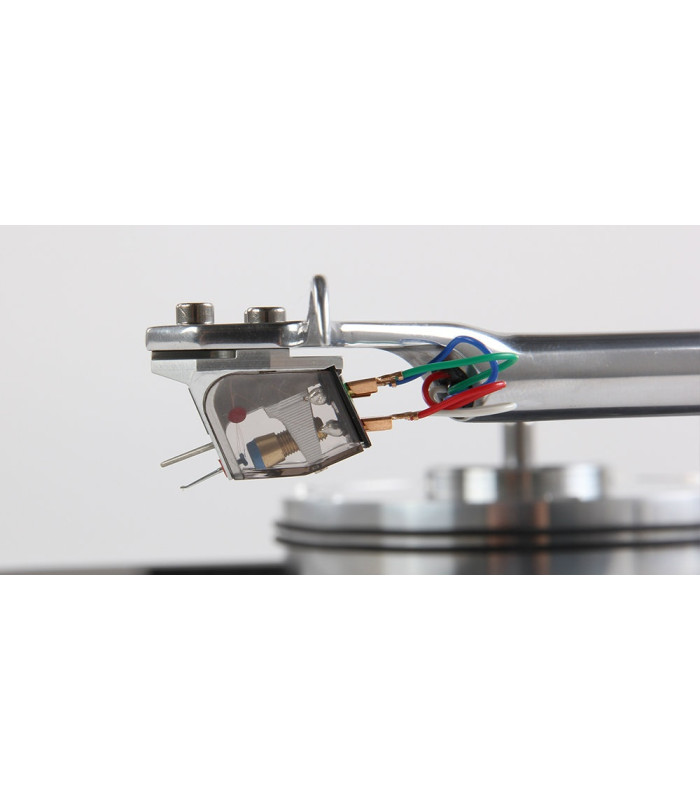

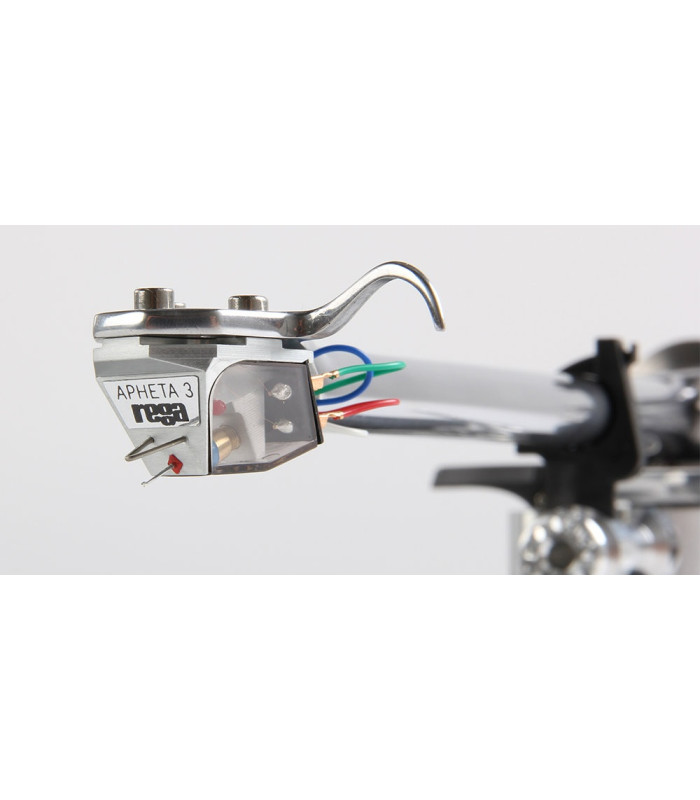

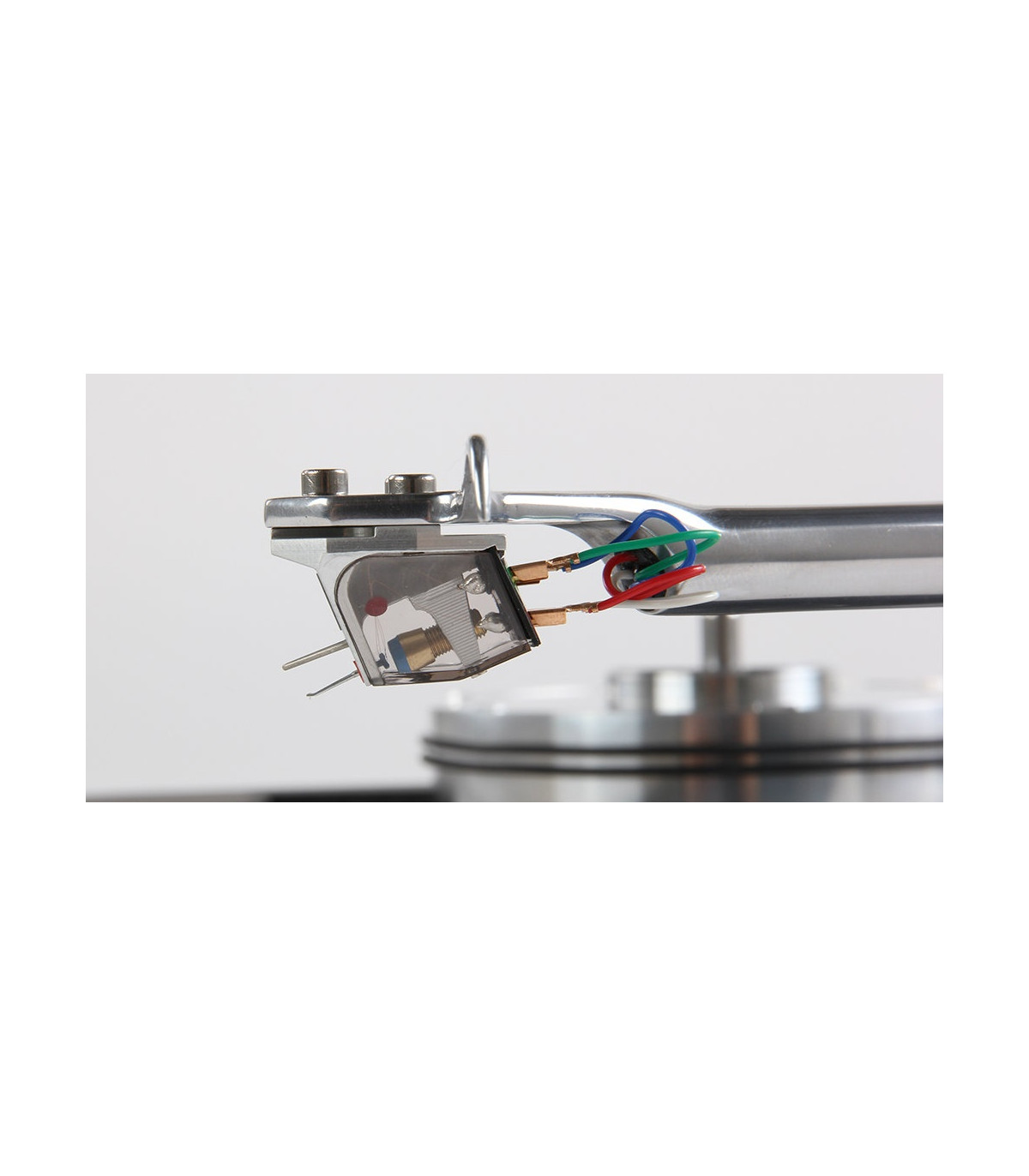

The Apheta 3 is the perfect partner for the latest Planar 8 and Planar 10 turntables. The Apheta 3 can be supplied factory fitted at a discounted package rate. Please ask your retailer for details.

A unique design.

Rega’s Moving Coil cartridge design is unique in its approach to achieving an ultra-low mass generator which is undamped (no tie wire) using a unique rhomboid pivot for the cantilever powered by a purpose designed, exclusive to Rega, Neodymium magnet system. This type of design requires a zero-tolerance engineered cartridge body which is Rega’s area of expertise and with the Apheta 3 these bodies are machined from one piece of the highest quality aluminium. This is a difficult and expensive process requiring all of Rega’s years of experience to achieve. In particular, the “zero” tolerancing of the body is required in the alignment and dimension of the pivot pad mounting hole and the magnet mechanism mounting hole relationship.

Conventional MC cartridges utilize a steel suspension system (tie wire) which creates a high amplitude H.F. resonance (normally around 8-12kHz). Such resonance is unacceptable and is usually damped by a rudimentary piece of foam rubber. However, the foam rubber deteriorates with age and cannot prevent the complete structure from vibrating and "ringing".The specifics and adjustment of the tie wire and damping determine whether the cartridge is under damped (bright) or over damped (warm and bass heavy).
A happy medium is rarely achieved.This encouraged Rega to pursue a new direction inspired by modern materials and the basic laws of magnetism. The Apheta 3 contains neither a tie wire nor a foam damper. Moving coil aficionados will all recognise the long search for super clear, high frequency combined with firm, tight bass, characteristics all Rega moving coils exhibit.

Specifications

Tracking Pressure 1.9 - 2.00g
Input load impedance 100 ohms
Output impedance 10 ohms
Nominal output voltage 350μV
Channel Balance : ≥ 20μV
Separation : ≥ -29dB

Mass 6g

Key Features :

Iron cross & coil assembly 50% smaller than the original Apheta .
One of the world's smallest MC generators.
Cutting edge neodymium magnet.

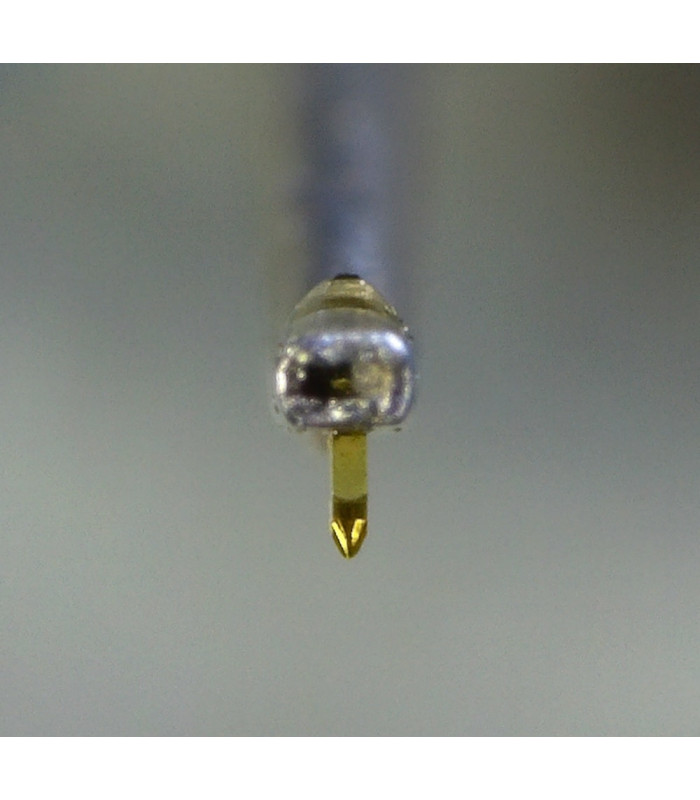

Fine Line profile nude diamond stylus.
High specification fine wire.

Load settings for adjustable MC stages

Impedance -100ohm
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages)


Designer

The first Rega - A star is born

Roy was now working for Ford as a technical editor but spent most of his free time installing friend's hi-fi equipment and building loudspeakers to sell. He became a part time retailer and found he had to spend a ridiculous amount of time repairing new turntables before his conscience and common sense would allow him to sell them to others! Out of frustration and a strong feeling he could do better, the Planet turntable was born. Roy and a partner registered "Rega" (Tony RElph, Roy GAndy). In 1973 and for a couple of years, Roy stayed at Ford and made turntables in the evening, helped by his partners: mum (who agreed to help out for two weeks and stayed for fifteen years!) and a succession of lads. The first turntables were sold through Cosmocord in the UK and a year later under the Rega name in West Germany, Denmark and France.

Roy was now able to leave Ford; he collected a redundancy check and promptly blew it on a factory in Rochford. Soon after the partnership with Tony Relph split, Roy swapping his share of Rega. Terry Davies joined as Rega's financial administrator.

In 1975 the Planar 2 was developed and quickly took its place in the market as the finest budget turntable. In June 1977 HI-FI News and Record Review announced the Planar 3 saying "The complete unit is worth a look"! Rega's usual blaze of non-publicity.

By 1980 Rega employed thirteen staff, exported to twelve countries, had twenty UK dealers and there were those dreaded 'waiting lists', mainly by eager customers shop-hopping!

 In 1980 Roy found an old mill (Park Street) in a residential area in Westcliff-on-Sea, Essex. The building had been deserted for twenty years and judging by the rot, seemed to have a millstream still running through it! Rega snapped it up for £30,000 and turned it into a compact but highly functional hi-fi factory, liberally painted bright green.

In 1983 after five years of dabbling and two years of intensive development, the RB300 and RB250 tonearms were produced. For ten years Rega had used Japanese and Danish manufactured arms on the turntables but after some searching Roy found a casting company prepared to work with him to develop an entirely new production method enabling the one-piece tube to be cast.

Rega won an international award for the RB300 casting, presented by Modern Metals 'awarded in open competition for excellence in the field of Aluminium Die Casting'. In their accompanying letter they wrote: 'we are still trying to figure out how you produce such a long cored hole so accurately'. This made up for never winning any prizes breeding budgies!

For five years, Rega sold a cartridge, the R100, made to specification in Japan. This was followed by the RB100, which was designed and developed by Rega. However, the cartridge had inevitable design limitations as it was being manufactured by an outside company.

In March 1988 the Bias and Elys cartridges went into production in house and sales exceeded 1000 in the first month, five times more than anticipated! The cartridges were a vital step on the way to a complete Rega system.

Completing the system...

In the summer of 1989 the Ela loudspeaker was introduced. Designed and developed at Rega, they were originally produced in Denmark but soon thereafter were manufactured in house.

In 1991, a period of dramatic expansion was heralded with the move into the world of electronics and the launch of two amplifiers, the Elex and the Elicit. The reason for producing these two amplifiers was simple; Rega was presented with a design it could not resist! Most importantly, the amplifiers fit into the company policy - which is to manufacture high quality, specialist hi-fi components that are reliable, consistent and sensibly priced. This development completed the Rega system.

A new factory was built in 1992 on the Temple Farm Industrial Estate in Southend-on-Sea under Roy's design and guidance to house the production of loudspeakers and amplifiers and to ensure room for further developments.

2014....

Over the past 40 years we have come a very long way. Now selling to more than 40 export markets and producing on average 2000 turntables alone every month, Rega now employ's almost 90 people in our purpose built 30,000 sq ft design and manufacturing facility in Essex, England.

Rega continues to grow and develop new products, all of which strictly follow those early Rega virtues of excellent build quality, long life and amazing value for money all backed up by a lifetime warranty against manufacture defects.
