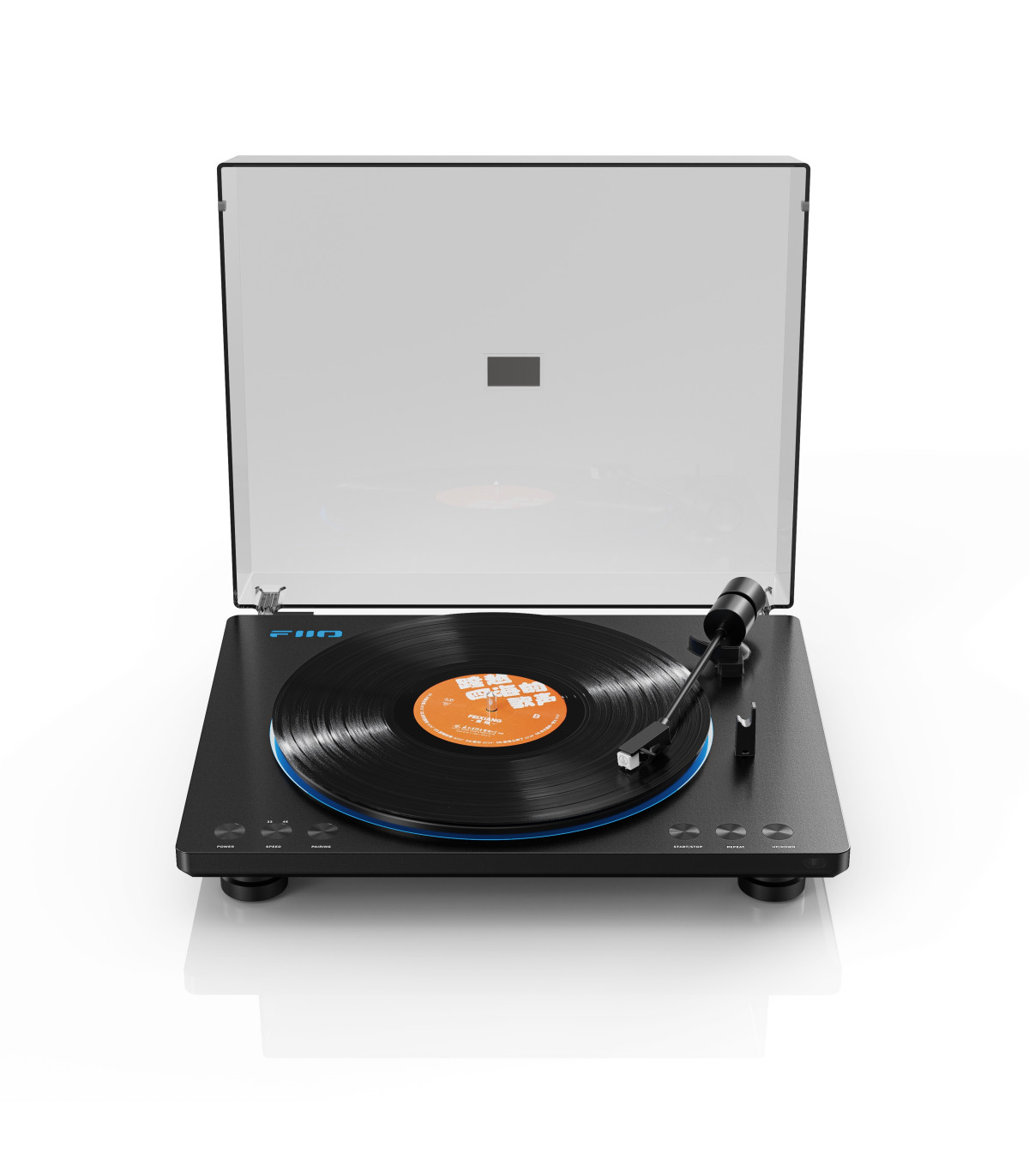

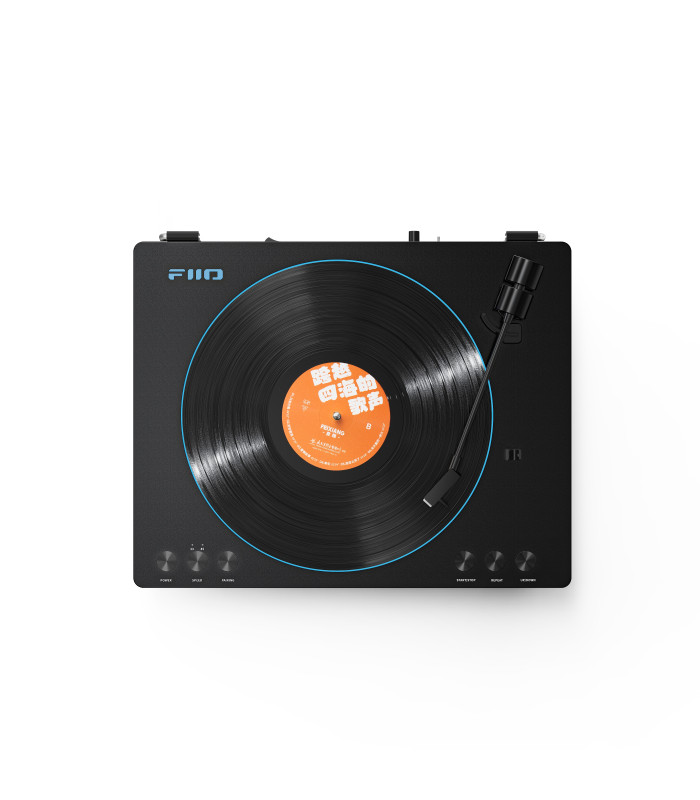

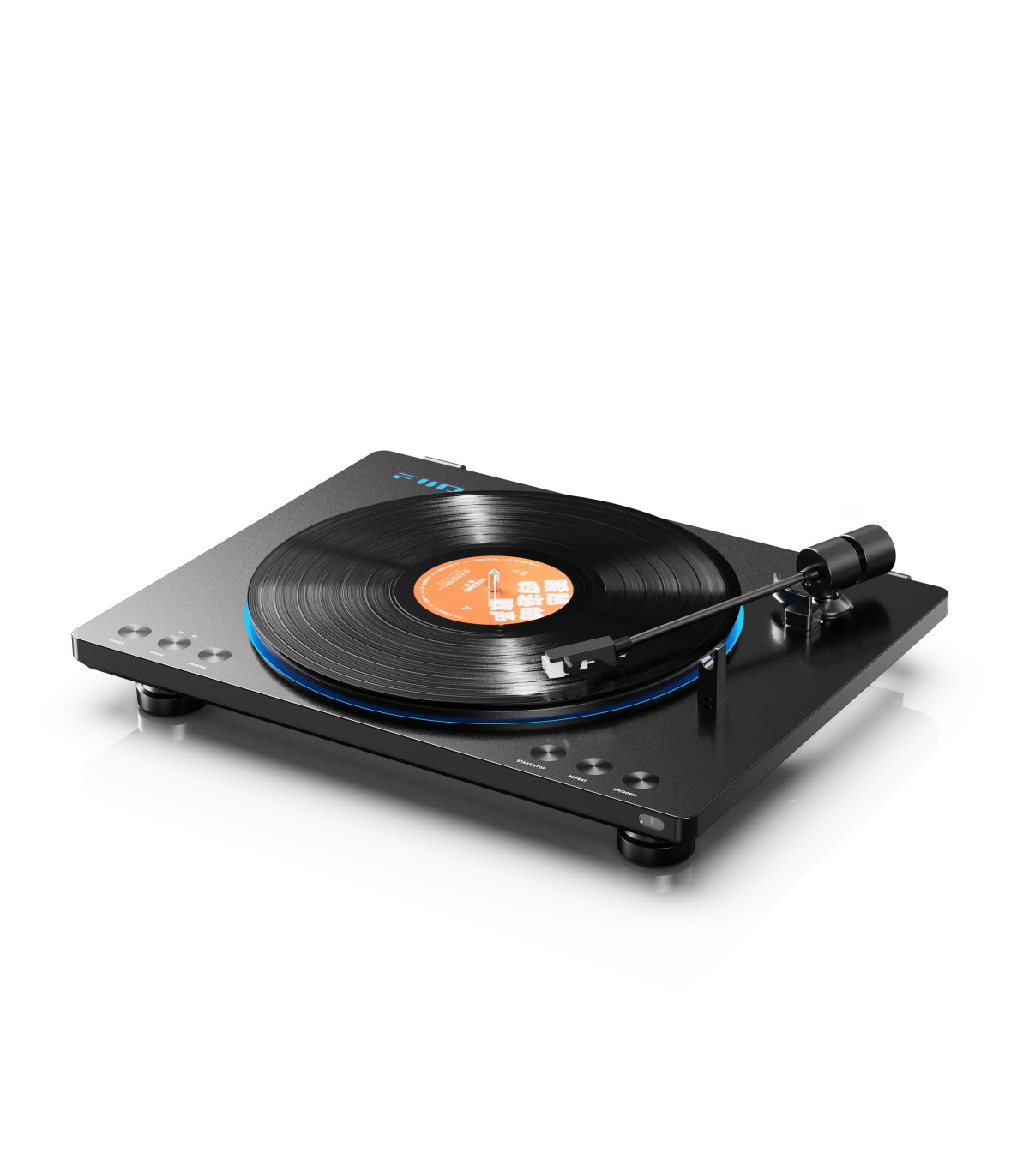

FiiO TT13 Fully Automatic Vinyl Turntable

FiiO TT13 Fully Automatic Vinyl Turntable

• Vinyl stereo turntable
• Removable dust cover
• Die-cast aluminium platter
• Fully automatic tonearm
• Analogue audio architecture
• Built-in high-performance phono preamplifier
• Aluminium alloy front panel
• 7 switchable light effects
• DC/AC dual power supply
• Infrared remote control
• External balance adjustment
• aptX/aptX LL/ aptX HD Bluetooth transmission

Fully automatic tone arm
By pressing the start button, the TT13 automatically raises its tonearm to the beginning of the record and starts playback, pressing the stop button stops playback and the record returns to its original position. Instead of restarting the record manually, you can also set the TT13 to automatic repeat.

Pure analogue sound
The audio section of the TT13 is equipped with a fully analogue audio architecture that includes two imported classic high-end operational amplifiers, JRC5532, arranged in a two-stage cascade amplifier circuit. This ensures that each stage operates within the optimum gain range. Combined with multiple electrolytic capacitors and an independent LDO power supply, the circuit has lower noise, resulting in a purer sound and a more pronounced analogue character.

Built-in high-performance phono
The TT13 has a built-in professional power amplifier circuit that has been fine-tuned by engineers to provide a line output level of up to 800 mV at 1 kHz 0 dB. This provides a stronger output power compared to similar products, while also providing a better signal-to-noise ratio and isolation. The TT13 can also be easily used with powered speakers, eliminating the need to buy a separate phono preamplifier and significantly reducing the cost of building a turntable system.

All-aluminium alloy
The precision polished metal plate offers a luxurious feel and exceptional noise immunity, effectively shielding against external interference. The entire unit is equipped with a visibly solid and stable design, weighs almost 4kg and is equipped with sturdy feet that provide excellent shock resistance, effectively preventing minor vibrations in the environment from affecting sound quality and ensuring stable audio signal transmission.

Specifications:

• Model - TT13
• Colour - Black/White/Silver
• Dimensions - 450 x 350 x 114 mm
• Wow-and-Flutter Effect - <0.15% WRMS (33 1/3 rpm), 3 kHz
• Bluetooth transmission 5. 2 - SBC/aptX/aptX LL/aptX HD
• Recording size - Switchable 7 and 12 inch
• Remote control - Supports infrared remote control (only the one included)
• Ambient light - Purple/Red/Orange/Blue/Cyan/Green/White/Off switchable
• Operational amplifier:
• JRC5532 x2 Bluetooth
• DAC: QCC3040
• Weight - 3850g
• Cartridge - Audio-Technica AT3600LA
• Low noise special motor Pickup arm material - Brass + spray paint
• Speed - Switchable between 33rpm and 45rpm

Buttons and connectors:

• Buttons - Physical buttons (power on/off, speed control, Bluetooth pairing, play/pause, repeat, tonearm up/down
• LO connector - Standard RCA connector
• Toggle switch - Tonearm size switch
• Rotary knob - Output balance adjustment knob
• Ground connector - RCA connector (black)
• Power supply - AC100-240V~50/60Hz or DC 12V/<1A (Note: Please switch off the power switch when using the DC power supply)

Audio parameters:

• Output amplitude - L+R <800mV+800mV (1kHz/odB recording)
• THD+N - <3.5% SNR - <75dB (A-weighted)
• Noise floor - <150uV (A-weighted)
