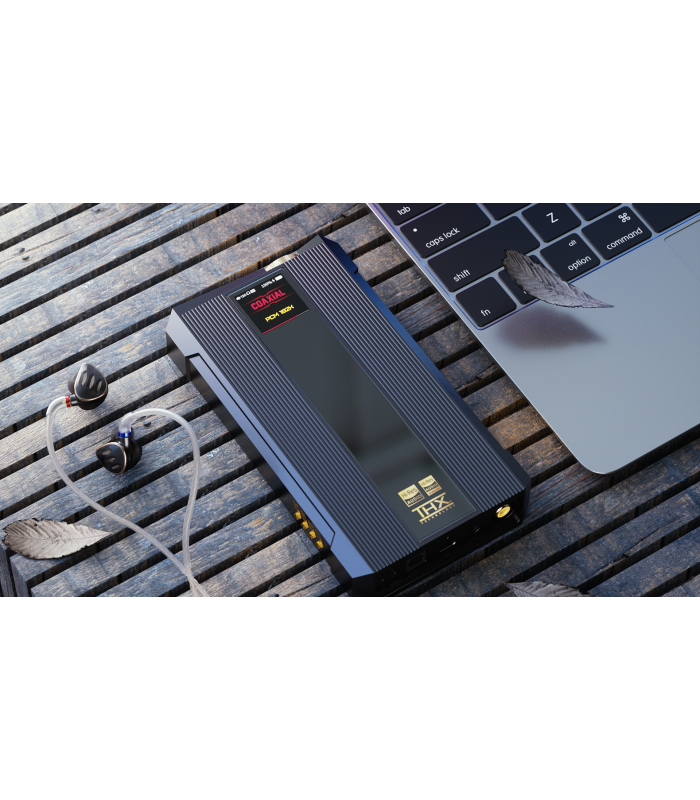

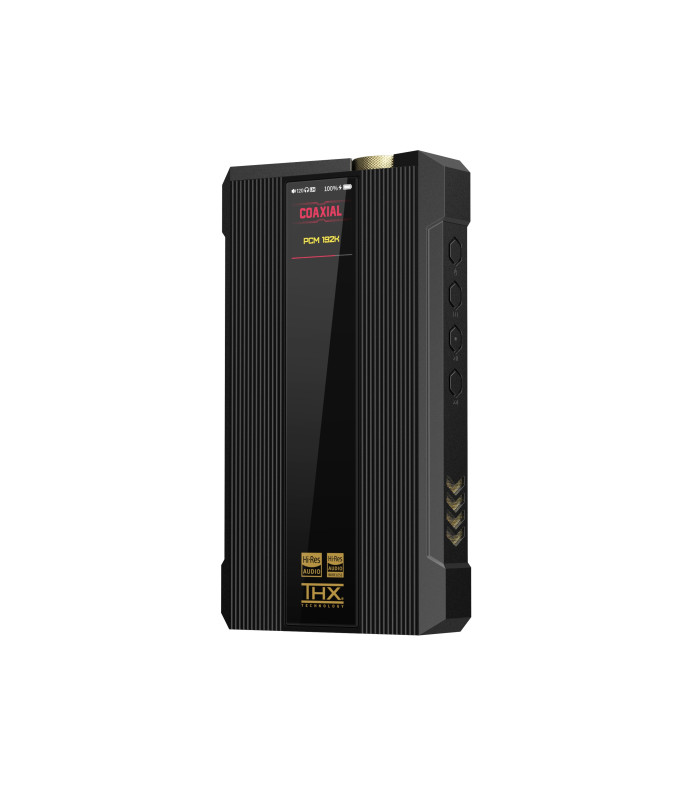

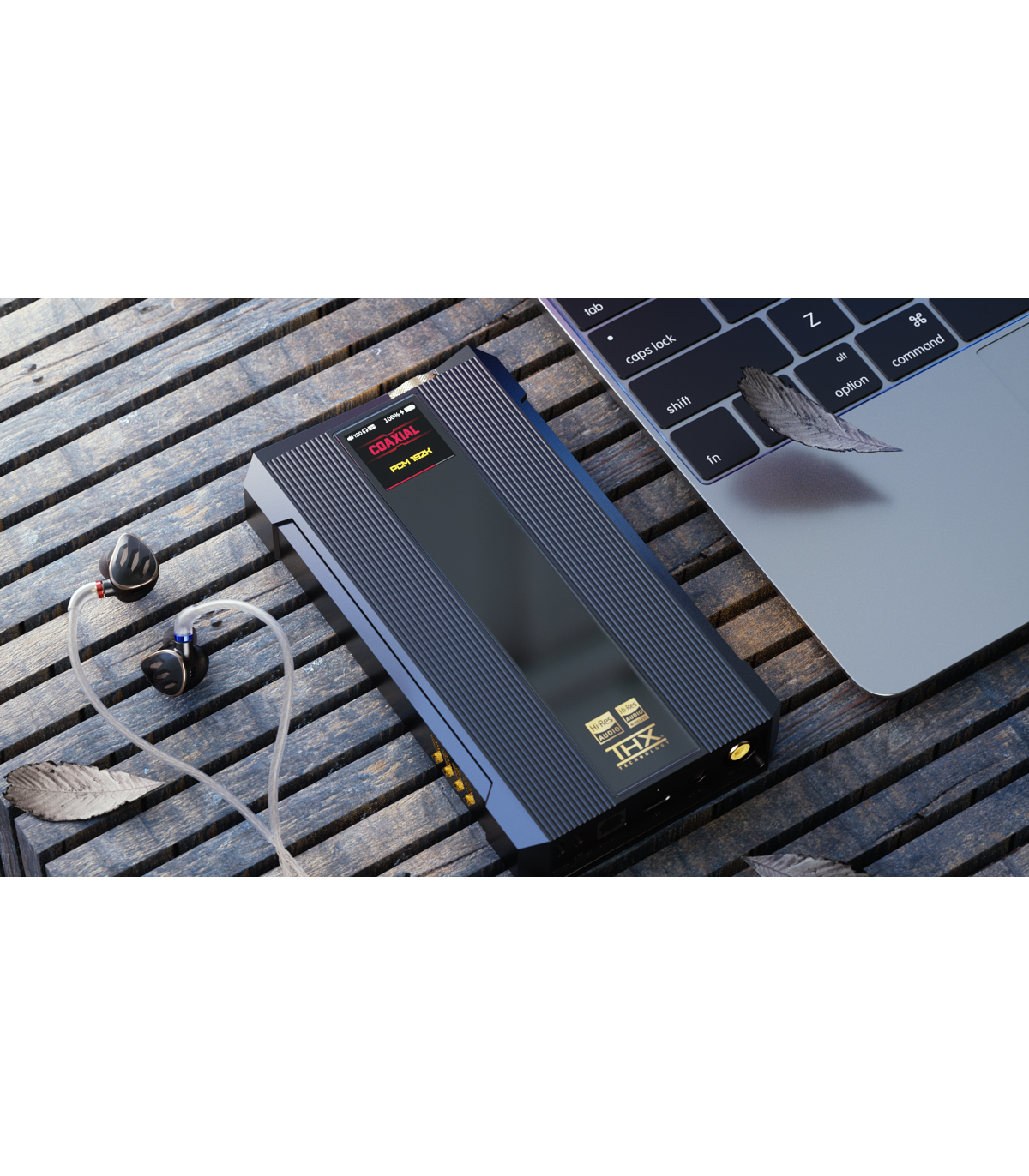

FiiO Q7 Portable Headphone Amplifier DAC ES9038Pro

3000mW output power
Fully-balanced THX AAA 788+ amplifier
Dual portable/desktop power supply modes
Numerous inputs and outputs
High-end XMOS XU316 + ES9038PRO + QCC5124 configuration
Self-developed digital control core
Next-gen mech design

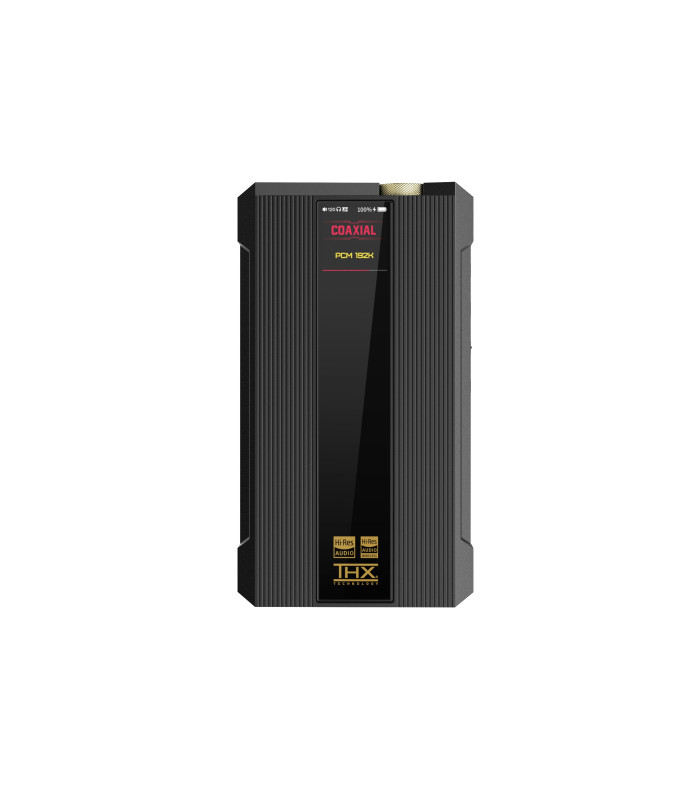

1.3” color IPS display
Multiple intelligent protection systems
Bluetooth 5.0
MQA
Hi-res audio wireless
Hi-res audio

Combining desktop and portable rigs like never before

Like the M17, the Q7 is a portable DAC/amp packed with parts designed for desktop DAC/amps, making it a true fusion of portable and desktop. The Q7 redefines what a portable amp can be and sets a new benchmark, not only for FiiO portable products but for all portable audio products.

Incredible desktop-level power

While portable in size, the Q7 features desktop-level amplification. In portable mode, it can output up to 1500mW. In desktop mode it gets a massive 100% boost, outputting 3000mW of power.

Desktop-tier THX AAA 788+ amp

The THX AAA 788+ amp, originally designed for desktop usage, is featured in a 4-way truly balanced amplifier circuit. With five levels of mixed gain, the Q7 can effortlessly power all kinds of headphones for a pure listening experience.

Desktop-level connectivity

The Q7 is equipped to handle any situation, with USB; optical and coaxial inputs; 2 single-ended outputs; 2 balanced outputs; and an LO outputs.

FiiO digital control core

Upgraded in the Q7, FiiO’s self-developed digital control core center is powered by an ARM Cortex M4 processor, which efficiently handles tasks such as clock management, USB decoding, and optical decoding to optimize sound quality. To further enhance sound quality, the digital and analog sections are physically separated on different boards with shield covers to achieve an extremely pure sound for a superb listening experience.

Specs

DAC: ESS ES9038PRO
USB: XMOS XU316
Amp: THX AAA 788+ x2
Bluetooth chip: QCC5124
Weight: 620g
Dimensions: 158.4 x 88.5 x 28.3mm
MQA: 8x
Gain modes: Ultra high (DC mode), Super high, High, Medium, Low
Screen size: 1.30”
FiiO control: Yes
Channel balance: <0.2dB
Bluetooth 5.0 codecs: AAC, SBC, aptX, aptX LL, aptX adaptive, aptX HD, LDAC
Maximum supported sampling rate
- USB DAC: 768kHz/32bit, DSD512 (Native)
- Coax: 192kHz/24bit, DSD64 (DOP)
- OPT: 96kHz/24bit
Recommended headphone impedance
- PO: 16-150Ω
- BAL: 16-300Ω
USB: Type-C USB 2.0

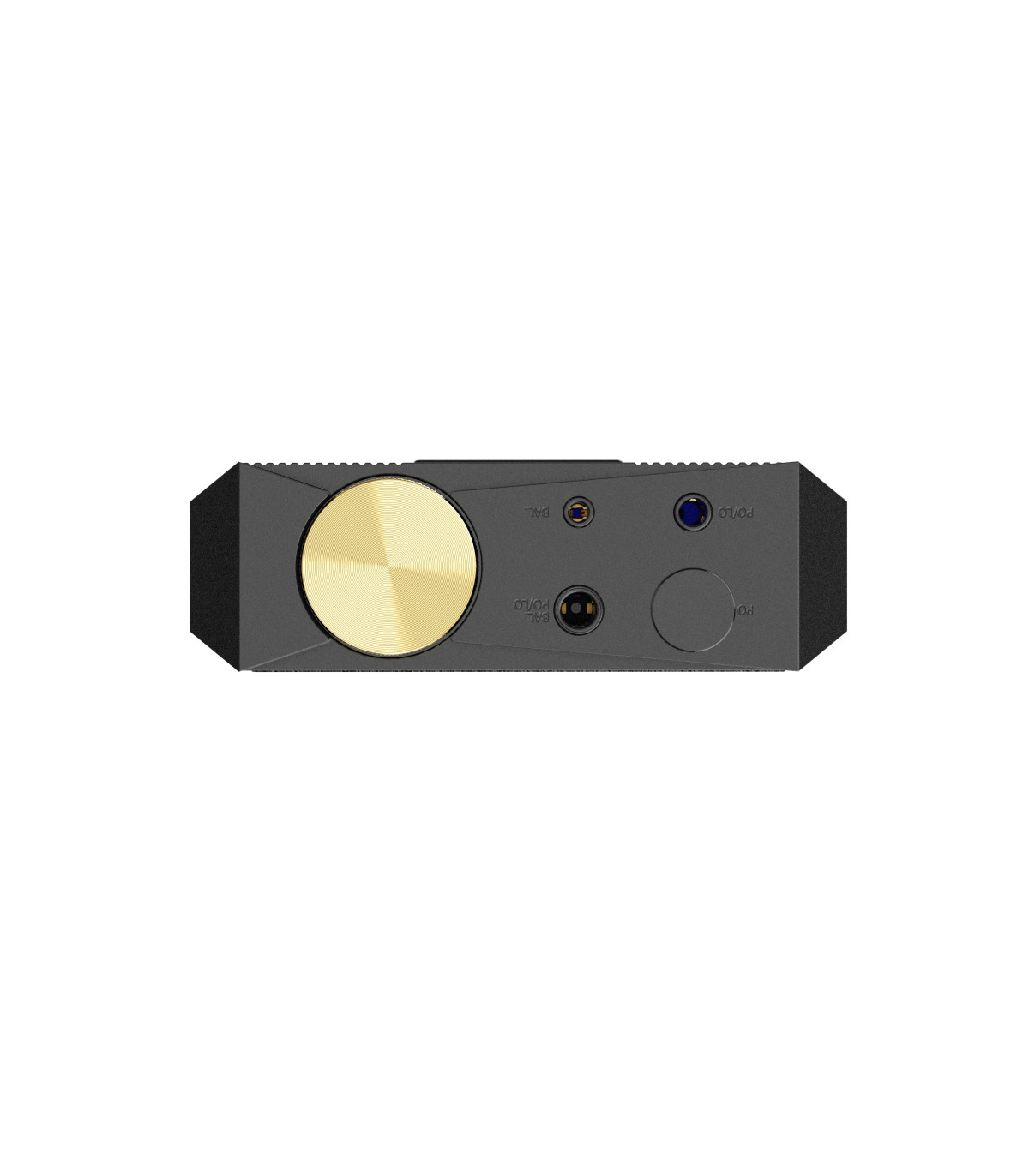

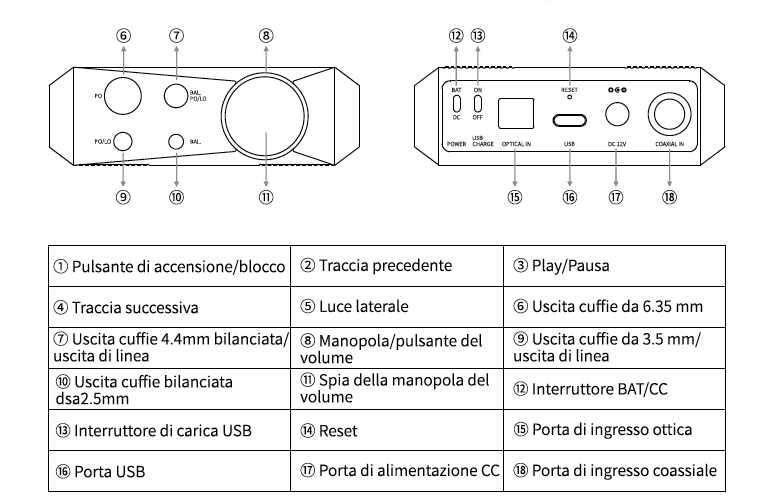

Outputs
- 3.5mm SE
- 6.35mm SE
- 4.4mm BAL
- 2.5mm BAL
- 3.5mm SE LO
- 4.4mm BAL LO
- RCA Coax out
Inputs
- Toslink Optical
- USB
- Bluetooth 5.0
Power supply: 9V (quick charge), DC 12V/2A
Battery capacity: 9200mAh lithium polymer battery
Battery life
- 3.5mm SE: >11 hours
- 4.4mm BAL: >9 hours
- 3.5mm SE: >11 hours
- 4.4mm BAL: >9 hours
Maximum output performance parameters
- Output impedance: <1.2Ω
- SNR: >128dB
- Frequency response: 20Hz - 20kHz
- Crosstalk: <114dB
- THD+N: <0.0003%
- Noise floor: <4.5uV

List of item included:

FiiO Q7

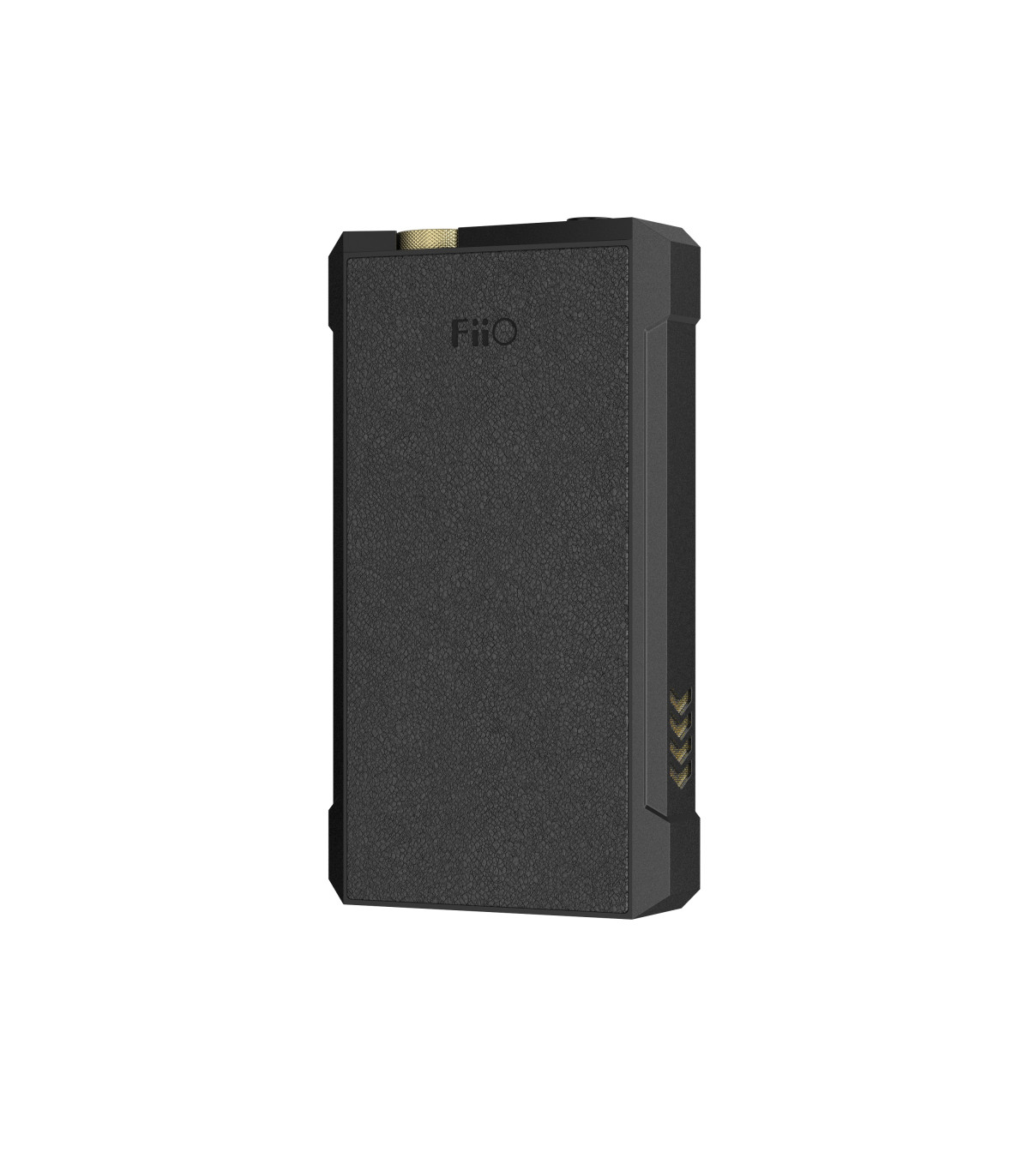

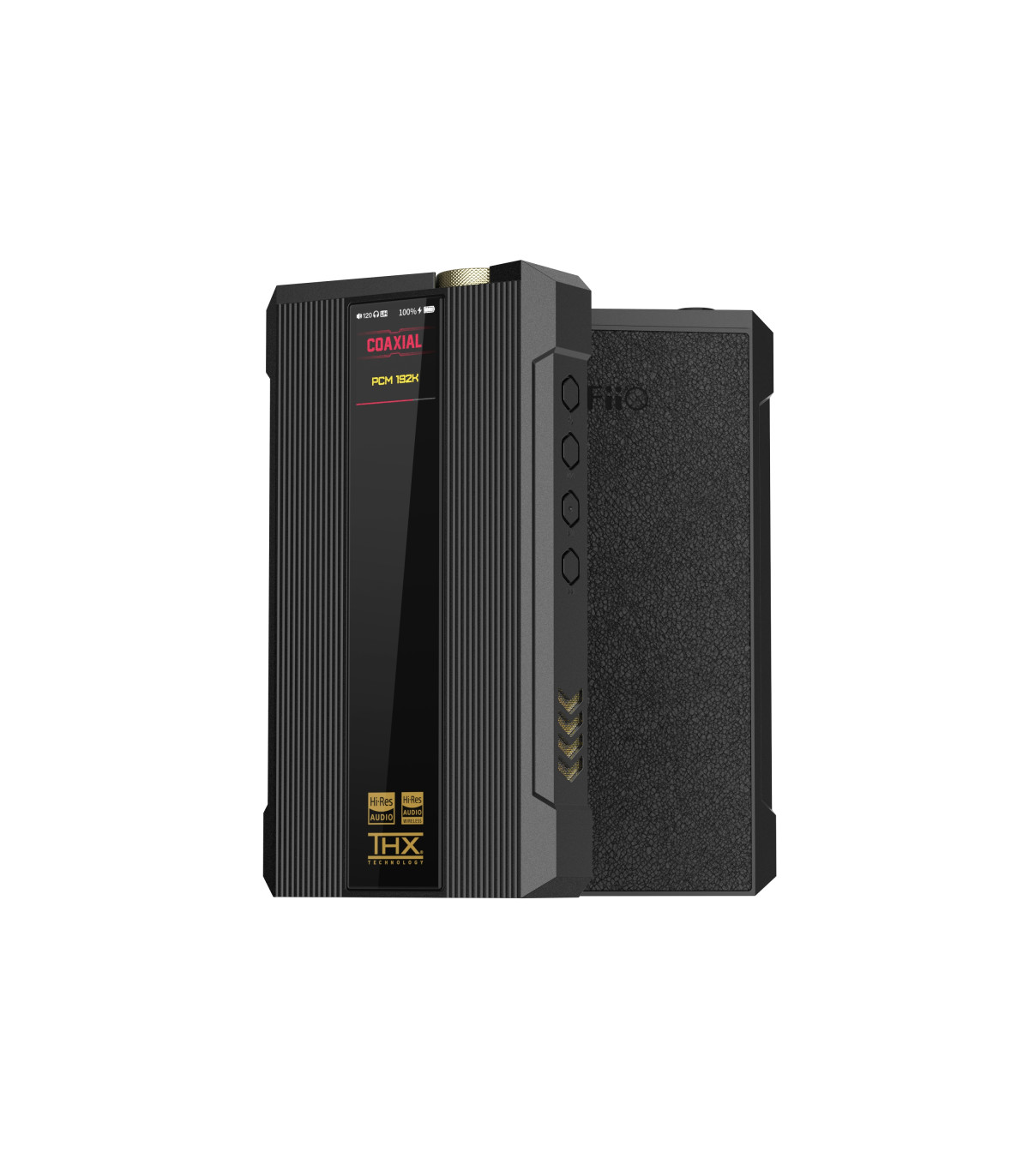

Leatherette case
Cooling stand
USB power cable
Power adapter
AC power cord
USB adapter
Type-C to Type-C data cable (long)
Type-C to Type-C data cable (short)
Lightning to Type-C cable
Quick start guide
Warranty card
