Violectric HPA V340 Balanced Headphone Amplifier

Violectric HPA V340 Balanced Headphone Amplifier

Violectric HPA V340 Balanced Headphone Amplifier

Reference:

2498

Condition:

New

Read moreShow less

€1,890.00 (tax incl.)

In Stock

Quantity

Brand:

Violectric

Add to wishlist

Description

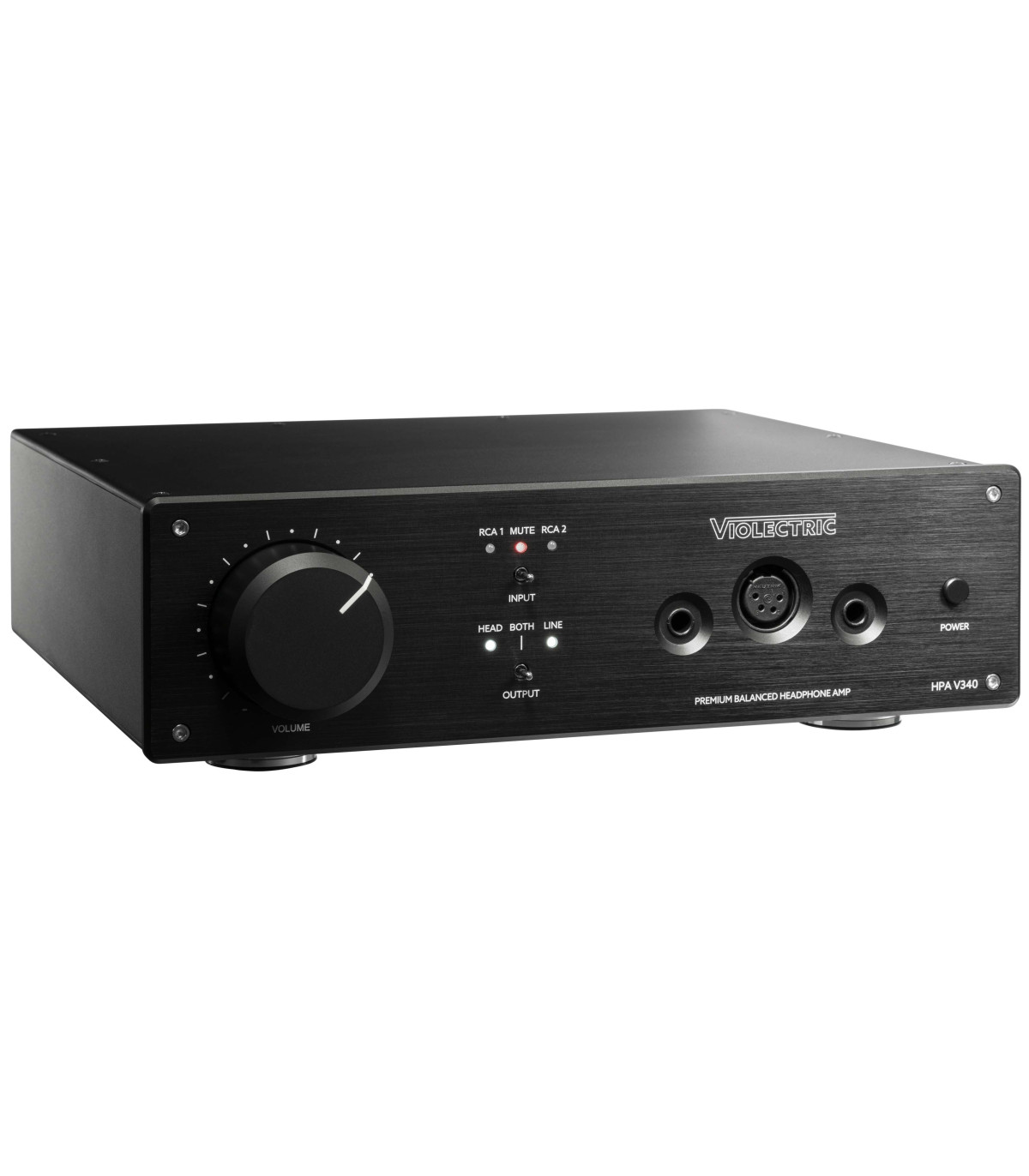

The HPA V340 is a new top device in the Violectric range. It offers a powerful balanced headphone amplifier and a pre-amp function.

The latest findings from the multiple test winners from Lake People, Violectric and Niimbus were implemented in the headphone amplifier. Because of its matchless technology HPA V340 not only offers one of the most powerful headphone amplifiers in the market, but also:

Basically it is based on the low-noise circuit of its big brother Violectric V550, which costs a third more and has a few more features such as a balance controller.

LOWEST NOISE - through a very small amount of internal gain. This makes the amplifier's self-generated noise inaudible.

HIGH OUTPUT VOLTAGE - through 50 V internal operating voltage. Therefor ideally suited for high-impedance headphones deserving high output voltage swing.

HIGH OUTPUT POWER - thanks to powerful amplifiers that offer far more power even the most demanding headphones would need. So best suited for headphones with low impedances as well as magnetostatic headphones !!

HIGH DAMPING FACTOR - due to lowest output impedance. Therefor the ideal match for difficult to drive headphones without negative side effects and with the guarantee for a uncompromising frequency response.

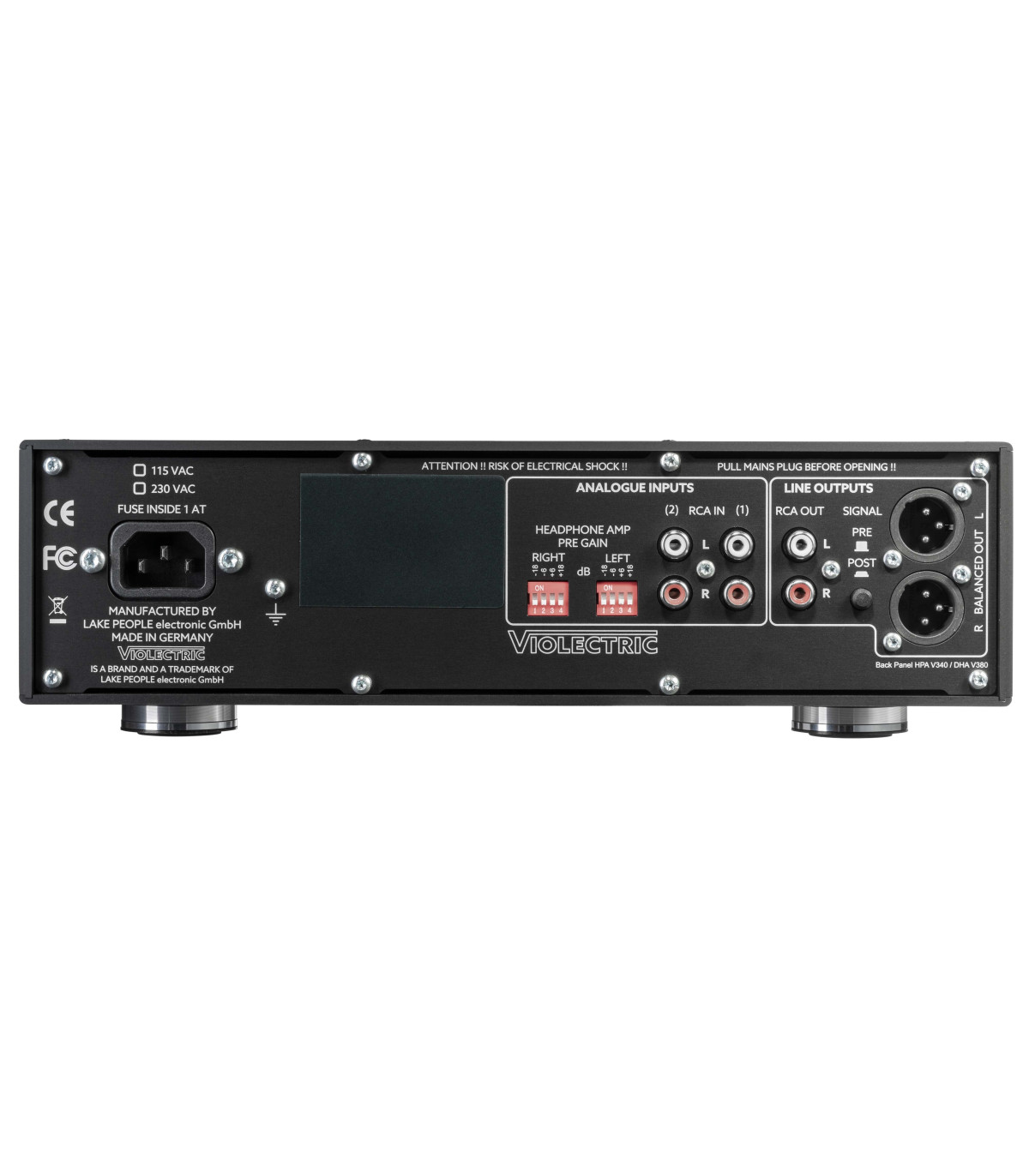

INPUTS

2 analogue inputs: 2 x RCA

POWER and NOISE

8 dB less noise than the V281
2 x 15 Watt PSU, switchable between 115 and 230V
Gain factor 0 dB unbalanced, 6 dB balanced
Extended pre-gain settings via DIP switches: -18, -12, -6, 0, +6, +12, +18 dB, same for the line out

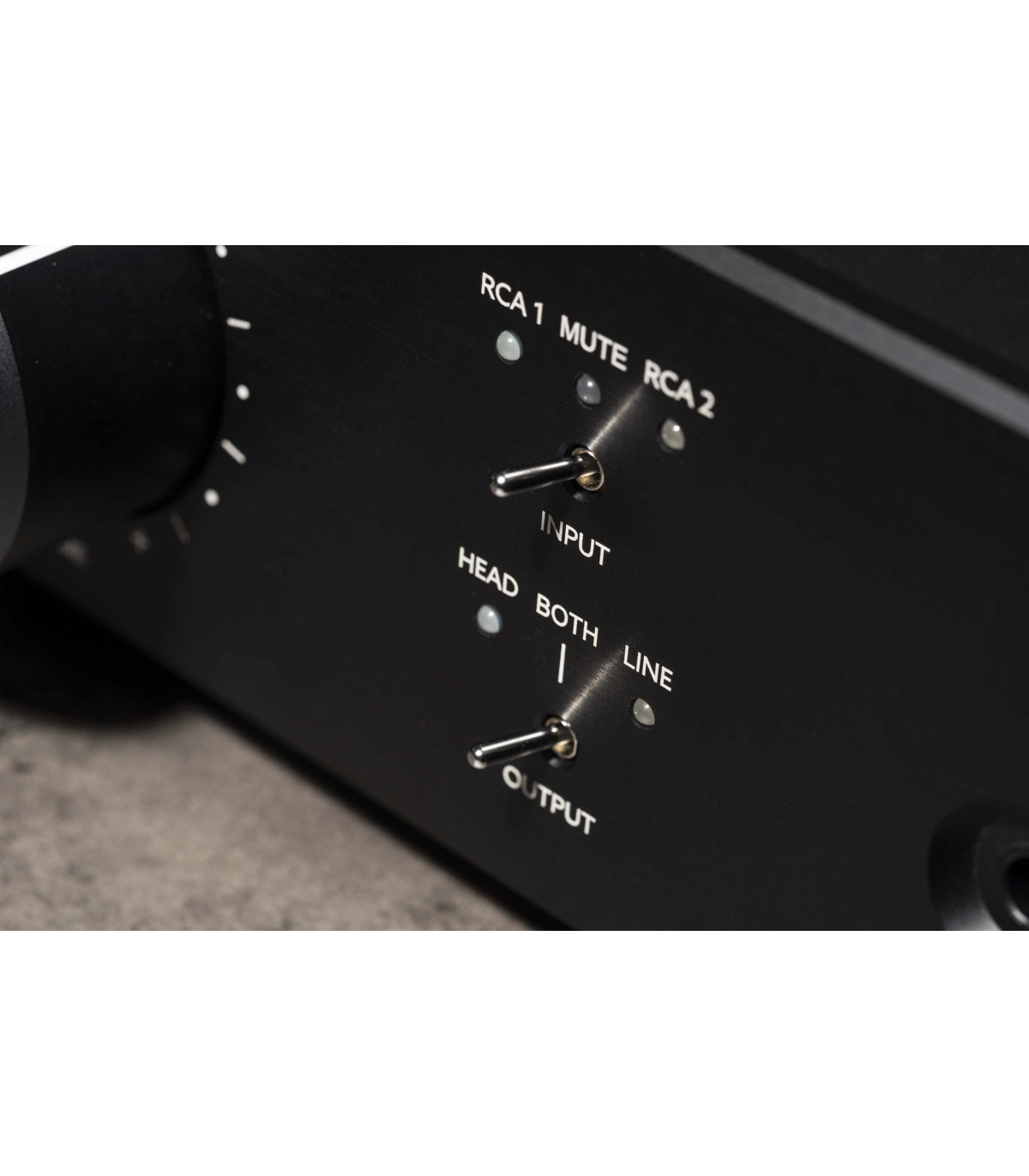

Pre and post fader now work via the push of a button on the back and not via software control
Max output voltage (balanced output, both channels driven): 32 Volt = 1.8 Watts @ 600 Ohm
Maximum power (balanced output, both channels driven): 5 Watt @ 50 Ohm
Noise -100 dB/THD+N – 102 dB
Output impedance < 0,2 Ohm
Damping factor > 250

DIMENSIONS
(WxHxD) 290mm x 80mm (90 with feet) x 250 mm
Front, Back: 8 mm/3 mm Aluminum, black anodized
Case: 3 mm/4 mm Aluminum, black anodized

Read moreShow less

Product Details

Reference 2498

Specific References

EAN13: 7426923823879

Designer

Introduction to Violectric

... is a trademark and product line of Lake People electronic GmbH. Lake People electronic GmbH develops, manufactures and distributes products in the professional range, for broadcast, television, airports, exhibition halls, festival venues, theatres, large-scale installations, private studios and more. In the private sector as well, Lake People products become increasingly popular due to their outstanding quality.
The Violectric trademark and product line is specially intended to supply the Hi-Fi and High-End market with its specific requirements.

Who develops Violectric equipment?

Violectric devices are exclusively developed in Germany by the engineers of Lake People electronic GmbH. In doing so, the team of developers can draw on twenty years of experience and countless products for the pro-audio domain.

Who manufactures Violectric equipment?

Violectric devices are exclusively manufactured in Germany by Lake People electronic GmbH or contractors in the company's vicinity. Lake People - and by association Violectric - put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order achieve the main part of added value inland.

Introduction to Lake People

Established in 1986, we have since become your partner for professional audio electronics. Following our motto “tools - not toys”, we achieved highest reputation during the past years amongst our customers. These are private studios, broadcasters and TV companies. Also airports, congress and exhibition centres count on the reliability of our products made in Germany. This all began under the roof of Rosgartenstrasse 13 in the city of Konstanz. Here, three young guys started with the development and manufacture of limiters and noise gates but not too successfully in the beginning. The commercial survival on a very low level was made possible by the production of headphone amplifiers. From 1989 on, the production range was extended to level matching and balancing amplifiers such successfully, that it came essential to move to larger premises.

Since 1991, the new address read: Haidelmoosweg 52. Due to the developement of the first german 20-bit A/D and D/A converters in the beginning nineties, the name Lake People resounded throughout the land. Suddenly, the company was regarded as a high-tech brand, with a highly positive effect on its public reputation. The growing know-how led to many new products in the analog and digital domain during the following years. Although some projects turned out to be flops, most devices met the customers' requirements, with the effect of continuous growth of the company. By the end of the nineties the 140 m² of Haidelmoosweg 52 went cramping.
Again, a move to new premises came necessary. As it was obvious that rental facilities would not meet the demands, we decided to put up our own building. The company site was constructed in 2000 in a new industrial park in Konstanz, Turmstrasse 7a, just a hundred metres from the lake. Also in 2000, Lake People was transformed into a Ltd. company.
