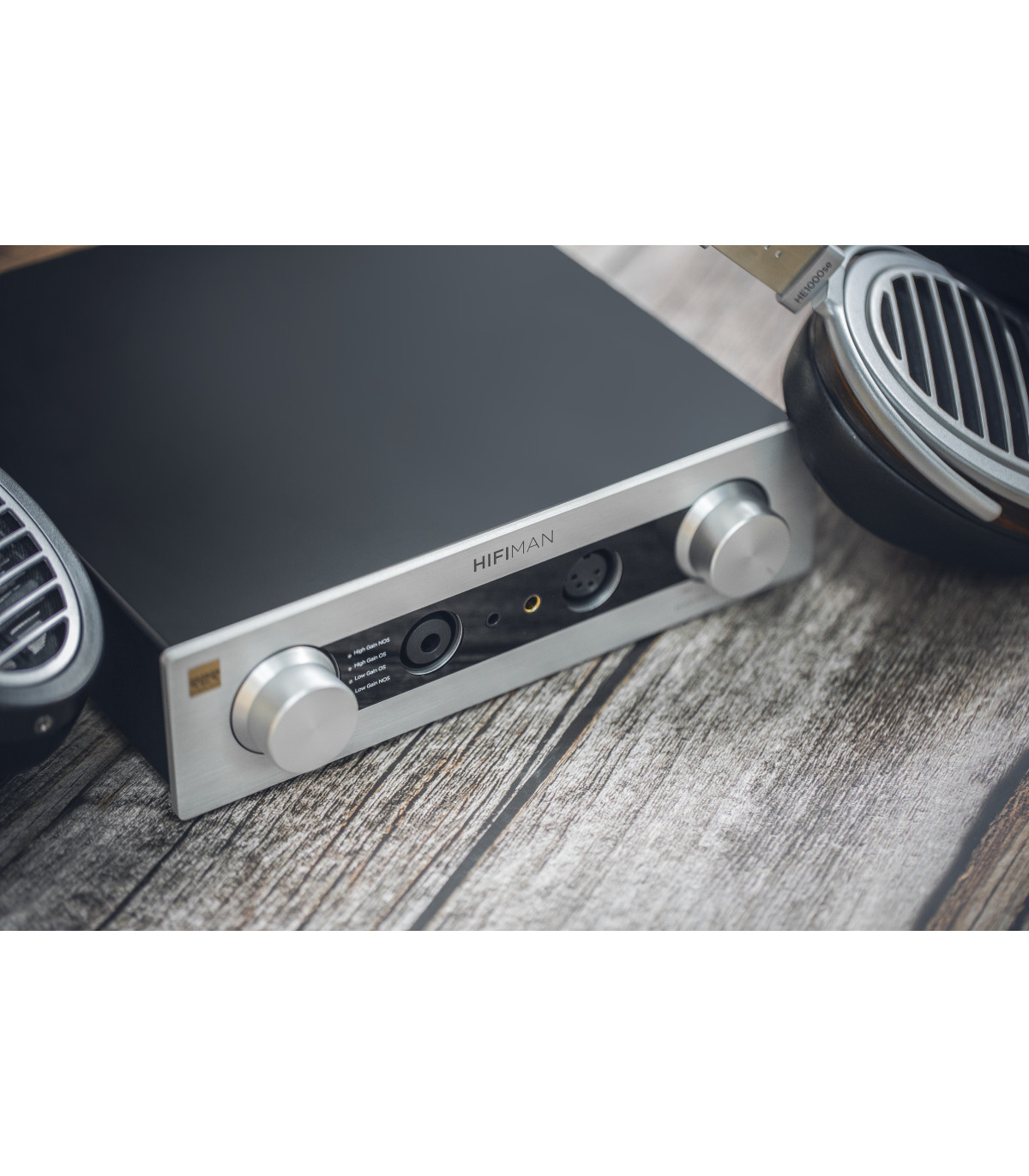

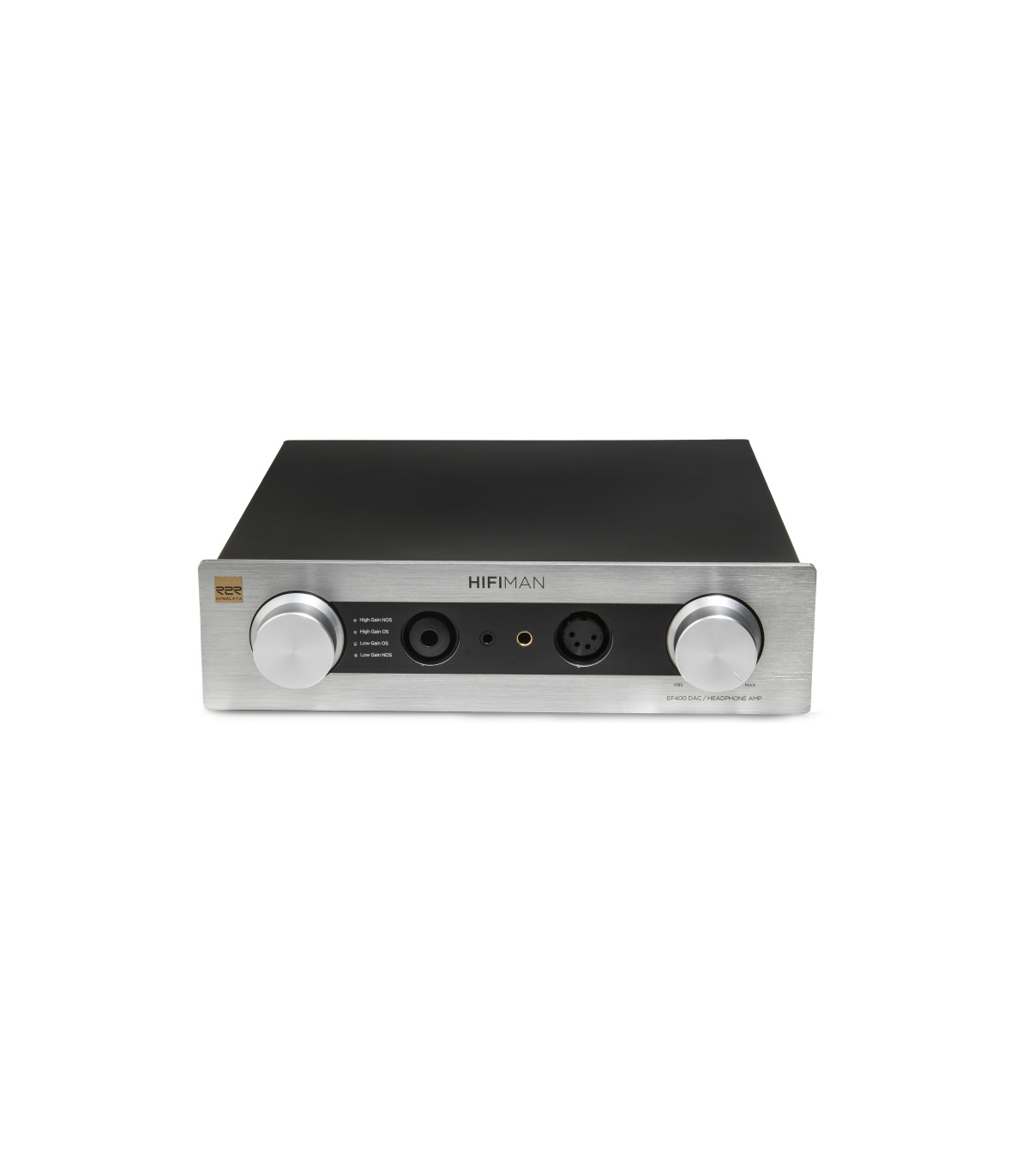

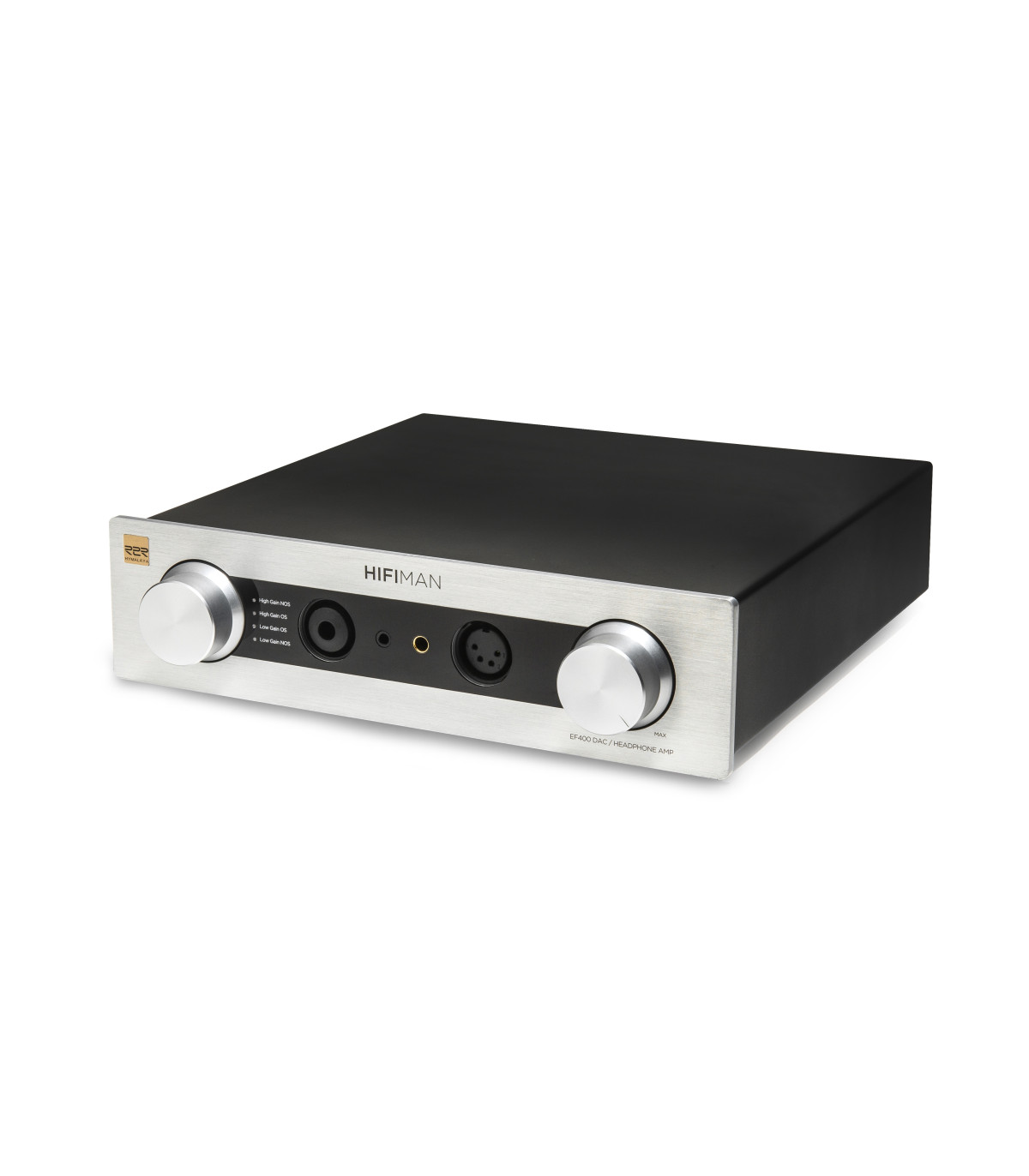

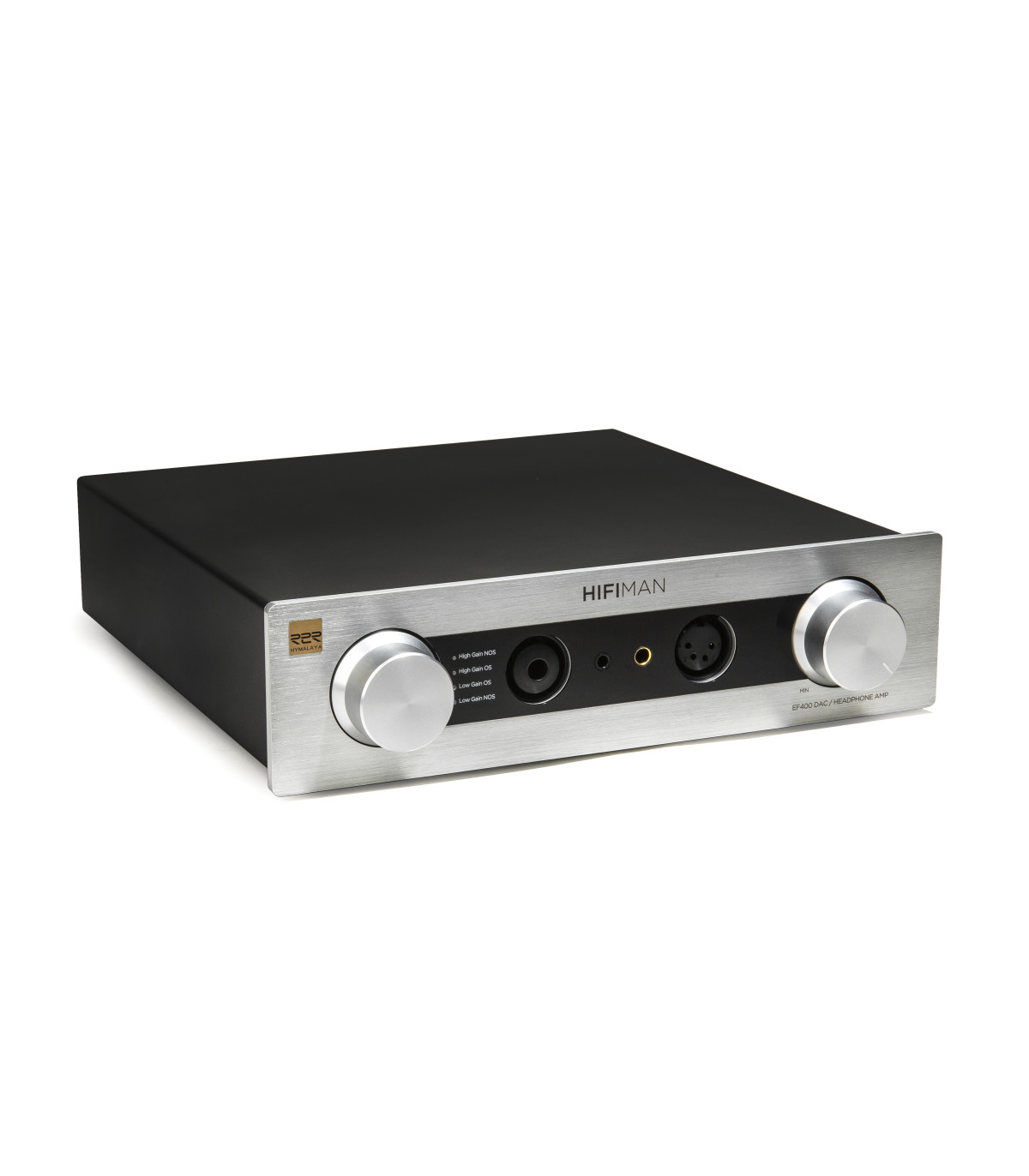

HiFiMAN EF400 Himalaya R2R DAC & Balanced Headphone Amplifier
HiFiMAN introduces a new model, the EF400, that incorporates the best of recently developed technologies, especially the company's advanced HIMALAYA R2R DAC. The EF400 is the modern desktop DAC/Amp solution, with a compact footprint and price to match, but with sonics that outperform products many times its size. Power Output: 4.4W per channel. Is there a better way to drive a planar-magnetic HiFiMAN Headphone?

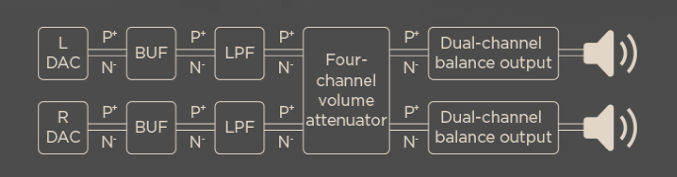

The four-channel differential structure features a DAC, buffer and active filter that add up to unbeatable fully balanced output for stunning performance from a class AB DAC/amplifier.
The four-channel fully differential amplifier circuit features a maximum output of 10.7 Vrms (THD<1%) on a 36 ohm resistor equivalent load. The result: fully balanced output that is beyond compare.

Specifications

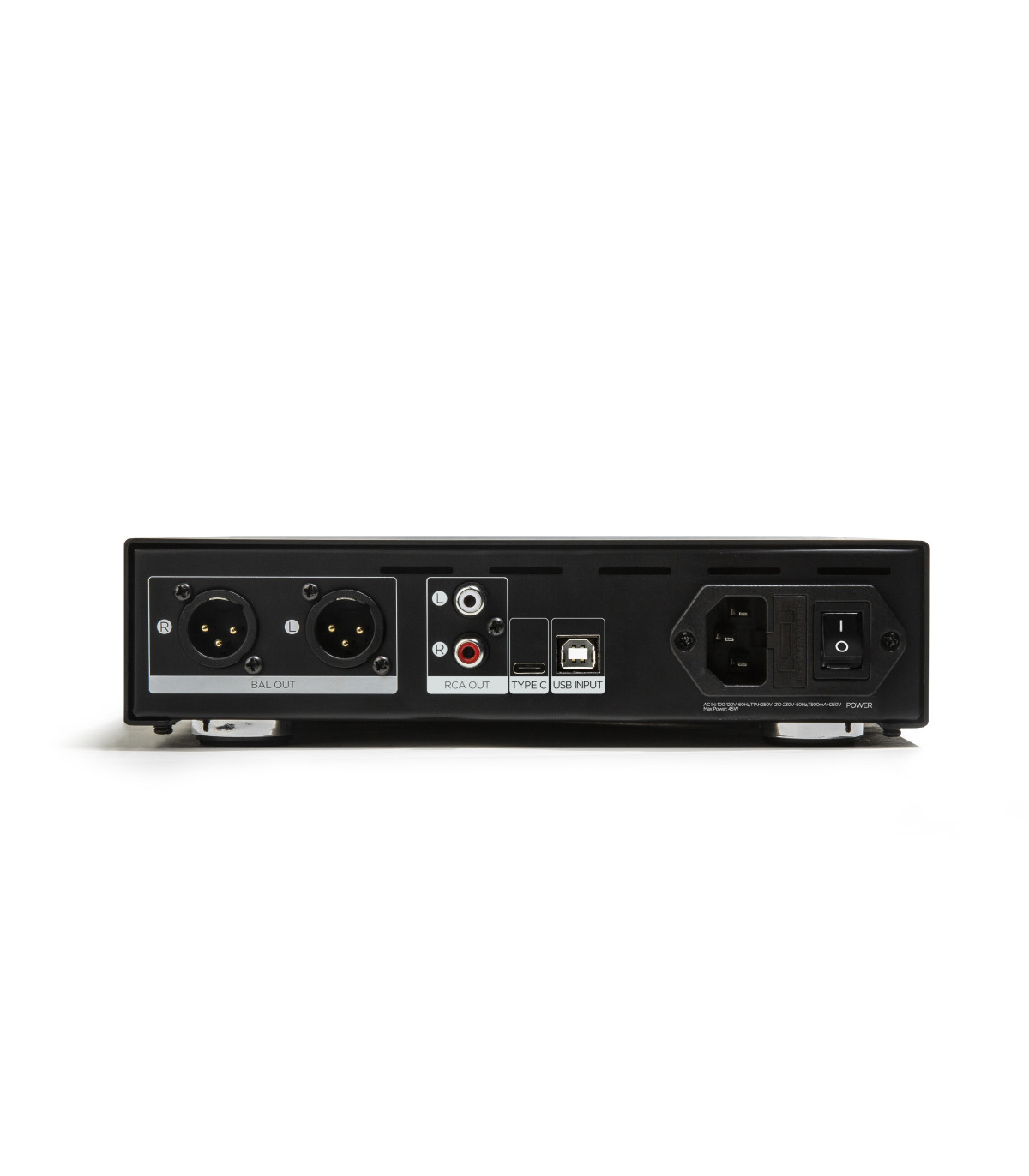

| Inputs | 1x USB-B; 1x USB-C |

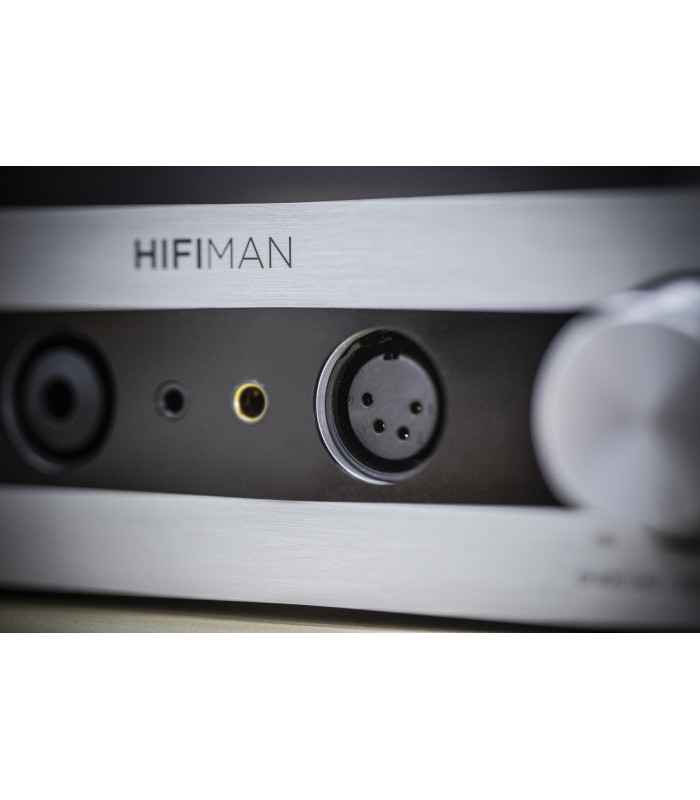

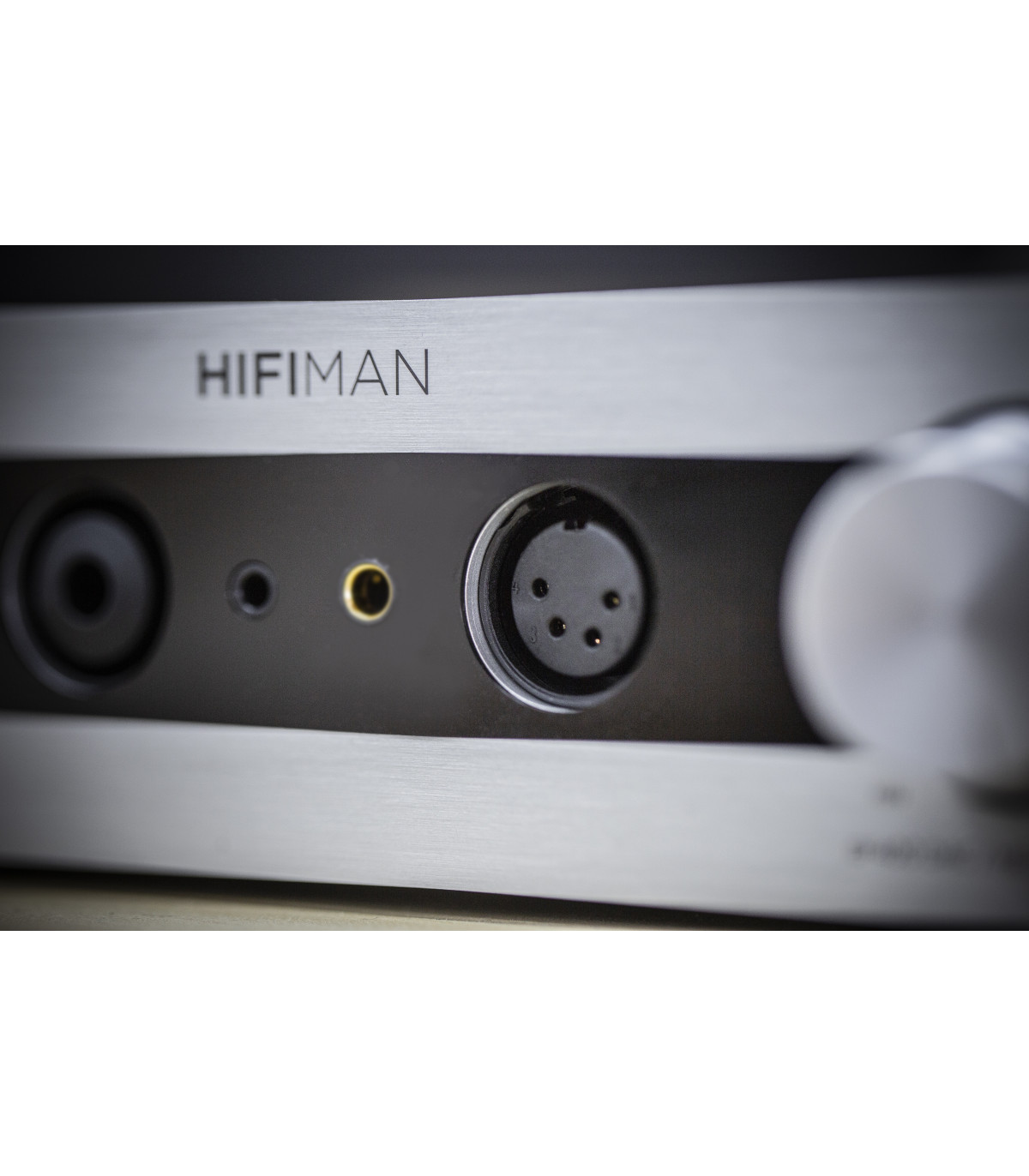

| Outputs: 1x Single-ended stereo RCA; 1x Balanced stereo XLR; 1x Single-ended Jack 6.35mm headphone output; 1x Single-ended Jack 3.5mm headphone output; 1x Balanced Jack 4.4mm headphone output; 1x Balanced XLR 4 poles headphone output | |
| SNR | 118dB ±3dB (A-Weighted) |
| THD+N (Line out) | Between 0.002% and 0.004% |
| Channel separation | 125dB ±3dB |
| Max output power | 2x 4.4W |
| Dimensions | 246.5 x 228 x 61mm |
