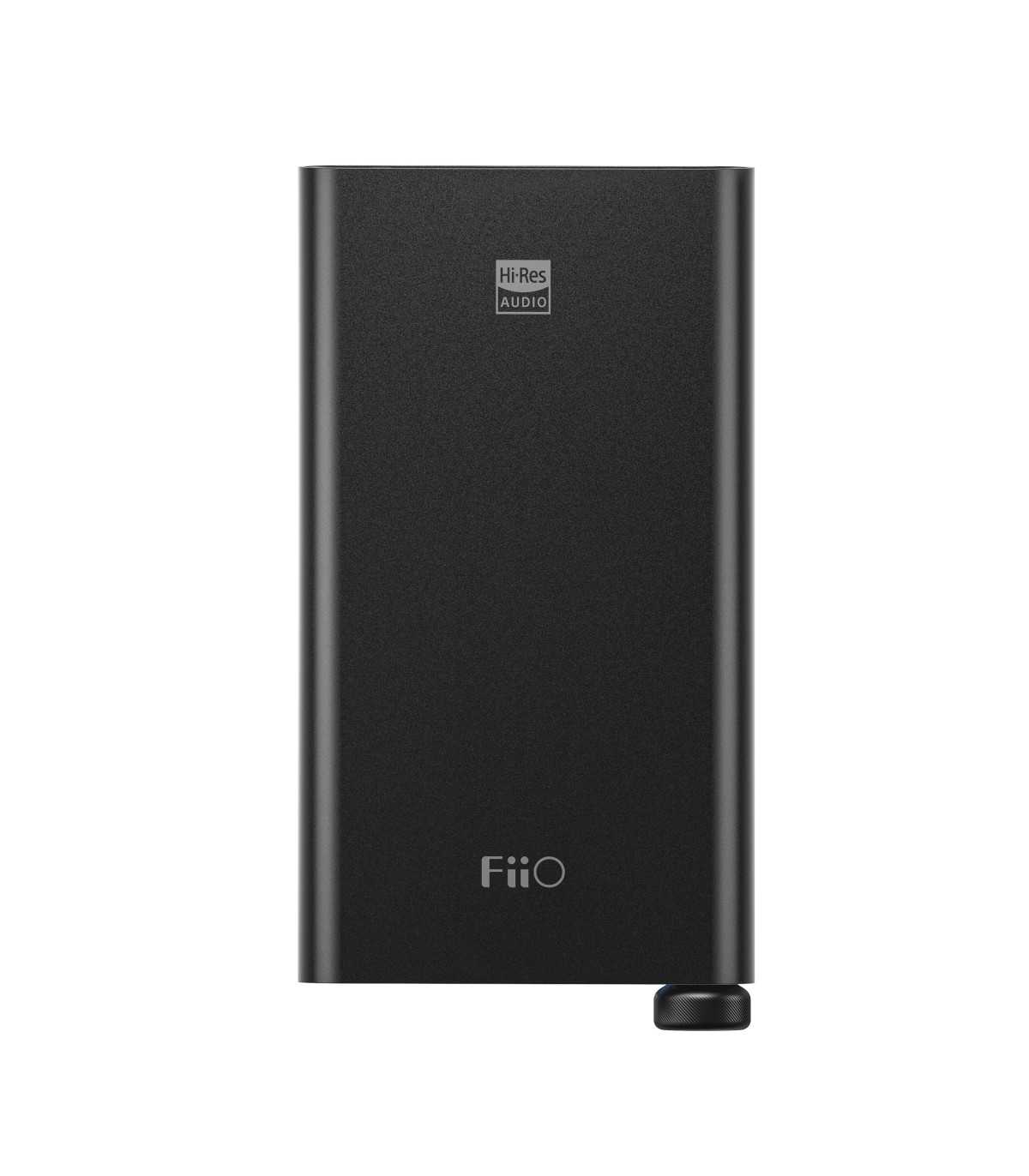

FiiO Q3 MQA Portable DAC & Headphone Amp THX

2663

New product

Limited special offer

99,00 €

179,00 €

Available for immediate shipping.

Brand: FiiO


Description

NEW FiiO Q3 MQA DAC and Headphone Amplifier

- All-new XMOS XU316 chip

- Efficient AK4452 DAC

- THX AAA-28c2

- Supports full MQA decoding

- Dual power supply design

- ADC volume adjustment

- A variety of outputs (2.5mm/3.5mm/4.4mm outputs)

- RGB indicator

- Two gain level

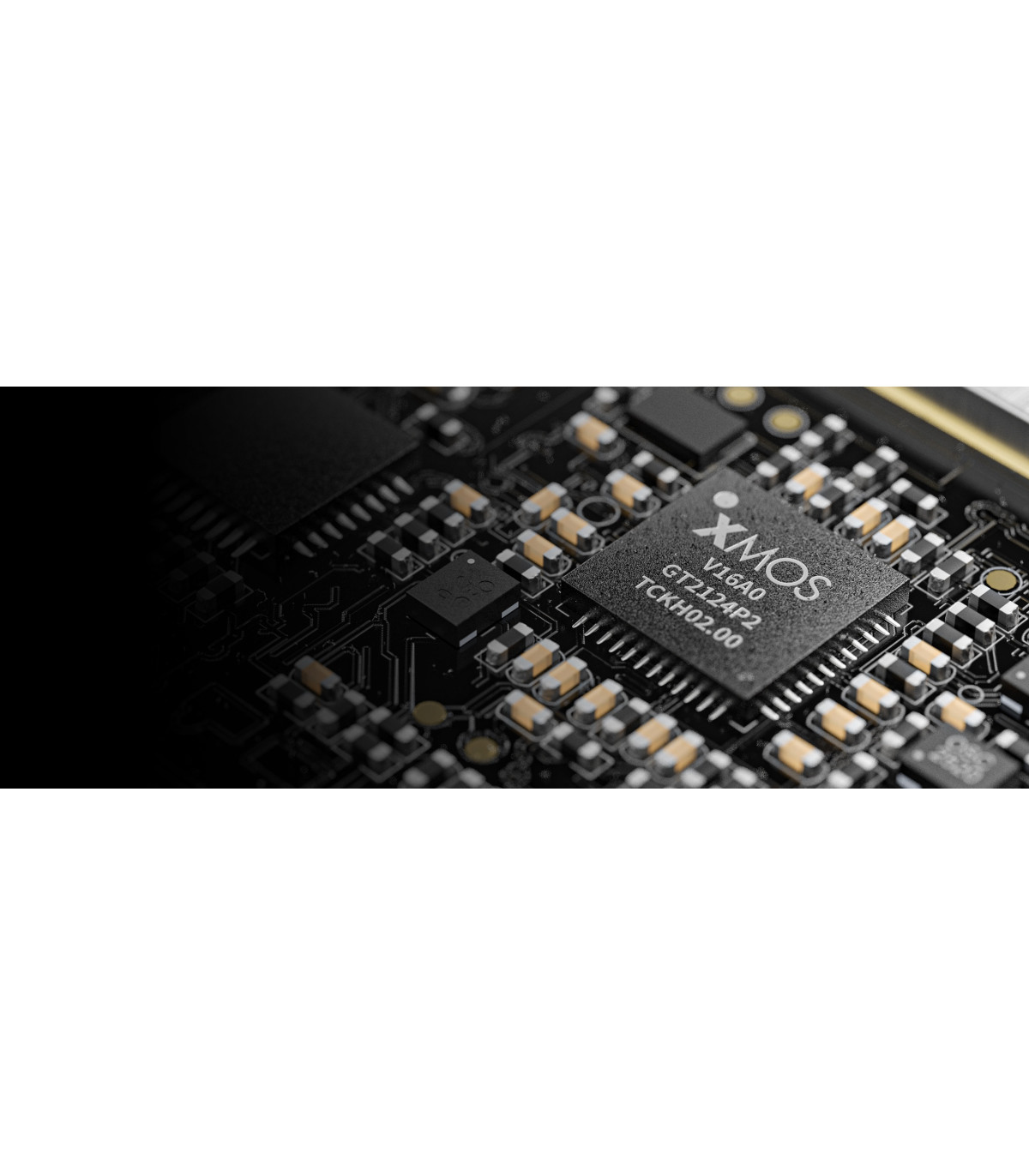

Inside and out, absolute brilliance

The Q3 MQA Edition is equipped with the next generation XMOS XU316 controller chip, among the latest for use in USB DACs. The XU316 features 16 cores made in an advanced manufacturing process, bringing high-performance processing and allowing support up to PCM 384kHz/32 bit and DSD256 high-resolution audio formats.

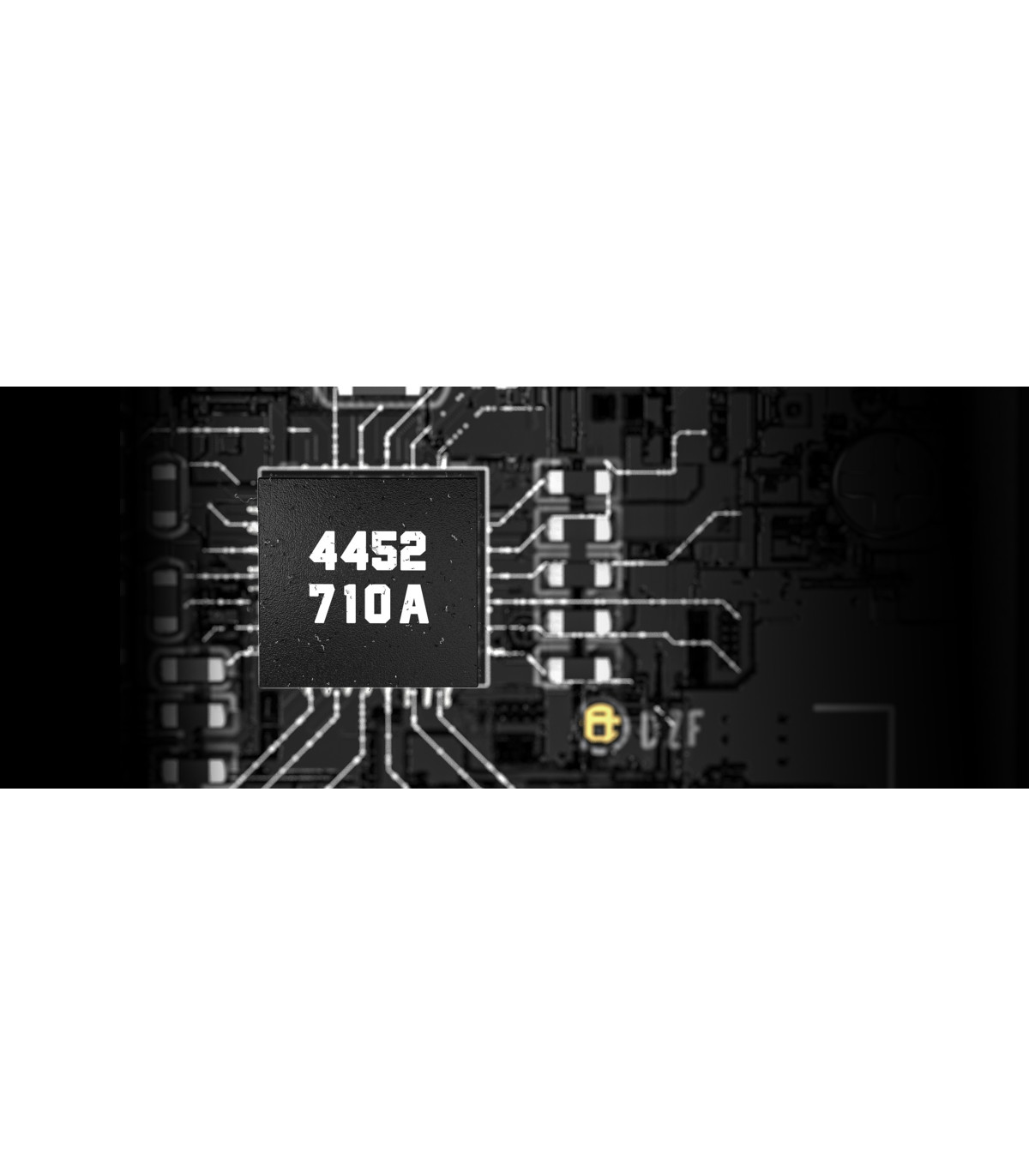

Meticulously tuned, classic relaxed sound

Due to the disrupted supply of AKM DAC chips, the Q3 MQA employs the AKM AK4452. Through numerous adjustments, this chip was tuned so that its performance is similar of that of the DAC in the original Q3 and with even slightly improved power output. The Q3 MQA still features the same charming sound that made the original Q3 so beloved.

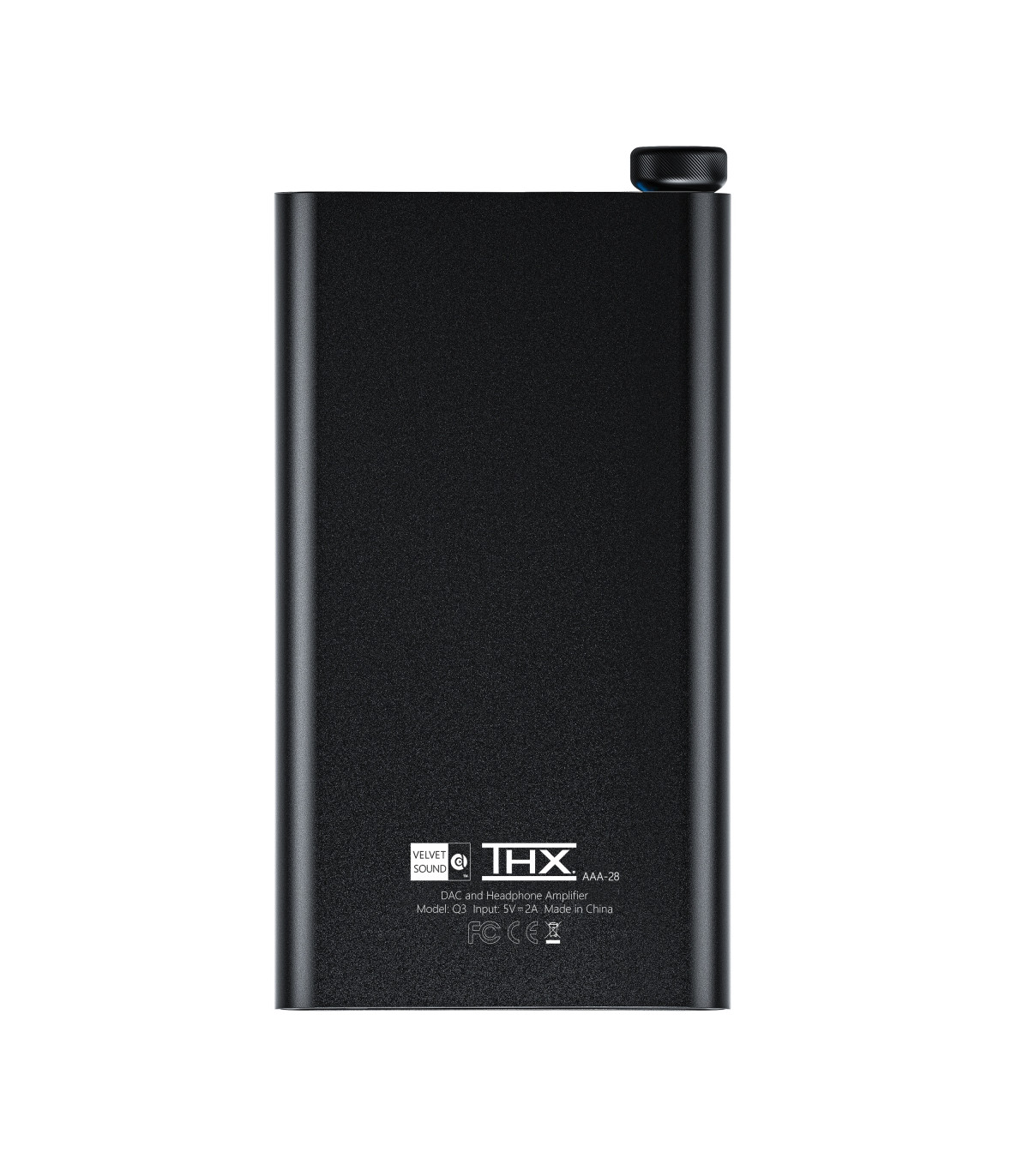

Extraordinary sound, THX AAA-28x2 amplifiers

Featured in the Q3 MQA Edition are two THX AAA-28 amplifiers, allowing for a max power output of 330mW (370mW when using Line in mode). Experience hugely powerful, extraordinary sound.

Supports full MQA decoding

Thanks to the powerful XMOS XU316 chip, the Q3 now supports MQA technology, which enables you to play back MQA audio files and streams , delivering the sound of the original master recording.

Dual power supply design

Comfortably use the Q3 MQA Edition in any scenario, whether as a portable device or a static device on your desk.

Quickly switch between how the Q3 MQA Edition is being supplied power using the charge switch on the bottom. Using AUX in the battery life is up to 23+ hours, and when using USB the battery life is up to 12+ hours.

Experience upgraded

The all-new strapping kit designed to bundle together the Q3 MQA Edition to your phone greatly improves upon the experience from before. The innovative X-shaped straps no longer block the display of your phone and intermediate films protect your device and prevent te Q3 MQA Edition and your phone from being misaligned when strapped together.

RGB indicator light

The RGB indicator light is not only striking, but also instantly lets you know the current audio tracks’s specs and sampling rate.

ADC volume adjustment

The ADC curve reconstruction method for adjusting volume not only effectively solves the problems of the channel imbalance and noise, it also greatly improves the accuracy when adjusting the volume.

Two gain levels & BASS boost

The gain and BASS boost buttons allow you to tailor the sound to different styles and to your liking, letting you better appreciate the richness of music.

The BASS boost is achieved in hardware, allowing a bass boost up to 6dB without affecting the higher frequencies.

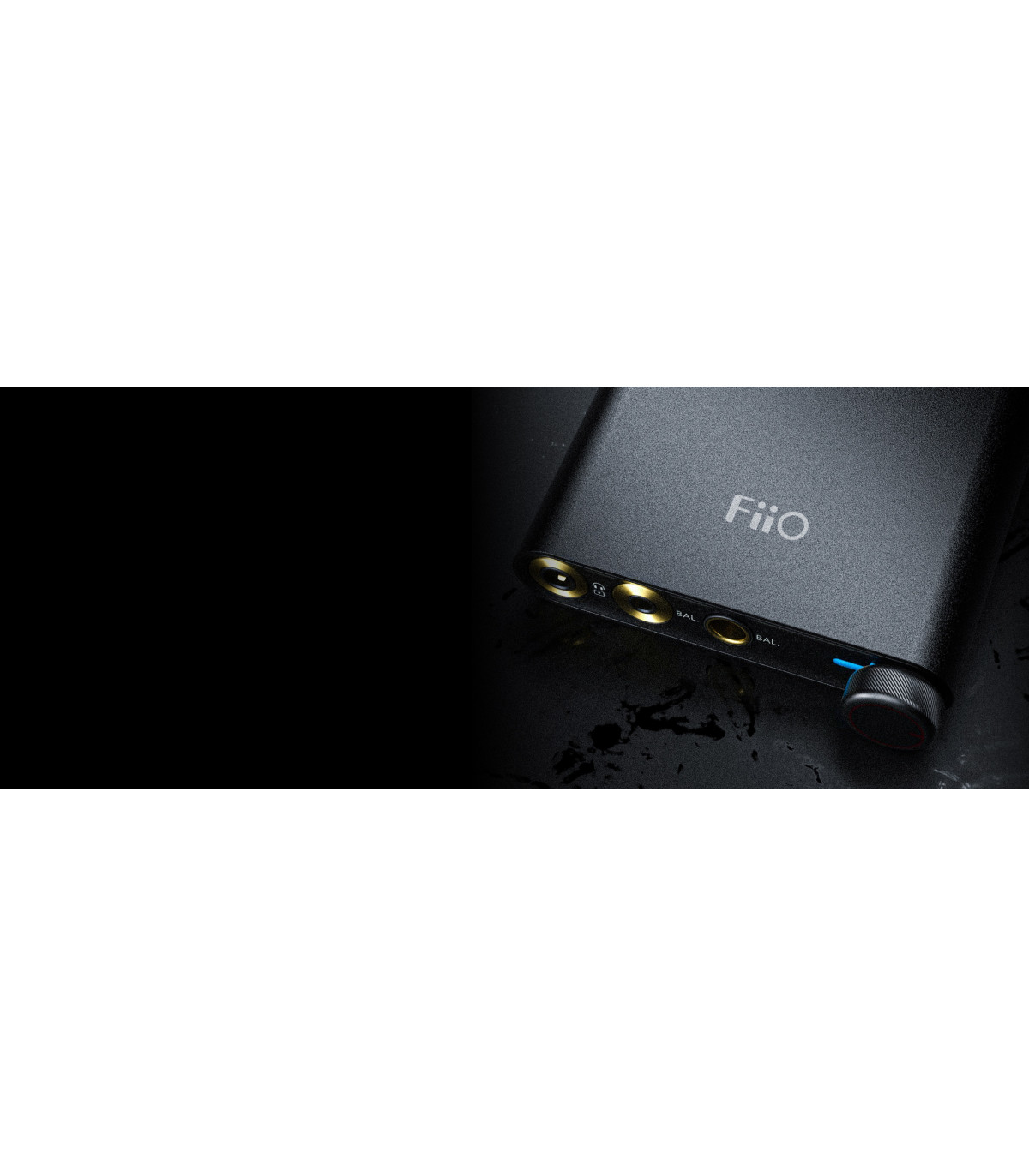

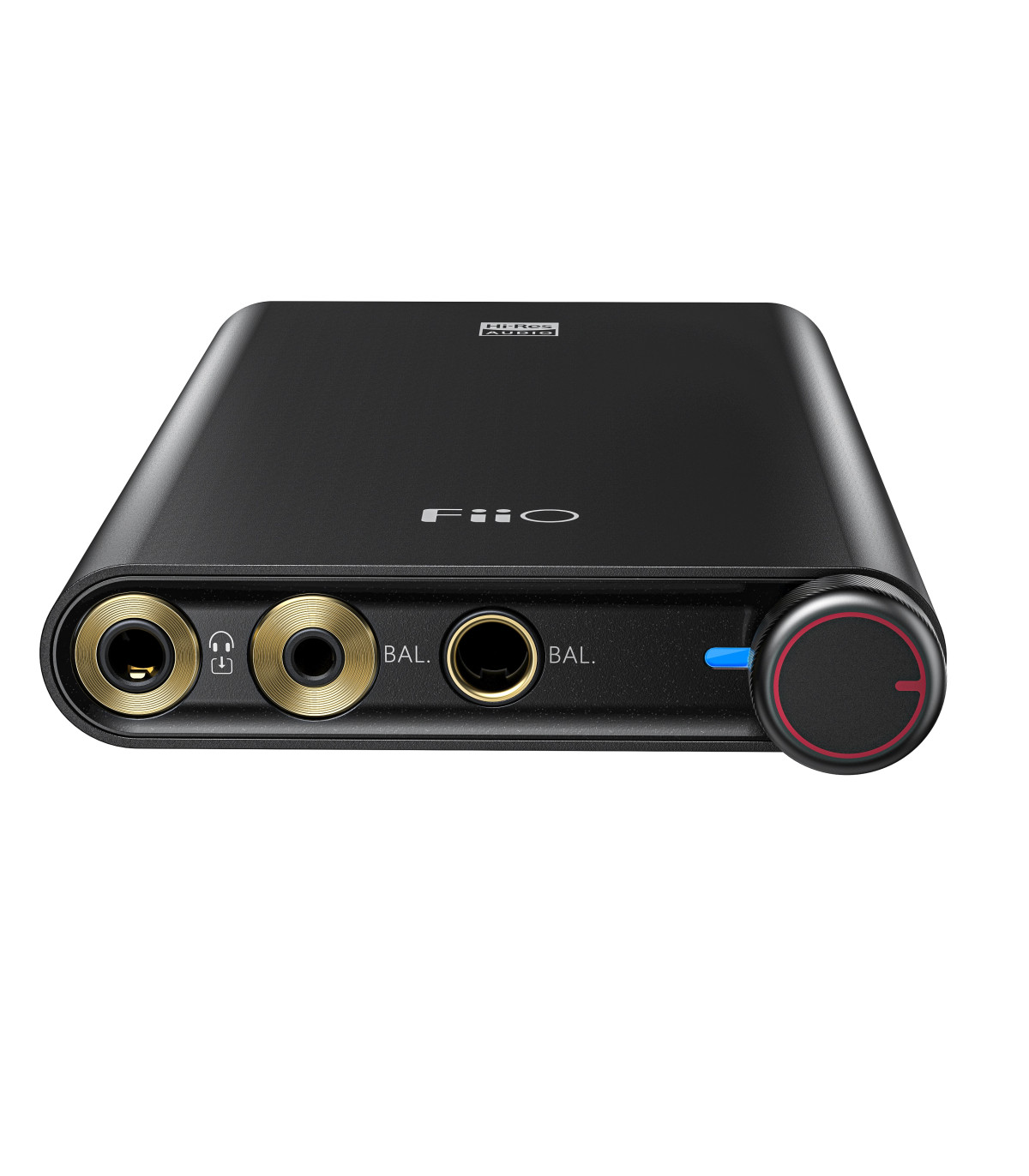

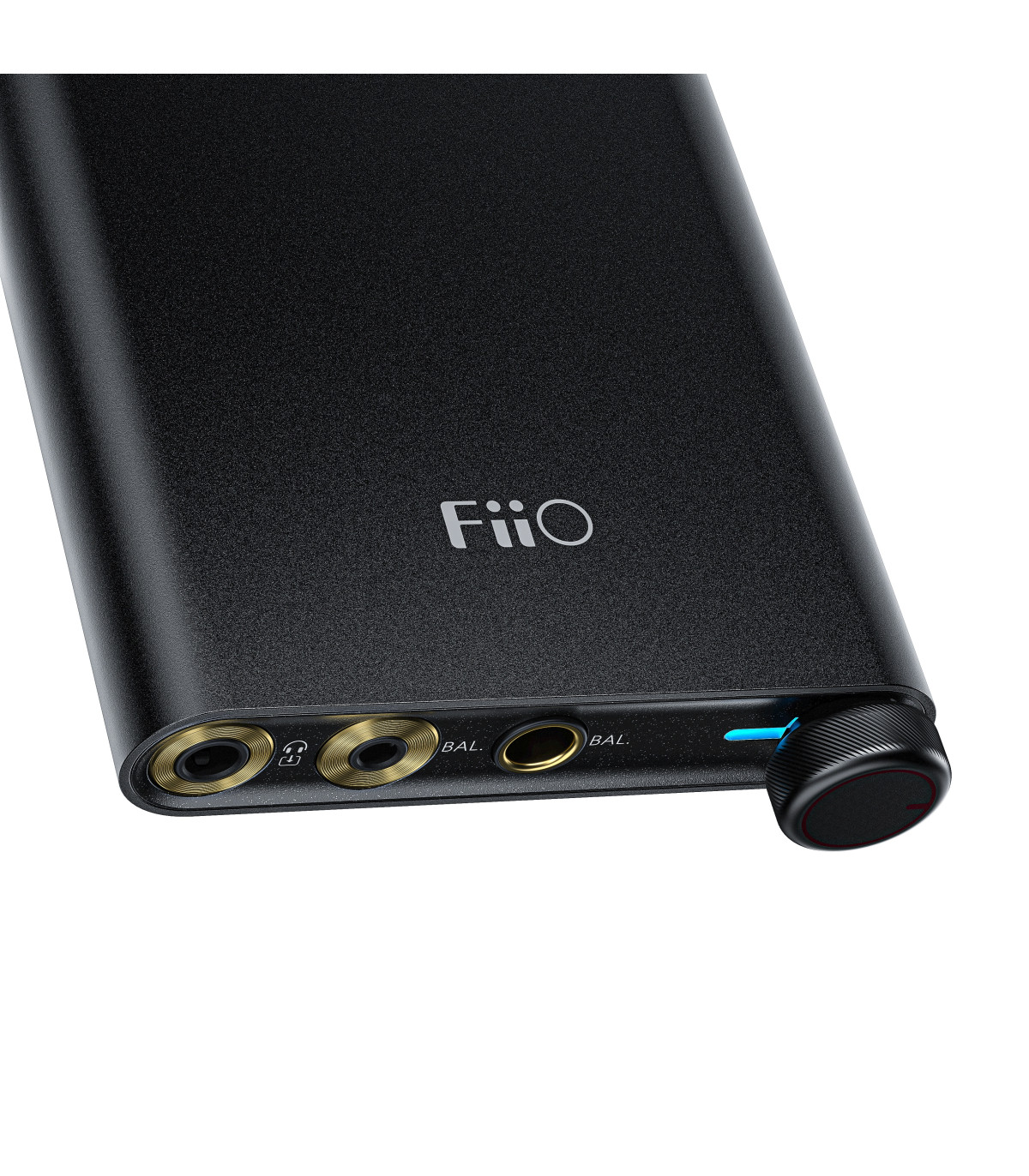

Numerous audio outputs

Listen to your music the way you want through either the 3.5mm single-ended output or through the 2.5/4.4mm balanced outputs.

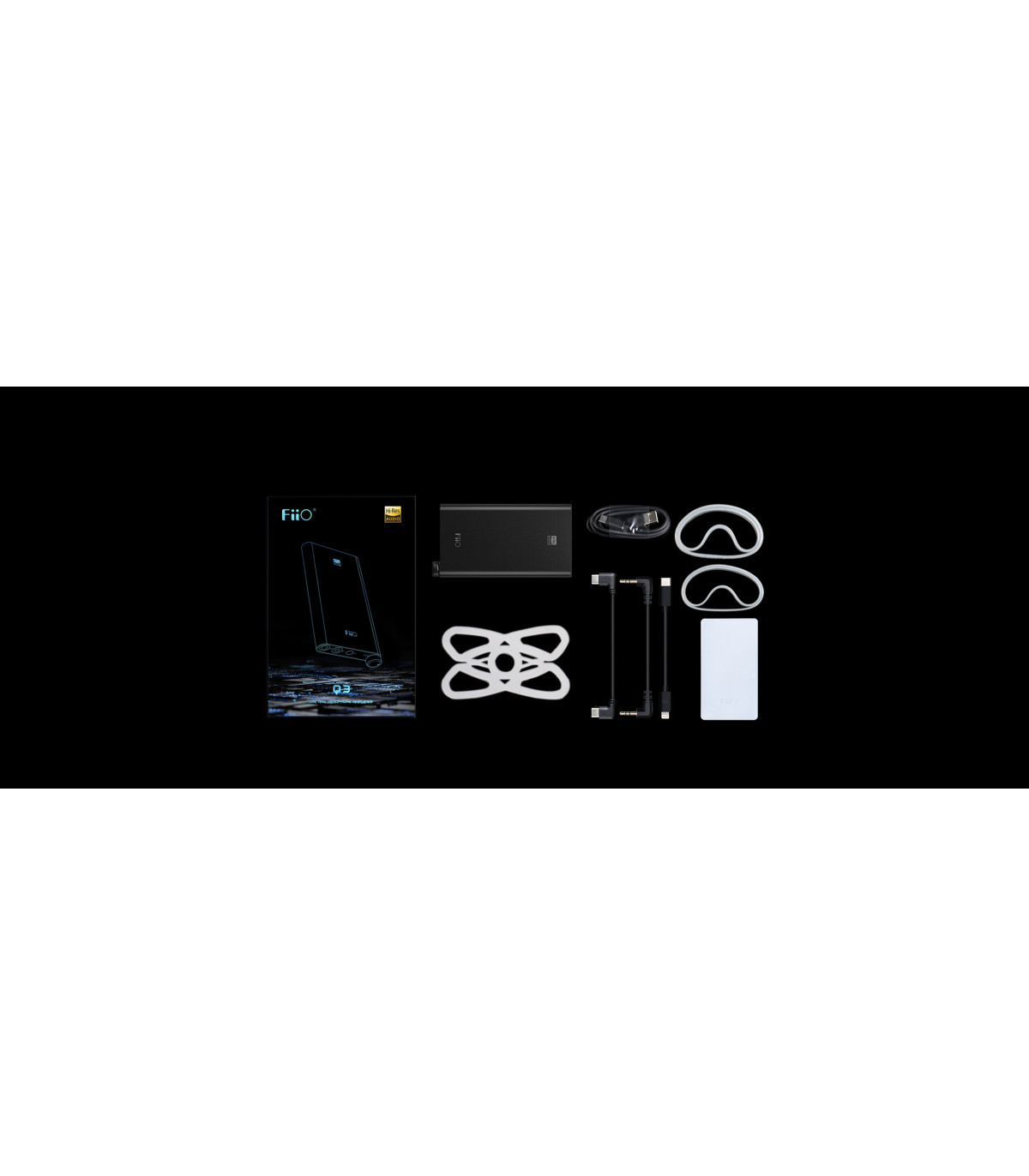

Accessories:

- USB A to type-C data cable *1

- 3.5mm to 3.5mm audio cable *1

- Type-C to Type-C data cable *1

- Lightning to Type-C data cable *1

- X-type silicone strap *1

- Silicone straps (long) *2

- Silicone anti-skid feet *1

- Warranty card *1

- Quick start guide *1

Specifications

Dimensions: 105mmx59mmx12.5mm

DAC: AK4452

Headphone amplifier: THX AAA-28

Decoding support: 384/DSD256/MQA

Outputs: 2.5/3.5/4.4mm

Battery: 1800mAh

Output power:

PO 160mW (32 Ohm)

BAL ≥ 330 mW (UAC mode, 32 Ohm)

BAL V370 mW (Line in mode, 32 Ohm)


Designer

FiiO logo

About FiiO Electronics Technology Co., Ltd.

01 Brand Introduction - HiFi+Fashion

FiiO Electronics Technology Co., Ltd. was established in 2007.  It is a high-tech enterprise that combines research, development, production and sales, and its sales are mainly based on its own FiiO brand as opposed to OEM/ODM.  It focuses on digital audio, with current mainstay products being portable headphone amplifiers, DAC / amps and portable digital audio players.

FiiO: It is composed of Fi (Fidelity) from HiFi and iO (represents number 1 and 0) which indicates the sincerer feeling and more convenient life the digital tech has brought to us.

飞傲: The Chinese transliteration of FiiO, as well as representing youthful vigor and the active & innovative spirit of the company.

Audio products are meant to fulfill the spiritual pleasure of users.

  1. FiiO provides products and service related to music.
  2. We also hope to bring happiness to our users with the provided products and service, which is also the key value of FiiO.

Customer Service

  1. Good after-sales service, more reliable
  2. Great user experience, more pleasure
  3. Variety of activities, more involved

About products

  1. Affordable: FiiO products are well-known for its feature of high cost-performance. Lowering the entry level to make more customers can afford.
  2. Easy to use: FiiO pays great attention to the user experience. We are not only provide products with high quality, but also easy to use and with long lasting durability.
  3. More accessories bring more fun: Enable to play in a variety way and use under more possible environments.
  4. Updates available: Equipped with a variety of ports, it makes the music players can still connect to external amp/DAC for upgraded enjoyment.
  5. Endless transformability available: With replaceable amp module and expandable storage, the X7 can bring more playability.

02 Company Profile

Research & Development Team

  • Twenty years of R&D experience in audio products
  • Former core R&D team for audio products from OPPO
  • A team of 20 professional R&D engineers in software, hardware, industrial design, structure and electro-acoustic.

Research & Development Investment

FiiO keeps bringing in advanced equipments and high-tech talents so as to ensure the stable growth and long term competitive edge. Up till now, the team size has expanded three times than that of 2007 when we established.

Team Composition

The R&D team is made up of development dep, engineering dep and QC dep, with 60+engineers in total.

Authorized certifications

FC, CE, KC, CCC and ISO9001:2008 ensure the safety and quality of the products.

Production management

FiiO has strict requirements to production with almost “zero tolerance” even to small problems, which is strictly in compliance with the International Quality Management System ISO9001.

QC Equipment

  • a. AP audio analyzer (valued at 200,000RMB).
  • b. Life-span test platform against high & low temperature, swing and plug & unplug trial.
  • Aging test carriage towards mass production.
  • Aging test machine under high & low temperature.

Customer oriented

Driven by customers’ needs, we innovate constantly and response promptly to the market changes. We develop new products based on customers’ needs and compete for more market shares.

Company culture - Our Vision

Present the world a better “Made in China”.

Brand Spirit

  • Innovation

the earliest company that designed the minimum volume headphone amplifier. First dockable amp & DAC product. First amp specially designed for iPod/iPhone. First amp with adjustable power supply and power supplied by mobile phone battery. First multifunctional headphone amp & DAC for Android smarphone. First Hi-Res music player at a price lower than 1000RMB supporting 192K music. First Android-based Hi-res music player.

  • Quality

Repair Rate < 1%. Sound Quality Control system. Original components imported from TI, Wolfson, Maxim. Company-wide quality control. +20 quality engineers and inspectors. Complete testing facilities.

  • Service

CEO at the frontline of customer service. 100% response to enquiries. The most popular headphone amplifier brand on Head-Fi. First class website and contents in the audio industry. Interaction with and support to customers on Facebook and Microblog (twitter-like social website).

Brand Mission

FiiO designs, produces and sells high-quality products at favorable prices to those who love music and style.

Write a review

FiiO Q3 MQA Portable DAC & Headphone Amp THX

Write a review


Questions
  1. Andrea
    2023-04-14 11:17
    Si può utilizzare adattatore uscita bilanciata 4.4 millimetri a 3.5 millimetri per collegare cuffie akg k 371 ?
    • PlayStereo
      2023-04-17 14:41
      Buonasera, sostanzialmente per ottenere tutti i benefici dell\'uscita cuffia bilanciata è necessario utilizzare una cuffia dotata di cavo bilanciato, perché l\'utilizzo di un adattatore unifica la massa dei due canali, rendendo il suono nuovamente sbilanciato. Se la sua cuffia non possiede un cavo di tipo staccabile, non sarà possibile ascoltarla in configurazione totalmente bilanciata.
  2. Walter Morale
    2022-09-25 09:22
    Mi chiedo lquale sia la differenza con il modello precedente? E se comporta un miglioramento della qualità sonora rispetto al precedente? Grazie
    • PlayStereo
      2022-09-26 09:02
      Buongiorno Walter, non abbiamo ancora effettuato un confronto diretto tra i due modelli, però la nuova versione installa un chip DAC più aggiornato che rimane di marca AKM e quindi possiede un timbro molto musicale e rifinito. Inoltre anche l\'interfaccia USB è stata mopernizzata, per una maggiore compatibilità con computer e smartphone. Per chi utilizza Tidal il protocollo MQA consente di ottenere il flusso dati ad alta definizione di Tidal.
  3. Ambrogio Crippa
    2022-08-07 10:17
    FiiO Q3 MQA DAC USBÈ compatibile con smartphone Samsung A52s?
    • PlayStereo
      2022-08-08 08:04
      Buongiorno, confermiamo la disponibilità, così come per qualsiasi altro dispositivo Apple/Android. Rimaniamo sempre disponibili.
      • Ambrogio Crippa
        2022-08-08 08:10
        La mia domanda riguarda la compatibilità con smartphone Android
        • PlayStereo
          2022-08-08 08:11
          Buongiorno ci scusiamo per il refuso, intendevano scrivere "compatibilità", confermiamo dunque che può tranquillamente utilizzarlo con lo smartphone in suo possesso.
