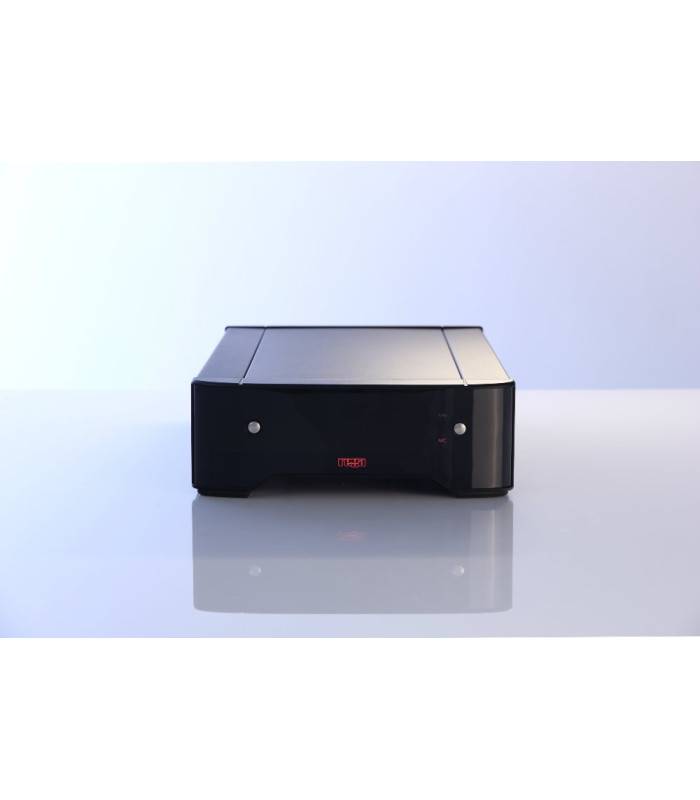

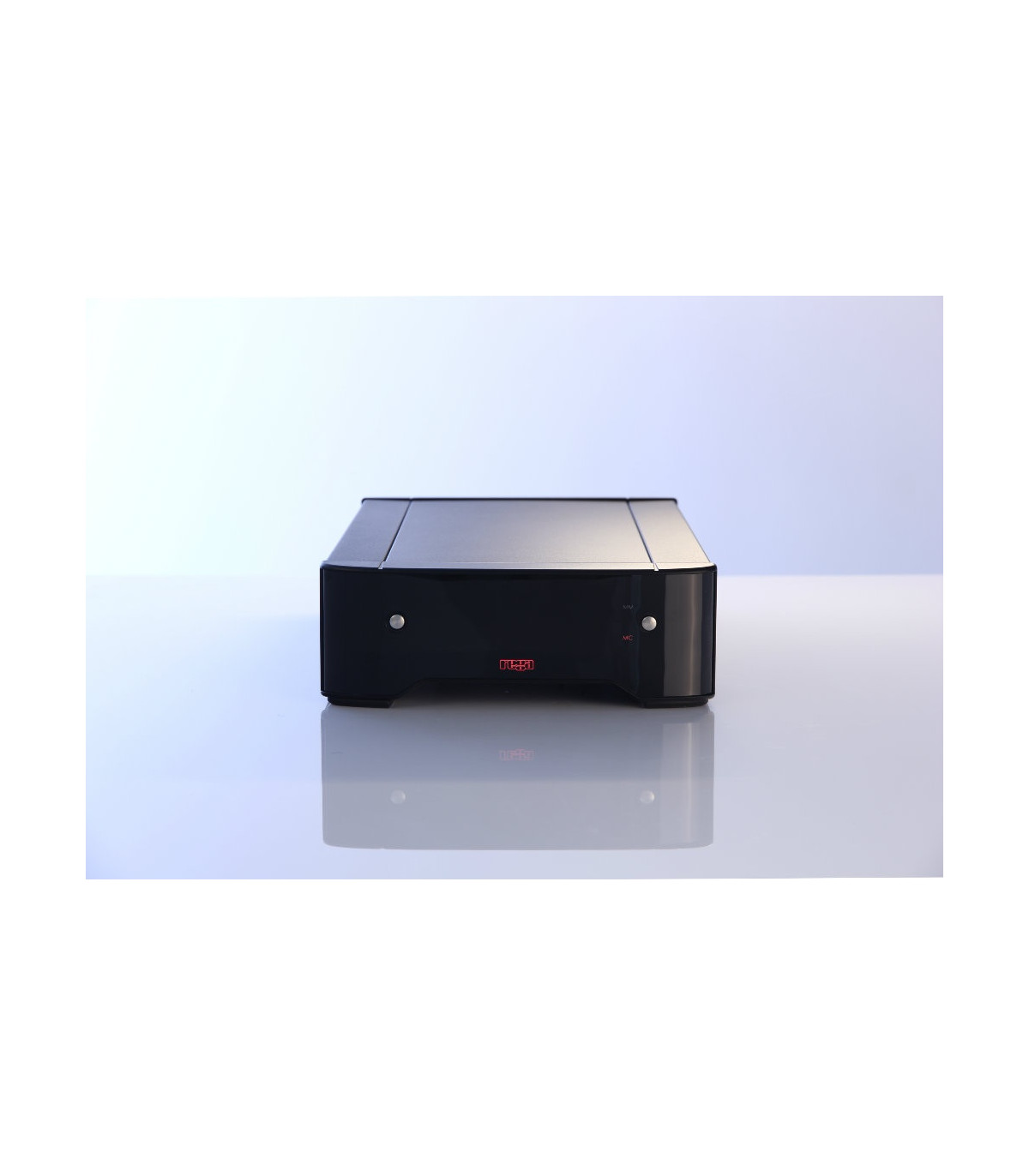

Rega Aria MM/MC Phono Stage

You can purchase this product in installments with Consel. Click here for more information.


New product

950,00 €

This article it's not in stock but can be ordered and it will take a number of days indicated into the Blue tab below, to be shipped to you. Please verify the availability for immediate shipping of other eventual versions of the same product.

Brand: Rega


Description

September 2018, NEW LOOK

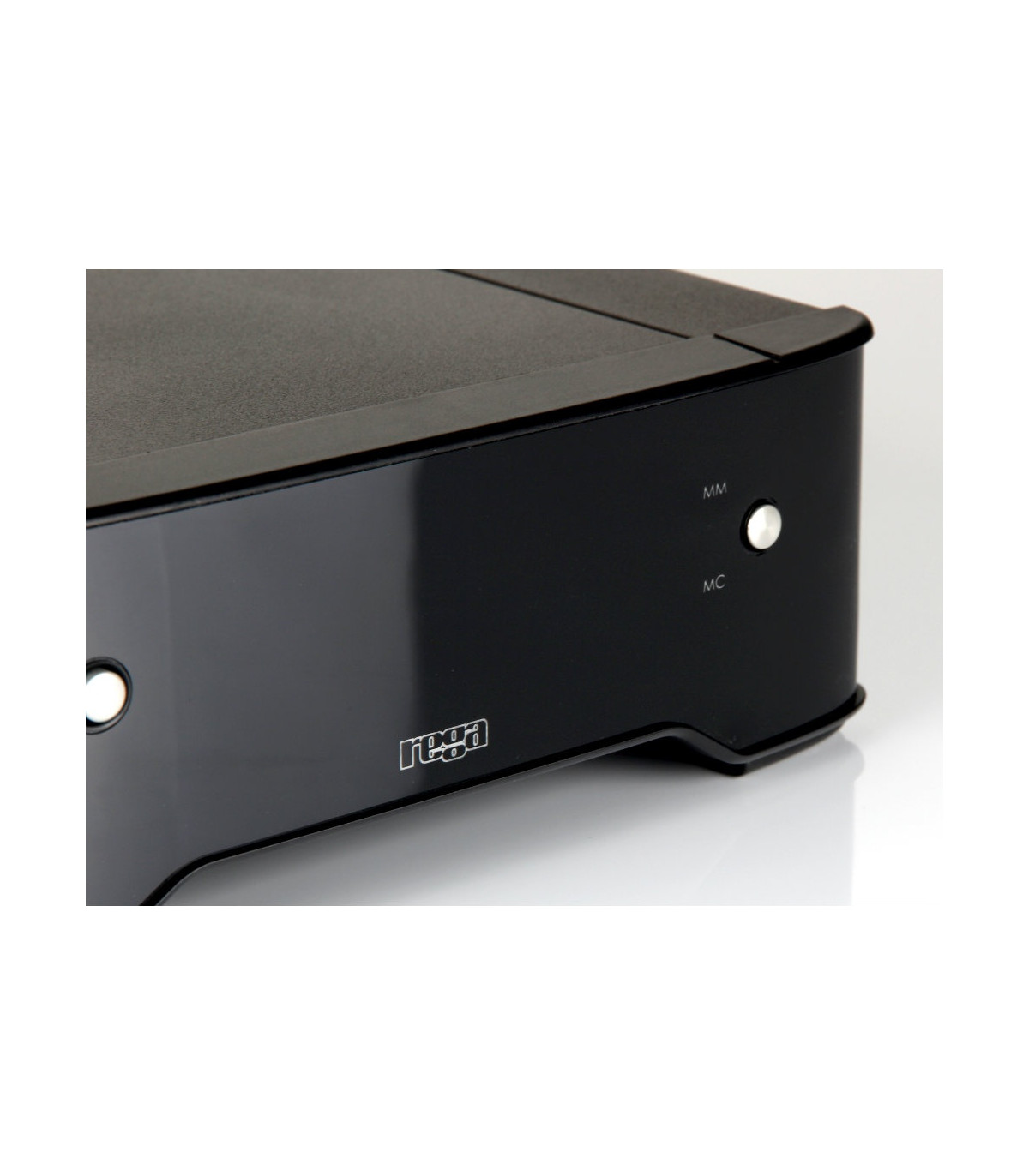

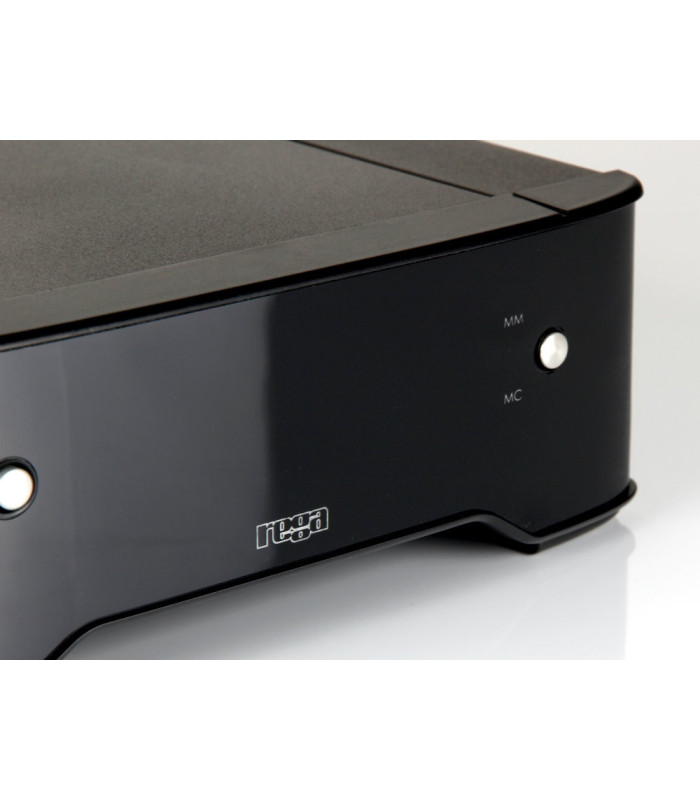

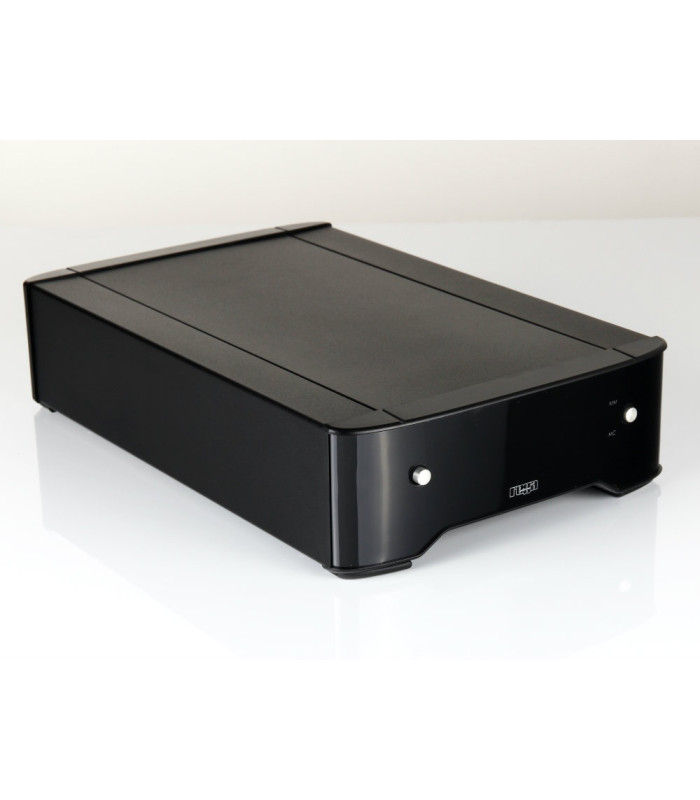

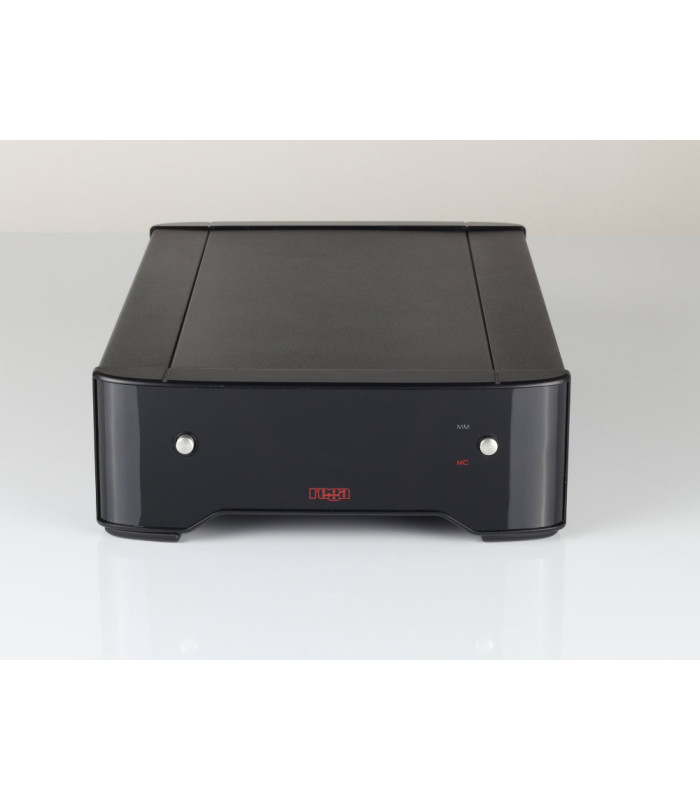

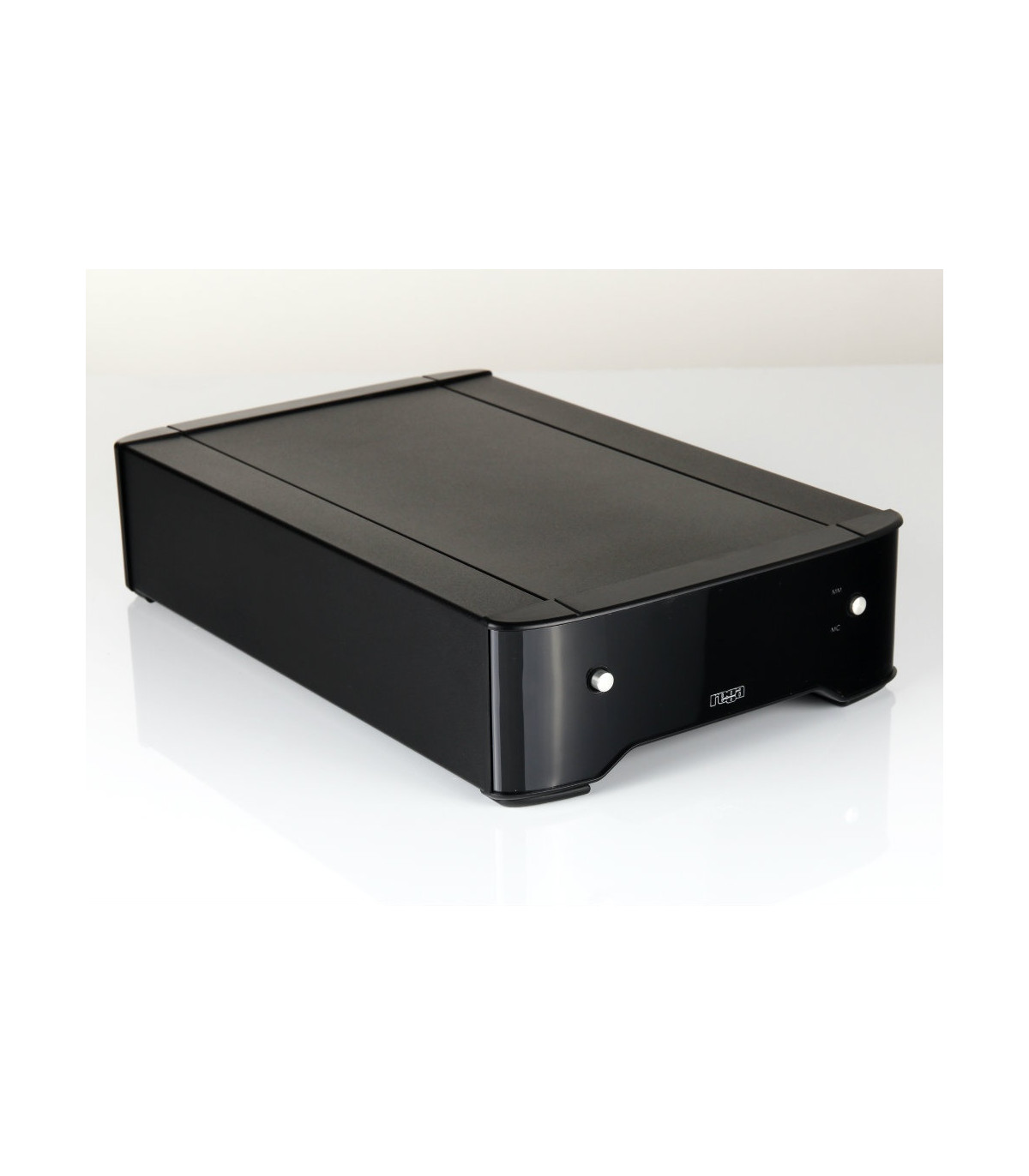

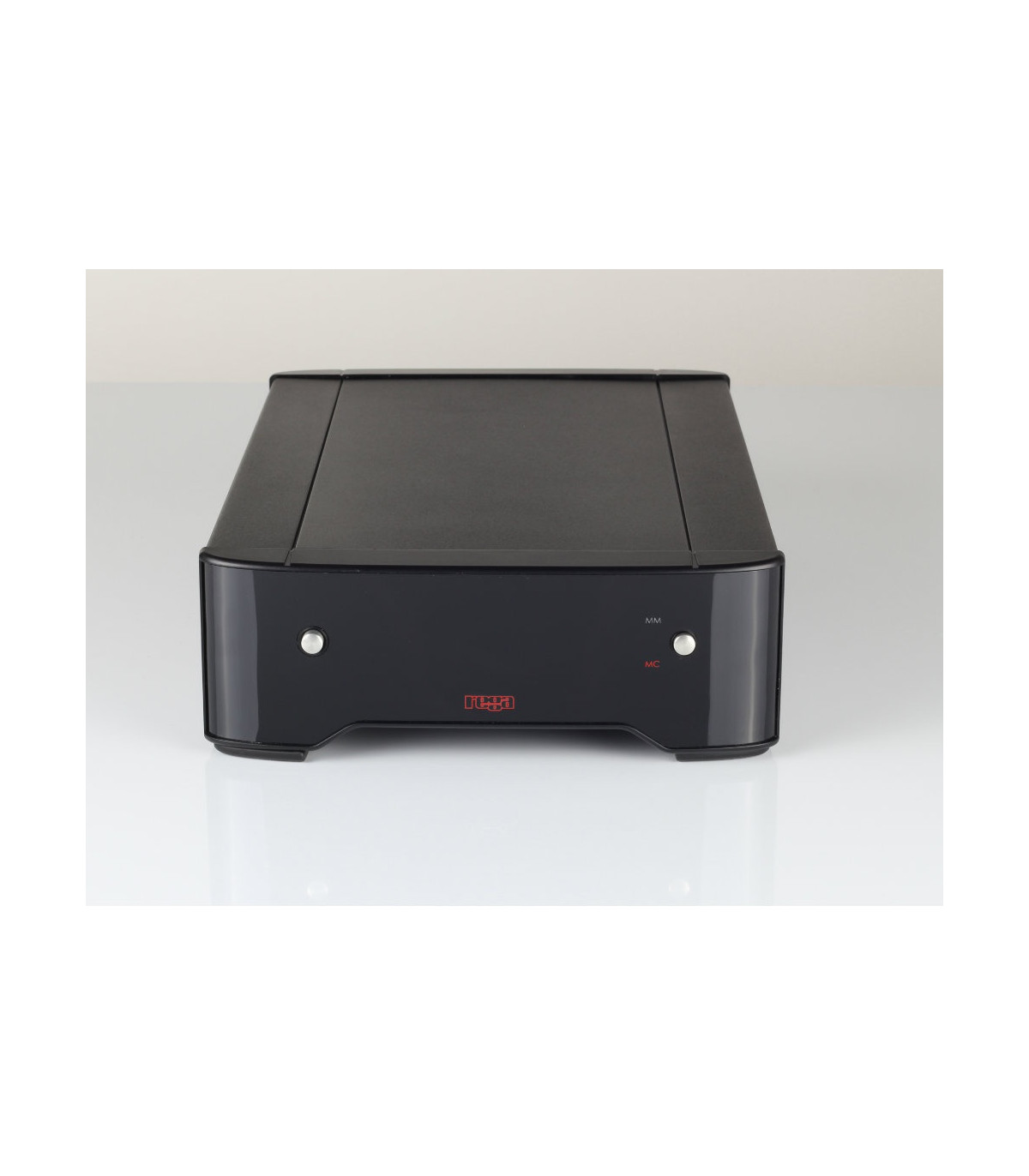

Housed within our latest half width custom designed case to give it a fresh new look and match the range are two entirely separate, high performance phono stages. One fully adjustable, dedicated moving coil and one moving magnet. Each stage is designed and engineered to maximise the potential of your vinyl system whilst remaining easy to use and set up.

Technology

The Aria is an "all analogue amplifier" with no digital control circuitry. The fully aluminium case screens the internal circuit from any stray RFI signals. Our designers have avoided including any superfluous gadgets as they obstruct the signal path and degrade the sound quality. The Aria incorporates many innovative design ideas including a self-adjusting servo control to keep the MC input circuit at its optimum, compensating for any variations in ambient or operating temperature.

Both stages have their own separate input sockets and input pre-amplifier circuitry. This enabled us to design bespoke input circuitry for each cartridge type without compromise. Signal switching is performed at high level and low impedance (via relays) ensuring there is no degradation of the signal.

MC Stage Design & Features

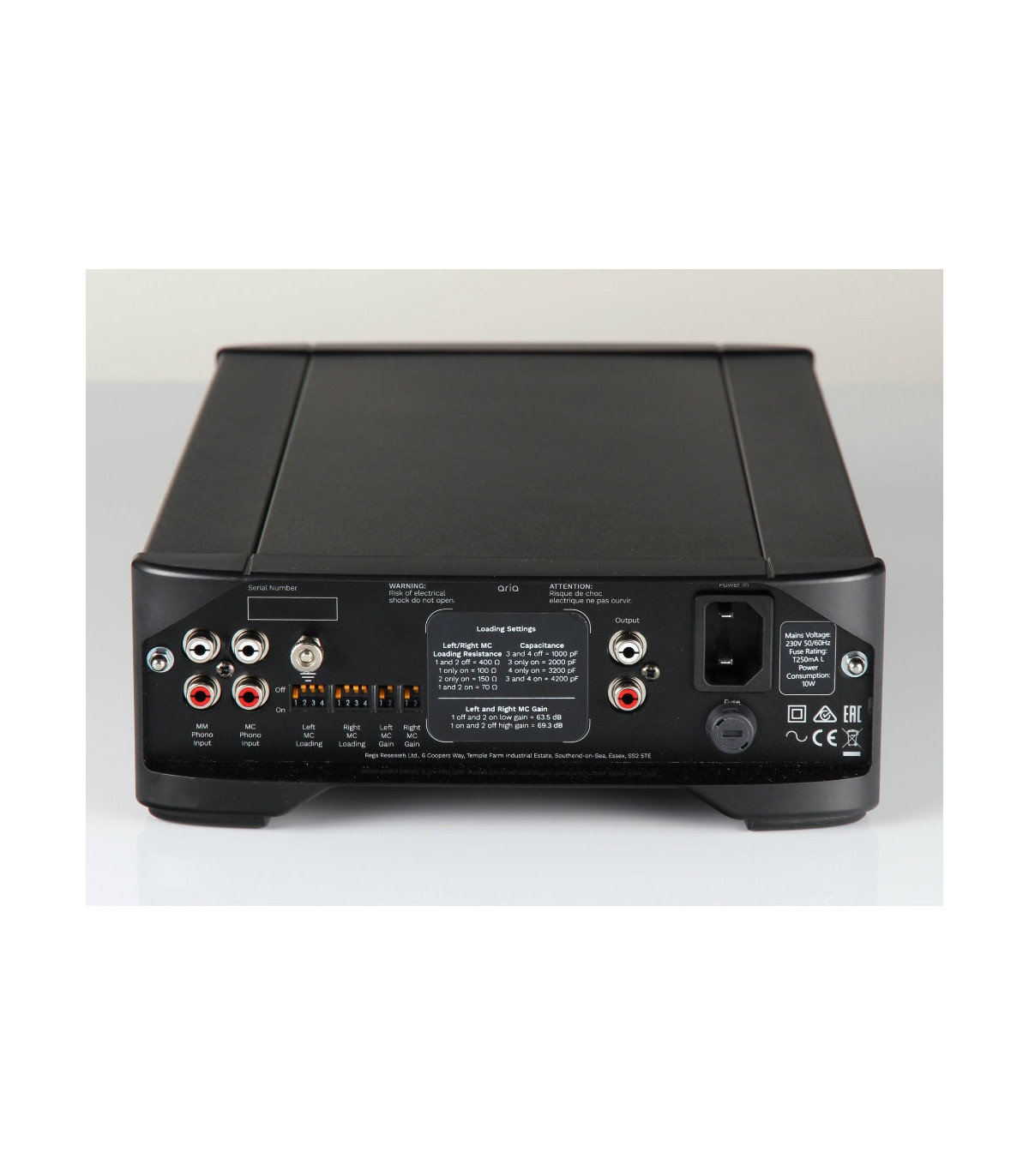

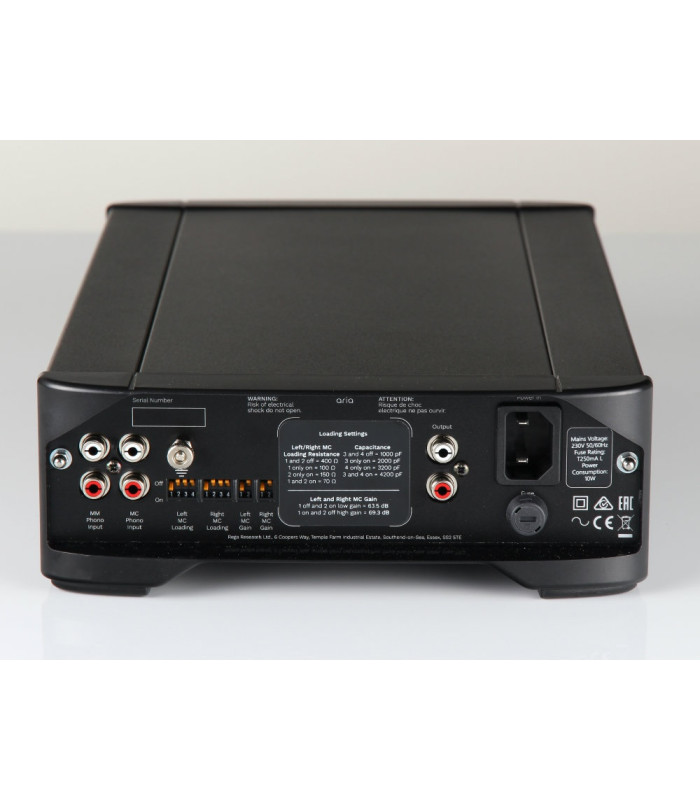

The MC input uses parallel connected, low noise FET's (Field Effect Transistor's) configured as a compound pair. The use of FET transistors ensures there is no bias current flowing in the cartridge coil so as not to upset the delicate magnetic geometry of the cartridge. The MC input has the provision for selecting resistive input loading of 70ohms to 400ohms and capacitive loading of 1000pF to 4200pF. The input sensitivity can be changed by 6dB via the back panel.

MM Stage design & features

The MM input uses low noise, bipolar input transistors also configured as a compound pair. There are two separate power supplies for each channel and further sub-power supplies for each of the low noise input circuits. Nichicon FG electrolytic capacitors have been used in critical positions throughout the power supplies. Polypropylene capacitors have been used in the signal path and equalization networks. Discrete circuitry is used throughout the signal path ensuring full control of the circuit design.

  • Maximum output level = 11v RMS
  • Rated output level = 200mV
  • Output resistance = 100Ù
  • Minimum output resistance for a –3dB point at 15Hz = 1K
  • AC supply 230v & 115v Nominal +/- 10%
  • 230v 20mm Fuse T250mAL
  • 115v 20mm Fuse T500mAL
  • Power Consumption = 10 Watts
  • Ambient operating temperature 5 to 35°C
  • Dimensions: W 220mm x D 340mm x H 78mm



Aria MC dip switch settings for all Rega MC cartridge models

You can read online the users' guide about the ARIA, please click here.


Designer

The first Rega - A star is born

Roy was now working for Ford as a technical editor but spent most of his free time installing friend's hi-fi equipment and building loudspeakers to sell. He became a part time retailer and found he had to spend a ridiculous amount of time repairing new turntables before his conscience and common sense would allow him to sell them to others! Out of frustration and a strong feeling he could do better, the Planet turntable was born. Roy and a partner registered "Rega" (Tony RElph, Roy GAndy). In 1973 and for a couple of years, Roy stayed at Ford and made turntables in the evening, helped by his partners: mum (who agreed to help out for two weeks and stayed for fifteen years!) and a succession of lads. The first turntables were sold through Cosmocord in the UK and a year later under the Rega name in West Germany, Denmark and France.

Roy was now able to leave Ford; he collected a redundancy check and promptly blew it on a factory in Rochford. Soon after the partnership with Tony Relph split, Roy swapping his share of Rega. Terry Davies joined as Rega's financial administrator.

In 1975 the Planar 2 was developed and quickly took its place in the market as the finest budget turntable. In June 1977 HI-FI News and Record Review announced the Planar 3 saying "The complete unit is worth a look"! Rega's usual blaze of non-publicity.

By 1980 Rega employed thirteen staff, exported to twelve countries, had twenty UK dealers and there were those dreaded 'waiting lists', mainly by eager customers shop-hopping!

 In 1980 Roy found an old mill (Park Street) in a residential area in Westcliff-on-Sea, Essex. The building had been deserted for twenty years and judging by the rot, seemed to have a millstream still running through it! Rega snapped it up for £30,000 and turned it into a compact but highly functional hi-fi factory, liberally painted bright green.

In 1983 after five years of dabbling and two years of intensive development, the RB300 and RB250 tonearms were produced. For ten years Rega had used Japanese and Danish manufactured arms on the turntables but after some searching Roy found a casting company prepared to work with him to develop an entirely new production method enabling the one-piece tube to be cast.

Rega won an international award for the RB300 casting, presented by Modern Metals 'awarded in open competition for excellence in the field of Aluminium Die Casting'. In their accompanying letter they wrote: 'we are still trying to figure out how you produce such a long cored hole so accurately'. This made up for never winning any prizes breeding budgies!

For five years, Rega sold a cartridge, the R100, made to specification in Japan. This was followed by the RB100, which was designed and developed by Rega. However, the cartridge had inevitable design limitations as it was being manufactured by an outside company.

In March 1988 the Bias and Elys cartridges went into production in house and sales exceeded 1000 in the first month, five times more than anticipated! The cartridges were a vital step on the way to a complete Rega system.

Completing the system...

In the summer of 1989 the Ela loudspeaker was introduced. Designed and developed at Rega, they were originally produced in Denmark but soon thereafter were manufactured in house.

In 1991, a period of dramatic expansion was heralded with the move into the world of electronics and the launch of two amplifiers, the Elex and the Elicit. The reason for producing these two amplifiers was simple; Rega was presented with a design it could not resist! Most importantly, the amplifiers fit into the company policy - which is to manufacture high quality, specialist hi-fi components that are reliable, consistent and sensibly priced. This development completed the Rega system.

A new factory was built in 1992 on the Temple Farm Industrial Estate in Southend-on-Sea under Roy's design and guidance to house the production of loudspeakers and amplifiers and to ensure room for further developments.

2014....

Over the past 40 years we have come a very long way. Now selling to more than 40 export markets and producing on average 2000 turntables alone every month, Rega now employ's almost 90 people in our purpose built 30,000 sq ft design and manufacturing facility in Essex, England.

Rega continues to grow and develop new products, all of which strictly follow those early Rega virtues of excellent build quality, long life and amazing value for money all backed up by a lifetime warranty against manufacture defects.
