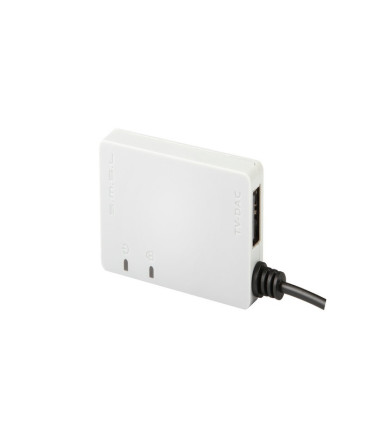

SMSL TV-DAC

Portable and mini sized, USB powered.

Includes one coaxial input cable and one 3.5 mm cable.

It takes your coaxial or optical digital audio source and converts it to standard analog left/rith audio, available for connection to an external device such as an amplifier or recording deck via standard RCA jacks.

Specifications:
Converter	Wolfson WM8524
Sampling rate	24bit 192kHz
Status indicator	LED
Line output level	2.1Vrms
THD+N	-89dB (-1dBFS)
Dynamic range	104dB
SNR	> 105dB
Crosstalk	< -100dB
Frequency response	20Hz - 20kHz at -0.5dB


Power Supply	5V DC 500mA via USB-A (length : 20cm)

Dimensions	59 x 32 x 10mm
Weight	20g
Accessories	Optical Toslink and Coaxial to Jack 3.5mm Cable

Introduction to SMSL Audio

SMSL Audio is a company specializing in audio DACs, headphone amplifiers, power amplifiers, digital interfaces and high fidelity players, with its own research, production and marketing team.

The brand has its own R&D center that designs high quality HiFi products that meet all needs. The reliability of their devices has allowed the brand to gain popularity and recognition in the audiophile world.

A bit of history...

SMSL Audio established in Shenzen, China in 2009. In 2014 SMSL started to use ESS DAC chips to design and manufacture Hi-Fi Audio DACs. In 2015 SMSL created the widely acclaimed "Panda Set". In 2016 we launched a new series of power amplifiers with Danish ICE-Power technology. And in 2017 the company expanded its sales channels outside China. In 2018 the flagship SMSL DAC D1 is launched. In 2019 we launched the first MQA DAC, model M500. In 2020, on the SMSL's 10th Anniversary, we started the production of our first two-way passive hi-fi speaker. To be continued...
