FiiO K19 Dual ES9039SPRO Flagship DAC & Headphone Amplifier

FiiO K19 Dual ES9039SPRO Flagship DAC & Headphone Amplifier

• Flagship Dual DAC.
• Latest ESS 8-Channel ES9039SPro DAC Chips.
• 31-Band High-Precision Lossless PEQ.
• 8-Channel THX AAA 788+ High-Power Amp Section.
• Up to 8W Per Channel Output.
• High-Performance Ultra-Low Phase Noise Femtosecond Crystal Oscillators.
• Global Clock Management.
• Ultra-thin Die-Cast Unbody Shock-Proof Chassis.
• Supports Multiple Inputs Including HDMI, ARC, Bluetooth, USB, etc.
• Separated and Shielded Digital and Analog Circuits.
• Multi-Stage Analog Power Supply.
• DC/AC Dual-Mode Power Supply.
• Audiophile-Grade Components.
• Four Analog Ouput+Two Digital Outputs.
• 1.3” Colorful Display Screen.

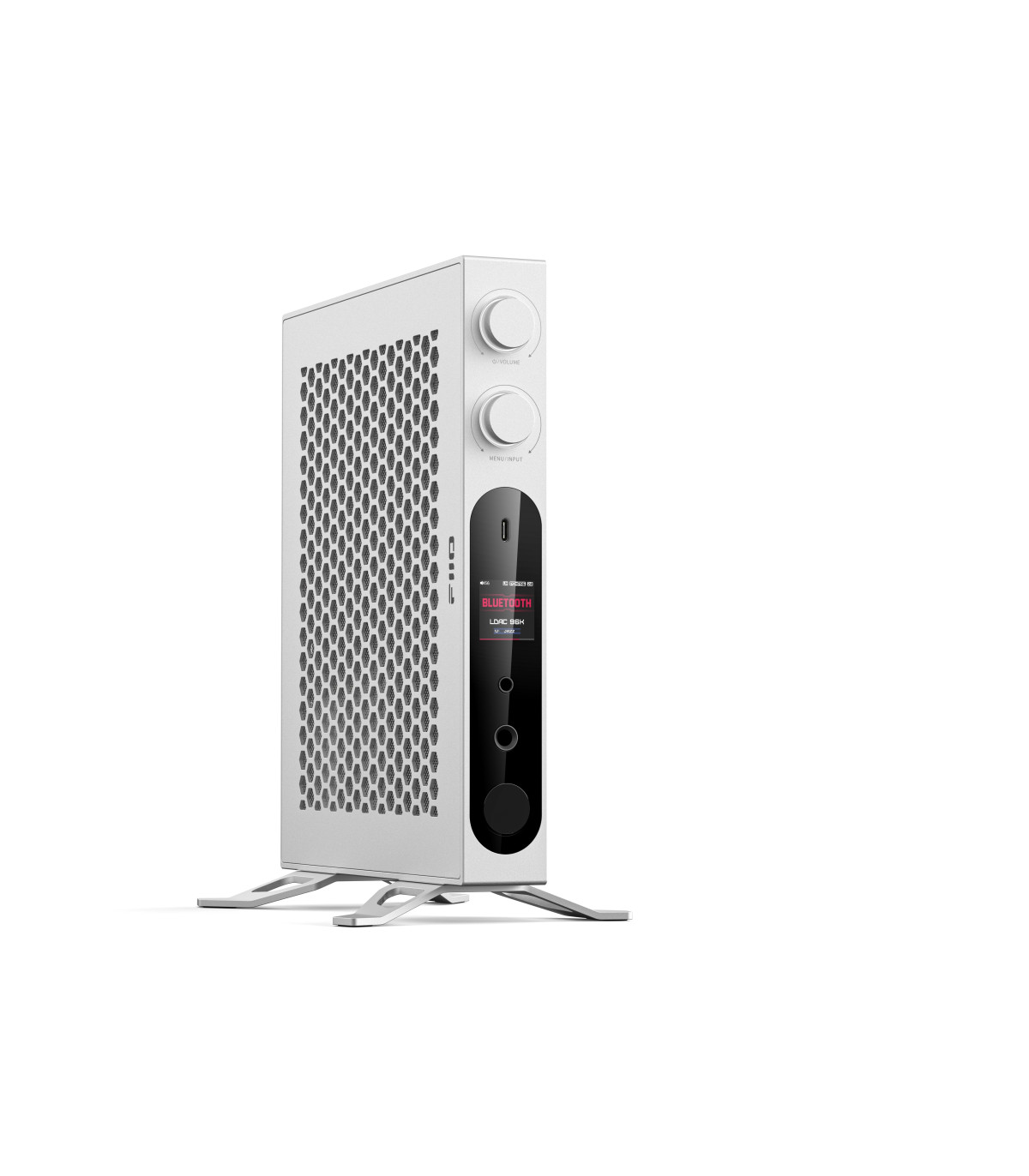

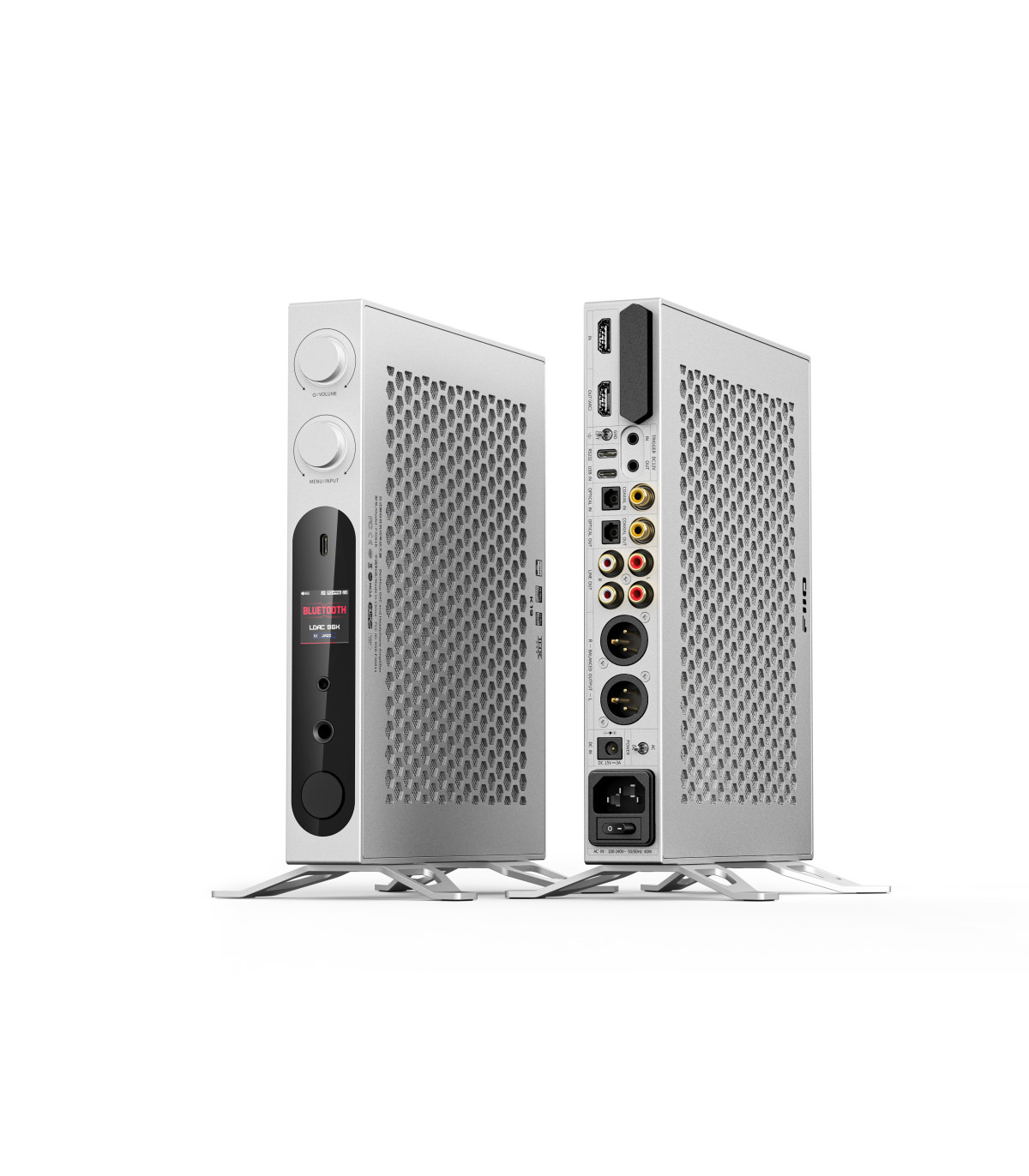

• Horizontal or Vertical Orientation Support.
• Custom Infrared Remote Control Included.
• 12V BiDirectional Trigger.
• Supports FiiO Control Application.
• Dual Indicator Lights on Volume Knob.

The FiiO K19 represents the latest flagship model from the brand, offering studio-grade performance. Crafted with top-tier components, the K19 delivers industry-leading capabilities. It boasts dual 8-channel ES9039SPro DAC Chips and a robust THX AAA 788+ amplifier section, ensuring clear and detailed output with substantial amplification power. The K19 includes a 31-band high-precision PEQ for precise audio adjustments, and its powerful amplifier section provides up to 8W per channel. The FiiO K19 is designed to be the ultimate all-in-one desktop solution for audio enthusiasts!

31-Band PEQ

The K19 incorporates DEL (Dual-Engine Limiter) technology and proprietary algorithms, granting access to various audio effects like DRC (Dynamic Range Compression) and DRE (Dynamic Range Enhancement). It features a 31-band lossless PEQ, allowing adjustments from 44.1kHz to 192kHz without impacting the sampling rate conversion (SRC). Users can fine-tune each band with a gain adjustment ranging from +12 to -24dB, enabling complete output customization.

Flagship Dual DAC Chipset

The K19 is equipped with two latest-generation 8-channel DAC chips from ESS Technologies. These ES9039SPro chips, one for each channel, utilize the fourth-generation 32-bit Hyperstream architecture. They deliver true high-resolution audio processing with an exceptionally high dynamic range and minimal distortion.

High-Power 8-Channel THX Amplifier Section

At the core of the K19 is an 8-channel THX AAA 788+ amplifier. The THX chips are connected in parallel, creating a balanced 4-channel architecture for headphones. This powerful amplifier section can output up to 8W per channel, providing ample power to drive even the most demanding headphones with plenty of headroom.

High-Resolution

The K19 features dual ACCUSILICON AS318-B femtosecond crystal oscillators known for their ultra-low phase noise. These components are carefully selected to ensure precise sound signal restoration and accurate audio reproduction across various sampling rates.

Shock-Proof Die-Cast Chassis

The K19's seamless design is crafted from die-cast aluminum alloy. The device is meticulously finished with a multi-axis CNC machining process for a premium look and feel. Its unibody construction and shock-proof internal chassis provide stability and durability.

Multiple Input Options Including HDMI/ARC

The K19 offers a variety of input options, from traditional USB and wireless Bluetooth to HDMI and ARC capabilities. It is the first DAC/AMP in FiiO's lineup to support HDMI and ARC inputs. The HDMI input supports 192kHz/24-bit audio, while HDMI ARC supports 44.1/48kHz bitrates. Additional connectivity options include USB, Optical, Coaxial, and Bluetooth.

Power Supply

The K19 is equipped with a 40W low-noise industrial-grade power supply that operates across a broad voltage range and varying temperatures. The power supply features isolated and shielded analog and digital circuits to ensure reliable performance. This industrial-grade power supply ensures clean, accurate, and efficient power delivery to the audio components.

Specifications

• DSP: ADI SHARC+ ADSP-21565
• DAC: 8-channel ES9039SPRO*2
• Headphone Amplifier: 8-channel THX AAA 788+
• USB Chip: XMOS XU316
• USB Decoding Support: 768kHz/32-bit, DSD512, MQA full decoding
• USB Interface: Type-C *3
• Bluetooth Chip: QCC5125, Bluetooth 5.1
• Bluetooth Codec Support: SBC/AAC/aptX/aptX LL/aptX HD/aptX Adaptive/LDAC
• Display: 1.30-inch fully laminated screen (240*240)
• Power Output 1: L+R≥2300mW+2300mW (32Ω single-ended, THD+N＜1%, Ultra high gain mode)
• Power Output 2: L+R≥8000mW+8000mW (32Ω balanced, THD+N＜1%, Ultra high gain mode)
• Power Output 3: L+R≥270mW+270mW (300Ω single-ended, THD+N＜1%, Ultra high gain mode)
• Power Output 4: L+R≥1100mW+1100mW (300Ω balanced, THD+N＜1%, Ultra high gain mode)
• Power Output 5: L+R≥1250mW+1250mW (32Ω single-ended, THD+N＜1%, Super high gain mode)
• Power Output 6: L+R≥5000mW+5000mW (32Ω balanced, THD+N＜1%, Super high gain mode)
• Signal-to-Noise Ratio: ≥128dB (A-weighted)
• Noise Floor 1: LO＜1.6μV (A-weighted); PO＜3.5μV (A-weighted)
• Noise Floor 2: BAL LO＜2μV (A-weighted); BAL＜6μV (A-weighted)
• Output Impedance: ＜0.6Ω (32Ω)
• THD+N: ＜0.0002% (1kHz/-6dB@32Ω)
• Weight: Approximately 1800g
• Dimensions: Approximately 250x225x36.7mm
• Intelligent Protection Systems: Overheating, overload, DC protection, intelligent power-saving

List of Items Included

• Quick start guide
• AC power cord
• Type-C to USB-A adapter
• 6.35mm adapter
• Stand (color-matched with main unit)
• Vertical headphone stand support (color-matched with main unit)
• Screwdriver
• Metal XLR4 dust cover (pre-installed)
• Feet stands
• Screws
• USB2.0 data cable
• Infrared remote control
• 3.5mm audio cable
• Dual Type-C data cable
