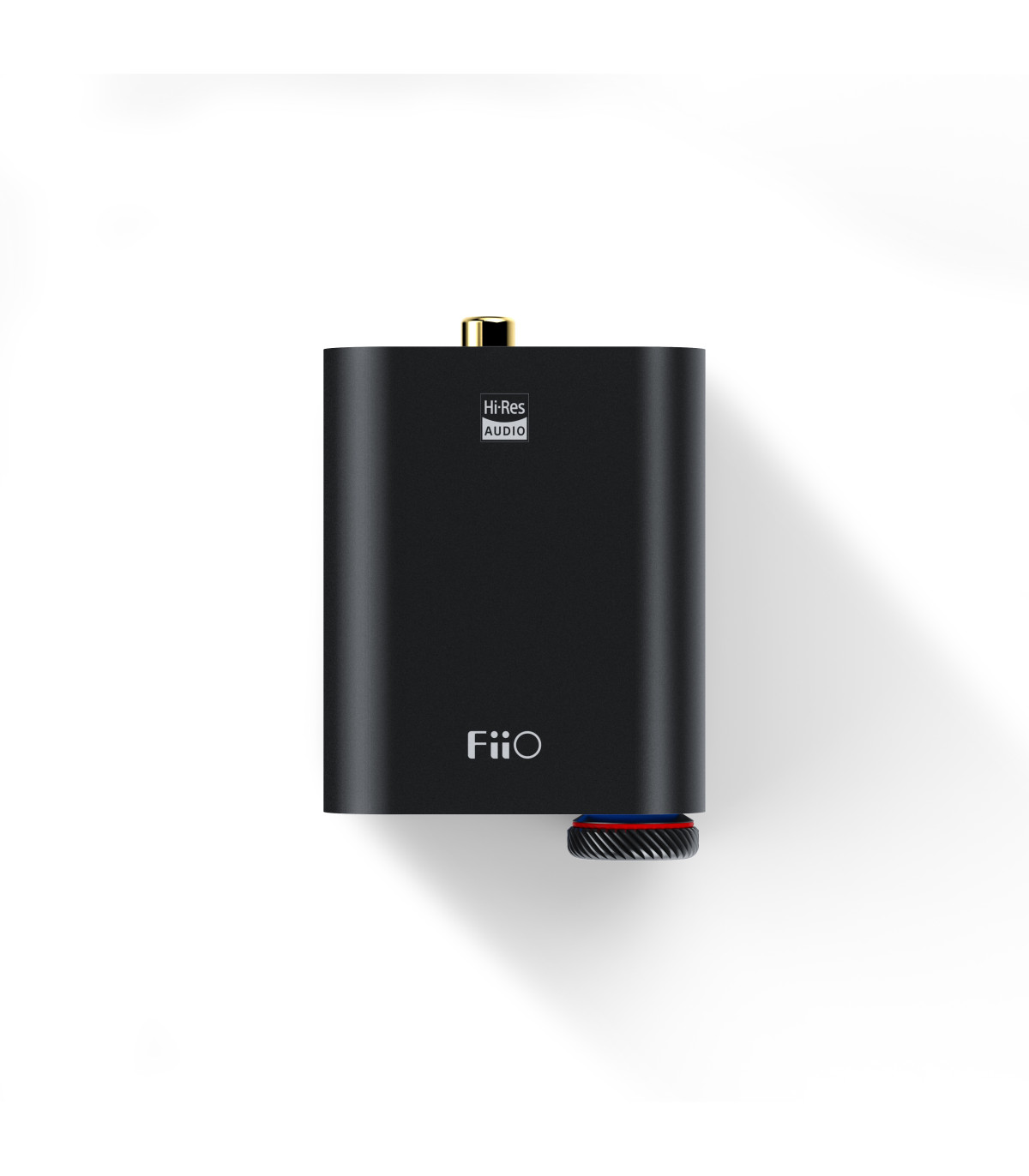

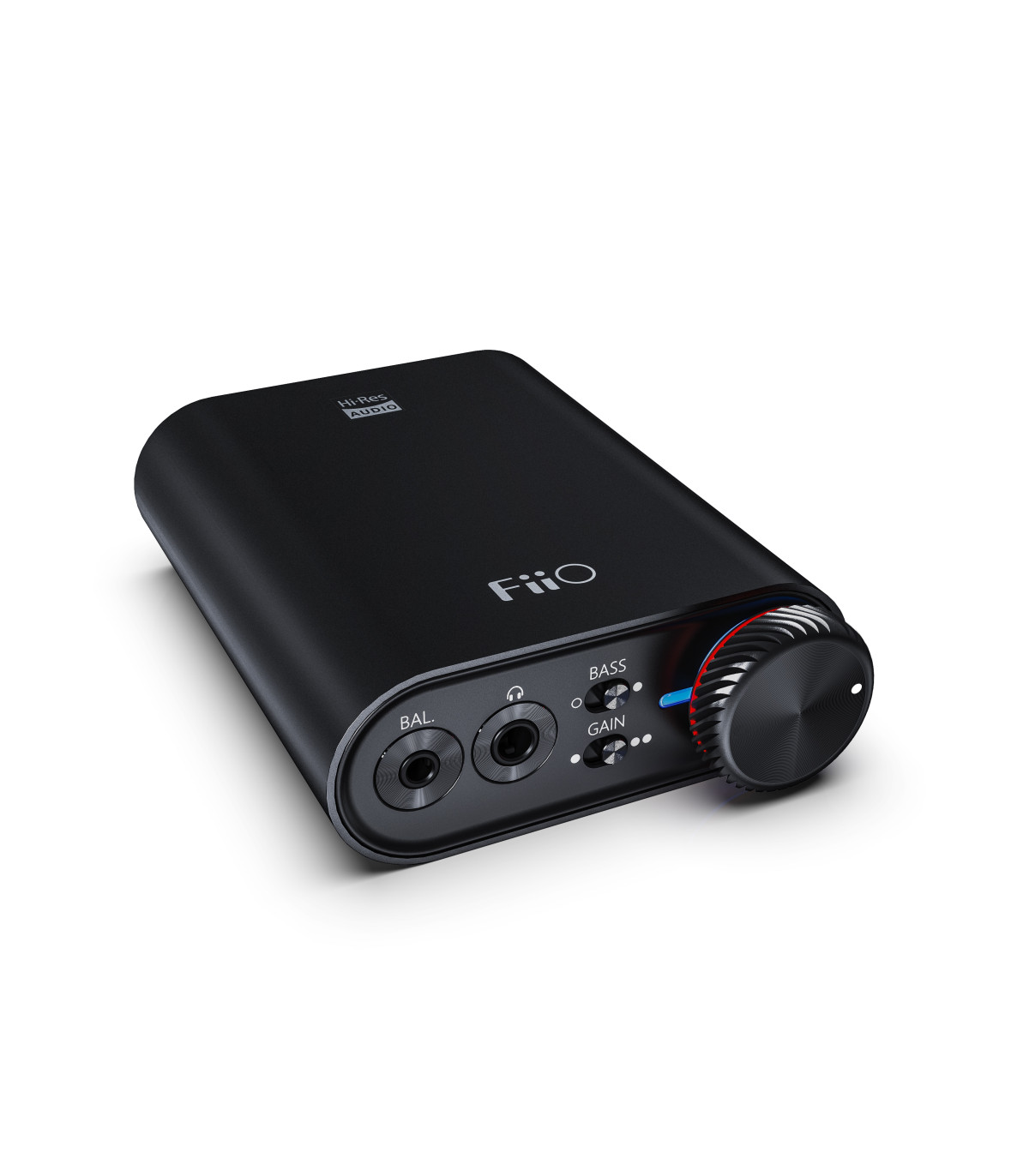

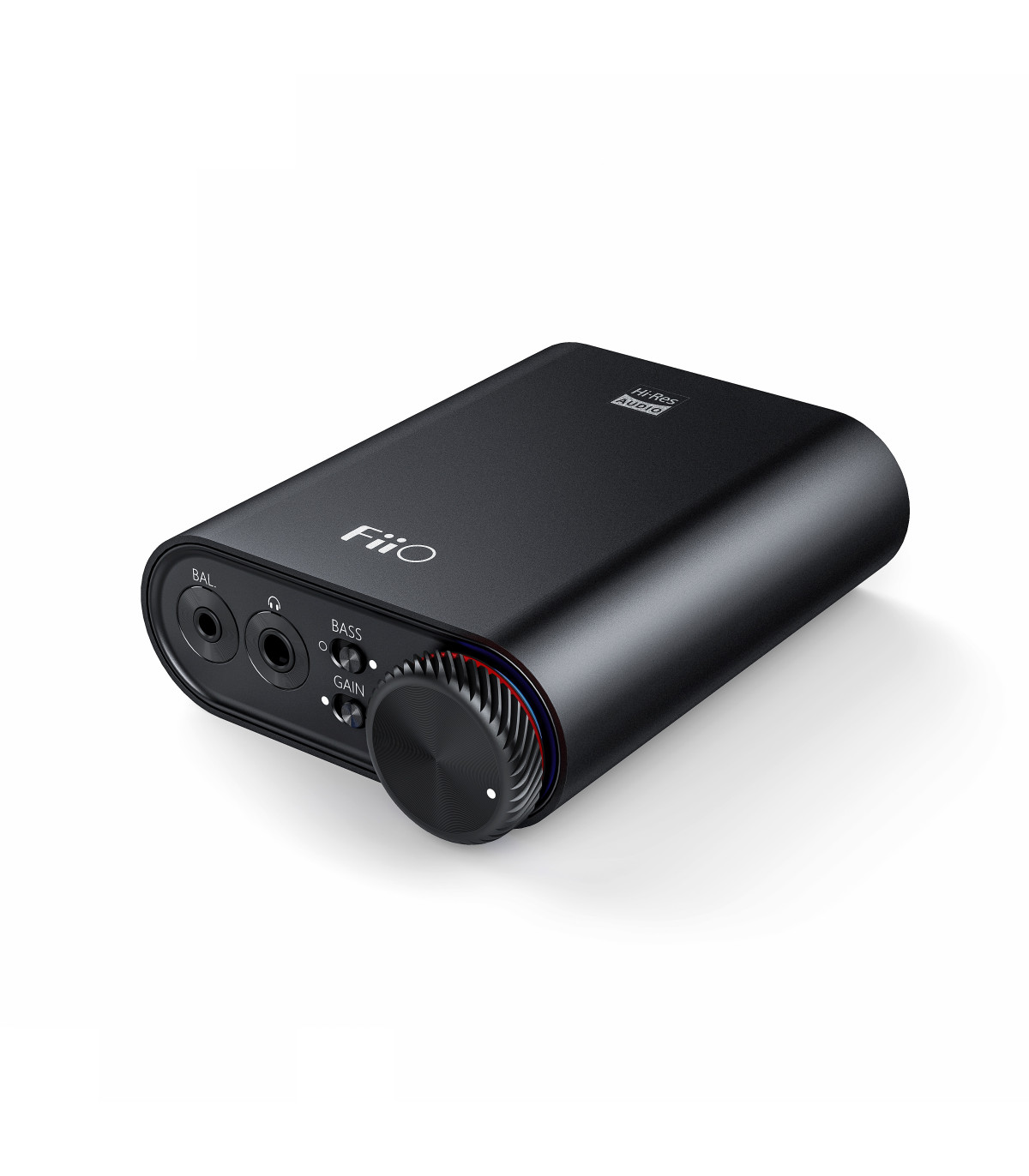

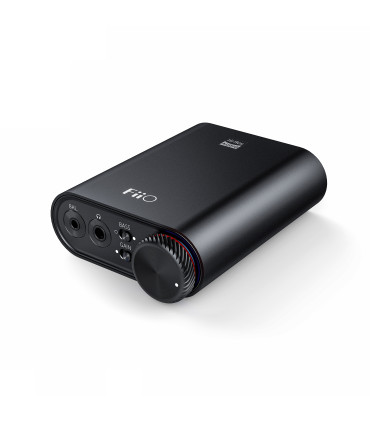

FiiO K3s Desktop USB DAC with Headphone amplifier

2560

New product

97,54 €

Available for immediate shipping.

Brand: FiiO


Description

New FiiO K3s Desktop USB DAC with Headphone amplifier (also called "K3s") now includes the DAC chip ES9038Q2M can manage all the high-definition music file formats

Elevate your computer with powerful decoding

Just connect the new K3 to your computer via USB to instantly upgrade to high-fidelity sound, and enjoy your music the way It was meant to be heard. Equipped with an XMOS USB receiver chip, the new K3 is capable of decoding up to 3134kHz/32 bit PCM and native DSD256 — the same as many DACs costing much mere. The new K3's dual crystal oscillators ensure that any digital audio signals being fed Into the DAC are exactly correct for further enhanced sound quality.

Great "core" improvement

The new K3 employs the flagship portable ESS DAC, the ES9038Q2M. Compared to the AK4452, the signal-to-noise ratio has increased by 14dB and distortion has reduced by 13 dB. The circuit design implementing this DAC has been optimized for a low noise floor and clean sound.

• SNR increased by 12%
• Distortion (THD+N) reduced by 12%

High-performance, low distortion op-amp

Compared to the last generation K3, FiiO has noticeably improved on various performance indicators and overall sound quality, so you can get immersed In your music even more easily.

Simply reliable USB power

The new K3 adopts the modern USB Type-C input interface for a more reliable and stable connection, including that of power. However, care to ensure an uncompromised power supply doesn't stop there — the new K3 implements overvoltage protection (OVP) and a double-filter circuit to ensure power supply stability, while the digital and analog audio circuits each get their own power supply to greatly reduce crosstalk.

Low and High gains ADC volume control

The switch for high and low gain meets your listening volume needs of delicacy and large dynamics. Plus an ADC volume control, the user is able to smoothly adjust the volume to a more accurate and finer degree, allowing the new K3 to be used with headphones of all kinds of sensitivity to really make your songs, games, and movies come to life.

Tiny round goodness in the palm of your hand

The all-aluminum black body has been painstakingly CNC-machined, anodized, and sandblasted to ensure that the new K3 feels robust yet perfectly textured for a great feel in your hands. Combined with Its small size, you can easily take the new K3 wherever you need to.

Two modes for many situations

Sometimes, you may not have access to a device that can connect to the new K3 via USB Audio Class 2. In these situations, you can go to USB Audio Class 1 mode with just the flick of a switch.

* Using the 2.0 mode requires downloading and Installing the FiiO USB driver
* After switching USB modes, you need to either turn the new K3 off and on, or unplug and plug in the USB cable.

A distinctly cohesive tactile audiovisual experience

The volume knob, with 45° notches e perfectly sized to allow easy one-finger operation, is designed to perfectly bend with the curves of the new K3 body for a distinctive touch. Next to the volume knob is an RGB light that indicates what kind of digital audio is being input to the new K3, visually confirming what you are hearing in your music.

* 48kHz sampling rate and below - Blue
* Above 48kHz sampling rate - Yellow
* DSD - Green

Different connection options for different scenarios

* Connect it to a desktop computer
* Use the driverless 1.0 mode for business trips
* Make it a digital turntable connected to an external decoder
* Connect it to a speaker, using the New K3 as a DAC

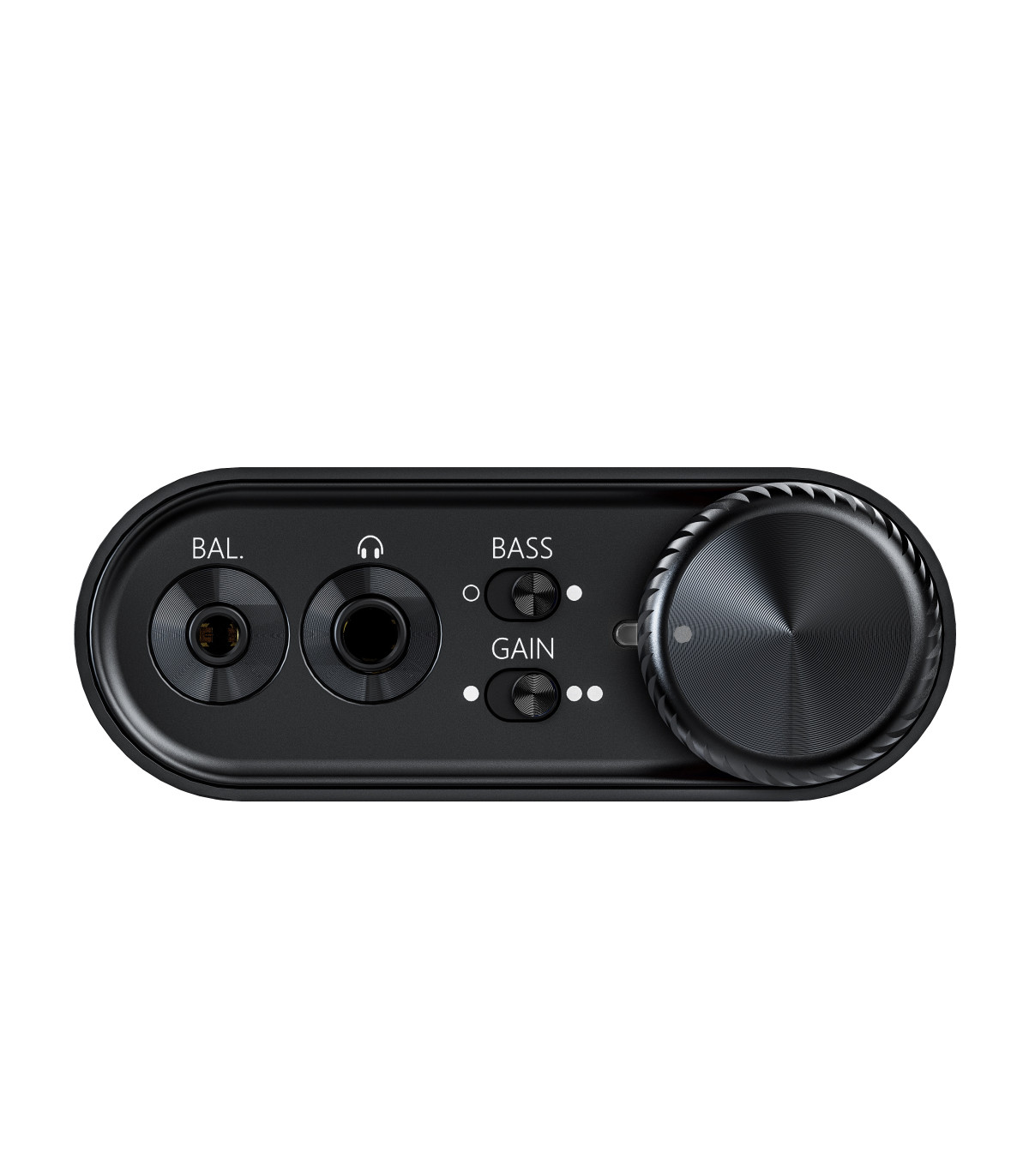

Dual headphone jacks

Being optimized for indoor desktop use, the new K3 is equipped with both 3.5mm single-ended and 2.5mm balanced headphone jacks. Both outputs have audio jack detection, which means that when headphones are inserted into the balanced out, balanced boost automatically kicks in, resulting in about a 50% output Power Increase compared to the single-ended out.

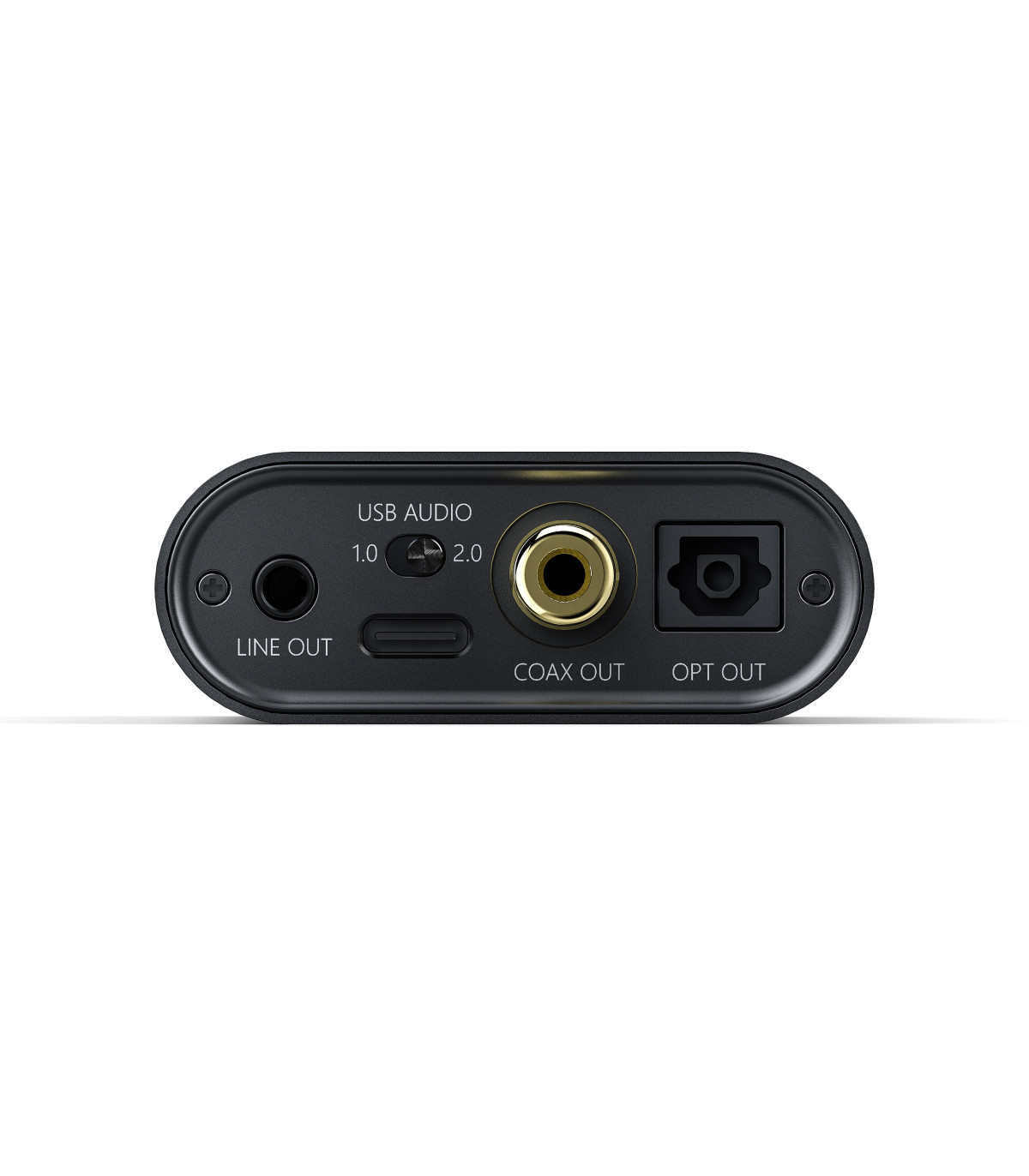

Line out connector

The 3.5mm line out is driven directly by the OPA1612 op-amp, to ensure as little sound quality reduction as possible. The line out output is also adjustable with maximum power output up to 2Vrms, to ensure compatibility with a wide variety of active speakers and extemal amplifiers.

*When using the line out, please disconnect any headphones

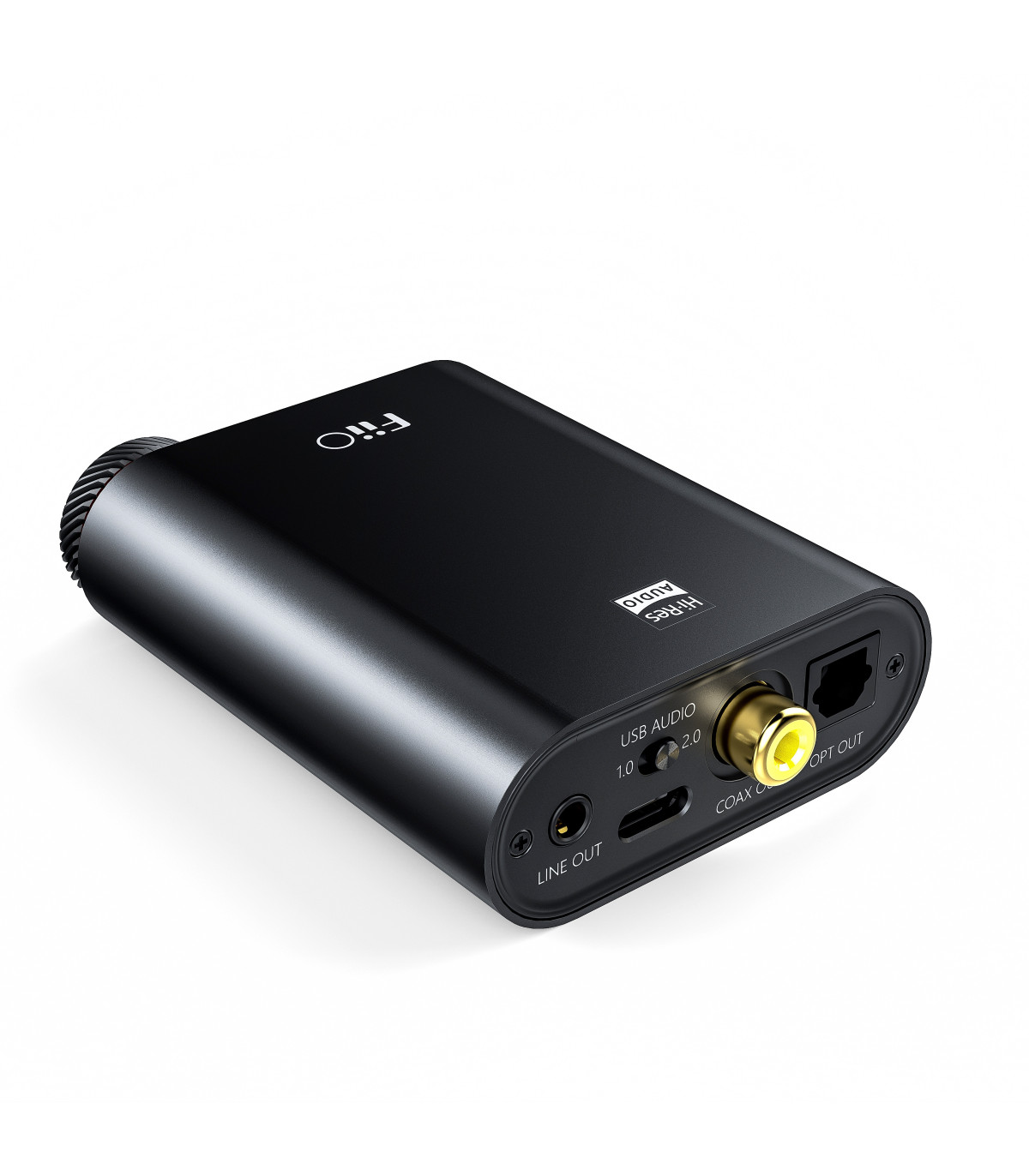

Coaxial and Optical
The XMOS USB receiver chip in the new K3 directly converts any USB audio input to digital signals output via the coaxial and optical connectors, allowing you to connect to speaker systems, amplifiers, or other external decoders.

*The volume knob does not control digital output volume. The New K3 can output digital audio signals up to 192kHz and DSD64 over DoP. Please adjust the settings of the device you are connecting the New K3 to if the device does not support the digital output format


Designer

FiiO logo

About FiiO Electronics Technology Co., Ltd.

01 Brand Introduction - HiFi+Fashion

FiiO Electronics Technology Co., Ltd. was established in 2007.  It is a high-tech enterprise that combines research, development, production and sales, and its sales are mainly based on its own FiiO brand as opposed to OEM/ODM.  It focuses on digital audio, with current mainstay products being portable headphone amplifiers, DAC / amps and portable digital audio players.

FiiO: It is composed of Fi (Fidelity) from HiFi and iO (represents number 1 and 0) which indicates the sincerer feeling and more convenient life the digital tech has brought to us.

飞傲: The Chinese transliteration of FiiO, as well as representing youthful vigor and the active & innovative spirit of the company.

Audio products are meant to fulfill the spiritual pleasure of users.

  1. FiiO provides products and service related to music.
  2. We also hope to bring happiness to our users with the provided products and service, which is also the key value of FiiO.

Customer Service

  1. Good after-sales service, more reliable
  2. Great user experience, more pleasure
  3. Variety of activities, more involved

About products

  1. Affordable: FiiO products are well-known for its feature of high cost-performance. Lowering the entry level to make more customers can afford.
  2. Easy to use: FiiO pays great attention to the user experience. We are not only provide products with high quality, but also easy to use and with long lasting durability.
  3. More accessories bring more fun: Enable to play in a variety way and use under more possible environments.
  4. Updates available: Equipped with a variety of ports, it makes the music players can still connect to external amp/DAC for upgraded enjoyment.
  5. Endless transformability available: With replaceable amp module and expandable storage, the X7 can bring more playability.

02 Company Profile

Research & Development Team

  • Twenty years of R&D experience in audio products
  • Former core R&D team for audio products from OPPO
  • A team of 20 professional R&D engineers in software, hardware, industrial design, structure and electro-acoustic.

Research & Development Investment

FiiO keeps bringing in advanced equipments and high-tech talents so as to ensure the stable growth and long term competitive edge. Up till now, the team size has expanded three times than that of 2007 when we established.

Team Composition

The R&D team is made up of development dep, engineering dep and QC dep, with 60+engineers in total.

Authorized certifications

FC, CE, KC, CCC and ISO9001:2008 ensure the safety and quality of the products.

Production management

FiiO has strict requirements to production with almost “zero tolerance” even to small problems, which is strictly in compliance with the International Quality Management System ISO9001.

QC Equipment

  • a. AP audio analyzer (valued at 200,000RMB).
  • b. Life-span test platform against high & low temperature, swing and plug & unplug trial.
  • Aging test carriage towards mass production.
  • Aging test machine under high & low temperature.

Customer oriented

Driven by customers’ needs, we innovate constantly and response promptly to the market changes. We develop new products based on customers’ needs and compete for more market shares.

Company culture - Our Vision

Present the world a better “Made in China”.

Brand Spirit

  • Innovation

the earliest company that designed the minimum volume headphone amplifier. First dockable amp & DAC product. First amp specially designed for iPod/iPhone. First amp with adjustable power supply and power supplied by mobile phone battery. First multifunctional headphone amp & DAC for Android smarphone. First Hi-Res music player at a price lower than 1000RMB supporting 192K music. First Android-based Hi-res music player.

  • Quality

Repair Rate < 1%. Sound Quality Control system. Original components imported from TI, Wolfson, Maxim. Company-wide quality control. +20 quality engineers and inspectors. Complete testing facilities.

  • Service

CEO at the frontline of customer service. 100% response to enquiries. The most popular headphone amplifier brand on Head-Fi. First class website and contents in the audio industry. Interaction with and support to customers on Facebook and Microblog (twitter-like social website).

Brand Mission

FiiO designs, produces and sells high-quality products at favorable prices to those who love music and style.
