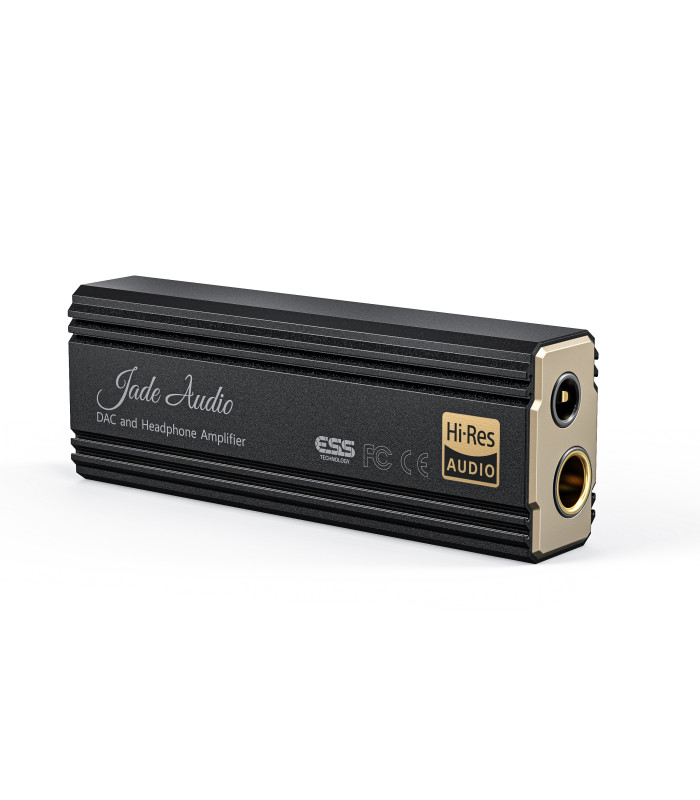

FIIO KA3 - Portable DAC Headphone Amplifier ES9038Q2M Balanced 32bit 786kHz DSD512

Most current mobile phone designs gave eliminated the traditional headphone jack, this is the case. Then we will create a headset port with better sound quality.

Tremendous performance in a slim package

Within the KA3’s petite frame lies exceptional hardware.

High performance flagship DAC

Equipped with the powerful and proven ESS ES9038Q2M supporting 32bit/768kHz and DSD512.

Dual headphone outputs

Comes equipped with two headphones outputs, both powerful to easily drive a variety of headphones.

Clean sound for a great sound

Featuring abundant power with high signal-to-noise ratio, low distortion and almost zero noise. This is true high-fidelity sound.

SNR: >122dB | THD+N: <0.0008% | Noise: <1.7UV

Dual SE and balanced

Satisfy multiple use cases with both a 3.5mm single-ended and a 4.4mm balanced output.

Wonderfully versatile

Compatible with various OSes like Android/iOS/Windows/Mac. Compatible with many devices like phones/computers/audio players. Use in various scenarios like listening when commuting, in your home or office, or even gaming.

*Due to the large output power of the KA3 and limited external power supply of iPhones, stutter and muteness may happen to the maximum volume.

All-metal construction

The all-metal body sports a handsomely rugged design with distinct edges and a luxurious gold and black finish.

RGB

Besides excluding elegance, the RGB light indicator usefully indicates the current sampling rate.

Blue: 48kHz and below sampling rate

Yellow: 48kHz and above sampling rate

Green: DSD

Many ways to interact

Unleash the KA3’s potential with more interactivity in a control app including controls for 7 kinds of filters, high and low gain, and channel balance adjustment.

*The KA3 can only be controlled by Android devices.

You can connect the FiiO KA3 to your iPhone/iPad/iPod by purchasing the FiiO LT-LT1 separately (click here).

Technical characteristics


Product type	DAC and headphone amplifier
DAC Chip	ES9038Q2M
Input	1x USB-C
Outputs	1x Single-ended Jack 3.5mm 1x Balanced Jack 4.4mm
Output power	Single-ended: 130mW @ 32Ω Balanced: 240mW @ 32Ω
Noise floor	Single-ended: 3.9µV / 4.2µV Balanced: 4.4µV / 4.3µV
Supported sampling rates	PCM up to 32bit 768kHz DSD up to DSD512


Package	1x FiiO KA3 1x USB-C to USB-C cable 1x USB-C to USB-A cable
