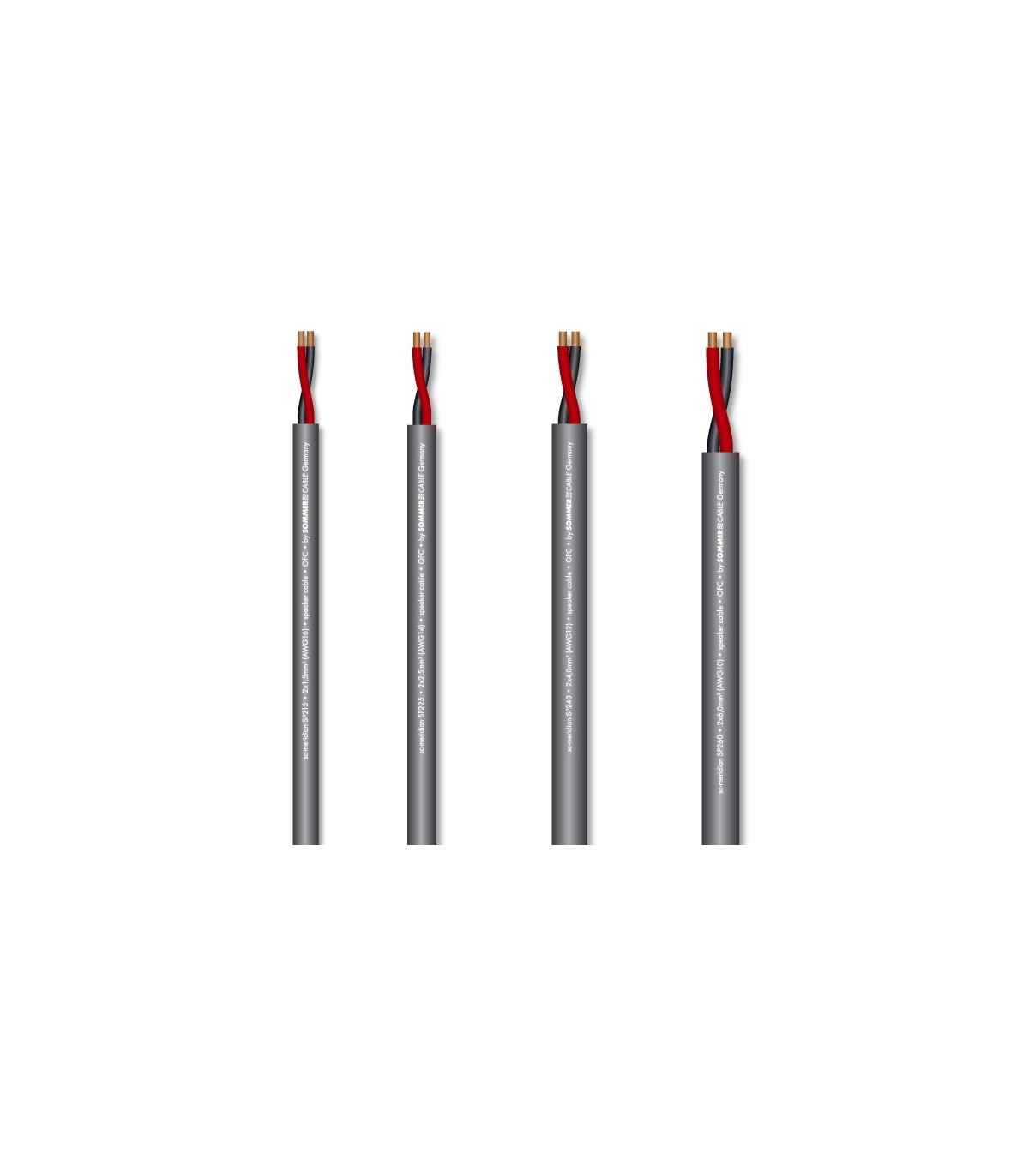

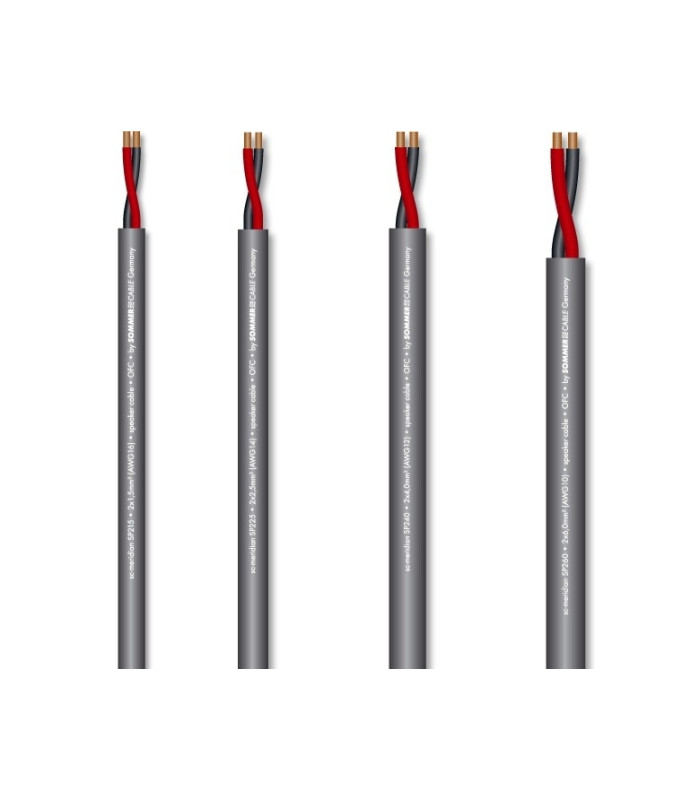

Sommer Cable Meridian Speaker Cable (cut-sales)

Sommer Cable Meridian Speaker Cable (cut-sales) - non terminated, price per meter. Available at your choice in four models: 2 x 1.5mmq, 2 x 2.5mmq, 2 x 4mmq or 2 x 6mmq.

Were raw force reigns... the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.

All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding! New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2) as well as the olive green offroad version “MAJOR INVISIBLE“ with 2 x 2.5 mm². Also new is the shielded version MERIDIAN FG for in- and outdoor installation or ELA-technology with double shielding (copper braiding and AL-foil) and a halogen-free outer jacket, Protection Class IEC 332.3. These cables are not designed for mobile applications.

THE ADVANTAGES:

Flexible (PVC- and PUR-versions only) and easily windable
Small diameter
Great durability through the use of a special jacket mixture
Very affordable
Available in PMB-, FRNC- and a shielded version

THE APPLICATION:

All types of sound systems
For permanent installation - also E30 and FRNC
For ELA-technology
Wiring of HiFi-systems
Mobile outdoor areas (PUR-version)

TECHNICAL DATA (SP215; SP225; SP240; SP260):
Construction (2LIY1.50; 2,50; 4.0; 6.0mm2)Y
Diameter 6.8mm; 7.8mm; 9.5mm; 10mm
AWG 16; AWG 14; AWG 12; AWG 10
No. of conductors 2 x 1,5 mm2; 2 x 2.5mm2; 2 x 4mm2; 2 x 6mm2
Jacket material, insulation FRNC (Test type C)
Copper strand per conductor 84 x 0,15 mm; 140 x 0.15 mm; 56 x 0.30mm; 84 x 0.30 mm
Conductor insulation, diameter 2,62 mm; 3,05 mm; 4,2 mm; 4,7 mm
Temperature range min. -30 °C
Temperature range max. 70 °C
Weight per 1 m 78 g; 106 g; 150 g; 192 g
Packaging 100/500 m
Colour dark gray
Type FRNC shielded

ELECTRICAL DATA:
Capac. cond./cond. per 1 m 150 pF; 136 pF; 125 pF; 125 pF
Cond. resistance per 1 km, Ohm < 13; < 7.8; < 4.5; < 3.3
Insulat. resistance per 1 km > 5 MOhm
