MS HD Power MS-9315G IEC Plug 24K Gold Plated

1688

New product

36,80 €

Available for immediate shipping.


Description

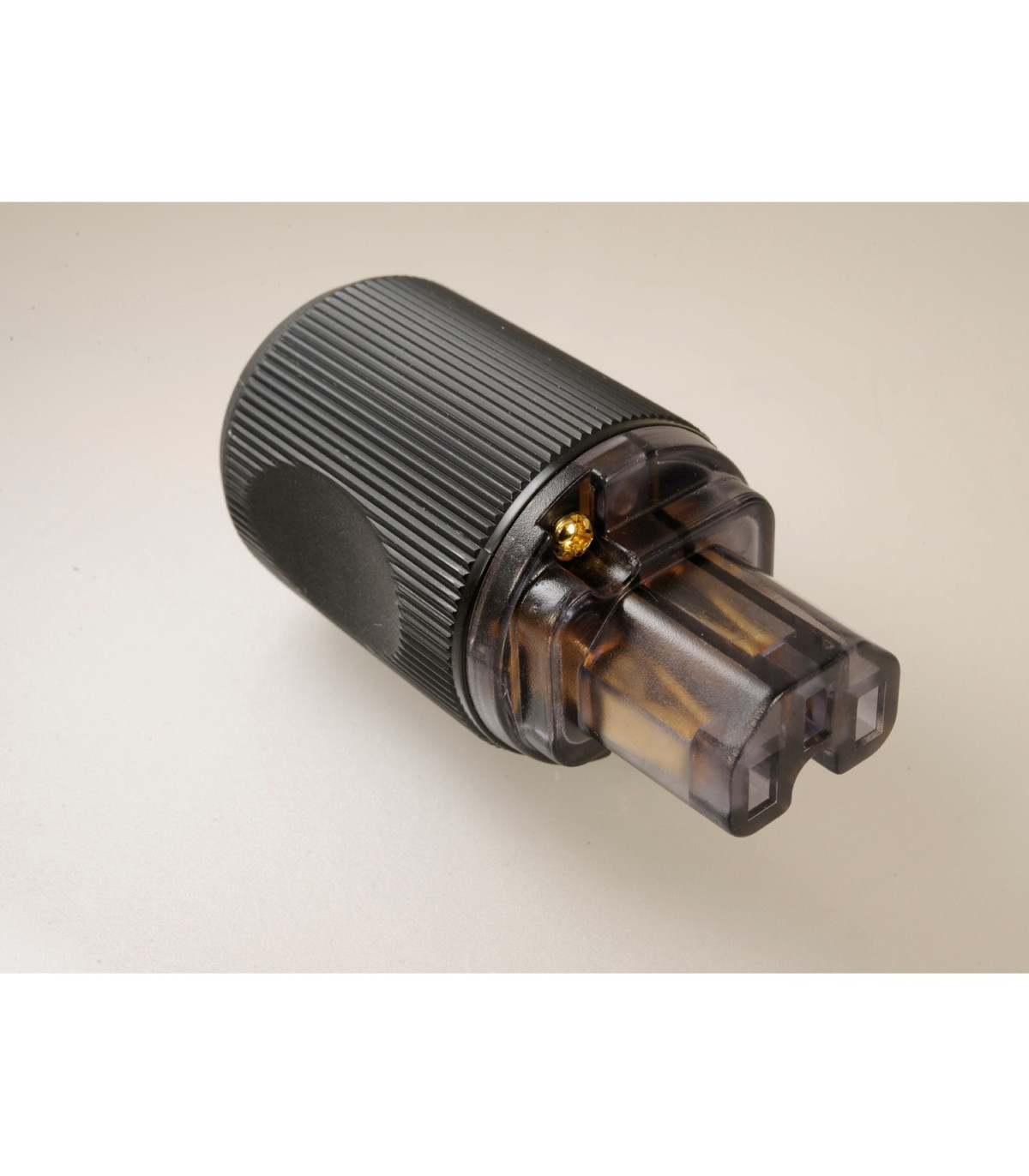

An audiophile quality IEC (EU) Gold plated mains plug.

Designed to Adopt Large Size Power Cables - up to 16mm dia. and capable to fit up to 4mm Diameter wire conductors very securely.

This IEC plug has high quality 3.0µm 24K Gold plating over the highly polished female power pins, and all other power and earth conducting parts, including the wire securing screws.

Complies to CE and IEC-60320 Standards Safely Standards.

Selected premium quality copper material for all parts and components.

High-Insulation, Durable and Light-Weight Housing, colour black.

Gold Plate Specifications:

  • Designed to Adopt Large Size Power Cables
  • Complies to CE and IEC-60320 Standards Safely Standards.
  • 3.0µm 24K Gold Plating to All the Plug Pins
  • 3.0µm 24K Gold Plating to All the Conductors Fixing Screws and Internal Parts
  • Selected Premium Quality Copper Material for All Parts and Components
  • Capable to Fit Up To 4mm Diameter Core Conductors Securely
  • Capable to Adopt Up To 16mm Diameter Power Cables
  • High-Insulation, Durable and Light-Weight Housin

This high quality IEC mains connector by MS HD Power is designed for use with audio equipment and will accept large size power cables, up to 16mm diameter - and up to 4mm dia. wires internally. The wires are held in heavy duty clamps to ensure a perfectly air tight joint (and not held with a grub screw, as in many inferior products plugs). It is very easy to wire up and there are instructions included with the plug, which comes in a display case package.

All the electrical parts are plated in the finish of your choice above as are the all important polished phosphor bronze extra strong spring clips, for a perfect air tight mating with the IEC socket on your audio equipment.

The casing is manufactured from a black nylon material, making it very durable, highly insulating and light in weight. It has a ribbed surface with two recesses to enable easy fitting and removal from socket.

Specifications:

  • Size: total length, 75mm x 38mm diameter
  • Type of Plug: CEE 7/7 , unswitched
  • Mains Voltage: 200~250 VAC
  • Max. Current: 16 Amp.
  • Dimensions: dia. 38mm x 70mm L(Housing Only)
  • Net Weight: 100g (net)
