Description

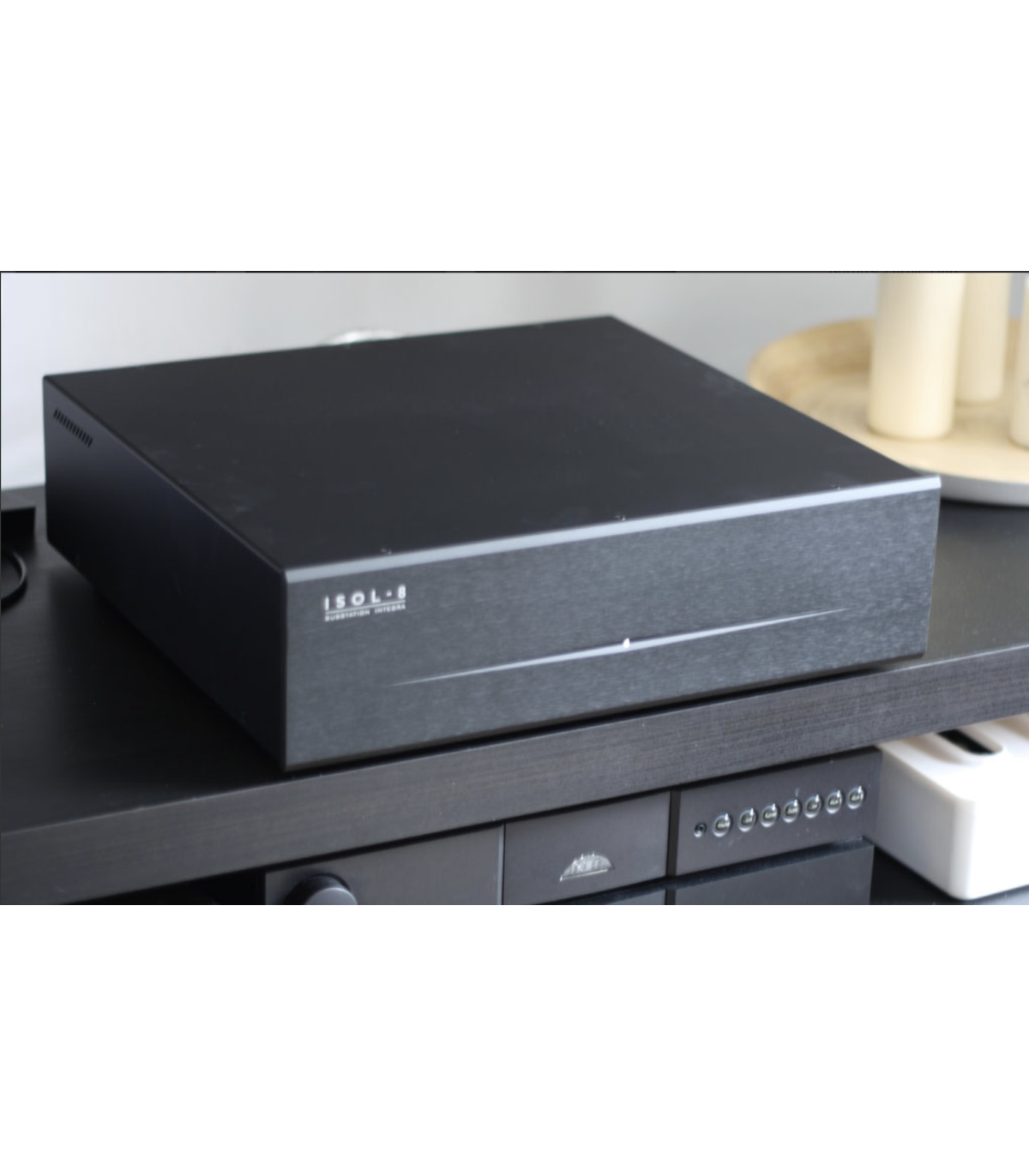

ISOL-8 SubStation Integra – black finish

POWER CONDITIONING FOR COMPLETE SYSTEMS

High-performance conditioning + DC blocking

Overview

The SubStation Integra combines the flagship technologies of the HC and LC models in a single chassis. Designed to deliver a lifetime of reliable service in high-end systems, it offers advanced filtering, DC blocking and intelligent power distribution, providing high performance without compromising dynamics or sonic detail.

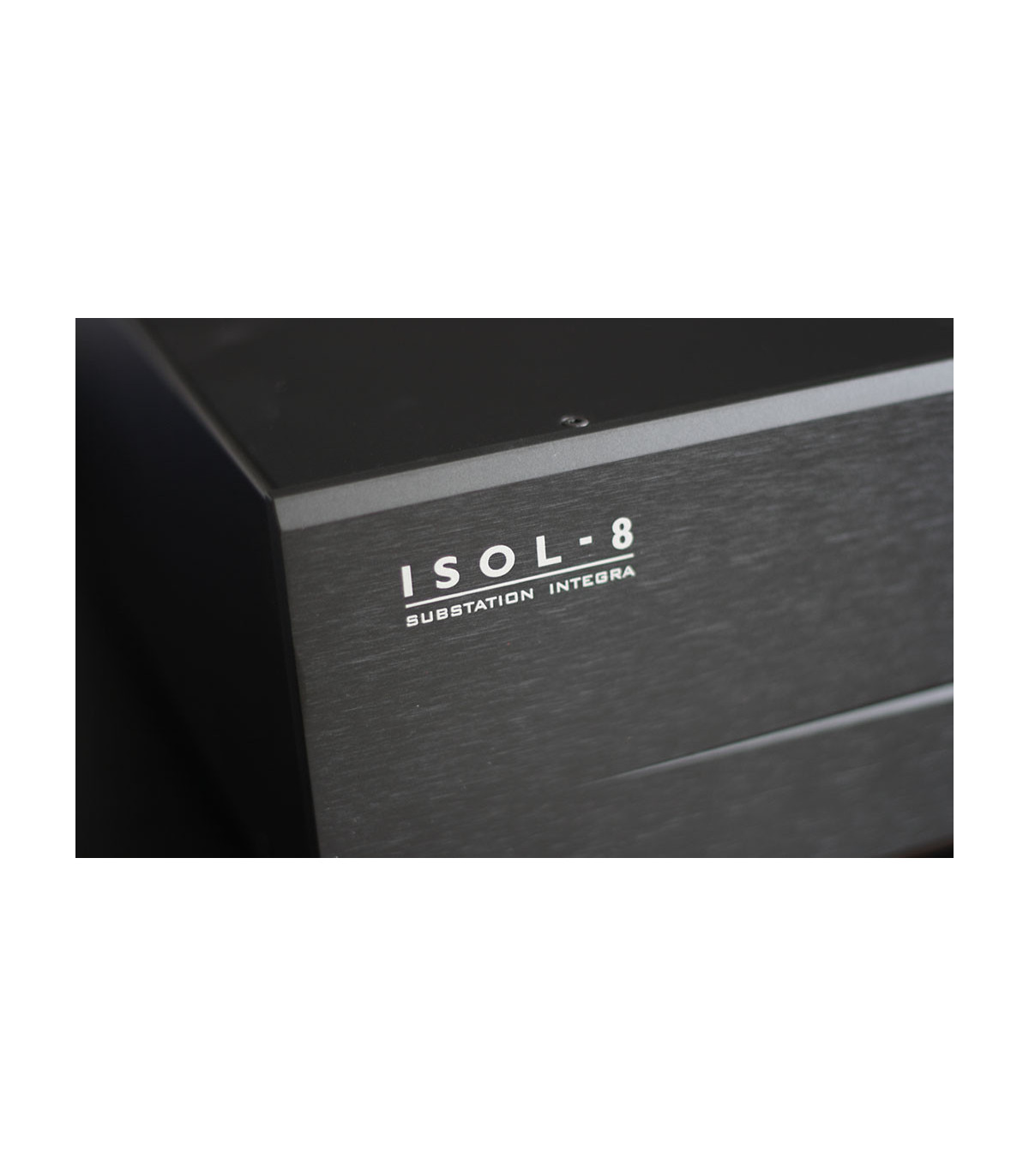

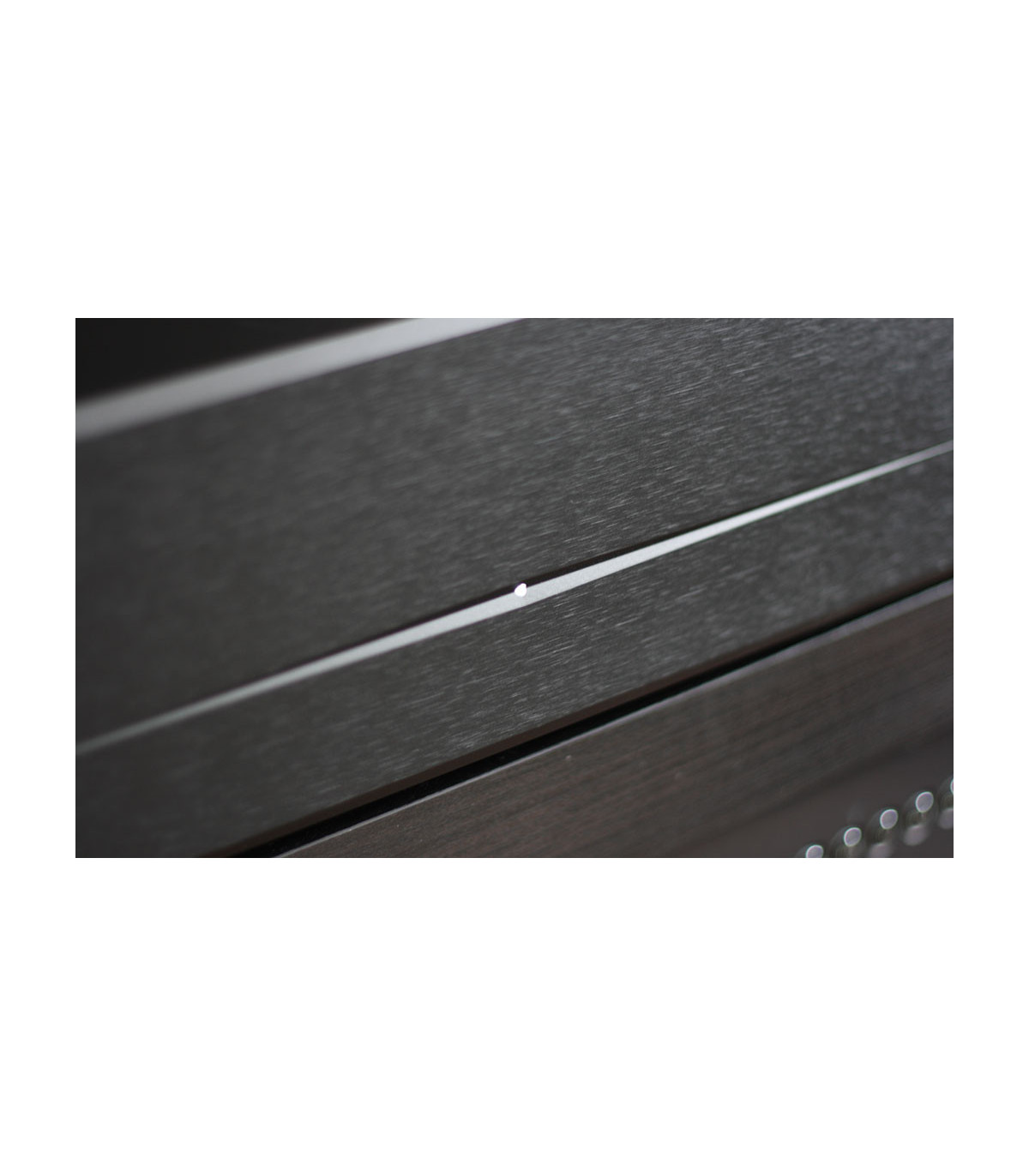

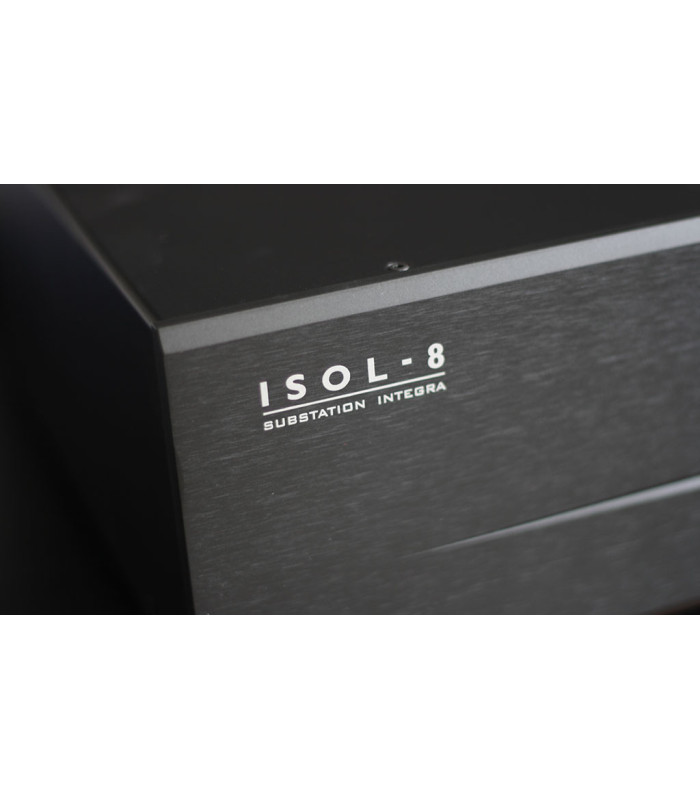

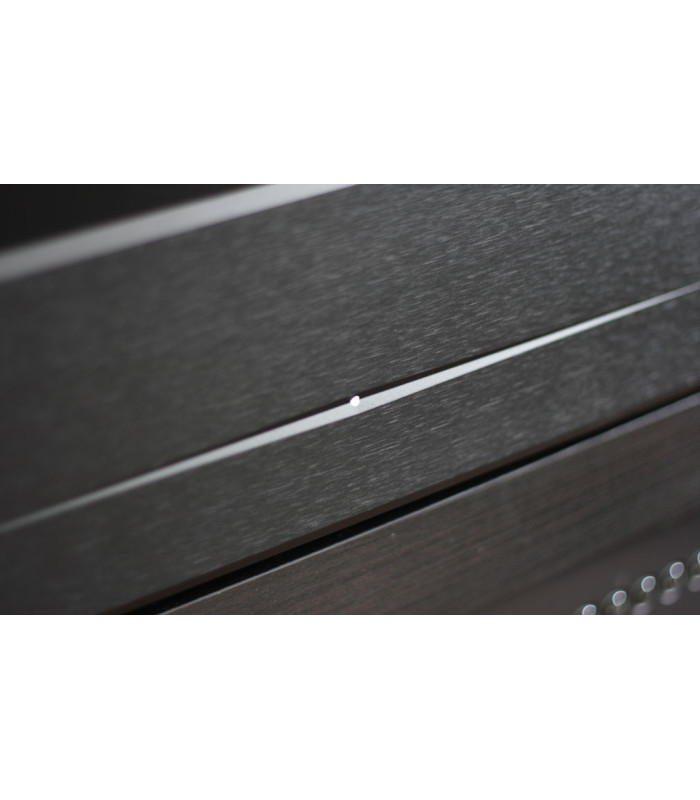

  • The beautifully finished chassis features a 10 mm CNC-machined alloy front panel and an aluminium cover.

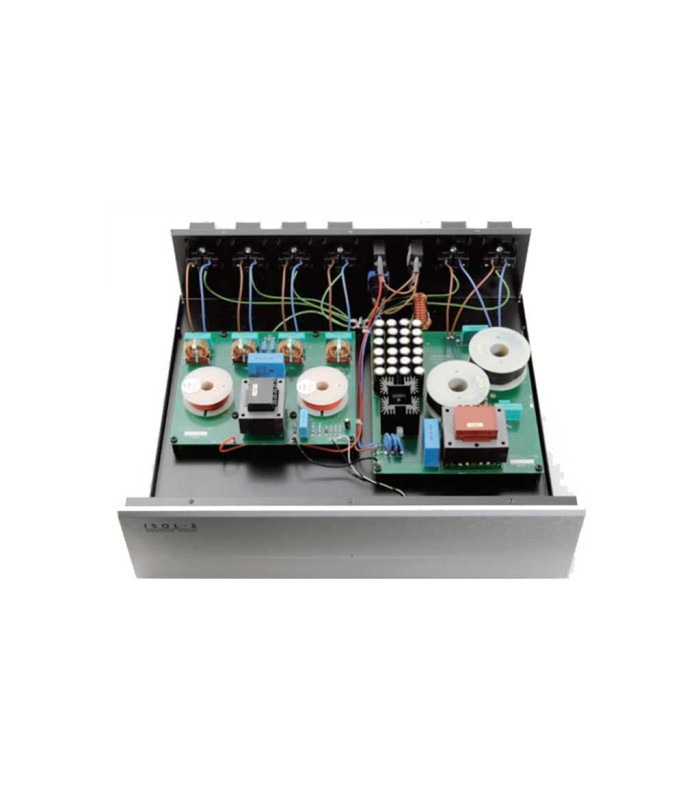

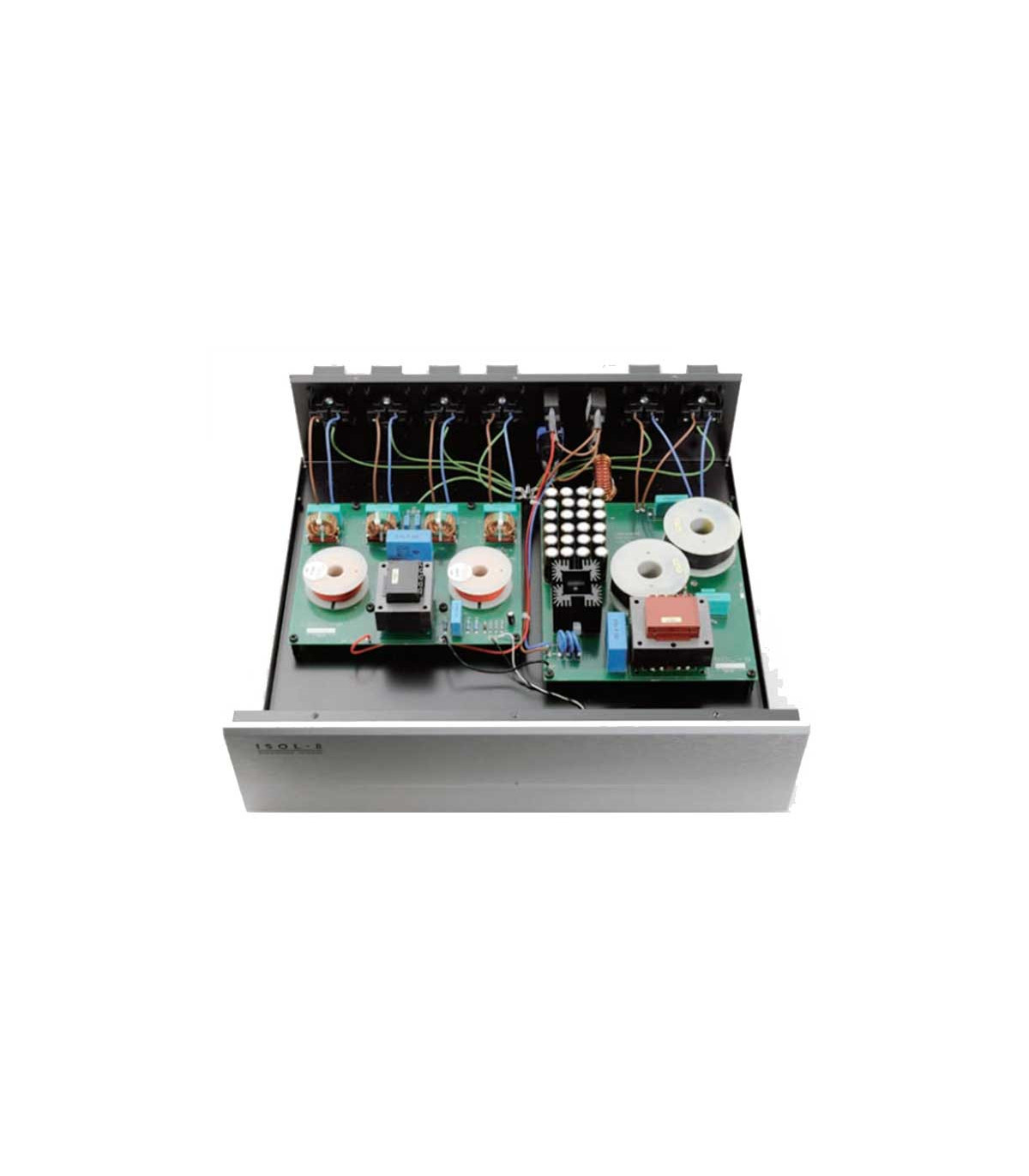

  • All sockets are IP54-protected against dust and dirt. High-quality polypropylene capacitors, Mundorf OFC inductors and custom-wound ISOL-8 chokes ensure superior performance.

  • Wiring throughout is silver-plated copper with PTFE insulation.

A 20 A Neutrik latching inlet allows the full 16 A capacity to be used with a suitable mains connection. The inlet is positioned centrally to minimise electrical and magnetic interaction between the two filter groups, each individually protected by high-quality magnetic circuit breakers.

The SubStation Integra has two individual filter sections. There are four low-to-medium-current outlets optimised for source components and preamplifiers and two high-current outlets optimised for power-hungry components such as amplifiers. All are served by a high-capacity ISOL-8 Axis circuit that blocks any performance-degrading DC present on the mains. All outlets are protected against surges and spikes. A custom-wound choke also filters any noise present on the safety earth wiring.

The four outlets optimised for source components each have their own dedicated Transmode filter. This prevents the noise generated by each component in the system from degrading the performance of another, reducing noise cross-contamination between components. The two high-current outlets are specifically optimised for current-hungry loads such as power amplifiers. The Transmode topology, with its very low series resistance, means that high peak currents are delivered effortlessly and without dynamic compression, while still being effectively filtered.

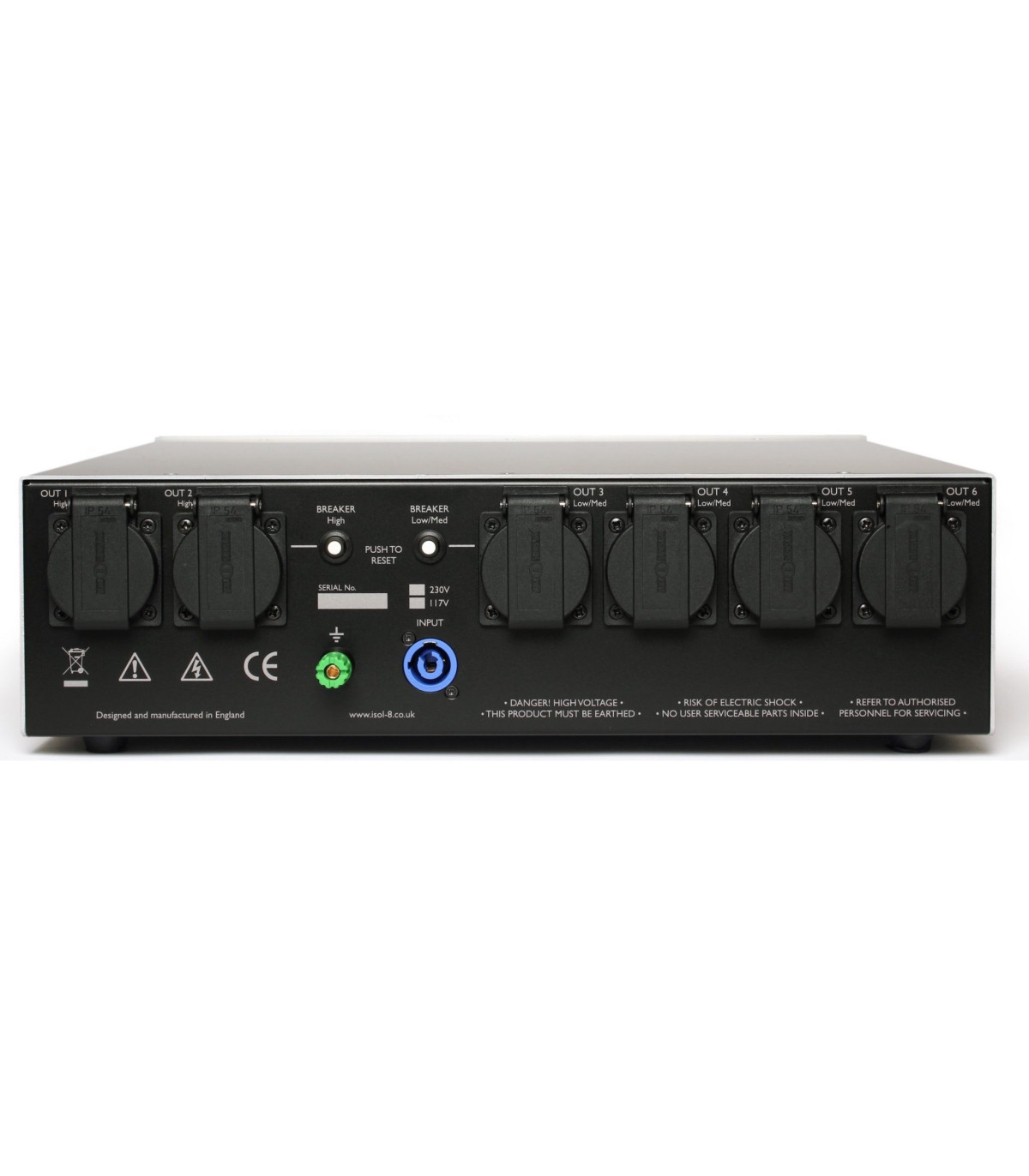

Outlet and Inlet Configuration

  • 6 outlets in total:

    • 4 medium/low-current outlets, dedicated to sources (DAC, preamp).

    • 2 high-current outlets, designed for amplifiers

  • Main inlet: Neutrik powerCON 20 A, cable not included; ensures a stable, magnetically shielded connection

Filtering and Protection

  • Axis DC-blocking circuit: removes DC from the mains, preserving sound quality

  • Transmode filters:

    • Each medium/low-current outlet has its own dedicated filter, reducing cross-contamination between components

    • The high-current outlets maintain a very low impedance, avoiding dynamic compression even under heavy loads

  • Protection: against sustained overvoltage and surges/spikes on all lines + RF/EMI interference blocking and DC bypass (custom choke) to clean up the earth wire, designed to minimise series resistance (so dynamics are unaffected) and maximise noise rejection (on earth or line-neutral)

  • IP54 protection against dust/dirt

Key Features for Audiophiles

  • Exceptionally clean audio signal thanks to Axis + Transmode filters

  • Targeted isolation: no interference between DAC, streamer and amplifiers

  • Full dynamic response, even with powerful amplifiers

  • Robust protection and build quality for years of reliable use

Comparison with the LC/HC Models

  • The Integra offers most of the performance of its LC (source-specific) and HC (high-current-specific) siblings, at a lower price

  • Ideal as an all-in-one unit, balancing capacity, price and sound quality

Why Choose It

  • ✓ Aimed at audiophiles who want maximum detail, dynamics and isolation between components

  • ✓ A compact, robust and complete solution for demanding hi-fi systems

  • ✓ Elegant design, with premium materials and CNC finishes

In Summary…

  • The SubStation Integra is designed to deliver a lifetime of reliable service. The beautifully finished enclosure features a 10 mm CNC-machined alloy front panel and an aluminium cover.

  • All sockets are IP54-protected against dust and dirt. High-quality polypropylene capacitors, Mundorf OFC inductors and custom-wound ISOL-8 chokes ensure superior performance.

  • Wiring throughout is silver-plated copper with PTFE insulation.

Why Invest in Your Mains Supply?

"Ultimately, every sound we hear is the direct result of modulating the electrical energy supplied by the mains. It is this energy, precisely transformed and controlled, that powers every stage of the audio system, right through to the loudspeakers."

According to Nic Poulson, founder of ISOL-8 and Trilogy Audio Systems and a leading figure in professional audio design, the power supply is the foundation of sound quality. Every component in your hi-fi system, from the DAC to the amplifier, depends entirely on the quality of the power it receives.

That is why ISOL-8 recommends allocating at least 10% of the total system value to optimising, filtering and protecting the mains supply. It is an investment that often has a greater impact on the listening experience than far more expensive changes (such as cables or electronics upgrades), because it works at the root of the sound: the power supply.

Technical Specifications

Outlets: 6 (4 medium/low-current, 2 high-current)
Outlet type: Schuko sockets
Mains inlet: 20 A Neutrik powerCON IEC connector (cable not supplied)
Dimensions: 435 × 131 × 410 mm (W × H × D), excluding connectors
Weight: 9.9 kg (11.5 kg packed)
Construction: Black-finish steel chassis
Silver aluminium front panel (optional)
Input voltage: 230 V AC version for 220–240 V AC
Maximum continuous current: 6 A from any medium/low-current outlet
6 A in total across all medium/low-current outlets
16 A from any high-current outlet
16 A in total across all high-current outlets
16 A in total across all outlets
Protection: 2 circuit breakers on the rear panel

Welcome to ISOL-8 – the world leader in power treatment performance

Isolate (UK):*/ˈaɪsəleɪt/, to free from outside influences

Designed and manufactured in the United Kingdom (UK), we supply the finest mains treatment products for hi-fi audio and video systems: whether you are looking for power management devices, a boost in performance or the state of the art, ISOL-8 can provide the best solution for your system.

HOW TO CHOOSE

When it comes to truly effective power conditioning, there is no one-size-fits-all solution. We have learnt this over many years of experience and painstaking development of this type of product.

We offer a wide range of products so that you can find the ideal power solution for your system. A good rule of thumb is to spend 10% of the system cost on optimising the power supply.

Why treat your power with dedicated components?

The ultimate goal of any high-fidelity system is to bring you as close as possible to the original performance. ISOL-8 reduces the compromises and brings you closer to the emotion – closer to the music.

Every component in our system is an imperfect link in a chain that converts the energy it receives from one form to another and finally delivers it to us. The most important – and the most underestimated and overlooked – aspect of a playback system is the power supply itself, the source of energy for our systems. We plug into the wall, the device works, and we take everything for granted. Yet the mains supply is the start of the chain, the foundation on which the music is built, and it deserves to be optimised.

ISOL-8

Every system needs a quality power supply to give its best. PowerLine is a family of compact power distribution units (PDUs) designed to boost system performance, bringing ISOL-8's mains expertise at an affordable price. PowerLine offers a flexible yet powerful solution tailored to those who put performance and value first.

Designed and manufactured in the UK. ISOL-8 supplies the finest power conditioning and distribution products for hi-fi and AV systems. Whether you are looking to save energy, simply improve performance or pursue the state of the art, ISOL-8 has the best solution for you.

To find out which power treatment products can transform your system, visit our website www.isol-8.co.uk or contact your specialist dealer for further information.
