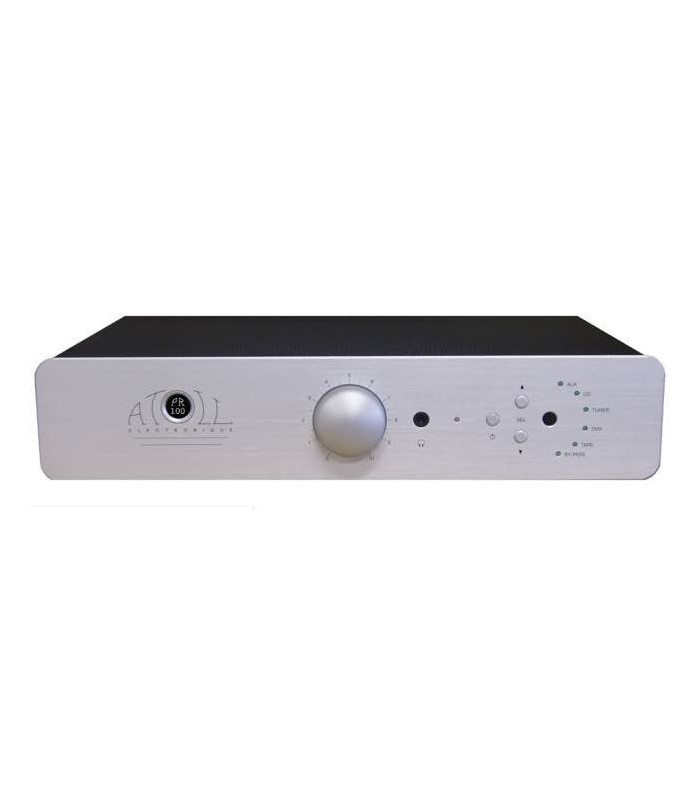

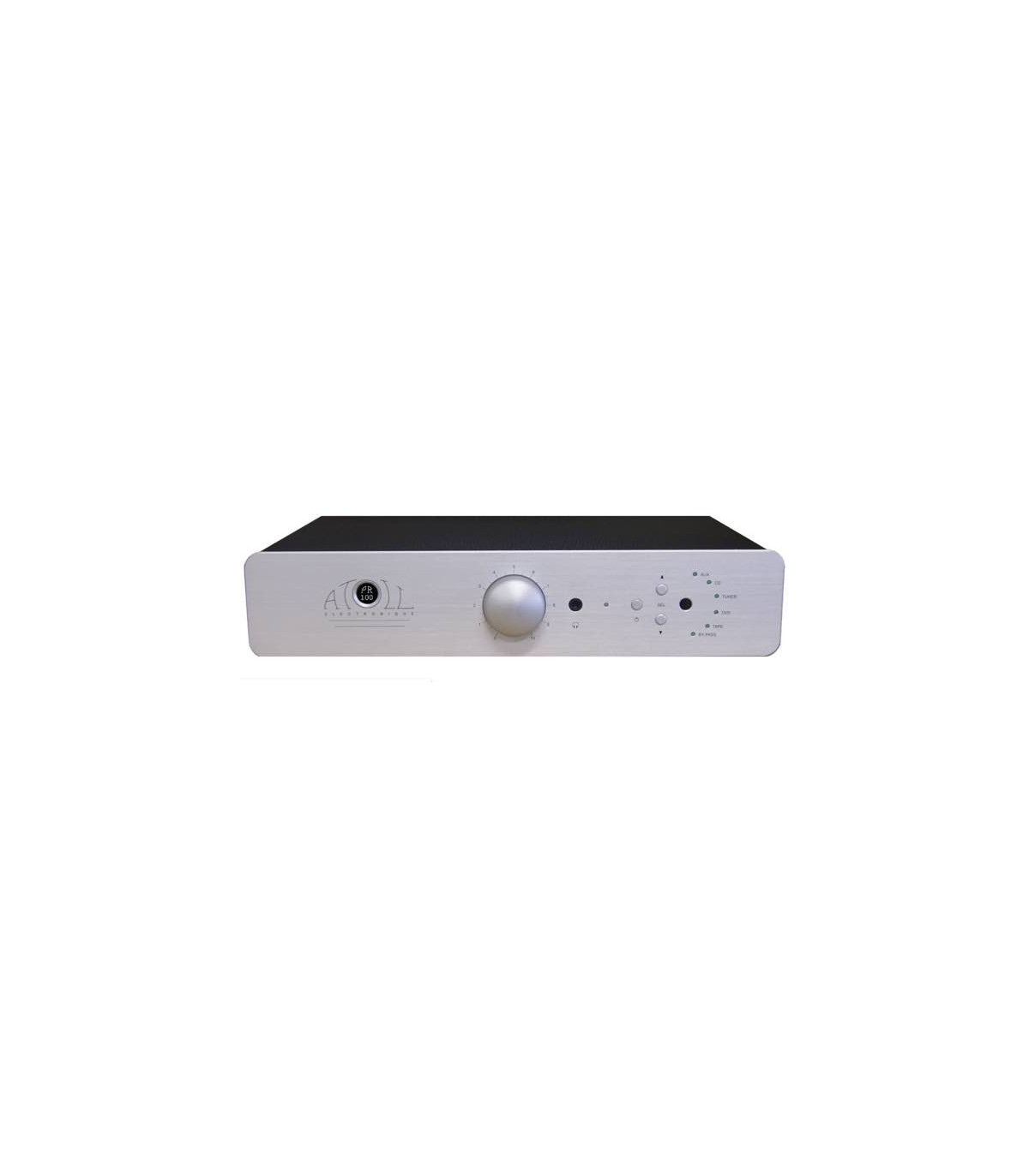

Atoll PR 100 SE Pre-amplifier [2nd hand]

The PR100se is a product featuring electronic circuits that operate perfectly in pure Class A. With extraordinary transparency, it reproduces even the smallest detail with remarkable precision.

– Motorized ALPS potentiometer
– By-Pass input
– MKP technology coupling capacitors
– Source selection via relays

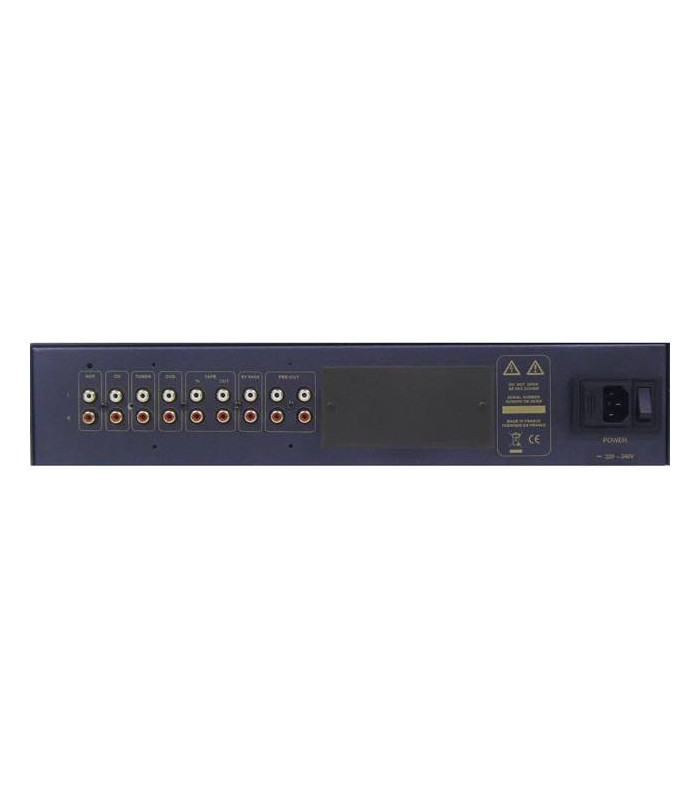

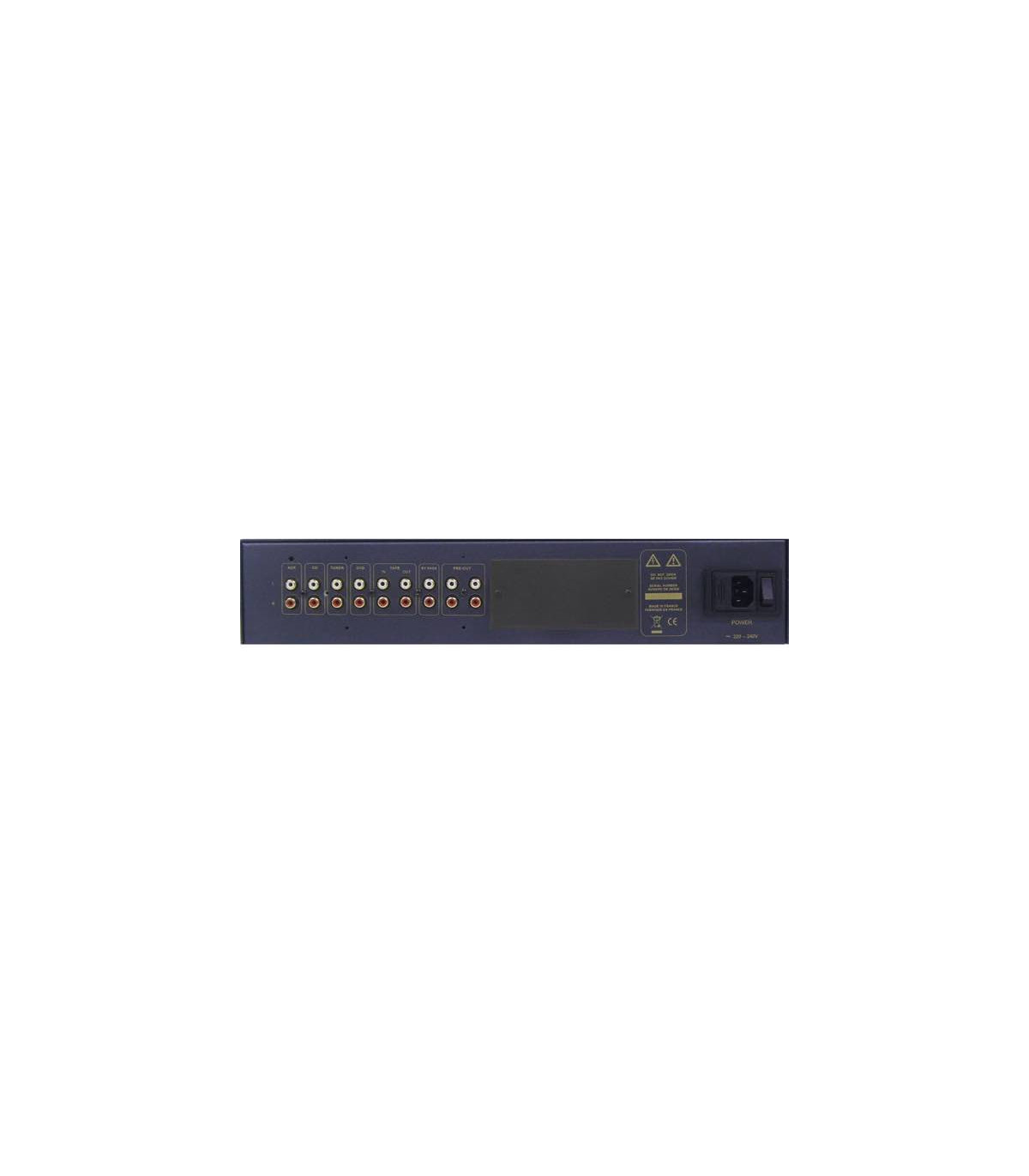

Connections

5 stereo audio inputs (RCA):
– CD
– TUNER
– TAPE (IN+OUT)
– AUX (or optional board)
– DVD

6.35 mm headphone jack
Dual preamplifier outputs for bi-amplification.
Optional 12V trigger (connection to power amplifier)

Technical specifications

Power supply (VA): 170
Total capacitor capacity (µF): 15,000
Inputs: 4 + 1 monitor
Input impedance (kΩ): 220
Sensitivity (mV): 500
Rise time (µs): 1.3
Bandwidth: 5 Hz – 200 kHz
Signal-to-noise ratio (dBA): 100
Weight (kg): 7
Dimensions (mm): 440 × 90 × 270
