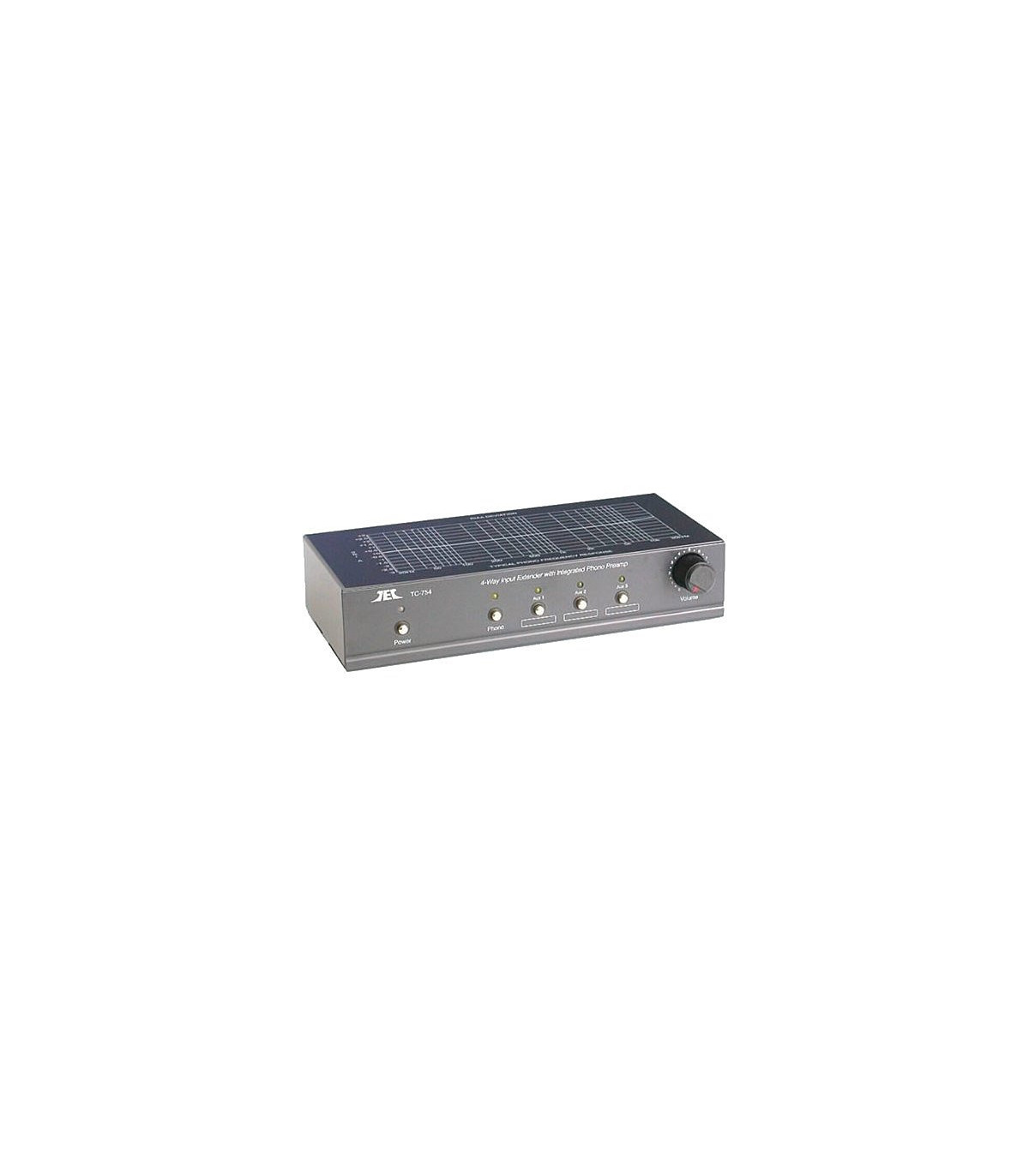

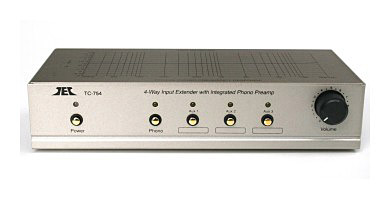

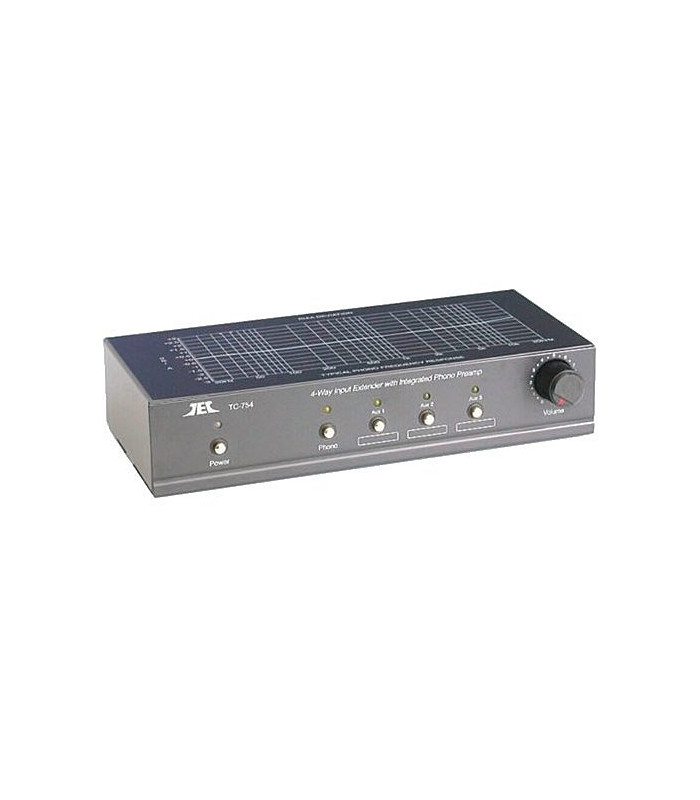

T-Preamp TCC TC-754 Phono/Line Preamplifier

The TCC TC-754 combines exceptional phono preamp performance with three additional aux level audio inputs, then adds an variable output level control.

Soft-touch switches control power on/off and source selection. While off, the TC-754 even remembers what source was last selected and reselects it when powered back up. The output level control allows connection to a power amp either directly or through an equalizer; or it can simply be used to fine tune the audio level sent to your computer sound card or receiver. Spectacular RIAA equalization accuracy and a S/N ratio of 85dB make the TC-754 our best performing phono preamp; its additional features are extra icing on the cake!

Features:
- Four stereo RCA inputs including one Phono (M/M) input
- Last selected source memorized
- Volume control allows matching volumes to the main amplifier
- Feather-touch, IC controlled low “Pop” tactile switch to protect amplifier and loudspeakers from damage
- Equipment label sheet included for custom descriptions
- Gold plated input and output connectors for maximum esoteric performance
- Stylish, solid metal case with earth for improved resistance to electrical noise
- Source indicator LEDs; power-off setting retention
- 12 volt DC operation; will work anywhere in the world with the included power supply
- Ground wire terminal, power indicator and switch
- Includes AC adaptor and RCA cables
- Product Dimensions: 178 x 90 x 38 mm;
- Shipping Weight: 1.4 pounds

Specifications:
- Frequency Response: 20 – 20 kHz, +/- 0.5 dB
- Audio Distortion: 0.06% Max.
- Input Sensitivity: Phono: 3.3 mV / Aux (Line): 300 mV
- Input Impedance: Phono: 47 k Ohms @ 200 pF / Aux (Line): 10 k Ohms
- Output Impedance 200 Ohms
- Input Overload Margin: 20 dB any
- Input Crosstalk: 40 dB, Phono, at any audio frequency
- Signal To Noise Ratio: >85 dBA
- Dimensioni (cm., l x a x p): 7,8 x 3,8 x 9
