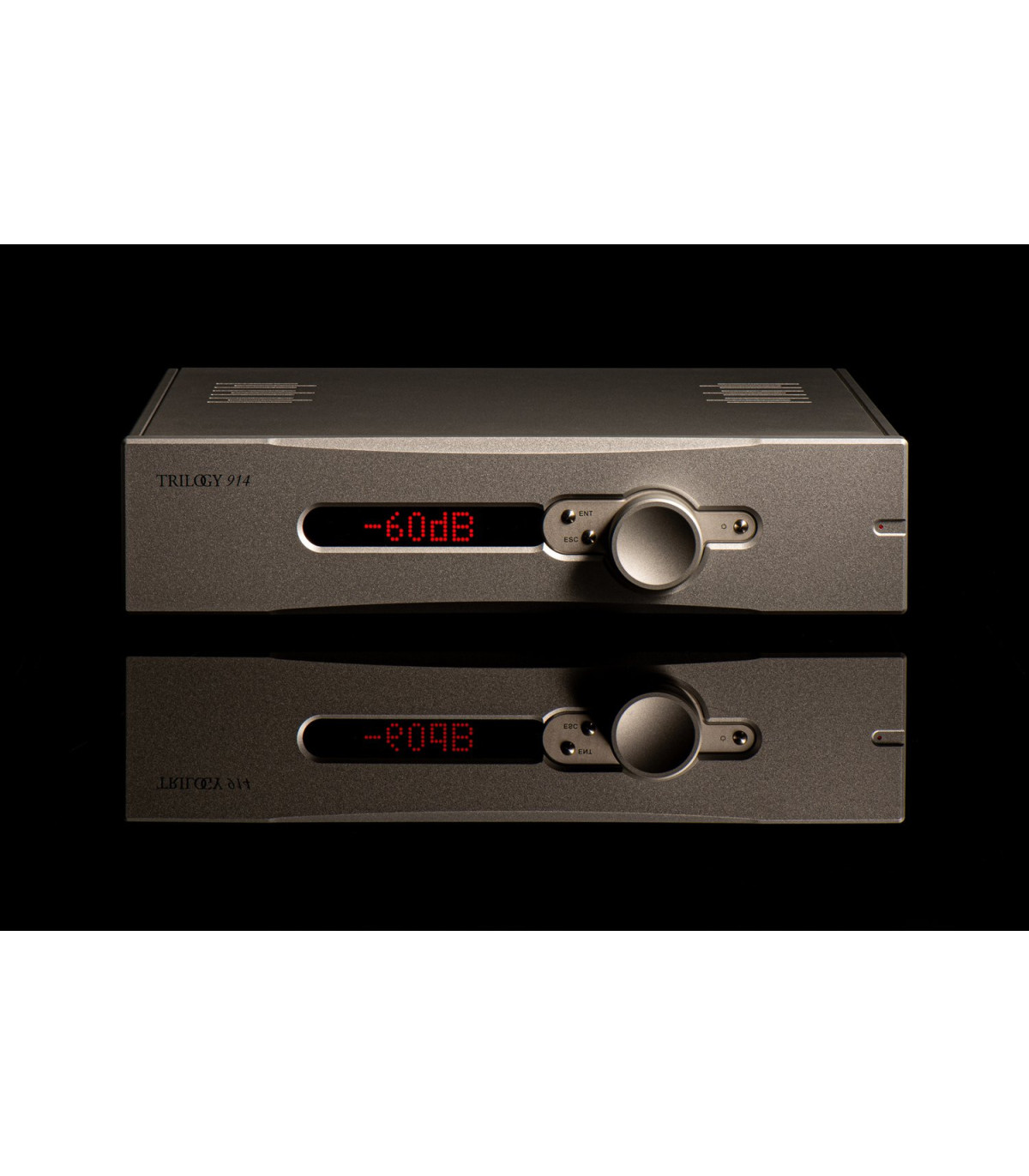

Trilogy Audio Systems 914 Fully Balanced Valve Preamplifier

Reference:
3027
Condition:
New
€16,900.00 (tax incl.)
Available for immediate shipping.

Add to wishlist
Description

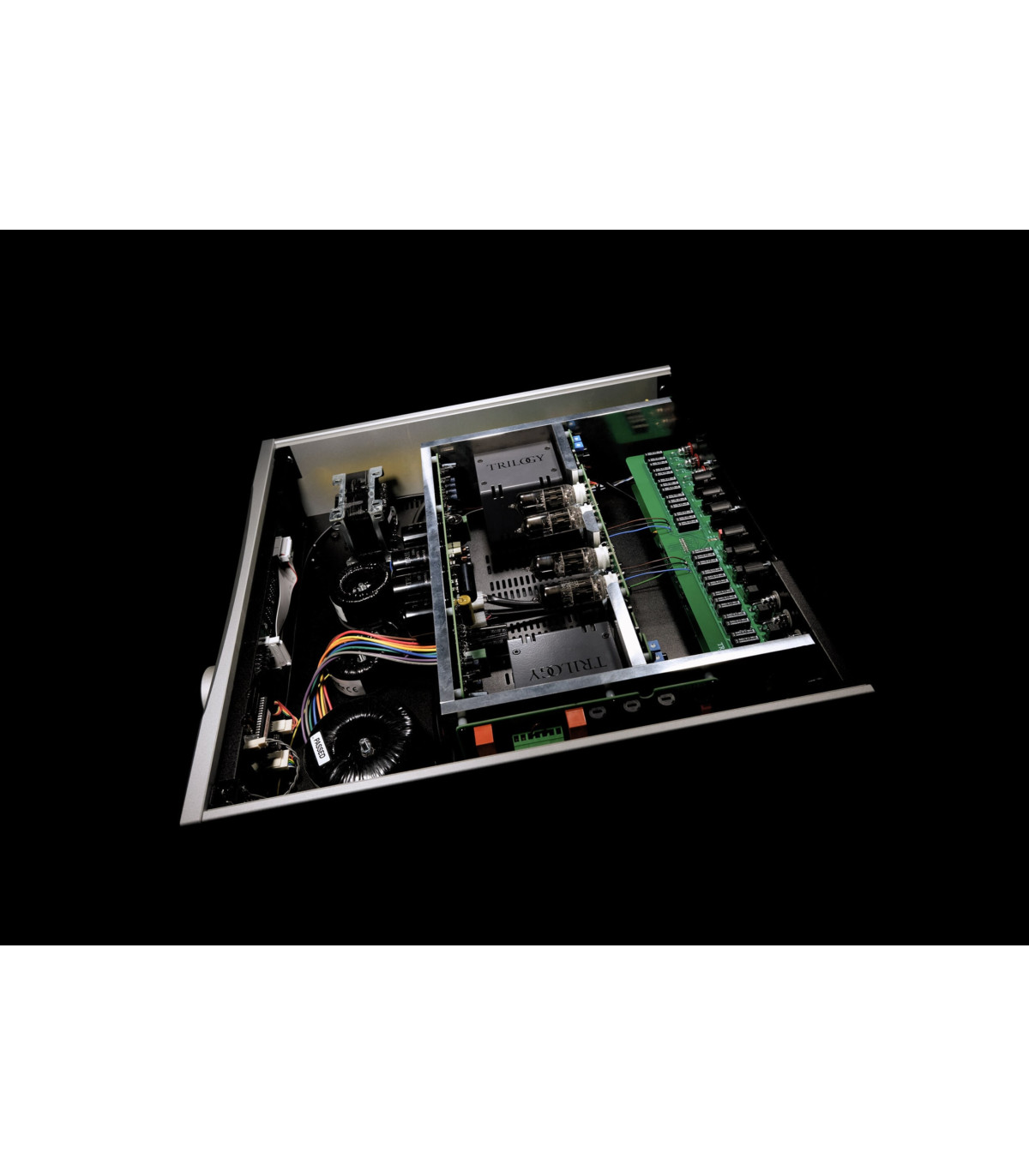

The audio circuit of the 914 preamplifier benefits from Nic Poulson’s years of experience in audio design, his pursuit of transparency and true fidelity leads to an elegant solution that reflects the passion of the designer. A truly versatile fully balanced pre amplifier from input to output. Six inputs, three of them balanced, and three RCA are provided. There is one balanced and one RCA output per channel. Signal switching in the 914 is handled by no less than 28 sputtered ruthenium Pickering relays. Once again, using our favourite high transconductance 6H6П super tube to articulately voice all gain duties. Six in all feature in this products circuit. Three separate transformers one for ancillary control electronics, one for the valve’s heaters and one for the high tension supplies minimise interaction and maximise musical return. The importance of shunt regulated power supplies cannot be overstated and ensures the voltage rail remains silent, since the regulator can sink and source current as dictated by the audio circuit. The 914 boasts no fewer than four such supplies. Once again the convenience of Trilogy firmware makes the 914 a joy to use, and encourages the owner to dig deeper into the settings. The control menu is accessed intuitively using the rotary encoder plus enter and escape buttons. The hierarchy is carefully designed to put all the commonly needed commands close to hand. Display brightness, customised labels and gain trims for each input, film mode, security bonding, sleep countdown, timed system switch on via TASlink, and remote operation are amongst the many configurable options available to make the 914 truly yours. The 914 is of rare quality, it offers both supreme flexibility and peerless construction. Above all, it is the sublime musical performance that will convince you of its rightful place; at the very heart of your system.

hifi+ MAY 2025 PDF Review of or 914/994 Download HERE

Specifications

Dimensions: 465 × 370 × 115 mm (W × D × H)
Weight: 12.4 kg
Maximum power consumption: 55 W

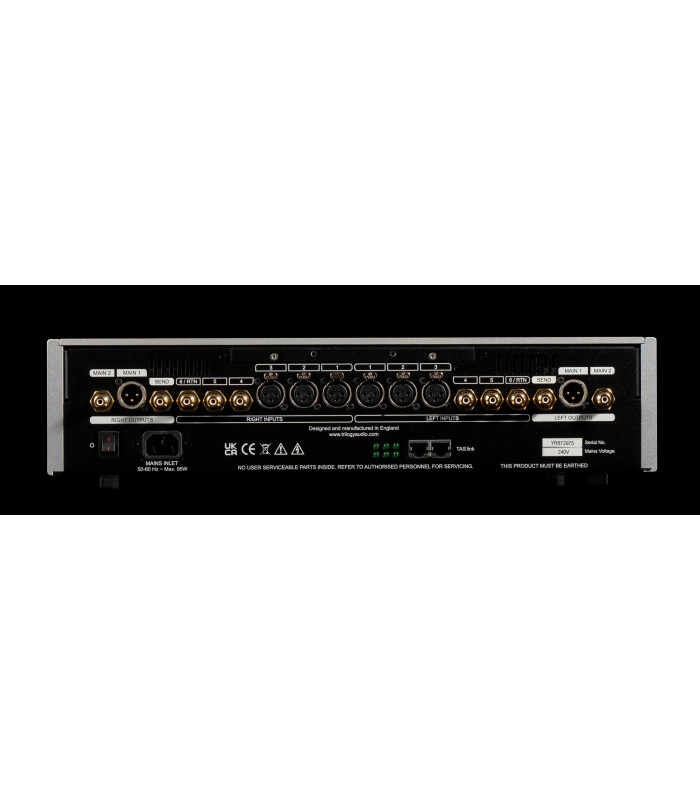

Inputs (balanced): 3 pairs of 3-pin female XLR
Inputs (single-ended): 3 pairs of RCA phono sockets

Input impedance (balanced): > 48 kΩ
Input impedance (single-ended): > 24 kΩ

Main outputs (balanced): 1 pair of 3-pin male XLR
Main outputs: 1 pair of RCA phono sockets
Send (tape) outputs: 1 pair of RCA phono sockets

Output impedance (main): 400 Ω

Frequency response: 10–150 kHz ±0.5 dB

Gain (inputs to send output): 0 dB
Gain (inputs to main output): 24 dB

Phase: phase-correct (non-inverting)

--------------------------------------------------------------------------------------------------------------------

Trilogy Audio Systems at a glance

'The essence of music - engineered'

From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Look at the objects around you in your home or work place; the chances are much of what you see is the end result of derivative thinking. By bringing a small improvement to what already exists; a commercial niche is filled and a small advantage over your competitors is gained. Here at Trilogy Audio Systems we do things differently.

"Making some of the best-looking, best-finished and - appropriately - best-sounding kit in the UK today, but rarely shouting about it, is Trilogy."

KEN KESSLER - HIFI NEWS

Nic Poulson is the principal designer of all Trilogy Audio Systems products.

Nic's background was originally in broadcast engineering, training with the BBC in the eighties. The corporation's legendary high standards made a deep impression on him. He learned that the way to achieve true quality is to strive for excellence in every area and accept nothing less. He went on to found Trilogy in 1990 and quickly earned a reputation for producing designs that reflected his core values of performance, reliability, pride of ownership and value for money.

Nic's designs can also be found in runway lighting systems, guiding aircraft safely to land at major airports across the UK. His success in the exacting industry of aviation is further confirmation of his breadth and versatility as a designer.

After studying in depth the inherent weaknesses in most mains derived power supplies, and their surprising impact on sound quality, Nic founded Isotek and revolutionised the concept of mains conditioning. Now the creative force behind Isol-8 Teknologies, he has delivered award winning designs which display none of the negative qualities shown by previous generations of mains conditioners. His products have taken the audio community by storm and are sold to discerning users worldwide.

His design philosophy is the key to understanding all Trilogy products.

Instead of deciding a price point and assembling a product steering committee chaired by a marketing manager, Nic goes back to first principles: identifying the fundamental questions at the core of each design issue. By carefully addressing and optimising each electrical design element to deliver the optimum solution, his goal of minimum compromise is achieved.

We complement this by taking great care over the realisation of the design. Beauty, reliability and user friendliness are essential qualities that must be present as a design makes its way through the myriad processes that make a physical real world product.

These are the reasons why our designs are enduring. From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Several years in the making, the latest generation of Trilogy Audio Systems components remain true to our original core values. Engineered from the inside out with real heart and soul behind them, they will provide lasting satisfaction, making music for your pleasure. We hope you will share the experience with us soon.

Nic Poulson, progettista Trilogy Audio Systems
