FIIO KA1 Ultracompact Portable DAC & Amplifier 32bit/384kHz DSD256 MQA

New product

Limited special offer

40,90 €

47,46 €

This product is actually out-of-stock

Brand: FiiO


Description

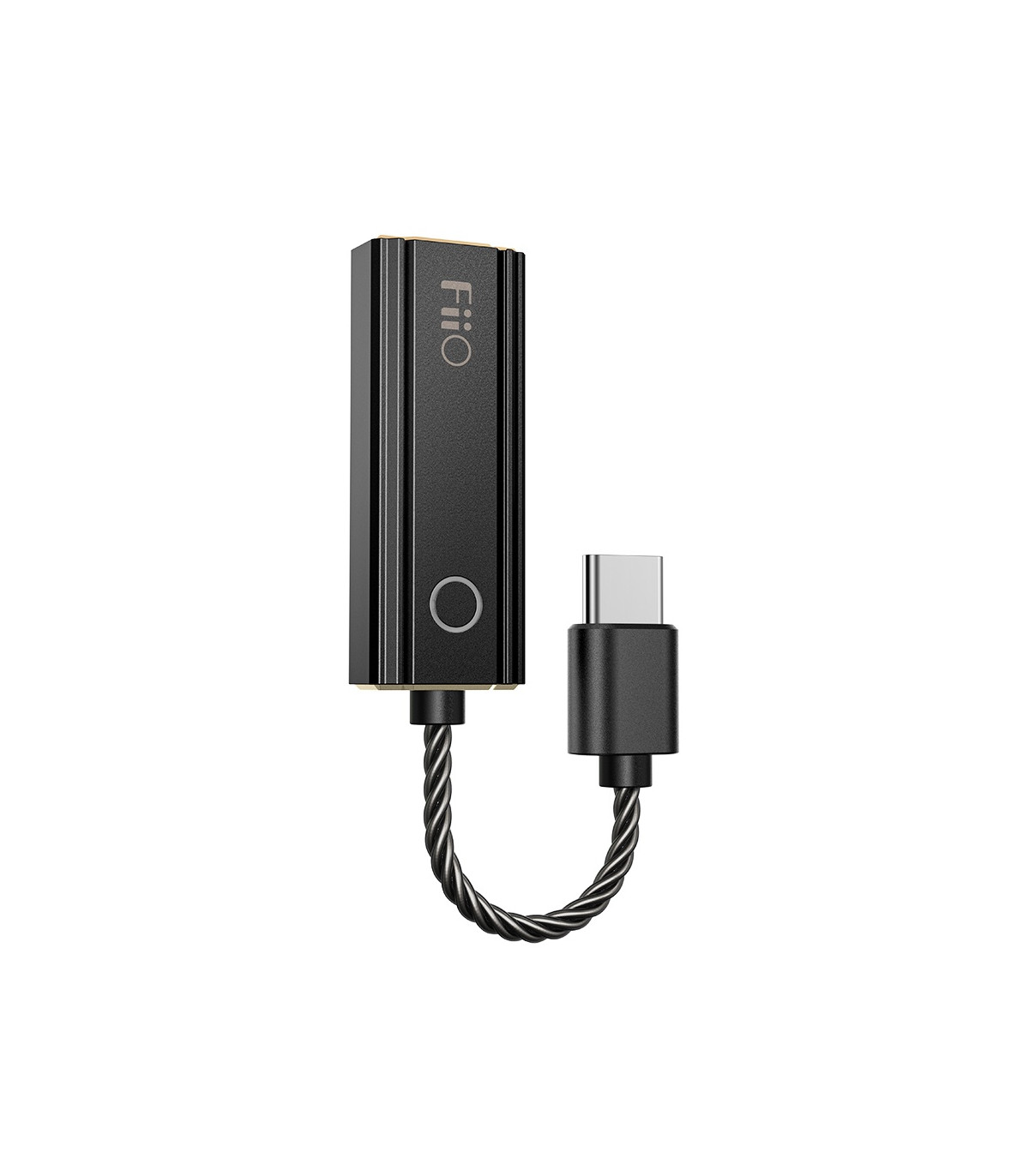

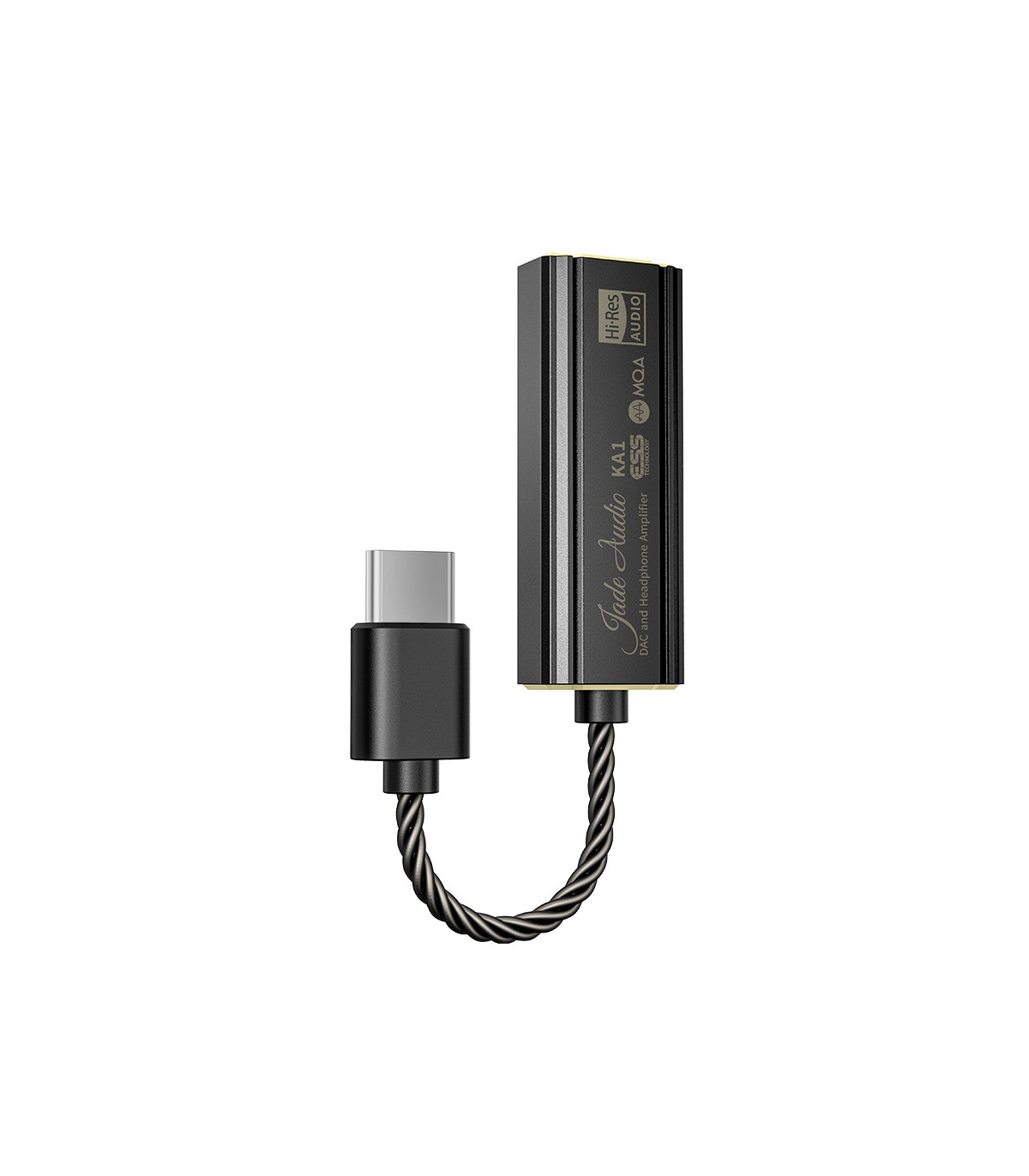

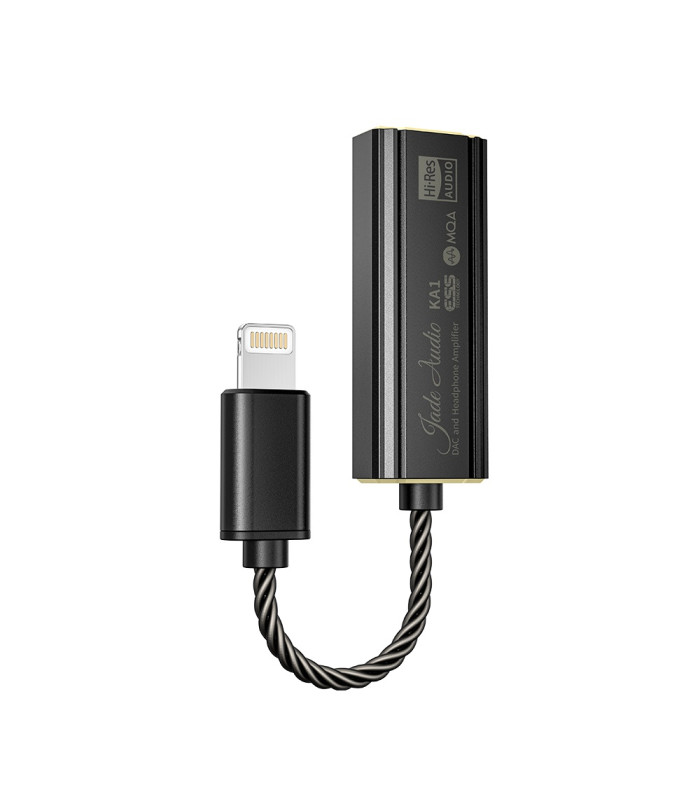

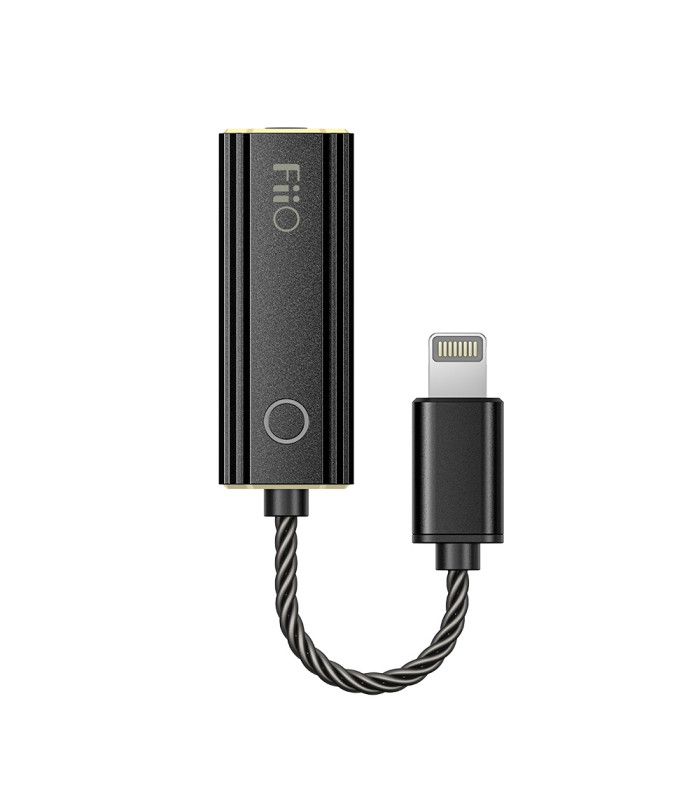

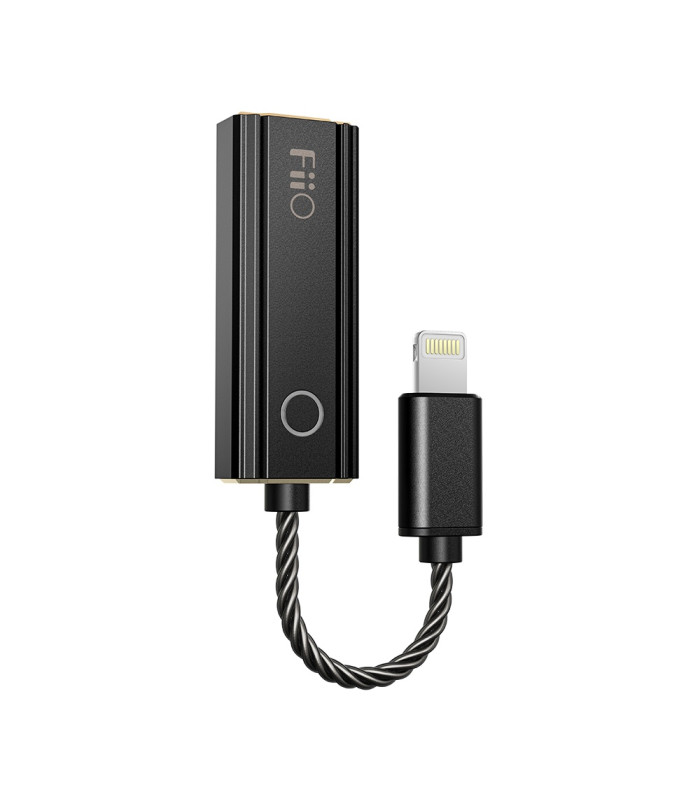

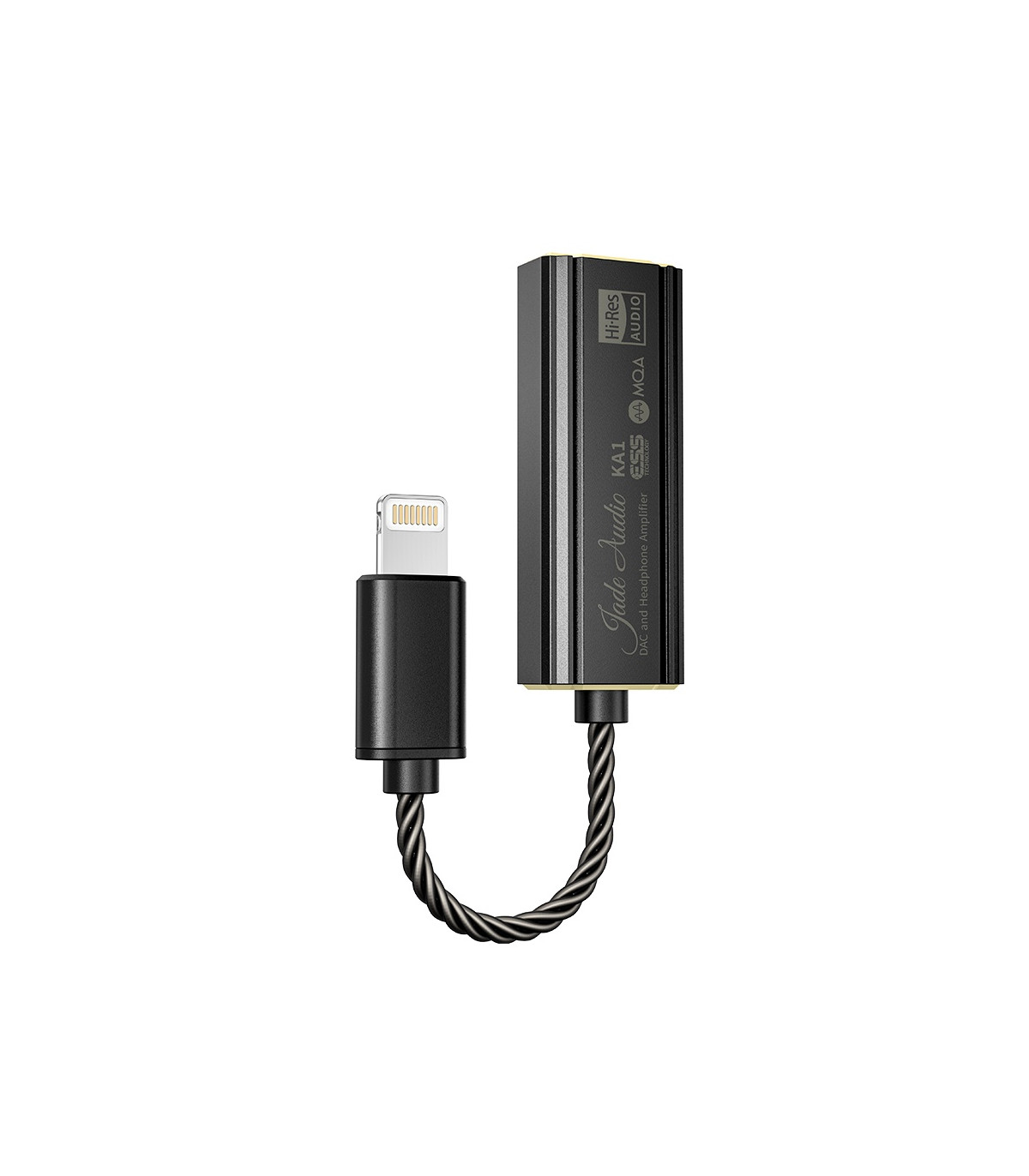

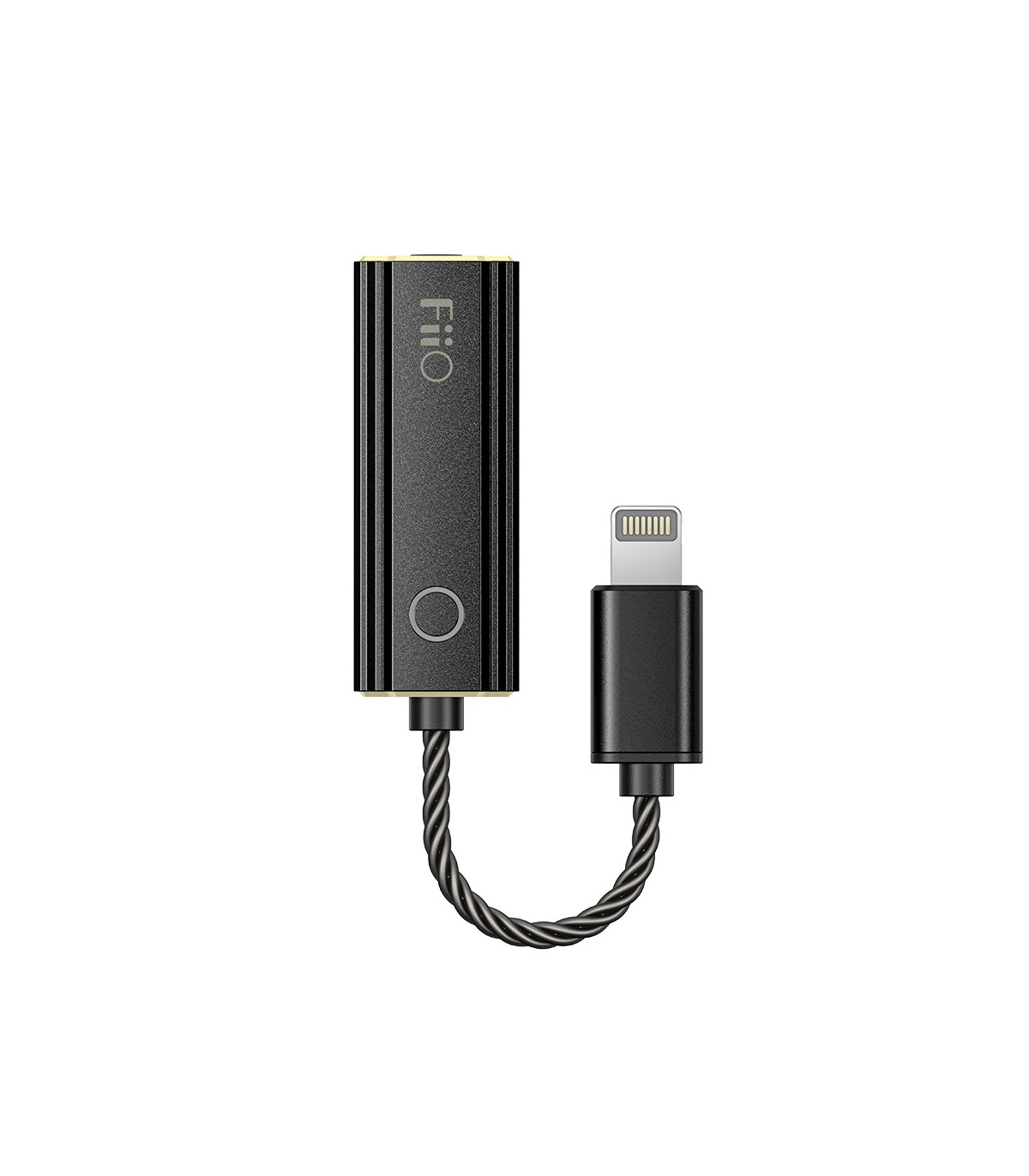

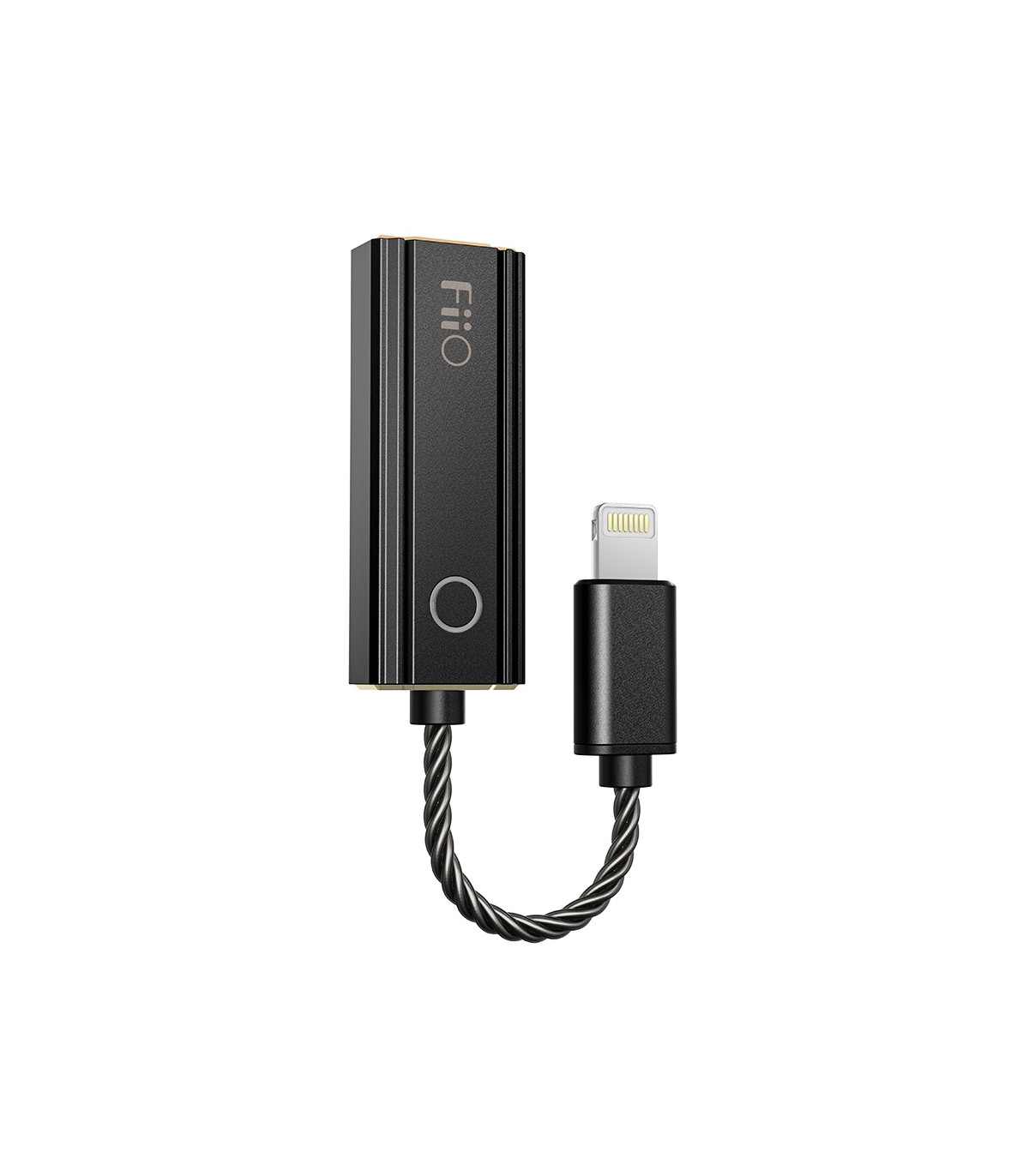

FiiO KA1 Compact Portable DAC and Headphone Amplifier

  • ES9281AC PRO chip DAC
  • RGB status indicator
  • Full support for a variety of devices
  • MQA rendering support
  • Supports 32bit/384kHz lossless audio
  • Supports DSD256

Compact stature, massive potential

What can be accomplished in a tiny space of 40x15x8mm? In the KA1, there is not only a high-quality DAC, but there is also premium audio amplification to match, both carefully tuned by engineers to truly and faithfully reproduce your music the way it was meant to be heard.

Made with robust "heart", for maximum effect

Employed in the KA1 is the ES9281AC PRO chip from ESS, which combines USB audio interface, DAC, and amplifier into one package. When combined with the multi-layered HDI gold-plated PCB it is on, the result is lower crosstalk, higher efficiency through lower power consumption, and ultimately high quality pure sound.

High-end decoding, immensely capable

With support up to 32bit/384kHz PCM and DSD256, you will surely be able to hear even the finest details within your music!

*DoP mode supports up to DSD128, Native mode supports up to DSD256.

Hey! Also supports MQA

The KA1 has been officially certified by MQS to be truly capable of MQA rendering!

*The KA1 includes MQA Renderer technology, which can connect to an MQA Core signal (from TIDAL streaming service, FiiO Music App or any other MQA enabled music service or media players) and complete the final unfold of an MQA file.

Charmingly colourful, RGB status indicator

The RGB status indicator not only features captivating looks, but also conveniently displays the current audio format and sampling rate.

Versatility with multi-platform support

Android/iOS/Windows/MAC compatible

Smartphone/portable player/tablet/computer supported

Portable/commuting/office/home/gaming uses all supported

SPECIFICATIONS

Body dimensions: about 40x15x8mm

Cable lenght: about 70 mm

Weight: about 10 g

DAC chip: ES9281AC PRO

Input: Type-C or Lightning

Output: 3.5mm headphone jack

Output power: 45mW (32Ω, THD+N<1%)

SNR: 114dBr (32Ω, A-weighted)

THD+N: 0.0005%

Audio format support:

PCM 32bit/384kHz

DoP DSD64/128

Native DSD64/128/256
