Description

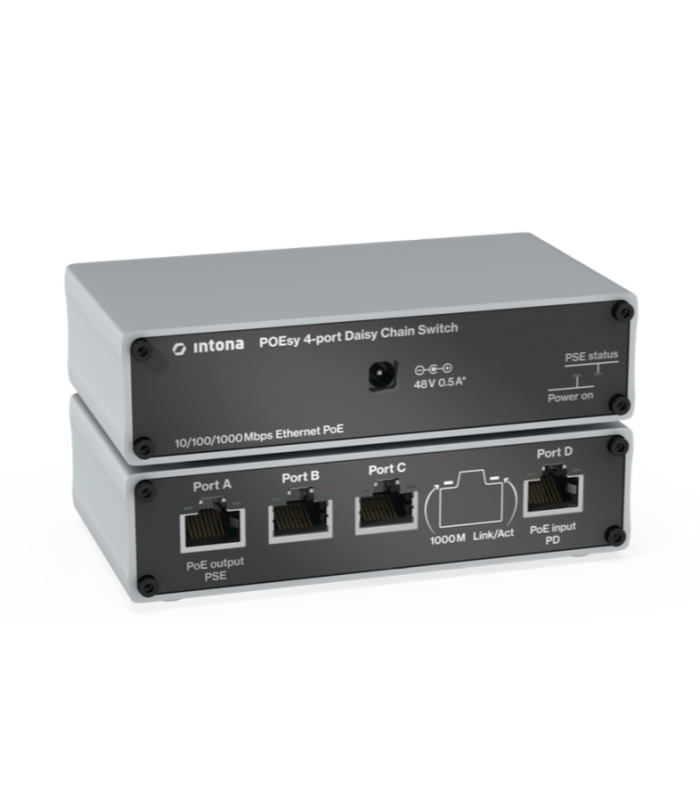

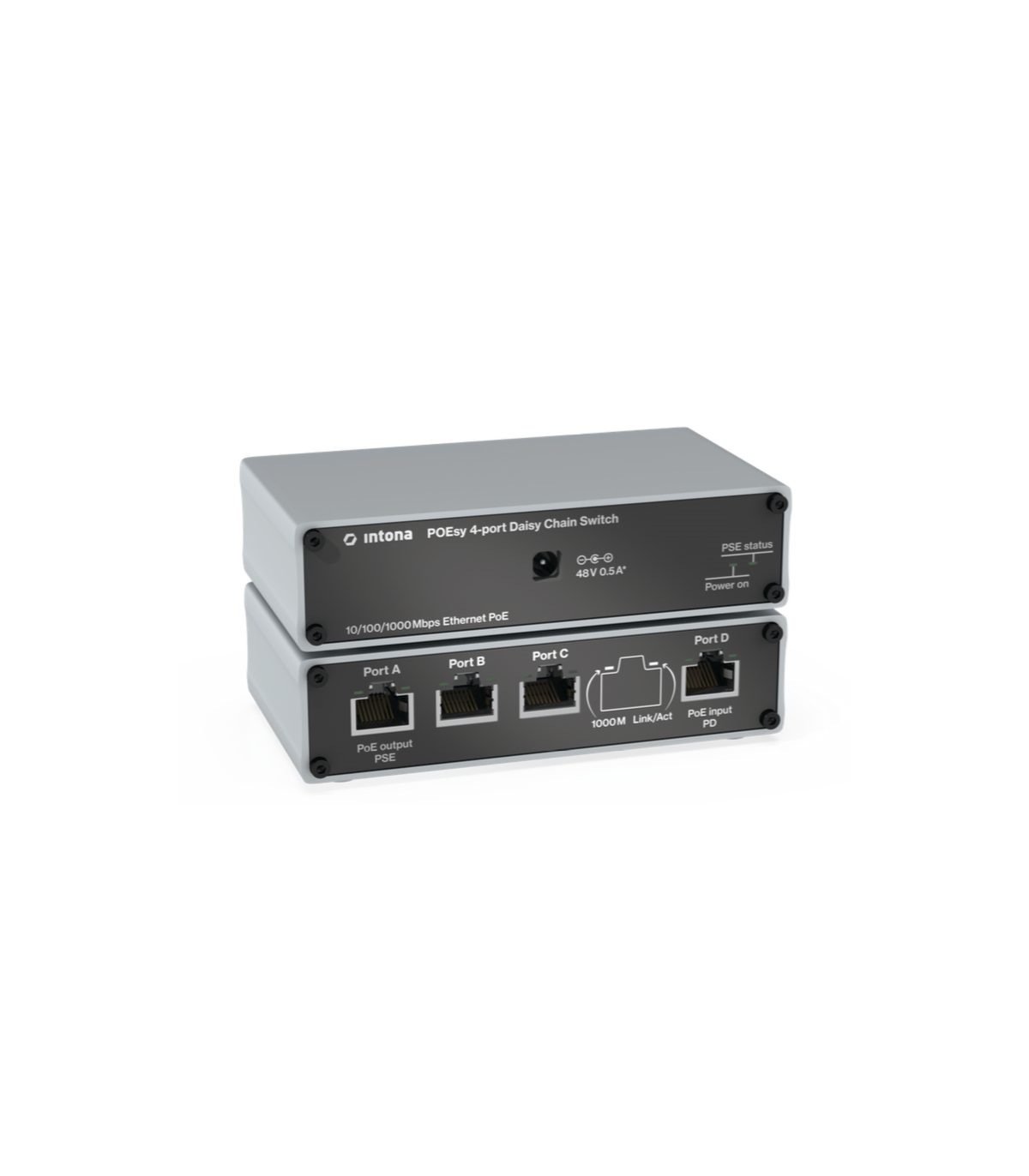

Intona 7074-DC "Audiophile" Ethernet Switch with versatile powering capability

Four Gigabit Ethernet Ports with true nonblocking switching performance (10/100/1000 AutoMDIX)
Delivers PoweroverEthernet (POE PSE)
Powers either by POE (PD) or by a DC supply
Suitable for redundant powering
Suitable as daisy chain POE network distributor
Suitable as low noise POE injector (no internal swit
ching converters used to provide POE power delivery)
Highspeed, nonblocking four traffic class QoS switch fabric that uses the unique Dynamic Queue Limit Architecture
Quality of Service support with four traffic classes • Compact and portable solution

Connectors: 4x RJ45 10/100/1000 Mbps Ethernet, 1x DCJack

Status LED for outgoing POE powering (PSE) • Status LEDs for Gigabit mode and traffic status for each port

National compliances: FCC, CE, RCM, ICES003 • Aluminum enclosure

Engineered and manufactured in Germany

APPLICATIONS

low latency, professional media streaming
audiophile grade audio streaming
daisychaining POE distribution
low noise, low EMI network distribution
industrial, office or home environment with demands to high reliable Ethernet distribution

Technical Specifications

Power Supply	Powered by POE on port D and/or DCJack on back side (48 V, 0.5 A)

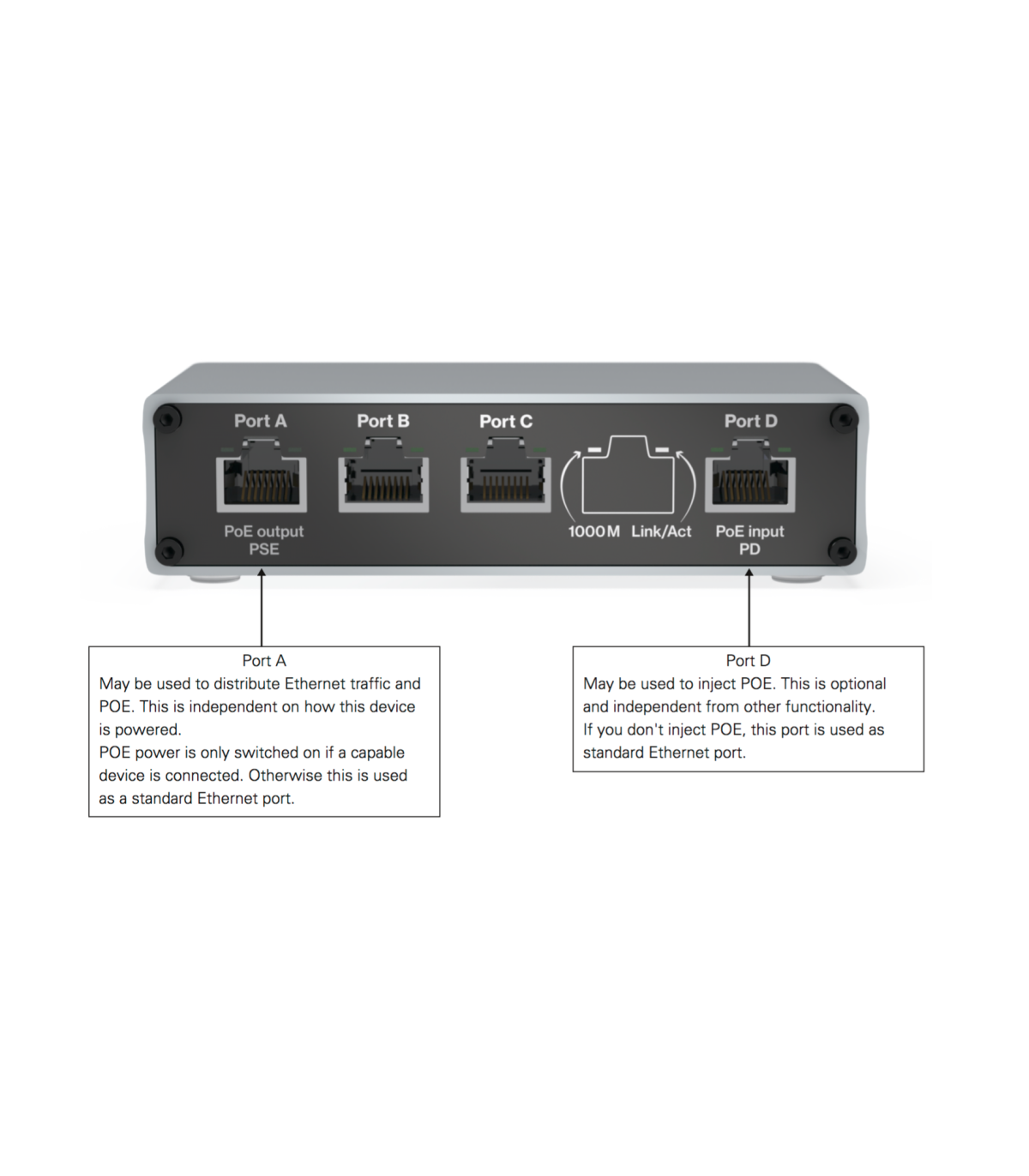

Ports	Four RJ45 Ethernet (10/100/1000 MBit) AutoMDIX with two LEDs each
POE compliance	IEEE 802.3af (PSE class 1, 2, 3; PD class 1) 12.95 W max.
Ambient Temperature	40–80°C
Dimensions, Weight	120 x 30 x 70 mm; 350g

Designer

Some words about Intona:

Intona is an electronics engineering company based in Germany. For more than 15 years we deliver highly professional signal processing solutions to the industry world wide.

Our in-depth knowledge of high-speed signals and programmable integrated circuits (FPGAs) has allowed us to develop the world's first high-speed USB isolator, as well as the first product marketed worldwide with the Intona brand. It is the only company selling this range of Hi-Speed or Super-Speed products worldwide.

Signal integrity is the priority when it comes to high-speed data transmission. Intona has the solid knowledge of experts in the design of multi-gigabit transceivers with very low phase noise (jitter).
