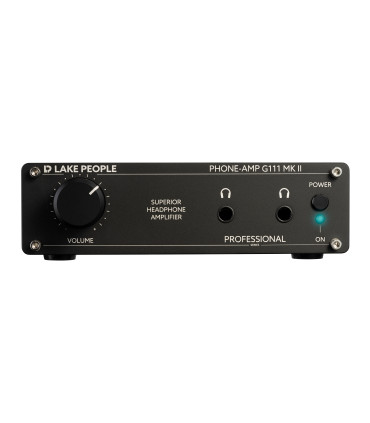

Lake People G111 MKII version
PHONE AMP G111 is the successor of famous Lake People G100 which can be regarded as the ancestor of the HiFi / Hi-End units from Lake People and Violectric. Phone-Amp G100 was the first item from Lake People which was widely used by professional and private customers. Professionals praised the indestructible construction while private users loved the exceptional sound quality.
PHONE-AMP G100 / G111 includes all major construction details which are still important:
- transistorized amplifiers for unmatched transmission quality
- smooth performing RK 27 Potentiometer for volume control
- oversized power supply with toroidal transformer
Also, PHONE-AMP G100 / G111 defined for the first time or technical guidelines which are still unique in their combination:
because of low internal gain. Therefore the self-generated noise from the amplifier is not audible.
HIGHEST OUTPUT VOLTAGE
through 60 Volt internal operating voltage. Over 90 % of all headphone amplifiers in the market offer not half that voltage !! Therefore best suited for high impedance headphones.
HIGHEST OUTPUT POWER
because of powerful amplifiers able to deliver much more current a headphone needs. Therefore best suited for low impedance headphones and even magnetostatic cans !!
HIGH DAMPING FACTOR
through lowest output impedance. Therefore best suited for full control even over critical headphones with the guarantee to have flatest possible response.
By the way: the launching of Violectric was due to the marketing success of PHONE-AMP G100 !
PHONE-AMP model G111-B is BLACK finish, and model G111-S is Silver finish.
- balanced inputs via gold plated XLR connectors
- unbalanced inputs via gold plated RCA connectors
- PRE-GAIN: gain adaption in five steps
- channel separated circuitry for minimized crosstalk
- discrete amplifier design with 4 transistors per channel (V100 Technology !)
- NF transmission band exceeds 150 kHz (-3 dB)
- High-Grade Potentiometer Alps RK 27 with optimized channel balance and lowest cross talk
- toroidal transformer, large smoothing capacitors
- outputs with relay controlled switch-on delay
- ultra compact rugged aluminum case
| ||Balanced inputs:||2 x XLR (L / R), gold plated|
| ||Unbalanced inputs:||2 x Cinch (L / R), gold plated with priority|
| ||Impedance:||10K Ohm|
| ||Amplifier Channels:||2 (Stereo)|
| ||Nom. input level:||+ 6 dBu|
| ||Overall Gain:||+8 dB|
... with PRE-GAIN (absolute | relative):
|-4 / +2 / +8 / +14 / +20 dB | -12 / -6 / 0 / +6 / +12|
| ||Frequency range:||5 Hz – 60 kHz (-0,5 dB)|
3 Hz – 150 kHz (-3 dB)
| ||Dynamic range:||> 129 dB (A-wtd)|
| ||Noise:||< -101 dBu (A-wtd)|
| ||THD+N (1 kHz/2x10 V/100 Ohm = 1W)||-100 dB (A-wtd)|
| ||THD+N (1 kHz/2x4 V/32 Ohm = 0,5W)||-102 dB (A-wtd)|
| ||Crosstalk:||< -110 / -95 dB (@ 1 / 15 kHz)|
| ||Max. output level (both channel driving):||> 18.9 Veff in 600 ohms = 600 mW|
| || ||> 16.5 Veff in 300 ohms = 900 mW|
| || ||> 13.2 Veff in 100 ohms = 1750 mW|
| || ||> 9.2 Veff in 50 ohms = 1700 mW|
| || ||> 6.2 Veff in 32 ohms = 1200 mW|
| || ||> 3.5 Veff in 16 ohms = 750 mW|
| ||Outputs:||2 x 1/4" phone jacks|
| ||Power supply:||230 / 115 V AC max 10W|
| ||Dimensions:||125 x 47 x 168 mm (W x H x D)|
|4mm Aluminium, Black or Silver |
|3mm Aluminium, Black or Silver|
