Violectric HPA V200 Headphone Amplifier [2nd hand]

Product Code: 1471u

Condition: 2nd Hand

2nd hand unit, good condition, light signs of use on the external chassis (photos available on request), without original packaging, 1 year warranty.

More details

Add to wishlist

Send to a friend
Send to a friend

Violectric HPA V200 Headphone Amplifier [2nd hand]
2nd hand unit, good condition, light signs of use on the external chassis (photos available on request), without original packaging, 1 year warranty.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel

Description
Designer
Comments (0)
Questions (0)

Description

The HPA V200 was developped with the target to enable ultimate transmission quality for low- , medium- and high-impedance headphones.

Due to its specific, variable, low-noise and low-distortion circuit design especially optimised for dynamic headphones, the HPA V200 fulfils even highest demands.

LOW-NOISE
because of low internal gain.
Therefore the self generated noise from the amplifer is not audible.

HIGH OUTPUT VOLTAGE
through 60 Volt internal operating voltage.
Therefore best suited for high impedance headphones.
Over 90 % of all headphone amplifiers in the market offer not half that voltage !!

HIGH OUTPUT POWER
because of powerful amplifiers able to deliver much more current a headphone needs.
Therefore best suited for low impedance headphones and even magnetostatic cans !!

HIGH DAMPING FACTOR
through lowest output impedance.
Therefore best suited for full control even over critical headphones with the garantee to have flatest possible response.

Features:
- Balanced inputs with gold-plated Neutrik XLR connectors
- Unbalanced inputs with gold-plated ALPS cinch connectors
- switchable unbalanced outputs with cinch connectors
- optional USB input 16 Bit / 48 kHz or 24 Bit / 192 kHz
- PRE-GAIN = switchable input gain in five steps
- Independent-channel design
- DC-coupled (switchable)
- ALPS RK27 High-Grade volume control
- High-Quality op-amps in the signal path
- High-quality MKP capacitors in the signal path
- 0.1 and 1% metal film resistors throughout the unit
- Discrete-design power amp with 8 transistors per channel
- 2 silver-plated Neutrik headphone outputs
- Relay-based headphone output cutoff
- Toroidal transformer
- Large filtering capacitors in the power supply
- Switchable ground lift
- Rugged aluminium case with Nextel coating
- Solid, laser-engraved aluminium front panel

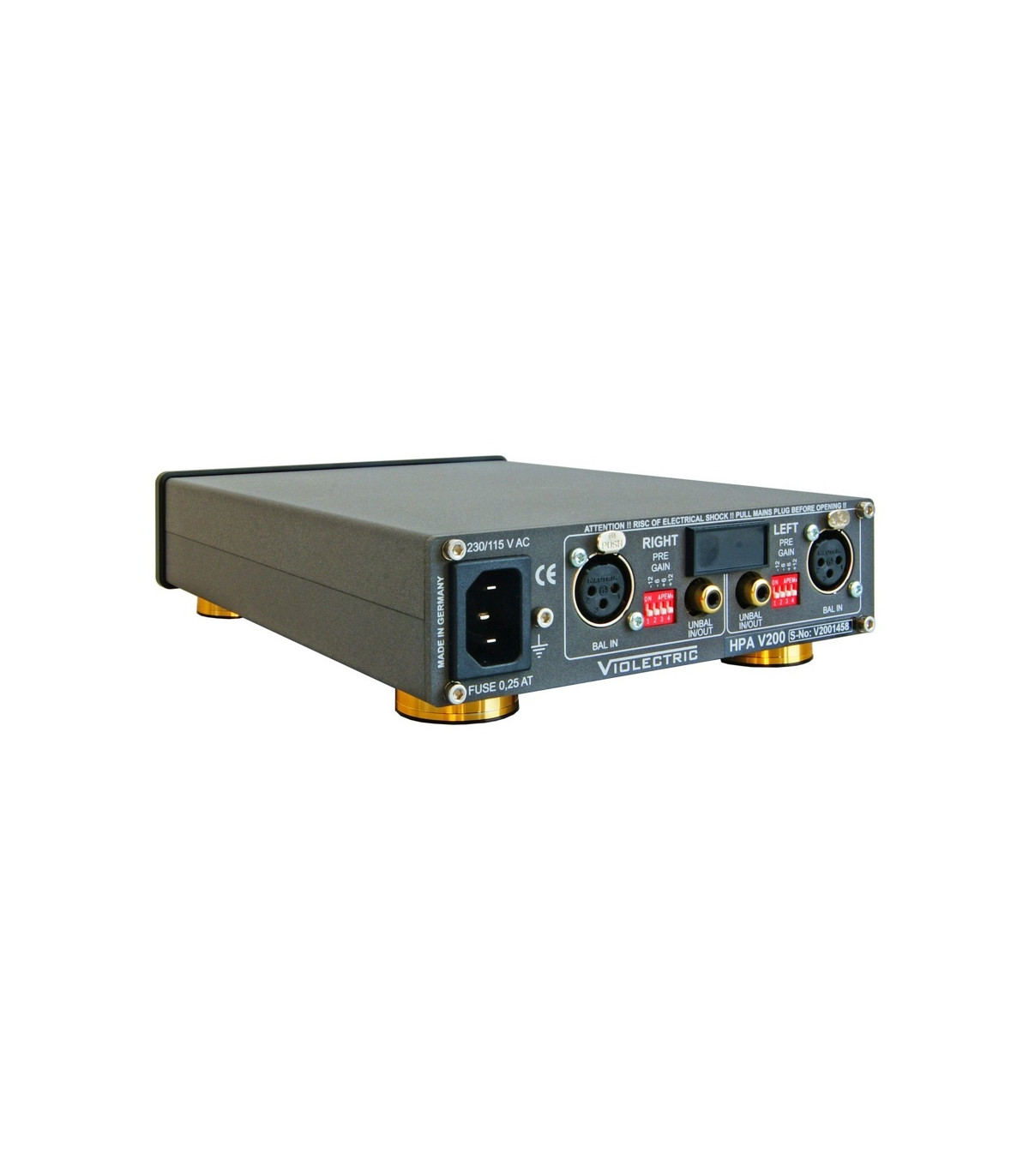

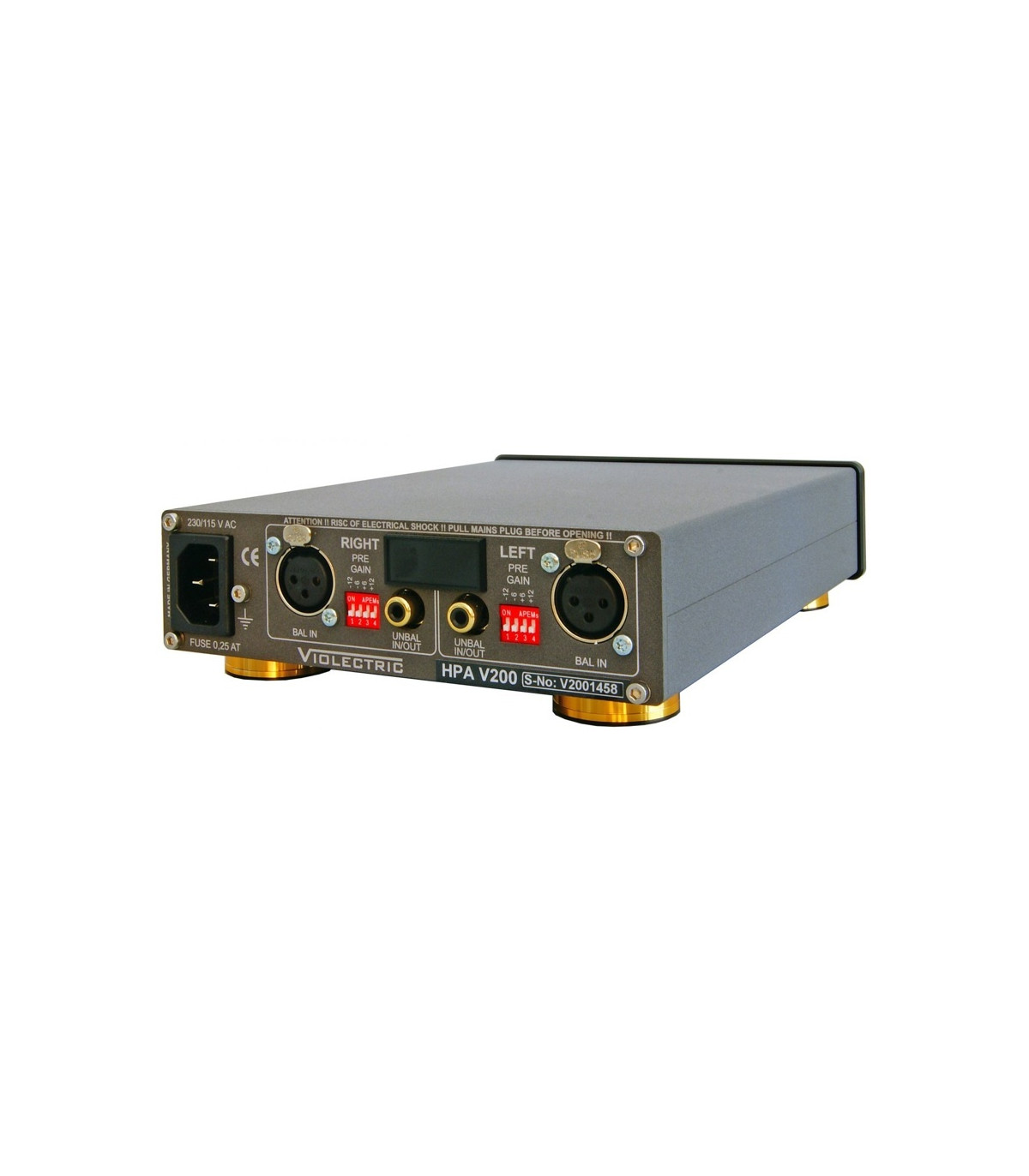

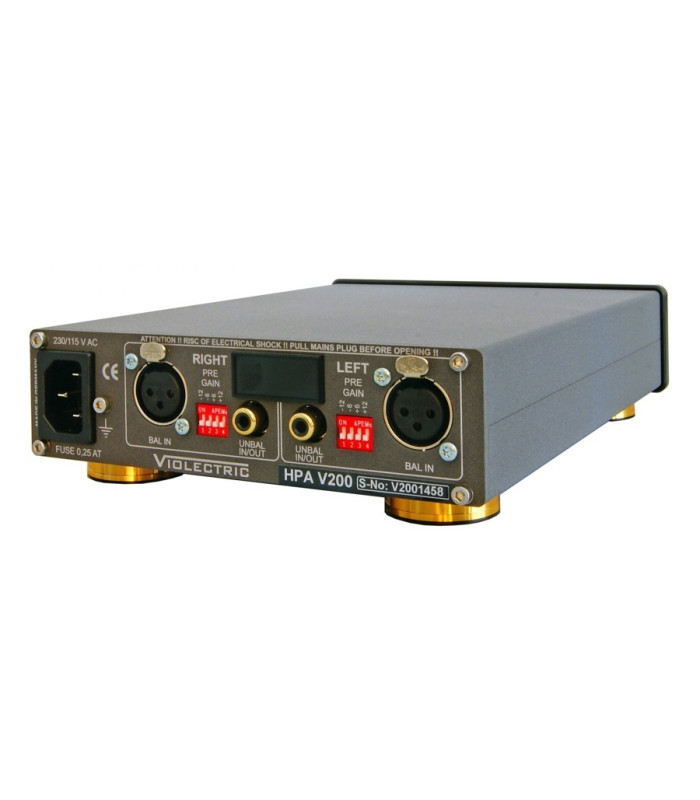

The inputs and outputs are situated on the rear panel, they are equipped with electronically balanced gold plated XLR connectors and unbalanced gold plated RCA connectors.

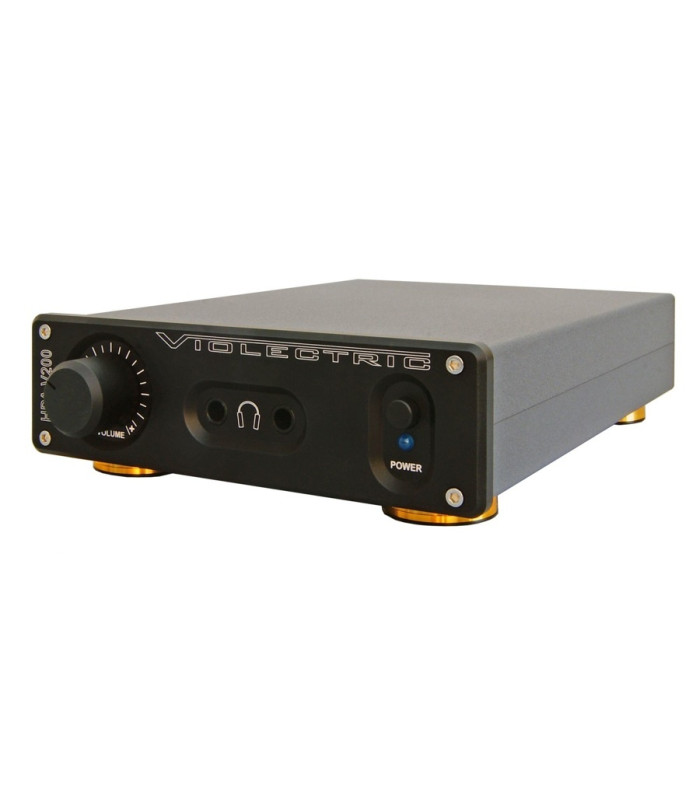

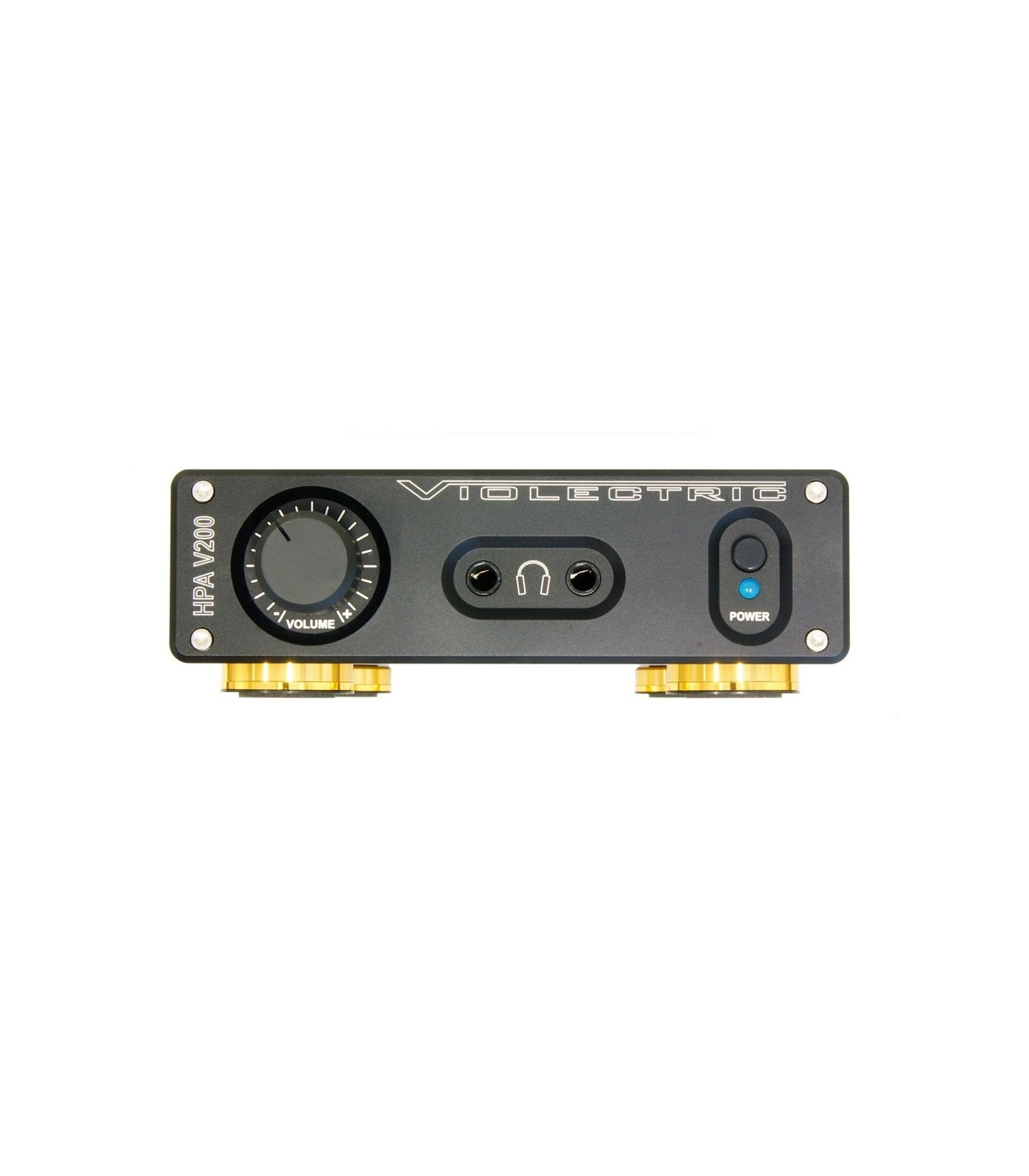

Volume control is provided with a high-grade ALPS RK 27 pot with a large full metal rotary knob.
Two headphones may be connected via 1/4" jacks on the front panel.
This amp may be equipped with one of six different digital inputs: Coaxial, optical or USB with either 24/96 kHz or 24/192 kHz.
Case and back panel are made of aluminium and are Nextel coated.
The 8 mm aluminium frontpanel is milled, sand blasted and black anodized. The labeling is laser engraved.

Technical Data
Balanced Inputs: 2, gold plated XLR connectors
Unbalanced Inputs: 2, gold plated RCA conncetors
Impedance: 10 kohms
Unbalanced Outputs: 2, gold plated RCA connectors
Amplifier Channels: 2 (Stereo)
Nom. input level: + 6 dBu
Amplifier Gain: +8 dB
... with PRE-GAIN: -4 / +8 / +14 dB
Frequency range: 0 Hz ... 60 kHz (-0,5 dB)
Output Impedance: 0,06 Ohms
Dynamic range: > 128 dB (A-wtd)
Noise: < -100 dBu (A-wtd)
THD+N: < -110 dB @ 10V in 100 Ohms (1W)
< -103 dB @ 4V in 32 Ohms (0,5W)
Crosstalk: < -110 / -95 dB (@ 1 / 15 kHz)
Max. output level:
> 18,5 Veff in 600 ohms = 570 mW
> 14,8 Veff in 100 ohms = 2200 mW
> 11,6 Veff in 50 ohms = 2700 mW
> 8 Veff in 32 ohms = 2000 mW
> 4 Veff in 16 ohms = 1000 mW
Outputs: 2 x 1/4" phone jacks
Power supply: 230 / 115 V AC 10 VA
Dimensions: 170 x 49 x 225 mm (W x H x D)
Case Material: Black anodized aluminium

Designer

Introduction to Violectric

... is a trademark and product line of Lake People electronic GmbH. Lake People electronic GmbH develops, manufactures and distributes products in the professional range, for broadcast, television, airports, exhibition halls, festival venues, theatres, large-scale installations, private studios and more. In the private sector as well, Lake People products become increasingly popular due to their outstanding quality.
The Violectric trademark and product line is specially intended to supply the Hi-Fi and High-End market with its specific requirements.

Who develops Violectric equipment?

Violectric devices are exclusively developed in Germany by the engineers of Lake People electronic GmbH. In doing so, the team of developers can draw on twenty years of experience and countless products for the pro-audio domain.

Who manufactures Violectric equipment?

Violectric devices are exclusively manufactured in Germany by Lake People electronic GmbH or contractors in the company's vicinity. Lake People - and by association Violectric - put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order achieve the main part of added value inland.

Introduction to Lake People

Established in 1986, we have since become your partner for professional audio electronics. Following our motto “tools - not toys”, we achieved highest reputation during the past years amongst our customers. These are private studios, broadcasters and TV companies. Also airports, congress and exhibition centres count on the reliability of our products made in Germany. This all began under the roof of Rosgartenstrasse 13 in the city of Konstanz. Here, three young guys started with the development and manufacture of limiters and noise gates but not too successfully in the beginning. The commercial survival on a very low level was made possible by the production of headphone amplifiers. From 1989 on, the production range was extended to level matching and balancing amplifiers such successfully, that it came essential to move to larger premises.

Since 1991, the new address read: Haidelmoosweg 52. Due to the developement of the first german 20-bit A/D and D/A converters in the beginning nineties, the name Lake People resounded throughout the land. Suddenly, the company was regarded as a high-tech brand, with a highly positive effect on its public reputation. The growing know-how led to many new products in the analog and digital domain during the following years. Although some projects turned out to be flops, most devices met the customers' requirements, with the effect of continuous growth of the company. By the end of the nineties the 140 m² of Haidelmoosweg 52 went cramping.
Again, a move to new premises came necessary. As it was obvious that rental facilities would not meet the demands, we decided to put up our own building. The company site was constructed in 2000 in a new industrial park in Konstanz, Turmstrasse 7a, just a hundred metres from the lake. Also in 2000, Lake People was transformed into a Ltd. company.
