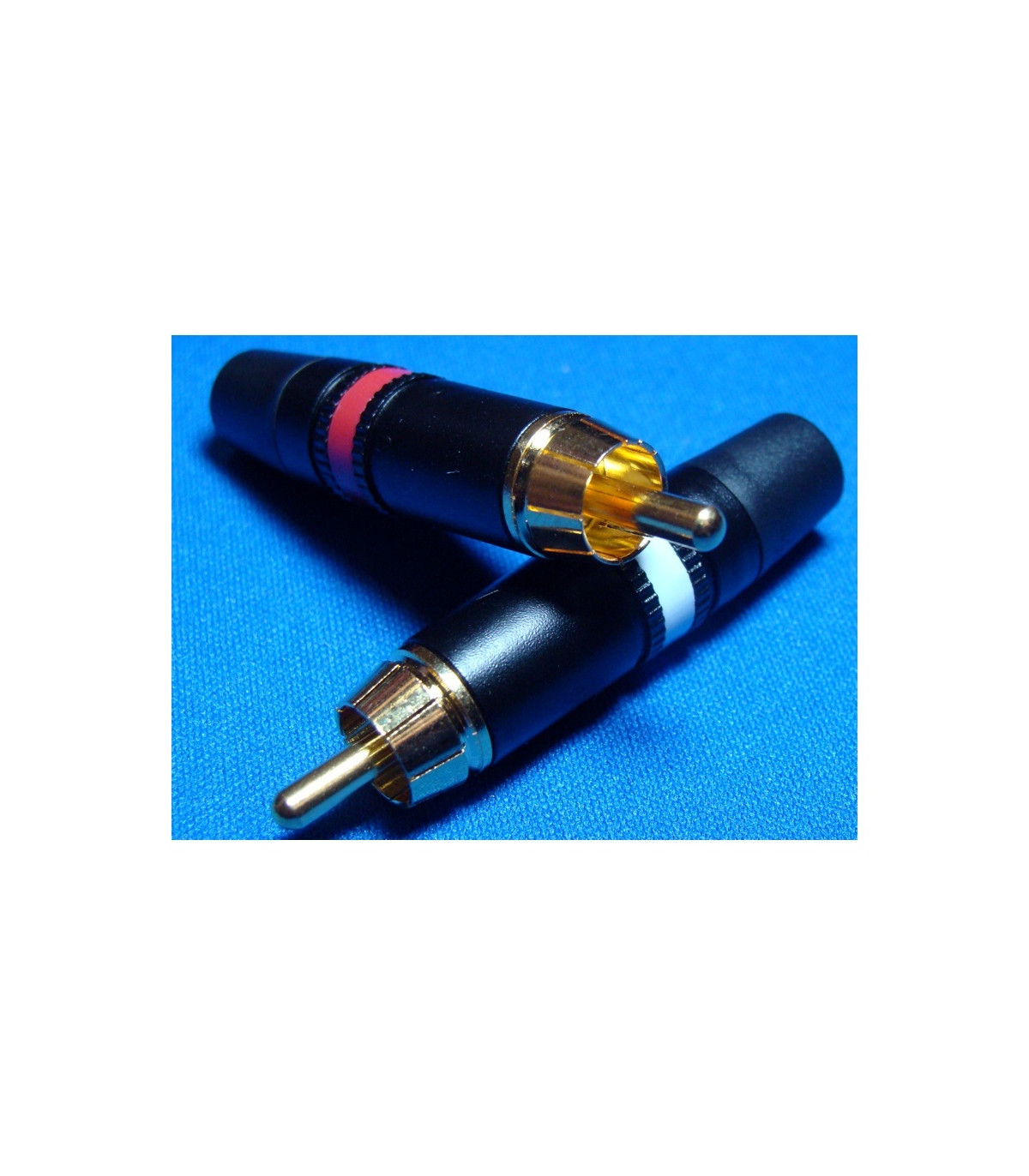

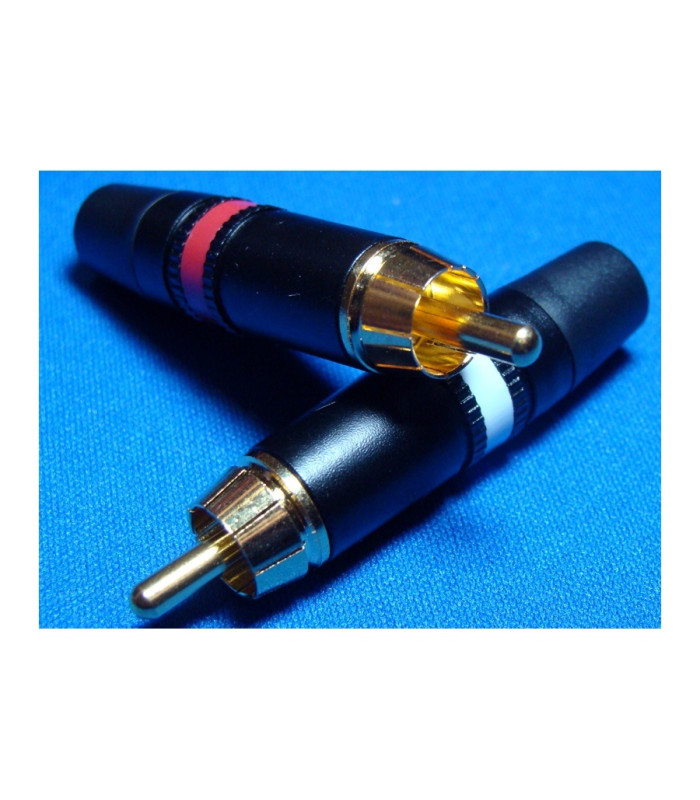

RCA Connectors Neutrik (Set of 2)
Set of two Neutrik ( or REAN-Neutrik, identical) RCA connectors, Gold plated, to solder, channel identification black + red. Will insure a very good contact. Optimal for cable diameter from 3 to 6.1mm.
Specifications:
Electrical
Contact resistance < 10 mΩ
Dielectric strength 0,5 kVdc
Rated current per contact depends on mated connector A
Mechanical
Cable O.D. ≤ 6 mm
Insertion force ≤ 20 N
Withdrawal force > 5 N
Lifetime 5000 mating cycles
Wire size 24 AWG
Material
Bushing Steel sp.
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert PBT
Shell CuZn39Pb3 Black
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
