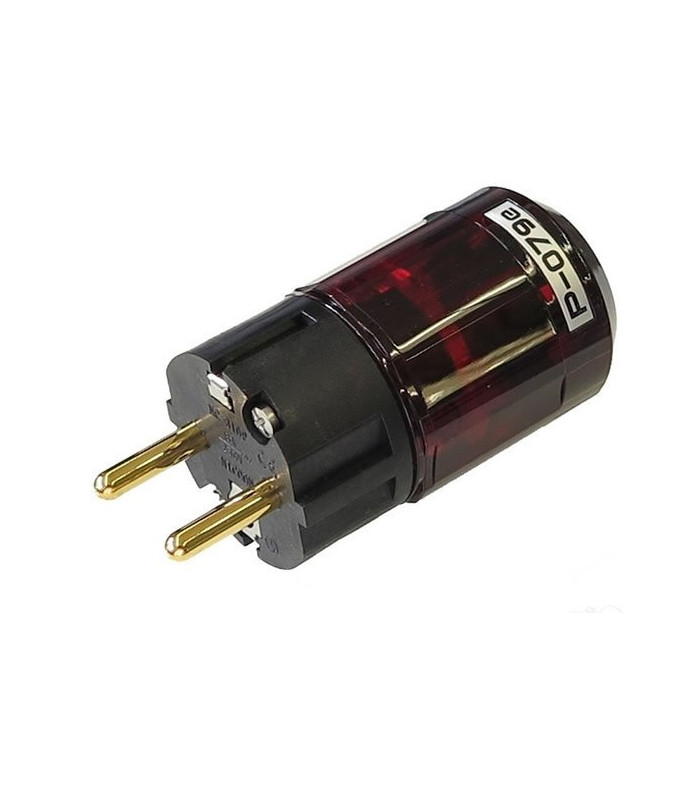

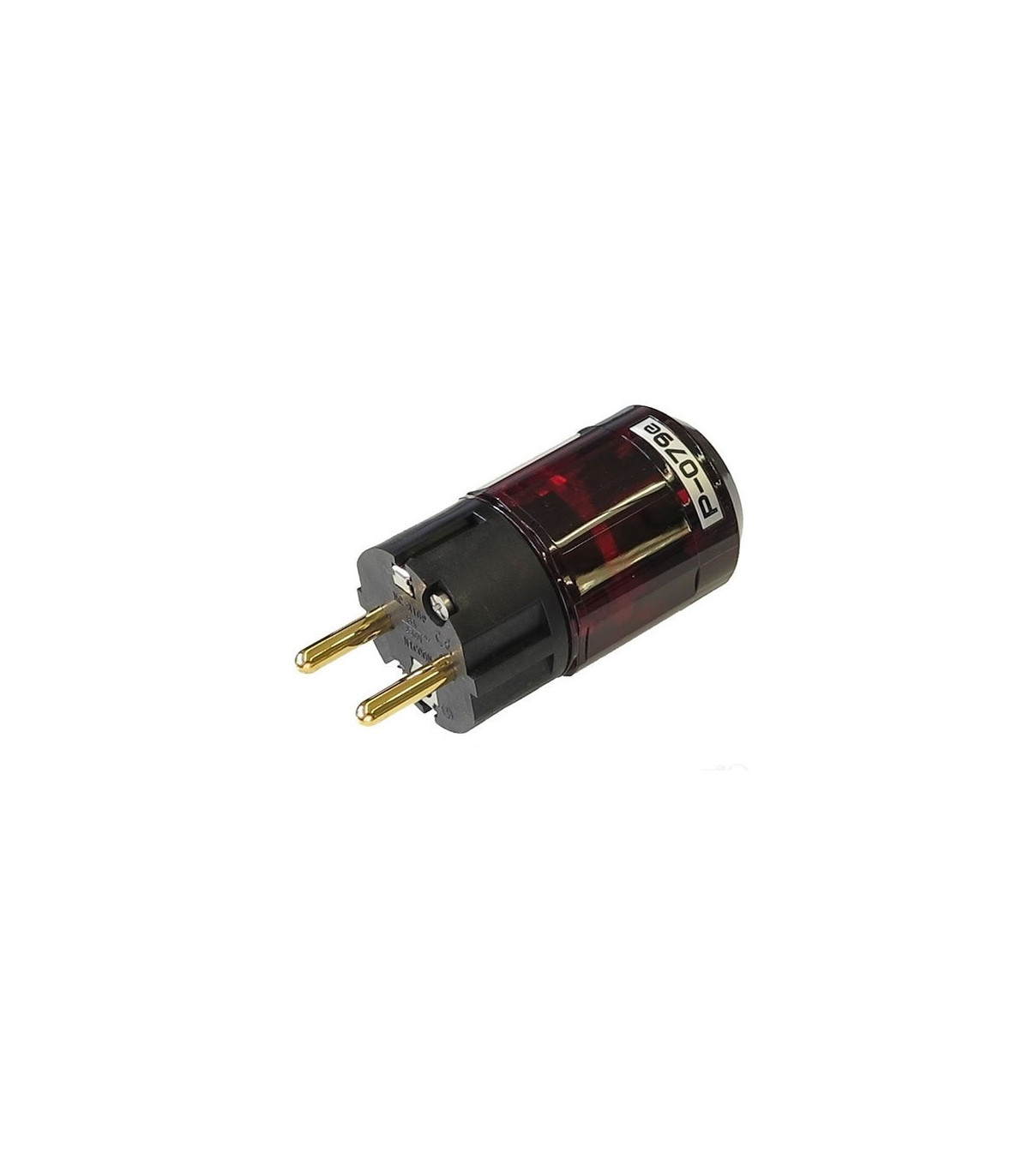

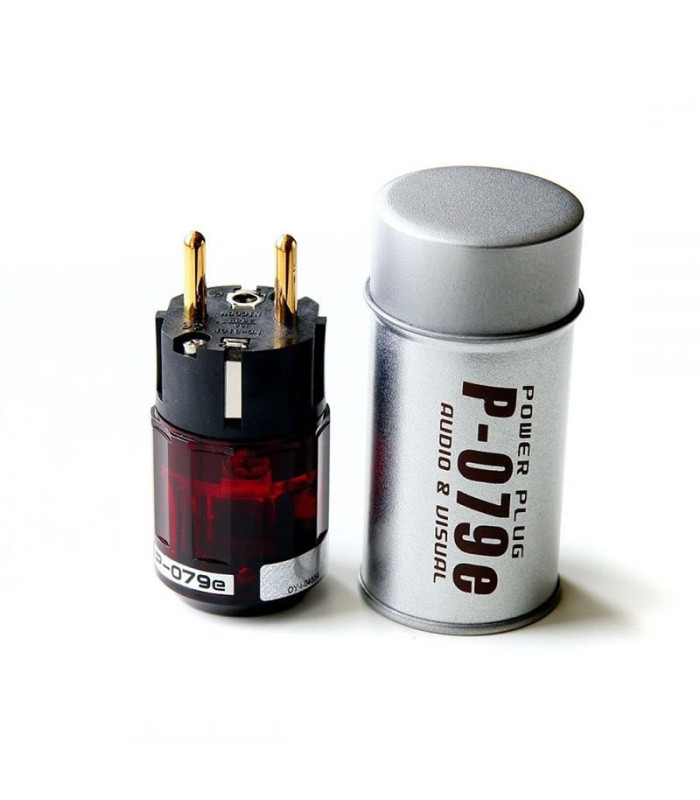

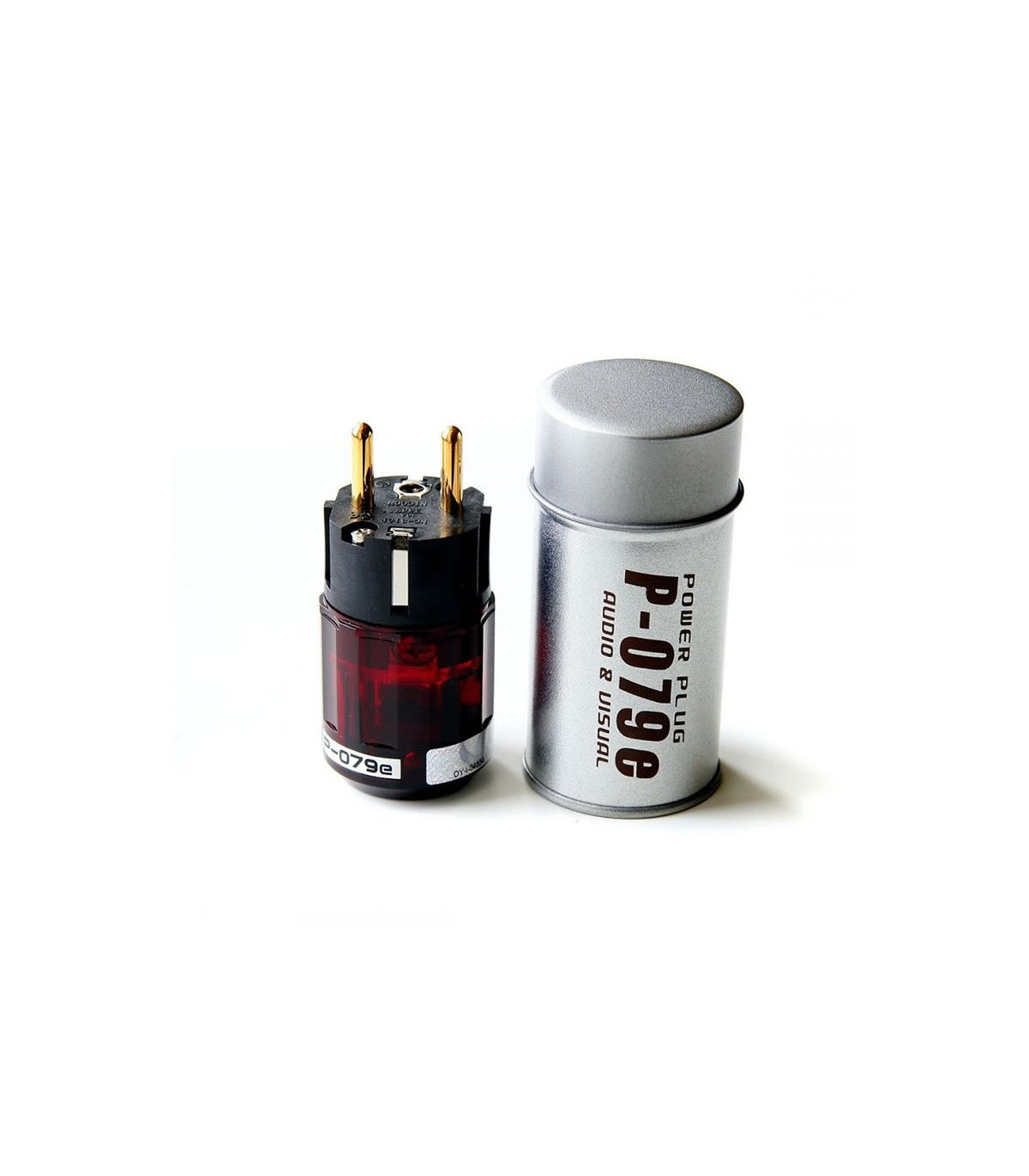

OYAIDE P-079e Schuko Plug Phosphore Bronze 24K Gold plated

2615

New product

108,93 €

Available for immediate shipping.

Brand: Oyaide


Description
Oyaide P-079th theaded power connector

These 100% Japanese-made connectors have been designed to provide a quality in order to galvanize your audio connections. Oyaide has selected each material to obtain a top-reliable connector, reducing vibrations to the benefit of longevity and signal stability.

The contacts are made of bronze phosphor with double polishing and 24K gold plating to ensure best conductivity. In addition, the tightening system (screw) accepts large conductors types (up to 6mm in diameter).

The whole system is protected by a robust capsule made of 30% glass fiber. A wide clamp is used to secure the cable and prevent movement while allowing large cable diameters (up to 17mm).

Maximum cable & conductor diameter

A : Max cable ∅ (with reducer)16 ∅mm
B : Max cable ∅ (without reducer)17 ∅mm
C : Max conducteurs ∅ 4 ∅mm

SPECIFICATIONS
TypePower connector
FormatCEE 7/7
MaterialsBody: Fiberglass
Screws: Stainless Steel
Contacts: bronze phosphore (double polishing)
Plating: Gold 24k
Nominal voltage250V 16A
Suported Cable diameter6.5 to 17 mm⌀
Maximum driver diameter6 mm⌀

Plating
  • Gold
Max cable diameter (mm)
  • 17.0
Mounting type
  • To screw
Connectic
  • Male
Connector
  • PLug CEE 7/7
Maximum conductor diameter (mm)
  • 4.0
Contacts Material (Connector)
  • Copper Alloy
Contacts Plating (Connector)
  • Gold
