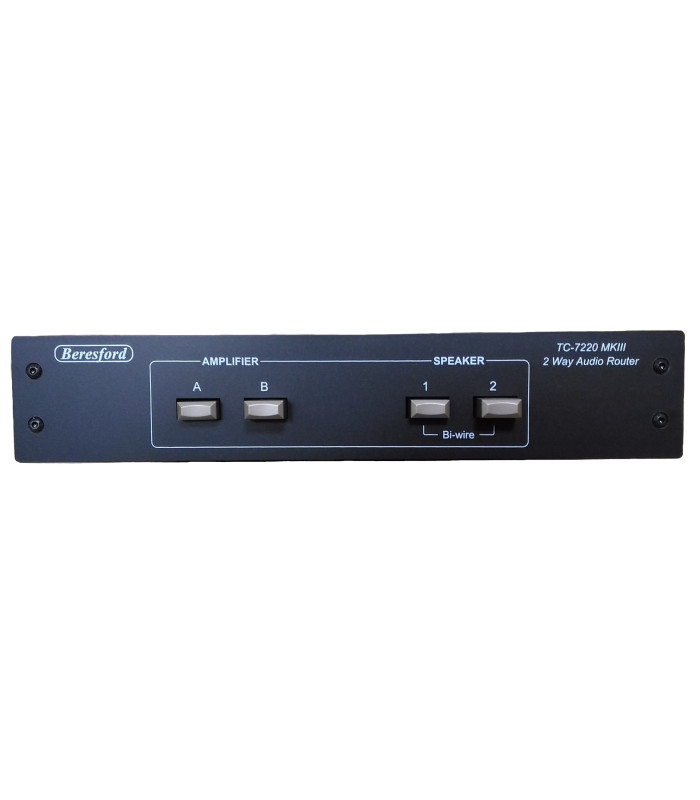

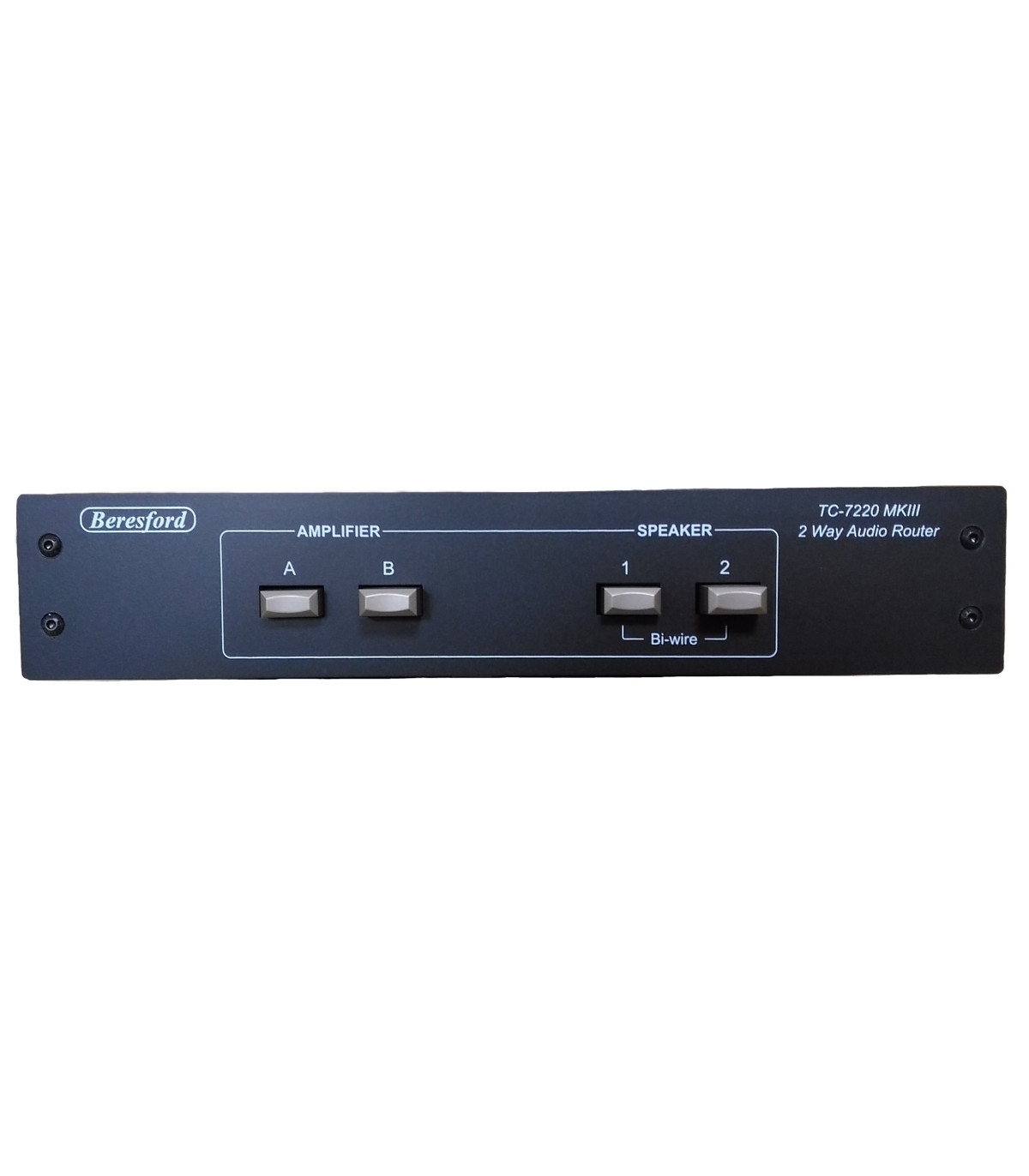

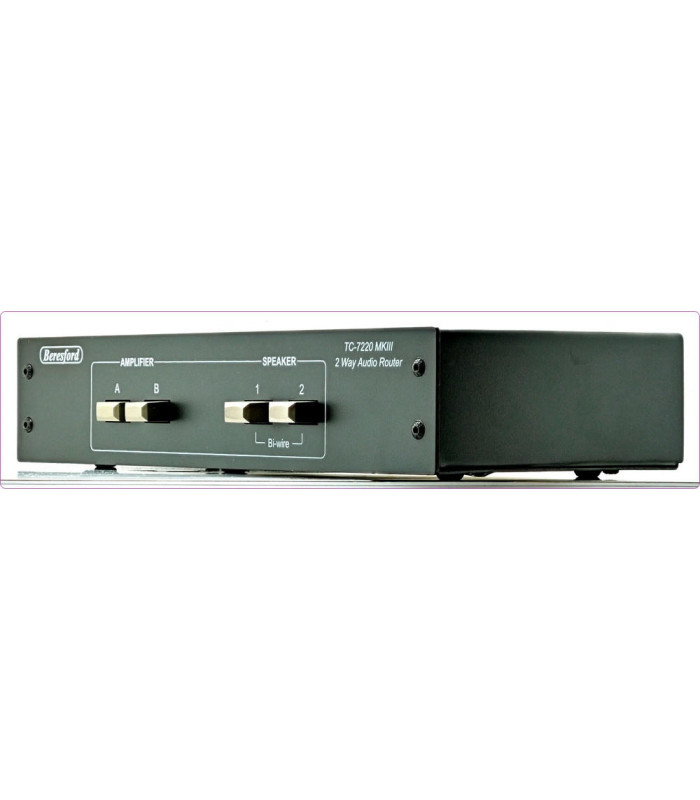

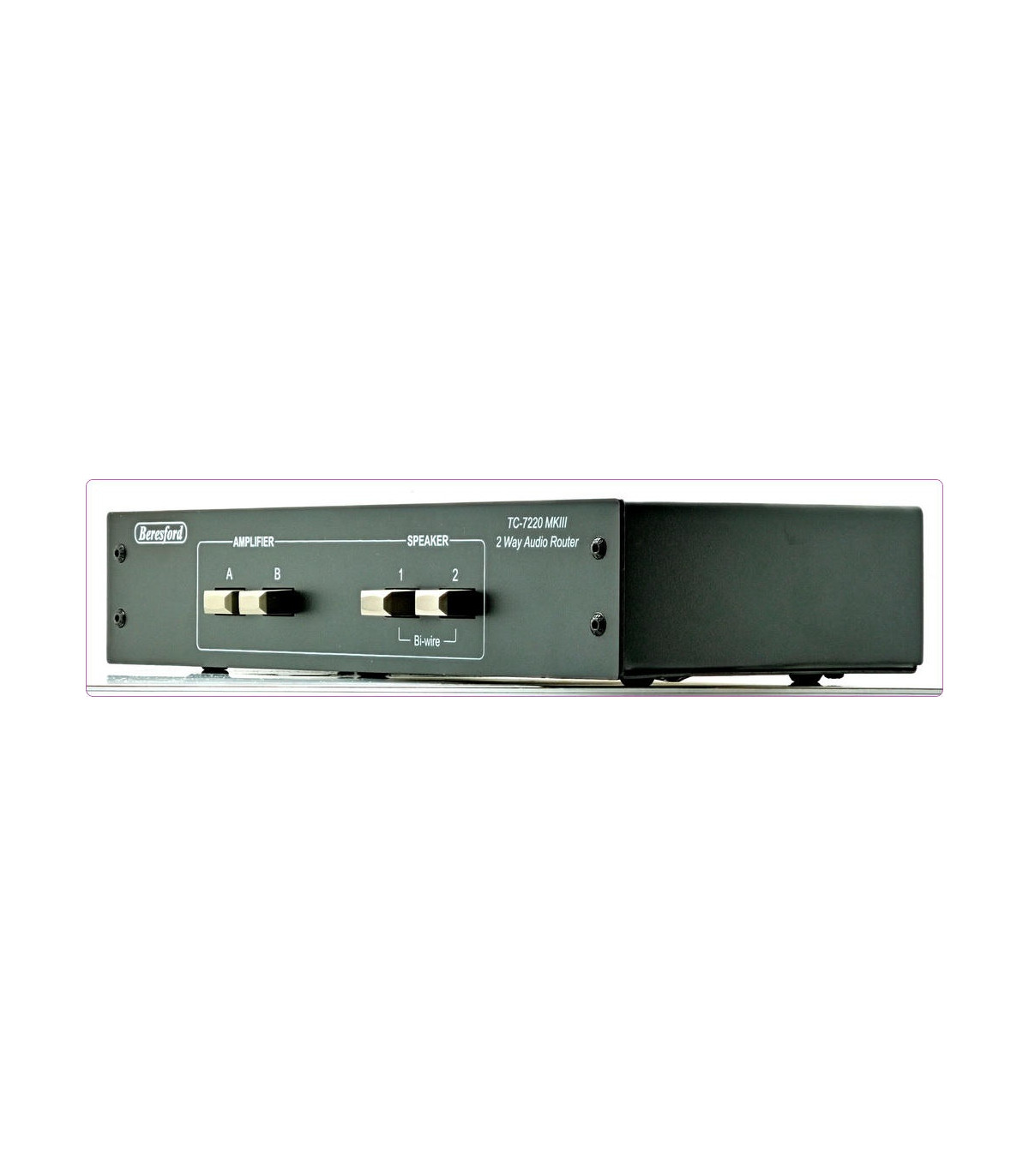

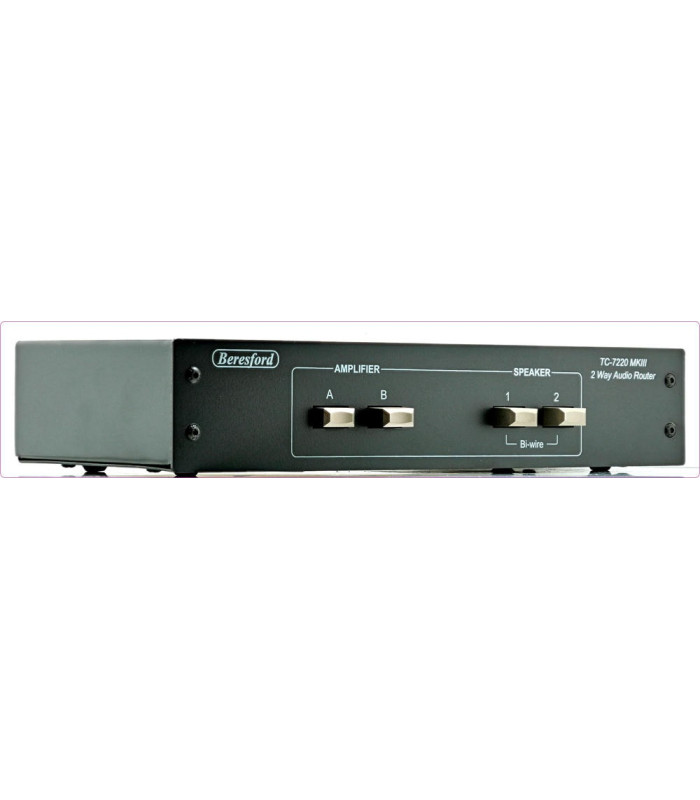

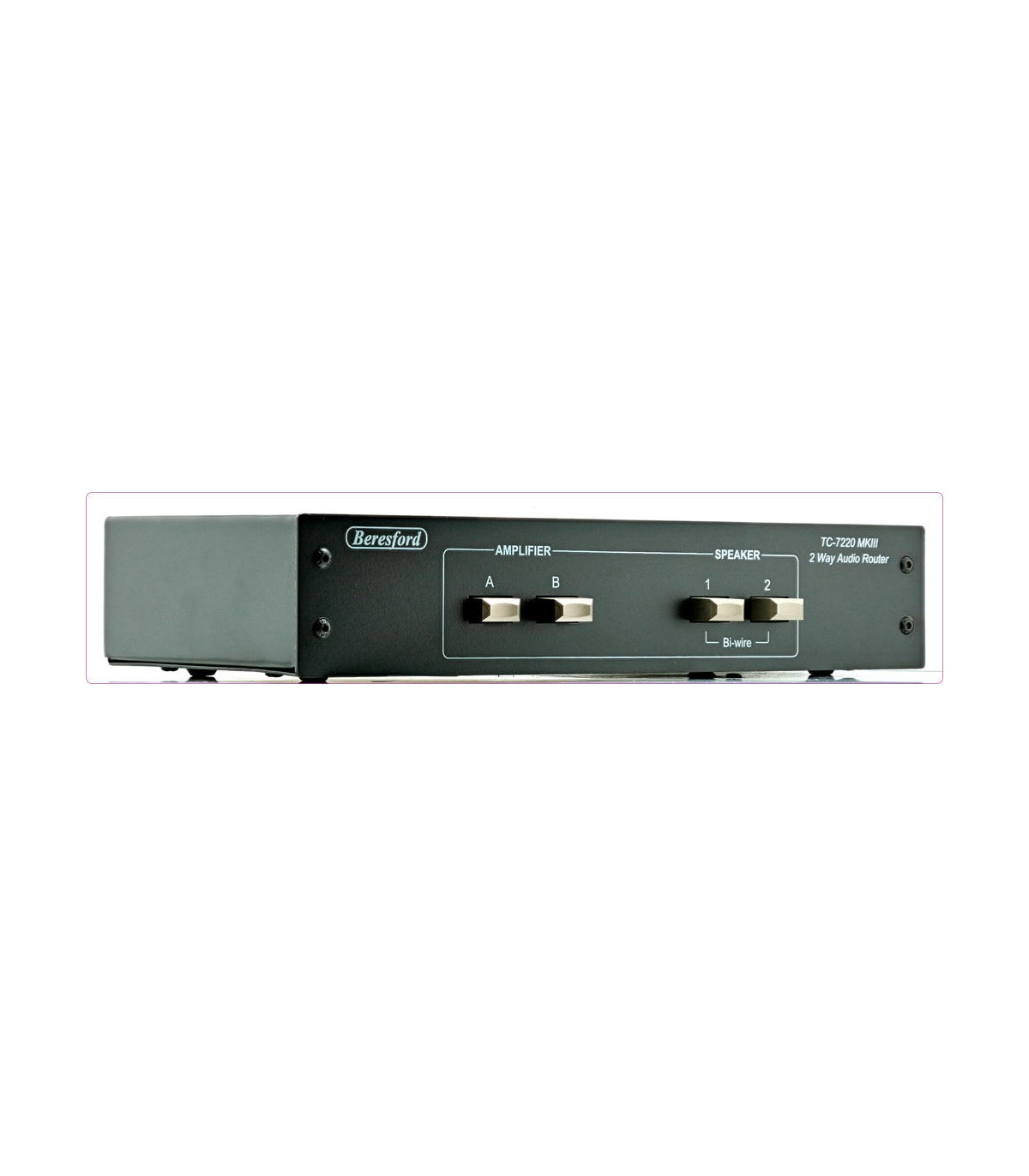

The TC-7220 MKIII is a compact selector that offers selection of the audio signal between up to two amplifiers and two pairs of speakers.
Alternatively, it can be used in Bi-Wire mode so that it can connect any of two amplifiers to a pair of speakers capable of accepting bi-wiring. The sources and outputs can be selected via two sets of push buttons on the front of the box. Speakers and amplifiers connection are va standard banana plugs or spade terminals. Ideal for multiple audio sources such as a stereo amplifier av AV amplifier.
Designed to provide distortion free audio from your audio amplifier or Home Theatre System, to your speaker.
NEW mkIII Evolution (2018):

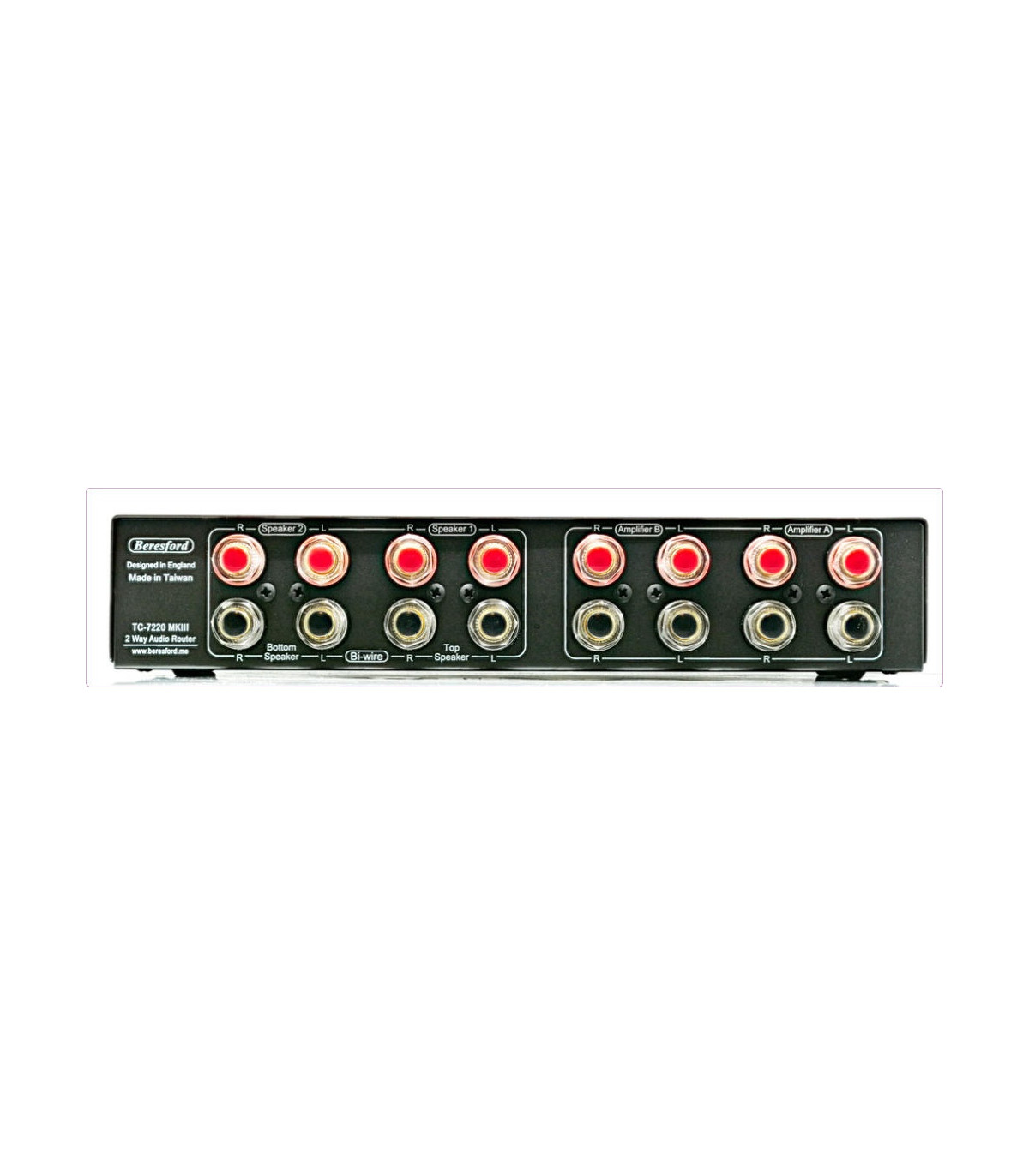

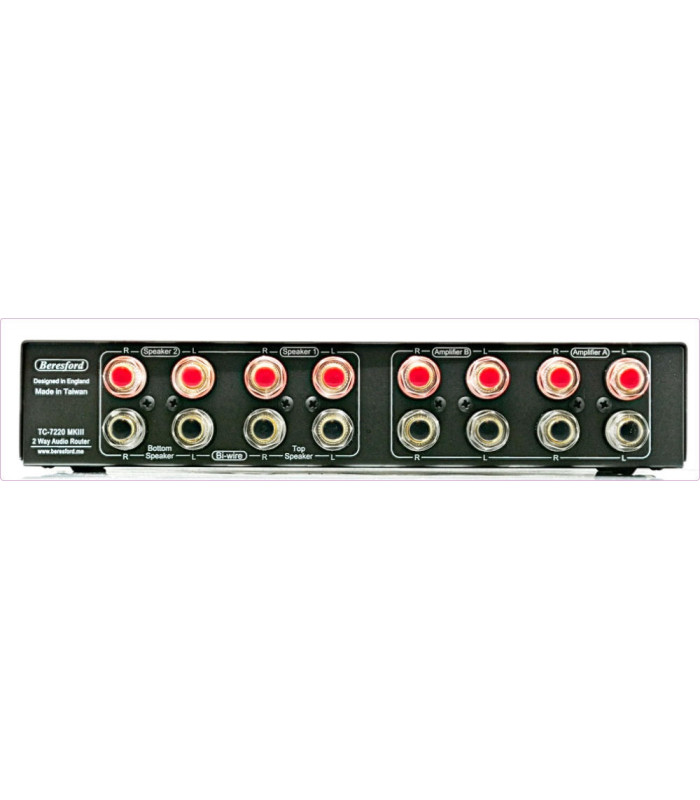

Better back connectors
More space within the connectors to allow handy installation and the use of thick cables/bananas/spades.
Better protection against the short circuits
Multi Bi-Wire option
The TC-7220 MKIII is the only audio router on the market that includes a Bi- Wire option.
The clear and simple bi-wiring arrangement is also a world's first, giving you a chance to try this mode if your speakers are provided with Bi-Wire input terminals.
Select between two audio amplifiers and a single pair of speakers
Select between one audio amplifier and two pair of speakers
Select between two audio amplifiers and a pair of speakers that are Bi-Wire ready
Select one pair of speakers between an audio amplifier or a 5.1 r 7.1 DSP or AV amplifier
Additional wiring and connectors may be required in order to complete an installation.
Not recommended for use with amplifiers (such as a valve amplifier) that cannot be switched off when not connected to a pair of speakers through the TC-7220 MKIII.
1 x TC-7220 MKIII
1 x installation instructions
Type: Audio Switch
Inputs: 2x (L+R Speaker sockets)
Ouputs: 2x (L+R Speaker sockets)
Socket type: combined banana socket and spade terminal
Power adaptor eclipsed: not required
Housing: 1.2mm Galvanized Steel
Cables/adapters included: NO
Dimensions: 240 x 50 x 140 mm
A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee. These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition. B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product. Any special comments about a B-Stock product will be noted at the beginning of the article description.
