FiiO DM15 R2R Compact CD Transport / Portable CD Player

Reference:
3039d
Condition:
New

Warning: remote control battery NOT included.

Read moreShow less
€269.00 (tax incl.)
Finish
Product available with different options

Brand:
Add to wishlist(5)
Description

DM15 R2R CD Player

  • Fully differential complementary 24-bit R2R resistor matrix
  • High-performance output power 1150 mW + 1150 mW
  • 24 rich sound effects
  • Hi-Fi USB/CD Bluetooth transmitter + transport
  • Hi-Fi USB sound card
  • Resume CD playback while listening via adaptive aptX Bluetooth transmission
  • Mechanical buttons / rotary knobs / key-based control
  • 4700 mAh 3.85 V high-voltage lithium battery
  • Up to 7 hours of playback
  • 3.5 mm single-ended and 4.4 mm fully balanced headphone outputs
  • 3.5 mm and 4.4 mm line-out modes
  • USB DAC mode
  • Bluetooth transmission mode with aptX / aptX-HD / aptX-LL / aptX-Adaptive
  • Optical and coaxial digital outputs
  • ESP anti-vibration switch
  • Transparent window design with tempered glass
  • Aluminum alloy chassis
  • Desktop mode support
  • 0.96-inch HD LCD display
  • Supported CD-R formats: FLAC / WAV / WMA / MP3
  • PD3.0 fast charging function
  • Infrared remote control

A roll-to-roll CD player you can take anywhere

The DM15R2R updates disc playback with a compact design, modern connectivity, and an R2R DAC that gives your CDs a warm, textured sound you can carry anywhere.

Powered by a high-voltage lithium battery, it offers both single-ended and fully balanced outputs and supports USB-DAC mode, Bluetooth transmission, and optical/coaxial output.

Whether you are sitting at your desk or relaxing on the couch, the DM15R2R ensures your discs keep playing without being tied to a power outlet.

A modern interpretation of portable disc playback

Use the DM15 as a purely portable CD player or as a USB DAC, Bluetooth transmitter, or optical/coaxial source for your speakers or amplifier.

Switch easily between functions, letting you decide how and where to listen to your music.

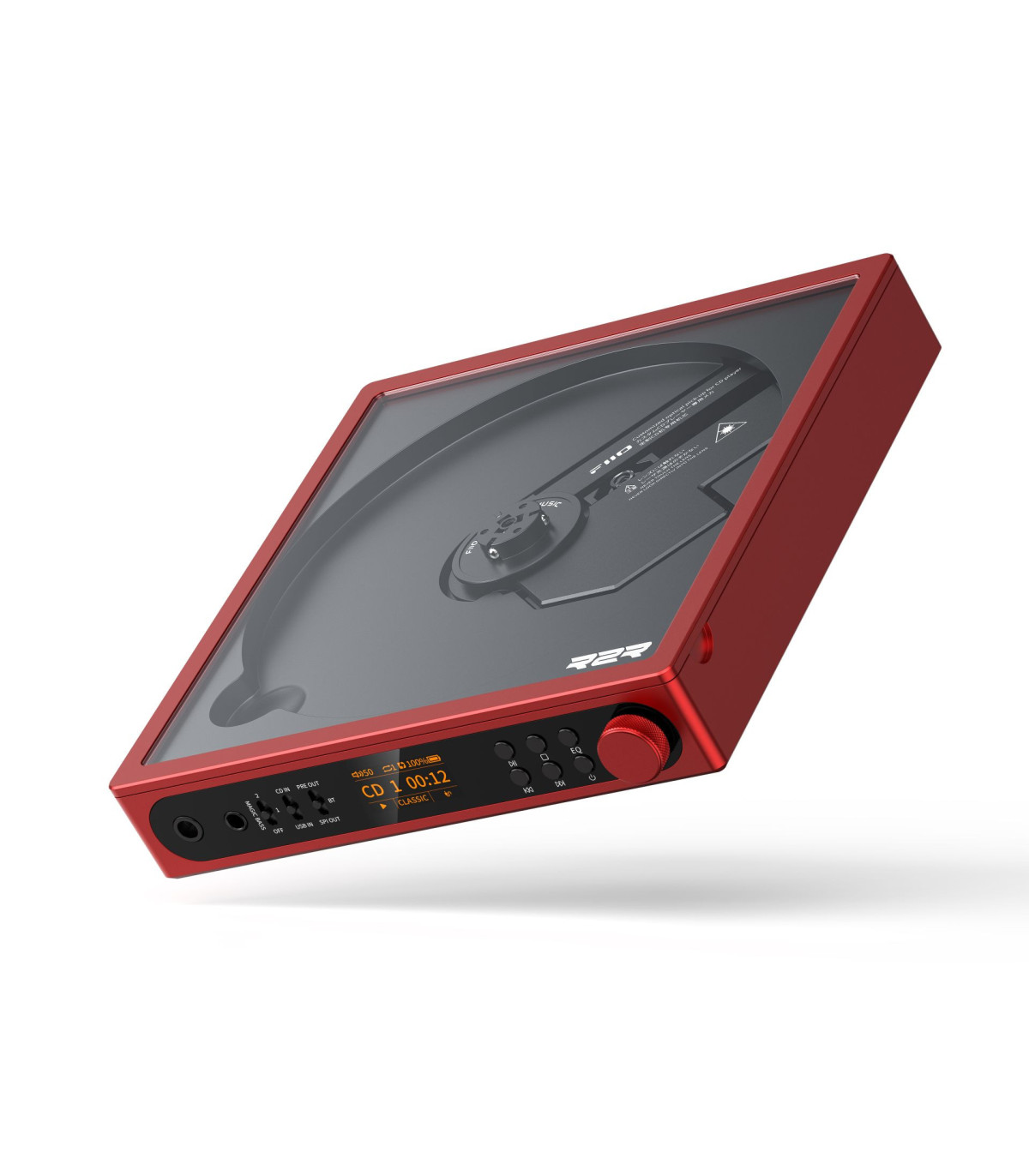

The transparent window allows a clear view of the disc, and the aluminum housing ensures a solid grip in the hand.

High-voltage lithium battery for true mobility

A 4700 mAh 3.85 V lithium battery powers the player for around seven hours. Because the battery operates at a higher voltage, the analog circuit maintains strong output swing and clean performance even when you are away from your desk. Charging is fast, taking about two hours with PD3.0 fast charging, so it is always ready for spontaneous listening.

FiiO discrete R2R DAC for natural sound

At the heart of the DM15R2R is the in-house developed FiiO R2R DAC. Instead of a traditional delta-sigma architecture, it uses a resistor ladder to convert digital data into analog waveforms. The result is a smoother, more organic sound appreciated by many listeners. The player also features low noise and distortion levels, with THD+N below 0.030% at 1 kHz and a signal-to-noise ratio of at least 112 dB, ensuring quiet passages remain silent and dynamic passages remain powerful.

Balanced and single-ended outputs to suit your listening style

Both a 3.5 mm single-ended headphone output and a 4.4 mm fully balanced headphone output are available, each with its own dedicated amplification. The balanced output delivers up to 1150 mW per channel in desktop mode, while the single-ended output offers easier driving for high-efficiency headphones.

Line-out options are equally flexible, as both the 3.5 mm and 4.4 mm outputs are designed for use with amplifiers or active speakers.

Bluetooth, when you want to go wireless

If you want to cut the cables, the DM15R2R can transmit Bluetooth signals to your favorite wireless headphones or speakers. Supported codecs include SBC, aptX, aptX-HD, aptX-LL, and aptX-Adaptive. This allows you to easily listen to your discs without being tethered by a cable, which is especially useful while cooking, moving around the living room, or in any situation where cables may be inconvenient.

ESP anti-vibration support for more stable playback

The ESP switch stabilizes playback if the player is moved or repositioned. It reduces the likelihood of interruptions when walking or carrying the device from one room to another. Once seated at a desk or on the couch, you can leave it on or off. The player will read the disc reliably in either case.

Infrared remote control for contact-free operation

If the DM15R2R is across the room, you can use the included infrared remote control to manage basic transport functions without picking up the unit. You can skip tracks, pause, stop, or adjust output modes while staying seated. It is a small feature, but it makes the listening experience more relaxed, especially when the player is paired with speakers or an amplifier.

Special laser lens for CD players for stable disc reading

The DM13 has been on the market for over a year. Its disc-reading performance has been significantly improved through several updates and optimizations. Building on these improvements, the DM15R2R is further developed, with significant investment in adapting to specific disc shapes and introducing a steel button with automatic reset to ensure smoother insertion and removal and to prevent disc damage.

The disc-reading capability of the DM15R2R corresponds to the new firmware version of the DM13.

Due to the limitations of the portable movement mechanism, perfect reading of all CDs cannot be guaranteed. Firmware updates will be implemented in the future to continuously optimize disc-reading performance.

Due to differences in movement, disc material, and recording environment, frame skipping when reading a limited number of high-capacity CDs is a normal phenomenon.

Supports USB audio capture function

Supports recording while listening to music, allowing you to save your favorite CDs in WAV format to portable storage devices and share the melodies on the go with friends.

Only FAT32-formatted portable storage devices are supported.

Only CDDA audio ripping is supported. It is recommended to use a Type-C USB flash drive with a capacity of 32 GB or less for updates or ripping.

Specifications

Dimensions144 × 137 × 25.5 mm
Weight471.5 g
Operating modesCD playback / USB DAC / Bluetooth transmission / optical output / coaxial output
Headphone outputs3.5 mm single-ended, 4.4 mm balanced
Line outputs3.5 mm LO/COAX/OPT (3-in-1), 4.4 mm balanced LO
Supported CD-R formatsFLAC, WAV, WMA, MP3
DAC chipIn-house developed FiiO R2R DAC
Headphone amplifier chipSGM8262 × 2
Bluetooth chipQCC3095
USB chipSPV5048
Display0.96-inch LCD
Battery capacity4700 mAh
Battery life≥7 hours
Rated power5 V, 2 A (USB-C)
Chargingsupports PD2.0 and PD3.0 fast charging
Charging time~2 hours (PD3.0)
USB DAC384 kHz / 32-bit, DSD256 (native)
Coaxial output192 kHz / 24-bit
Optical output96 kHz / 24-bit
Single-ended headphone output power (desktop)≥315 mW + 315 mW (32 Ω, THD+N <1%)
Single-ended headphone output power (portable)≥220 mW + 220 mW (32 Ω, THD+N <1%)
Balanced headphone output power (desktop)≥1150 mW + 1150 mW (32 Ω, THD+N <1%)
Balanced headphone output power (portable)≥815 mW + 815 mW (32 Ω, THD+N <1%)
Single-ended line output 13.3 Vrms + 3.3 Vrms (desktop)
Single-ended line output 22.8 Vrms + 2.8 Vrms (portable)
Balanced line output 36.5 Vrms + 6.5 Vrms (desktop)
Balanced line output 45.4 Vrms + 5.4 Vrms (portable)
Signal-to-noise ratio≥112 dB (A-weighted)
Noise floorPO <8.5 µV, BAL <15.8 µV (A-weighted)
THD+N<0.030% (1 kHz / 0 dB at 32 Ω)

Package contents

DM15R2R

Infrared remote control

USB-A to USB-C charging/data cable

Quick start guide

3.5 mm coaxial adapter cable
