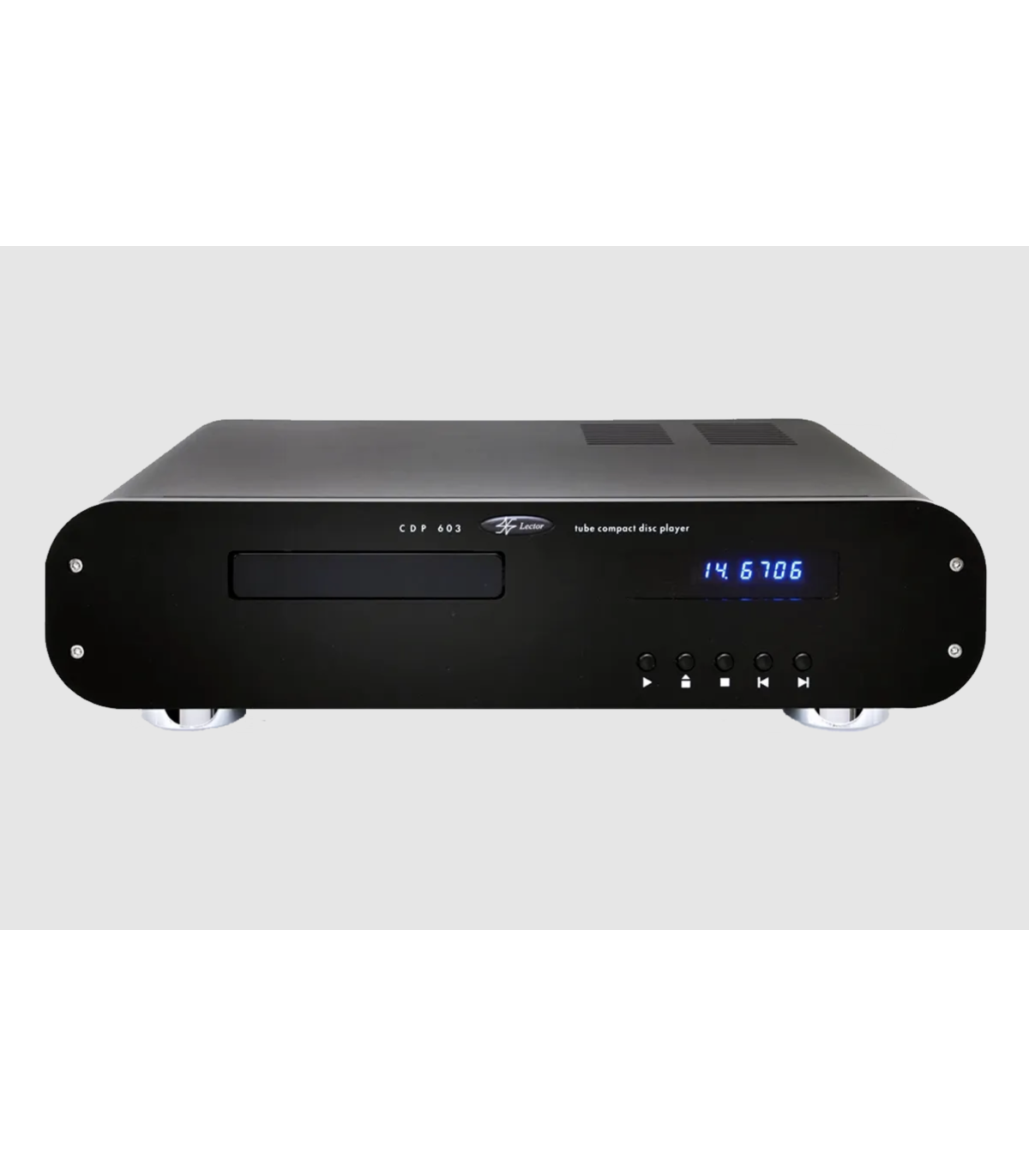

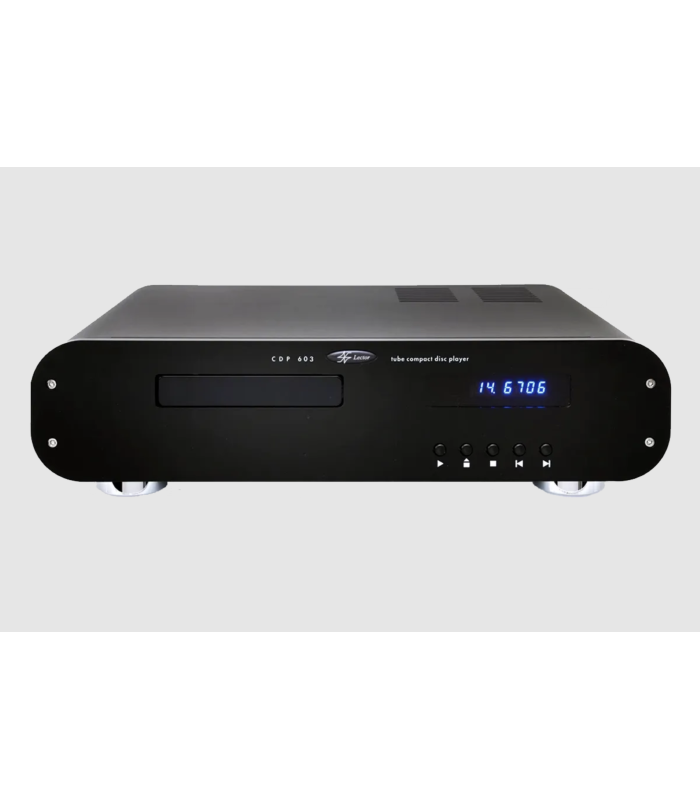

Lector Audio CDP-603 CD Player

Lector Audio CDP-603 CD Player - New rounded design for the CD player, featuring a true tube output stage and front-loading mechanism.

Technology meets design in the new chassis, designed to ensure greater rigidity and improved mechanical vibration control:

• New laser mechanism for improved CD reading, with a 3 mm error tolerance
• Stable suspension using special rubber to reduce both internal and external vibrations
• New servo circuits based on a 32-bit microprocessor
• New functions including: numeric keypad for direct track selection and display on/off via remote control
• Display brightness adjustment
• The DAC board has been designed for high-resolution performance of approximately 32-bit/192 kHz, with very low jitter control
• True pure Class A tube output stage, with no solid-state devices anywhere in the signal path
• A single custom-made polypropylene capacitor in the signal path
• Multiple power supply circuits for all electronic sections, with a large capacitor reserve
• Large display for easy readability from a distance
• Selected low-noise 12AT7/ECC81 tubes (2)
• Chassis designed to reduce both internal and external mechanical vibrations

Lector CD players are among the few in the world featuring a true tube output stage. There are no active solid-state components between the DAC and the analog output.

Items included:
• Remote control
• Power cable
• User and maintenance manual

Specifications:

Type True tube output CD player
Active device 32-bit / 192 kHz DAC
Frequency response 20 Hz–20 kHz ± 1 dB (correct phase, output)
THD / jitter < 0.1% / < 20 pps
Power supply 100/120/230 VAC – 50/60 Hz – 70 VA
Dimensions/Weight 43 (W) × 30 (D) × 10 (H) cm / 12 kg
