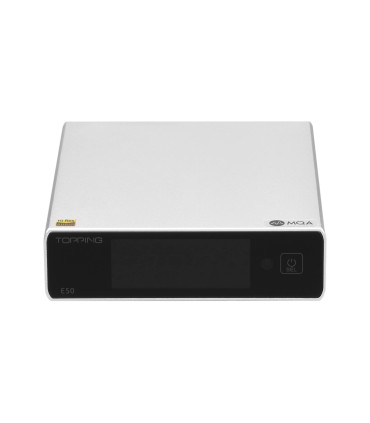

Topping E50 Balanced DAC ES9068AS XMOS XU216 MQA 32bit 768kHz DSD512
With the help of careful design and adjustment, E50 pro-vides a distortion as low as 0.00009% and a dynamic range of 126dB, providing you with perfect sound quality. This also makes E50 suitable for applications: high-fidelity PC-HIFI system, mobile phone/tablet OTG, CD play-er/turntable external DAC, digital broadcasting external DAC, TV DAC and so on.
ES9068AS DAC Chip
E50 uses the latest high performance DAC chip ES9068AS. With our excellence in design and engineering, it provides realistic and transparent sound quality.
USB supports DSD512 & PCM768kHz high resolution audio
USB input of E50 has a wide range of compatibility: Win-dows 10, MAC, Linux, 10S, Android can be plug and play. Only for Windows ASIO applications, you need to install the driver and set it up.
USB input has the best performance of E50. It uses XMOS 2nd 16-core processor XU216, which brings the support of 32bit768kHz PCM, DSD512 native high-reso-lution audio and MQA full decoding. Even in ASIO appli-cation, we have customized Thesyon driver for Win10. (The sampling rate supported by different OS may vary due to the OS itself)
Coaxial and Optical(Toslink) also has good performance
On the E50, the traditional optical and coaxial input not only supports 24bit192kHz PCM, but also supports Dop DSD64 and MQA rendering.
Ultra low jitter for USB inputs jitter is no longer anxious
Using CPLD to process the clock and greatly optimize the digital signal, achieved incredible jitter suppression capabilities. The use of new technology makes the femtosecond crystal and external clock no longer needed to sup-press jitter.
5V power supply anytime and anywhere
E50 uses a DC5V power supply, which can be easily accessed almost everywhere. You can power it up by USB port of PC, mobile phone charger or even a power bank.
Note: The product does not provide a 5V power adapter.
All inputs support Auto On/Off function
E50 auto On/Off function, it will automatically turn on and set to the input which the signal is valid. And when the signal of E50's selection is not valid for 1 minute, E50 will turn off automatically.
Selectable output ports
E50 has full balanced TRS output and single ended RCA output. You can choose "TRS only", "RCA only" or "TRS+RCA" output to meet different usages in the multi-ple systems.
Please note that the TRS output of E50 does not support any adapter to convert to single-ended, nor can it be directly connected to headphones.
E50 has preamplifier function so you can control the output volume on the remote control. This will provide great convenience when connected to a power amplifier or monitor speakers. And also help you leave the budget for a preamplifier.
L50 will be the best headphone amplifier for E50
L50 and E50 have fully matched design languages and styles, and signals can transmit in balanced by TRS. L50 is suitable for almost all kinds of headphones.
Topping E50 + Topping Pa5
To connect the Topping E50 to the amplifier with balanced inputs Topping PA5, it is necessary to purchase the Topping TCT1 cables separately (click here)
