FiiO Q15 Portable DAC and Headphone Amplifier

2898

New product

360,57 €

Available for immediate shipping.
Warning: Last items in stock!

Brand: FiiO


Description

FiiO Q15 Portable DAC and Headphone Amplifier

The Q15 features a new desktop mode that comes with a separate Type-C power port. When connected to the power adapter, the Q15 will be powered externally, bypassing the battery.

Amazing 1600mW Power
In desktop mode, the FiiO Q15 with balanced output can output 1600mW in the upgraded over-ear headphone mode, which is more than enough to drive various IEMs and full-size headphones.

USB / Bluetooth / Coaxial Decoding
The FiiO Q15 combines USB DAC, Bluetooth, coaxial decoding and other modes in one device, making it easier to connect different devices for different usage scenarios.
- USB: Connect to computers/phones/tablets/game consoles and other devices, supports up to 768kHz/32bit PCM and DSD512
- Bluetooth: Connect to phones/tablets/digital audio players and other devices, supports high-resolution Bluetooth codecs including LDAC/aptX Adaptive
- Coaxial: Connect to CD/digital streamer/digital audio players and other devices, supports up to 192kHz/24bit PCM and DSD64

AKM Flagship DAC Combo - AK4191EQ+AK4499EX
The FiiO Q15 features AKM's latest DAC combo - the AK4191EQ+AK4499EX. Combined with the newly developed "DWA Routing Technology", the audio performance is significantly improved. The result is a detailed, natural and realistic sound.
- Signal to Noise Ratio: ≥123dB (A-weighted)
- THD+N: <0.0004% (LO/1kHz/10kΩ)
- Noise Floor: PO<3μV (A-weighted); LO<1.6μV (A-weighted);
- BAL<4.8μV (A-weighted)
*The above parameters are the result of actual testing.

Stable and efficient operation
The Q15 is equipped with digital components at the same level as the FiiO Q7 and uses the ARM processor to realize USB/coaxial/Bluetooth decoding in one device that can process digital audio signals with low latency and high efficiency.

XMOS 16-core XU316: Supports full decoding of 768kHz/32bit PCM, DSD512 and MQA.

TI Cortex M4 processor: Ensures stable and efficient operation of various systems

Two audio crystal oscillators, asynchronous/self-adaptive dual-mode management: Accurate and stable adaptation to different sound sources and sampling rates

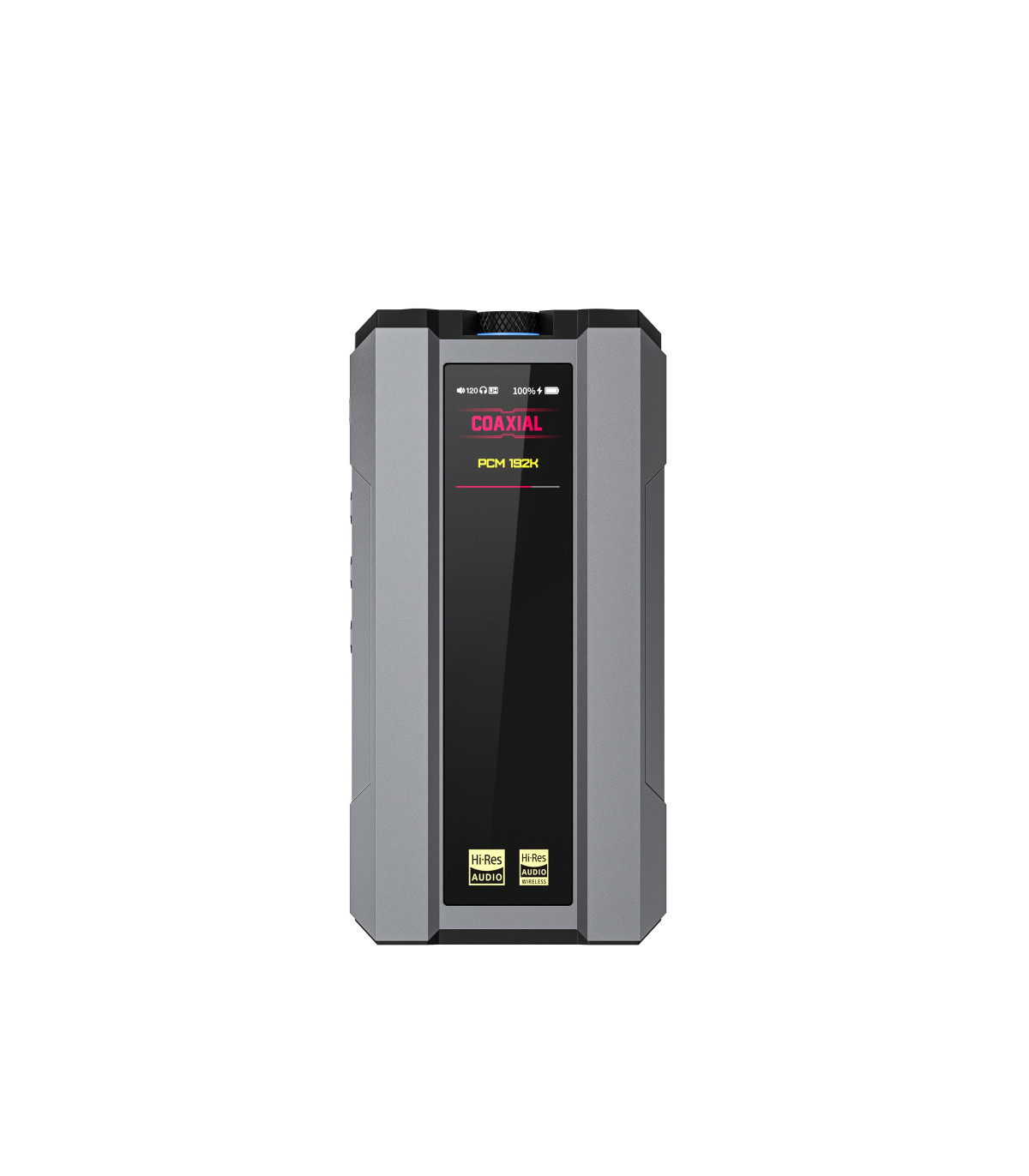

Full-color IPS display
The full-color IPS display makes it easy for you to see the current device status, such as the current sample rate, volume, gain, and other information. An intuitive volume control helps you control the volume and navigate through the settings easily.

Phone Mode Switch - One-touch operation
FiiO engineers have implemented a "Phone Mode" switch to make the Q15 more suitable for use with phones. When you enable Phone Mode*, the Q15 is powered by the built-in battery and does not consume the phone's battery.

*If you need to connect to a computer, turn Phone Mode off.

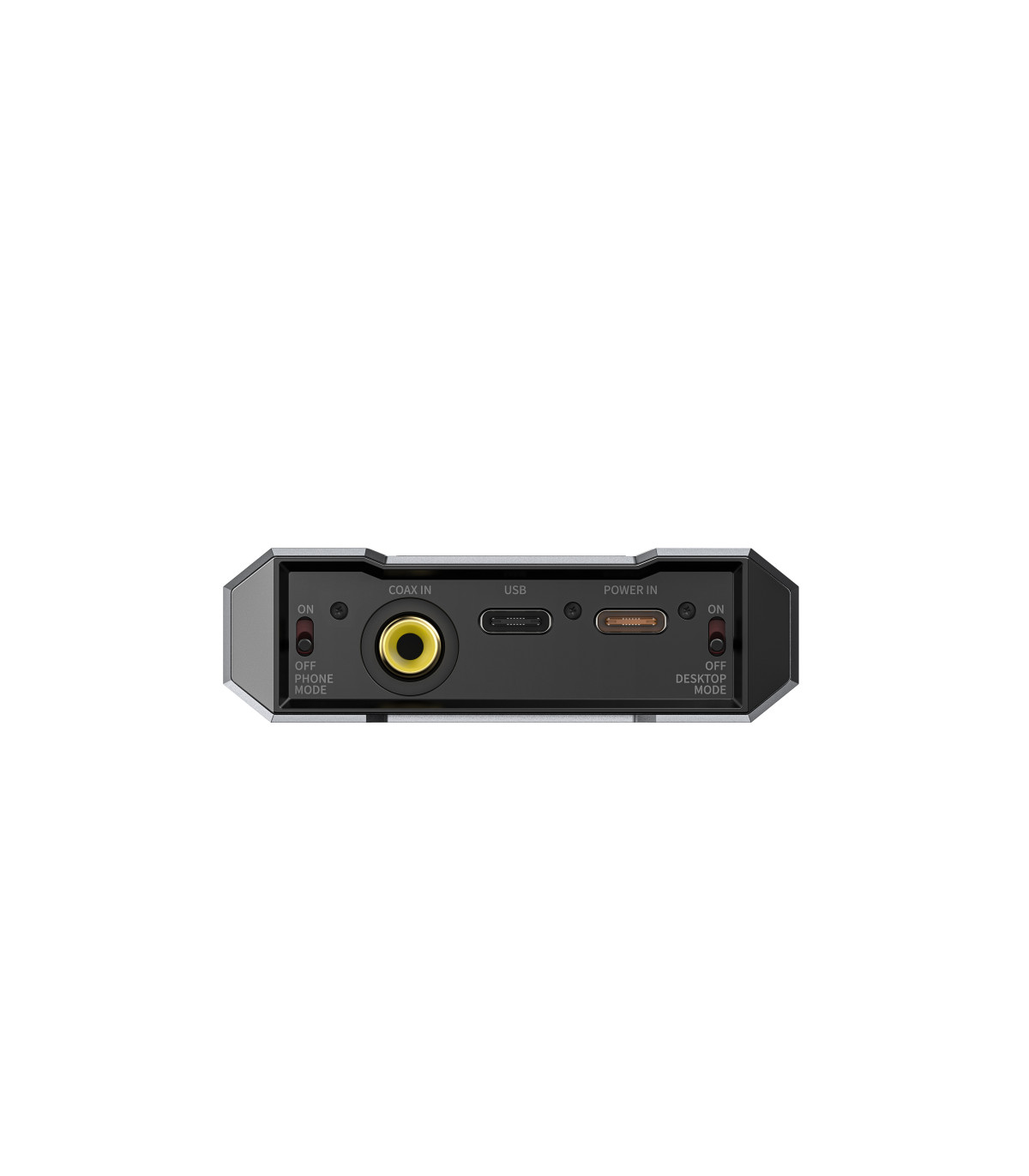

RCA Coaxial Port
Thanks to the carefully designed internals, the FiiO Q15 also features a coaxial input. This allows the Q15 to be connected directly to digital streamers and CD players using regular coaxial cables.

Perfect size

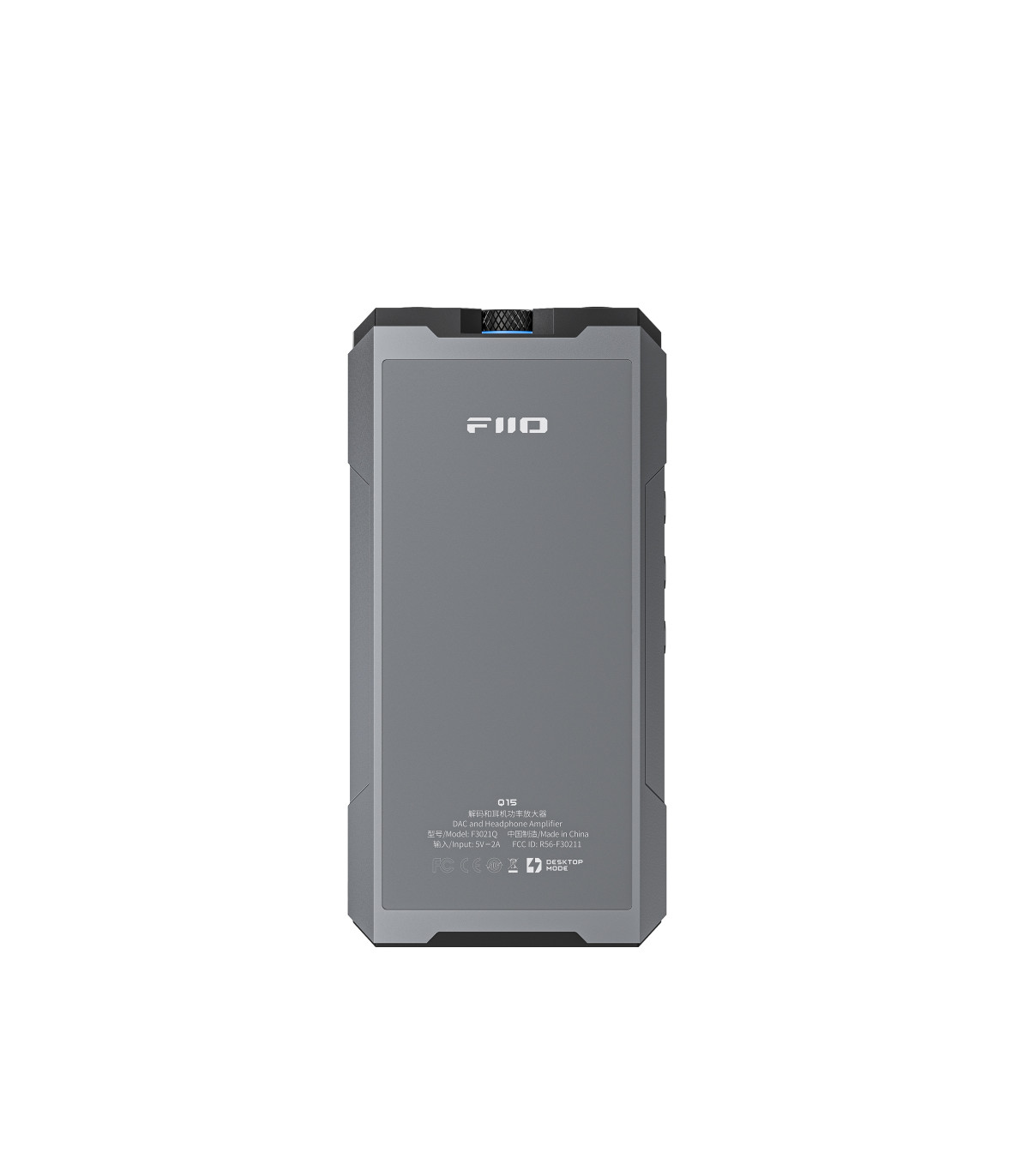

The Q15 uses AG glass for its back for the first time, which is scratch-resistant, prevents fingerprints and is comfortable to the touch. The 18:9 size ratio makes the device comfortable to use both in your hand and in combination with other portable devices. Whether you're just out and about or on a business trip, you're in control of your high-quality sound.

Precisely Designed Internals Advanced Audio Circuit
5-Stage Audio Circuit - 5-Stage Gain: A carefully designed complete audio circuit with DAC-IV LPF Gain headphone amplifier stages ensures that the Q15 has a wide dynamic range and delivers excellent sound fidelity. The variable gain and variable voltage design maximizes the performance of the audio circuit. There are separate low-voltage low gain and high-voltage high gain modes, each suitable for IEMs and full-size headphones.
15-way digital-analog power supply: Inside the Q15 is a 15-way digital-analog power supply with power systems for the digital part, the analog part, the headphone amplifiers, etc. 21 low-noise LDOs ensure precise regulation, and 35 low-resistance tantalum capacitors ensure ample energy reserves.
High precision and low noise - An expert in audio reproduction: FiiO engineers specifically selected 60 1‰ precision resistors with low temperature drift and 28 NPO capacitors with a wide temperature range for the Q15, so that the Q15 can reproduce high-quality audio signals with the highest fidelity even in the most demanding conditions.

Global PEQ
The FiiO Q15 has 7 EQ presets and 3 customizable PEQ* presets. PEQ can be used in both Bluetooth mode* and USB DAC mode*. FiiO's self-developed PEQ algorithm and user interface allow you to select the exact frequencies to adjust along with their gain and bandwidth - allowing you to fine-tune the sound exactly as you like.
*Adjustable PEQ and PEQ under coaxial input will be supported by subsequent firmware upgrades.
*PEQ in Bluetooth mode supports LDAC and other formats with support for 96kHz/24bit PCM.
*USB DAC PEQ supports 192kHz/24bit PCM.
*USB DAC EQ is controlled by the XMOS chip. When you turn the EQ on and off in this mode, the USB connection will be temporarily interrupted and automatically reconnected. Tap "Play" to restore the output.

Comprehensive Protection
FiiO engineers have implemented a variety of hardware and software-driven protection mechanisms to let you enjoy great sound without worry. Maximum volume limit to prevent hearing damage; Long-life high-temperature resistant battery + dynamic temperature-dependent charge and discharge control + charging protection + battery isolation, all of which together extend the battery life; Overheat, overvoltage and DC protection mechanism enables the Q15 to provide stable output power by ensuring the audio circuit works properly and ensuring the safety of the connected headphones.

SPECIFICATIONS
Product typePortable DAC headphone amplifier
DAC chipAKM AK4499EX + AK4191EQ
USB interfaceXMOS XU316
Bluetooth receiver chipQCC5125
Inputs1x SPDIF coaxial
1x USB-C
Outputs1x 3.5mm headphone/line jack output
1x 4.4mm balanced headphone/line output
Supported sampling ratesUSB : PCM 32bit 768kHz, DSD512, MQA
SPDIF coaxial : 24bit 192kHz, DSD DOP64
Supported Bluetooth codecsSBC, AAC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC
Gain modeUltra high (in desktop mode, the power port is connected to the QC power supply) / super high / high / medium / low gain mode
Channel balance≤ 0.2dB
Recommended headphone impedanceUnbalanced : 8~150Ω
Balanced : 8~300Ω
ScreenIPS color with adjustable view
BatteryLithium 5500mAh
Charging time3.5h (PD fast charge)
Battery life9h: unbalanced output
8h : balanced output
3.5MM HEADPHONE OUTPUT, USB DAC, COAX, ULTRA HIGH GAIN MODE
Output powerL+R ≥ 750mW+750mW (16Ω, THD+N < 1%)
L+R ≥ 625mW+625mW (32Ω, THD+N < 1%)
L+R ≥ 85mW+85mW (300Ω,THD+N < 1%)
SNR≥ 123dB (A-weighted)
Frequency response20Hz~80kHz: damping < 3dB
20Hz~20kHz: damping < 0.1dB
Output impedance< 1Ω
Crosstalk≥ 72dB
Peak output voltage14.5Vp-p
THD+N< 0.0005% (1kHz/-9dB @ 32Ω)
< 0.0004% (1kHz/-6dB @ 300Ω)
Noise floor<3.1uV (A-weighted)
PERFORMANCE MEASUREMENT @ LINE OUTPUT JACK 3.5MM, USB DAC, COAX
THD+N< 0.00042% (1kHz/-4dB @ 10KΩ)
Crosstalk≥ 105dB
SNR≥ 123dB (A-weighted)
Frequency response20Hz~80kHz: damping < 3dB
20Hz~20kHz: damping < 0.1dB
Output level2Vrms
Noise floor<1.6uV (A-weighted)
4.4MM HEADPHONE OUTPUT, USB DAC, COAX, ULTRA HIGH GAIN MODE
Output powerL+R ≥ 635mW+635mW (16Ω,THD+N<1%)
L+R ≥ 1610mW+1610mW (32Ω,THD+N<1%)
L+R ≥ 340mW+340mW (300Ω,THD+N<1%)
SNR≥ 123dB (A-weighted)
Frequency response20Hz~80kHz: damping < 3dB
20Hz~20kHz: damping < 0.1dB
Output impedance< 1.5Ω
Crosstalk≥ 113dB
Peak output voltage29Vp-p
THD+N< 0.00055% (1kHz/-14dB @ 32Ω)
< 0.0003% (1kHz/-2dB @ 300 Ω)
Noise floor<4.8uV (A-weighted)
4.4MM HEADPHONE OUTPUT, USB DAC, COAX, SUPER HIGH GAIN MODE
Output powerL+R ≥ 675mW+675mW (16Ω,THD+N<1%)
L+R ≥ 1060mW+1060mW (32Ω,THD+N<1%)
L+R ≥ 215mW+215mW (300Ω,THD+N<1%)
SNR≥ 121dB (A-weighted)
Frequency response20Hz~80kHz: damping < 3dB
20Hz~20kHz: damping < 0.1dB
Output impedance< 1.5Ω
Crosstalk≥ 113dB
Peak output voltage23Vp-p
THD+N< 0.00055% (1kHz/-13dB @ 32Ω)
< 0.00025% (1kHz/-4.5dB@300Ω)
Noise floor<4.8uV (A-weighted)
LINE OUTPUT JACK 4.4MM, USB DAC, COAX
THD+N<0.00027%(1kHz/-5dB @ 10KΩ)
Crosstalk≥ 105dB
SNR≥ 126dB (A-weighted)
Frequency response20Hz~80kHz: damping < 3dB
20Hz~20kHz: damping < 0.1dB
Output level4Vrms
Noise floor< 1.8uV (A-weighted)
Dimensions143.5 x 71.75 x 21.75mm
Weight310g
ColorBlack
Package1x FiiO Q15 portable DAC headphone amplifier
1x USB-C to USB-C cable
1x USB-C to USB-A adapter
2x Telephone clamp
1x Storage pouch
