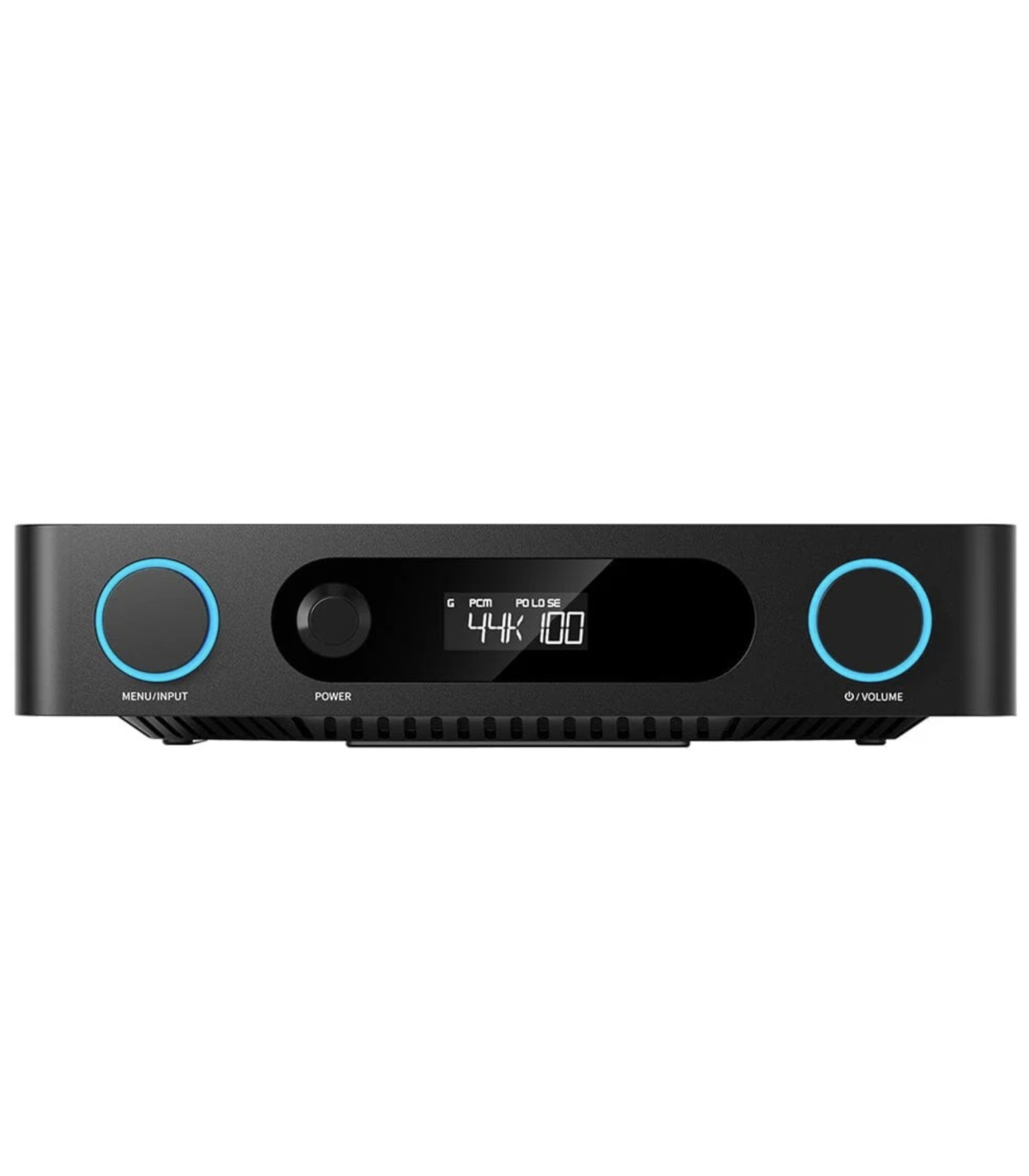

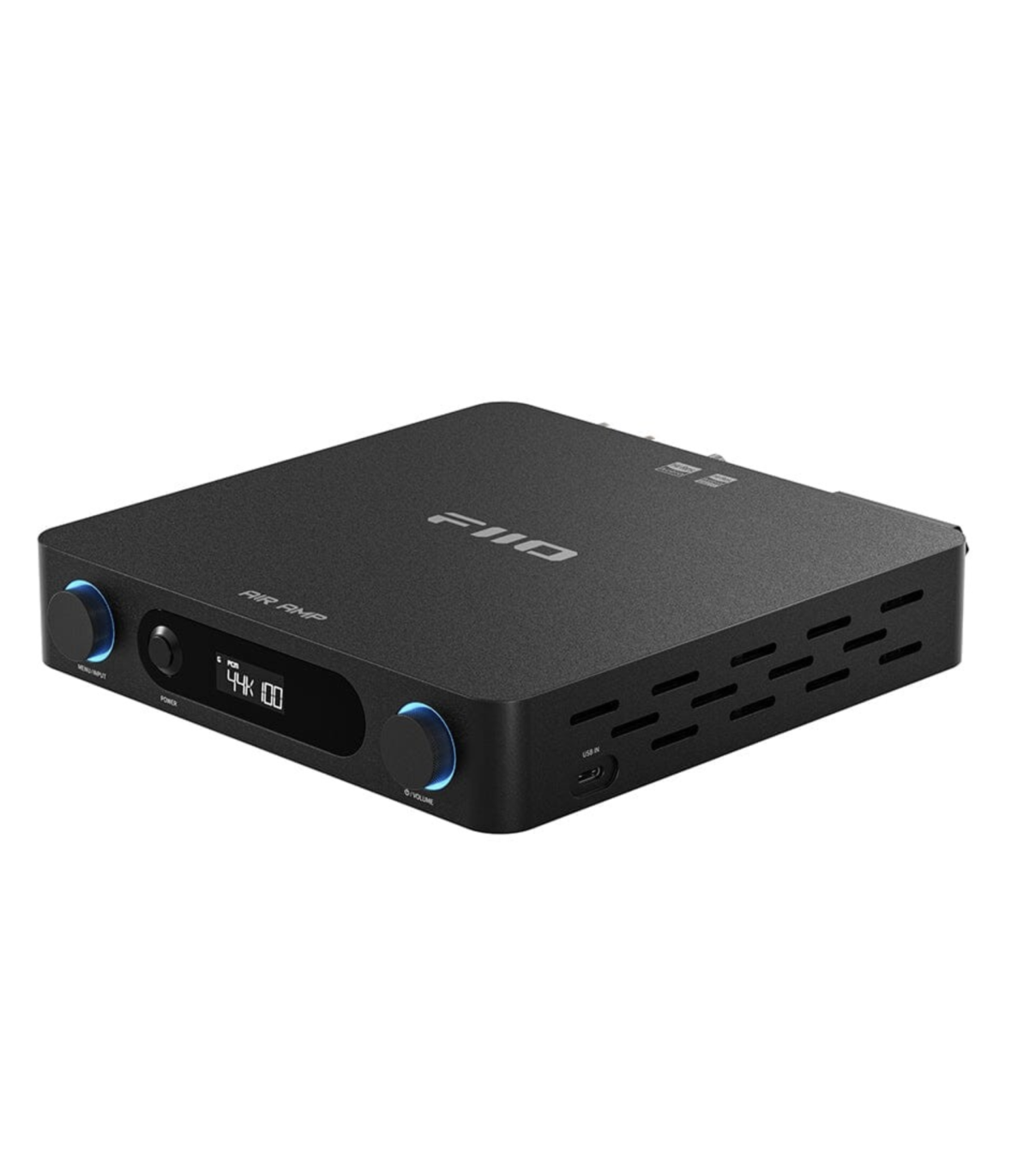

FiiO AIR AMP Integrated Amplifier + Built-in streamer/DAC

FiiO AIR AMP – High-Power Integrated Amplifier with Built-in Streamer & DAC

• Streaming via Roon Ready, AirPlay, or QPlay
• Direct playback from NAS, USB drives, or portable hard drives
• 7 inputs and 3 outputs
• TI TPA3255 amplifier chip
• Classic PFFB feedback circuit
• 120W + 120W @ 4Ω output power
• Dedicated ES9020Q DAC
• XMOS XU316 audio processor
• 10-band PEQ
• Independent bass and treble adjustment
• Included infrared remote control

Big Room-Filling Sound in the Palm of Your Hand

Is your living room, bookshelf, or desk cluttered with DACs, amplifiers, and streamers, with tangled cables that make your system difficult to manage? Do you want to bring your classic passive speakers into the streaming era, but find the process too complicated?

AIR AMP combines streaming control, high-resolution decoding, and high-power amplification in a single device. Compact enough to fit in the palm of your hand, yet powerful enough to build a complete, clean, and clutter-free smart HiFi system.

Compact Design, Powerful Performance

Powered by the proven TI TPA3255 Class D amplifier chip, AIR AMP combines ultra-low distortion with high conversion efficiency.

With the included 48V/5A power adapter, it delivers 120W + 120W @ 4Ω, providing enough power to drive most bookshelf speakers and small-to-medium floorstanding speakers, without taking up unnecessary space.

With an optional 48V/10A power adapter, output power can reach up to 235W + 235W @ 4Ω.

PFFB Post-Filter Feedback Technology – A Backdrop of Pure Silence

This technology significantly reduces distortion, delivering an exceptionally clean and silent background while maintaining consistent sound quality across speakers with different impedance characteristics, for a truly immersive listening experience.

Supports Major Streaming Protocols

Your favorite music is always just a tap away.

Roon Ready seamlessly integrates with the Roon music management system, bringing your online and local music libraries together in one place.

AirPlay allows you to easily stream music from your iPhone, iPad, Mac, and other compatible devices with a single tap, giving you effortless control over playback.

QPlay lets you enjoy one-tap lossless streaming from QQ Music, with instant playback and easy access to high-quality streaming audio.

NAS, USB Drive, and Portable Hard Drive Playback

Give your treasured music library a new stage to shine on.

Play music directly from USB drives and portable hard drives, or connect to your home NAS over the local network.

Easily browse and play tracks through the FiiO Control app, keeping your treasured master recordings and classic albums always ready to enjoy.

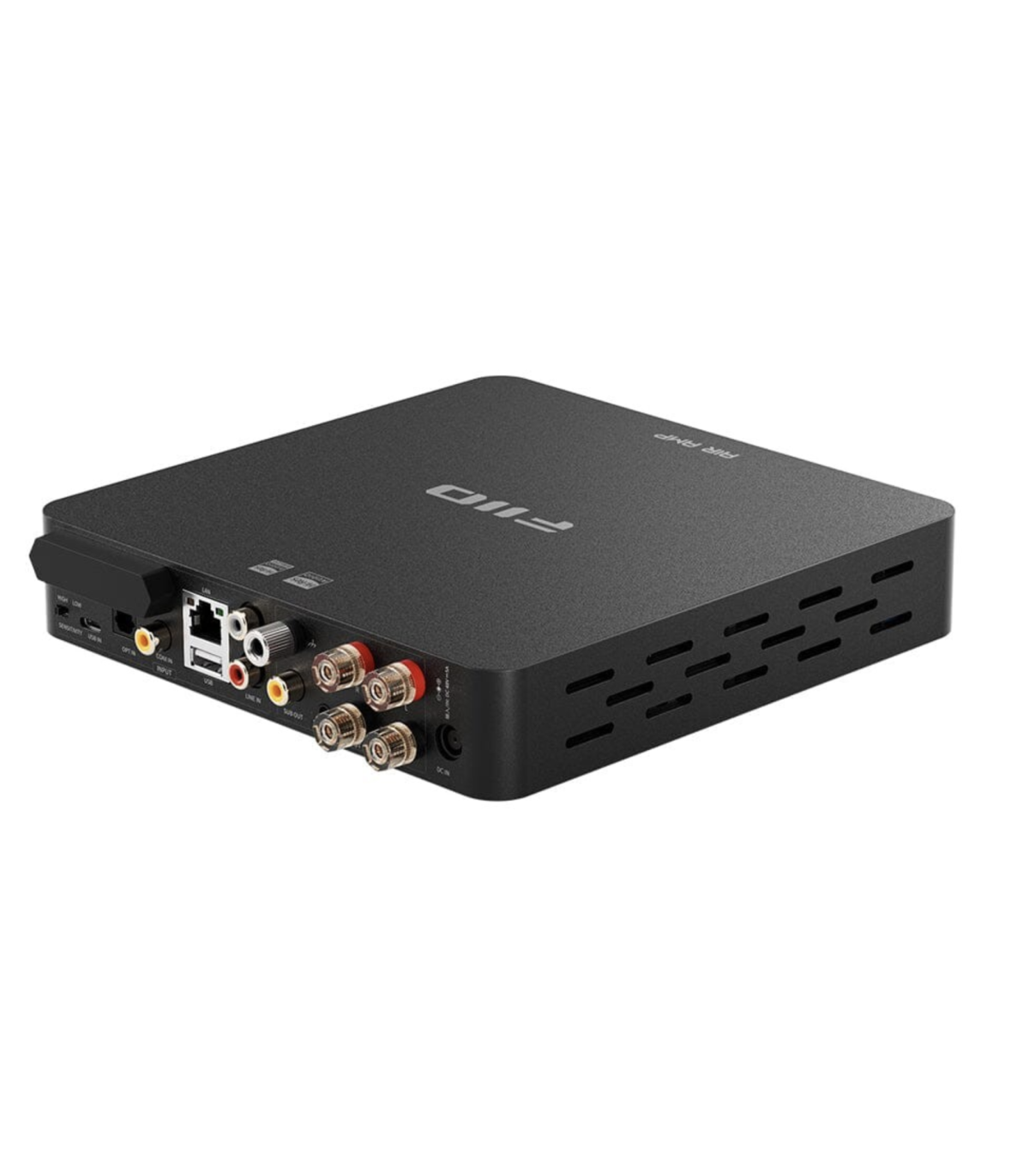

7 Inputs, 3 Outputs

With 7 input options, 3 output options, and two levels of input sensitivity adjustment, AIR AMP offers exceptional compatibility with a wide range of audio sources while easily integrating with your speaker or headphone system.

Connect a turntable, TV, CD player, or stream to WiiM or Bluetooth devices with ease.

Inputs: USB, optical, coaxial, Bluetooth, local playback, streaming, and RCA

Outputs: speaker, subwoofer, and preamp

Advanced Audio Decoding Chain – XMOS XU316 + ES9020Q DAC

The entire signal chain, from digital decoding to power output, has been meticulously optimized to achieve low distortion and high dynamic range, combining powerful driving capability with high-fidelity audio performance.

The 16-core XMOS XU316 chip supports high-resolution audio up to 768kHz and DSD512, while the ESS ES9020Q DAC preserves every musical detail, delivering pure, natural, and refined sound.

Premium Imported Audiophile Components

Featuring carefully selected high-end imported audio capacitors and dedicated circuit optimization, AIR AMP delivers cleaner power, reduced losses, and a purer sonic background, with enhanced detail and dynamic expression.

Components include:

• 4 WIMA film capacitors

• 2 Nichicon capacitors (2200μF)

• 4 Rubycon film capacitors

• 4 ELNA coupling capacitors

Mobile App and Web-Based Dual PEQ Adjustment

Sound tuning can be as simple or as detailed as you want.

Choose from built-in EQ presets with different sound profiles to instantly match your favorite music.

Both the FiiO Control app and web interface support AUTO EQ and a high-precision 10-band PEQ, allowing you to easily apply different tuning curves or manually fine-tune the settings to achieve your ideal sound.

Wired or Wireless, Reliable and Fast

A dedicated Gigabit Ethernet port provides a stable, interference-free wired connection, while dual-band 2.4GHz and 5GHz Wi-Fi gives you the freedom to place your system wherever you want.

App + Remote Control, Effortless Control Your Way

The FiiO Control app provides access to all settings, from network configuration and track selection to sound customization, all in one place.

The included infrared remote control lets you switch inputs, adjust the volume, and change EQ presets without leaving your seat.

Specifications

Dimensions: approximately 207 × 188 × 42 mm

Weight: approximately 930 g

Color: black/silver

Operating modes: USB decoding / optical decoding / coaxial decoding / line input / Bluetooth reception / streaming reception / local playback

Power supply: supports DC 48V/≥5A

Hardware Configuration

Display: 1.1-inch LCD

Main control unit: X2000

DAC: ES9020Q

USB chip: XU316

Amplifier: TPA3255

Sampling Rate Support

USB DAC: 768kHz/32bit; DSD512 (native)

Local playback: 384kHz/32bit; DSD256

Streaming playback: 384kHz/32bit; DSD256

Coaxial input: 192kHz/24bit, DSD64

Optical input: 96kHz/24bit

Bluetooth Specifications

Bluetooth reception: v5.2, SBC/LDAC

Speaker Output – Included 48V/5A Power Adapter

Output power 1: L+R ≥ 120W + 120W (4Ω, THD+N < 1%, 22Vrms)

Output power 2: L+R ≥ 90W + 90W (8Ω, THD+N < 1%, 26.7Vrms)

Frequency response: 20Hz–40kHz, attenuation < 2.4dB

THD+N: < 0.002% (1kHz/-15dBV @ 8Ω)

Dynamic range: ≥ 110dB (A-weighted)

SNR: ≥ 110dB (A-weighted)

Noise floor: < 80μV (A-weighted)

Speaker Output – Optional 48V/10A Power Adapter

Output power 1: L+R ≥ 235W + 235W (4Ω, THD+N < 10%, 30.8Vrms)

Output power 2: L+R ≥ 150W + 150W (8Ω, THD+N < 10%, 35Vrms)

Frequency response: 20Hz–40kHz, attenuation < 2.4dB

THD+N: < 0.0022% (1kHz/-15dBV @ 8Ω)

Dynamic range: ≥ 110dB (A-weighted)

SNR: ≥ 110dB (A-weighted)

Noise floor: < 80μV (A-weighted)

Package Contents

• AIR AMP × 1

• AC power cord × 1

• 48V/5A power adapter (7909 DC connector) × 1

• IR remote control × 1

• Quick Start Guide × 1

• Warranty card × 1
