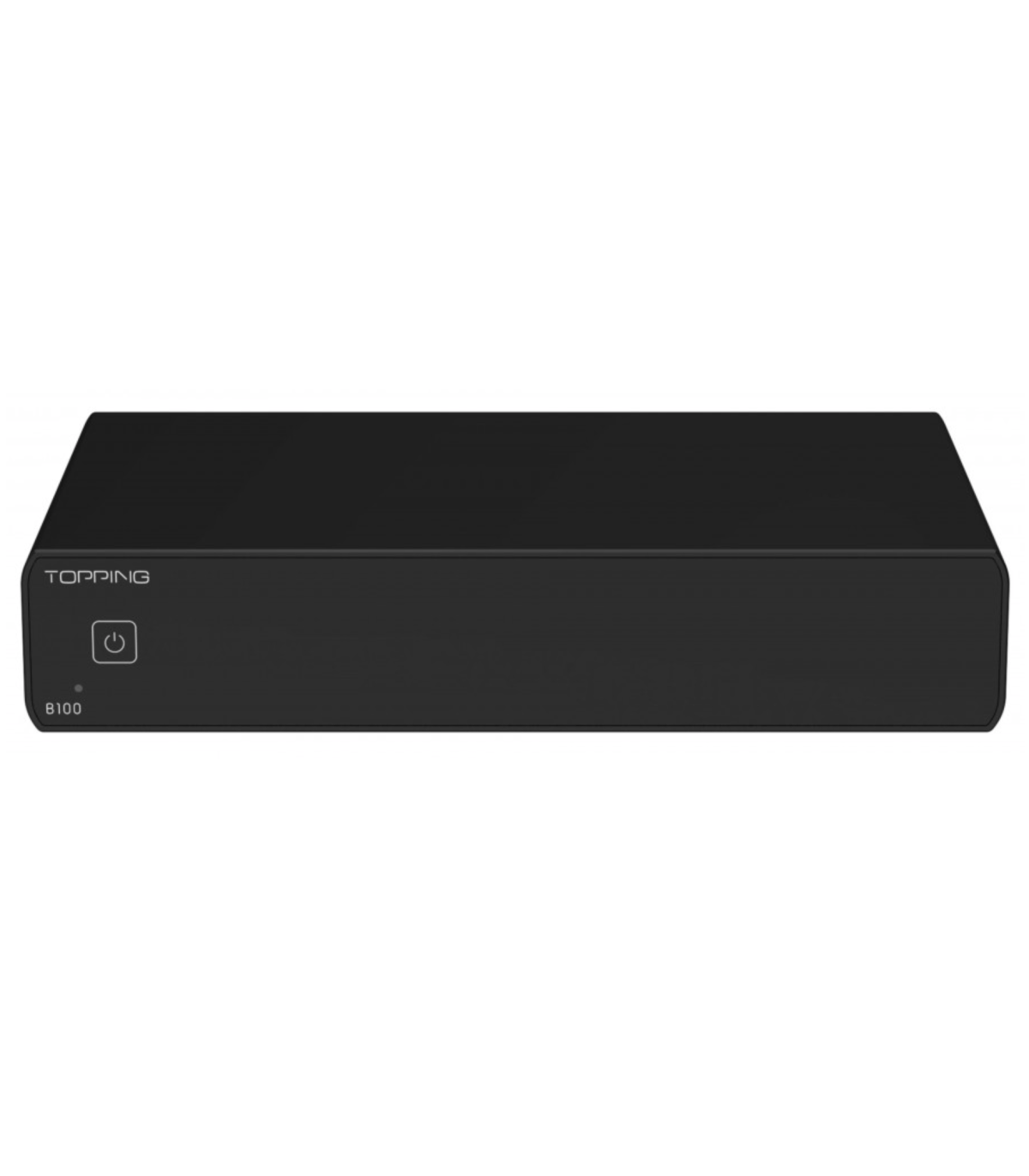

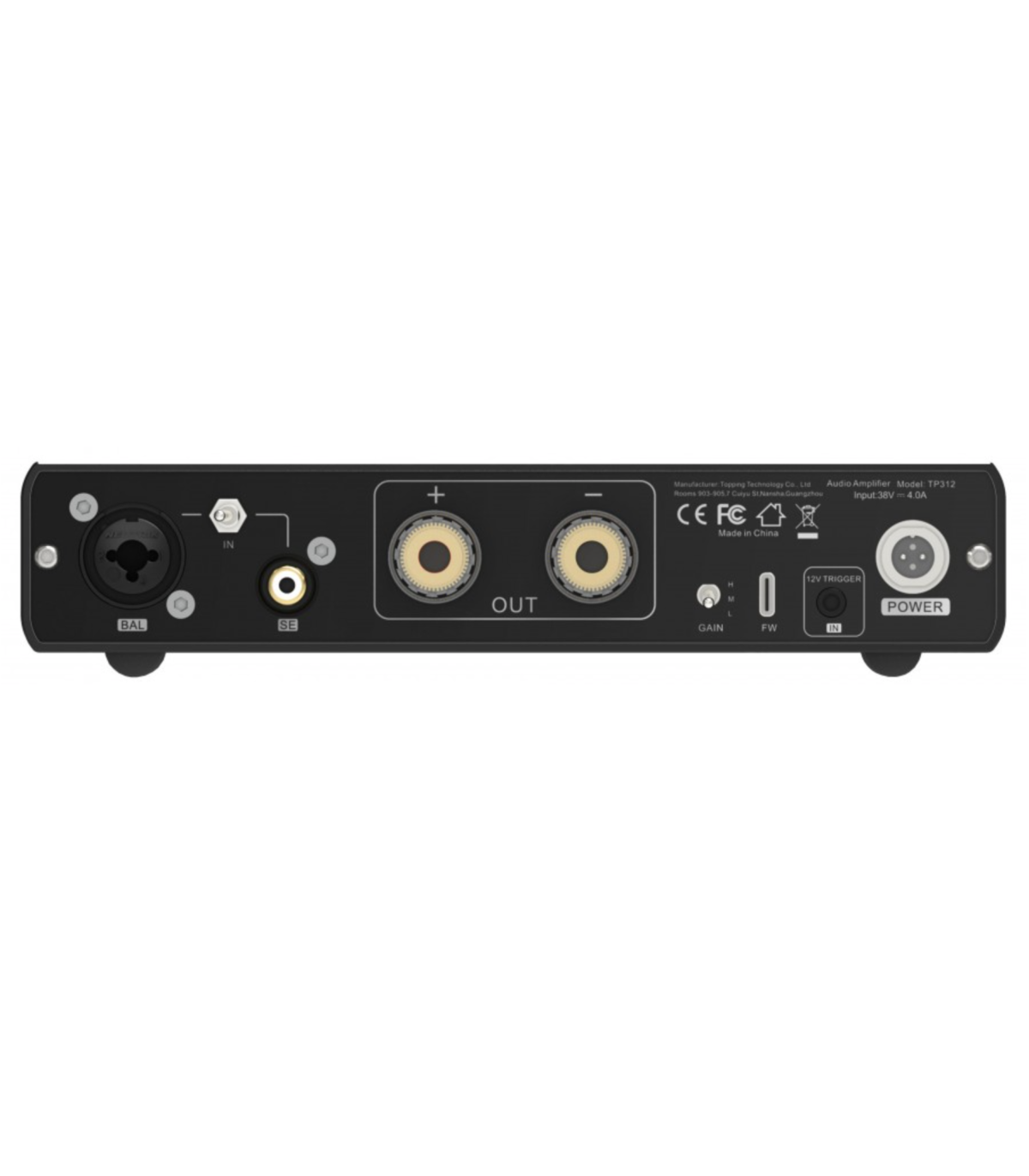

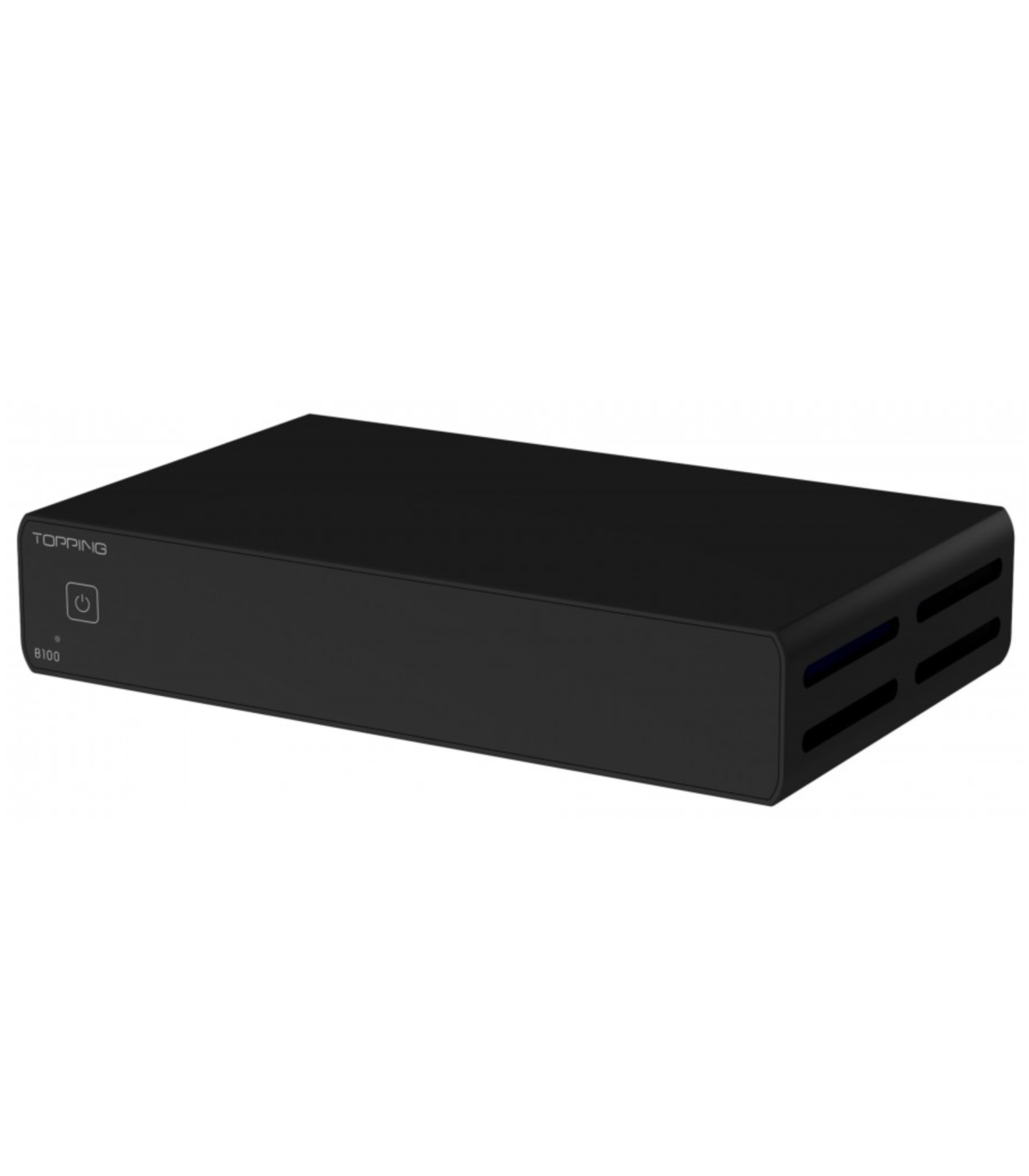

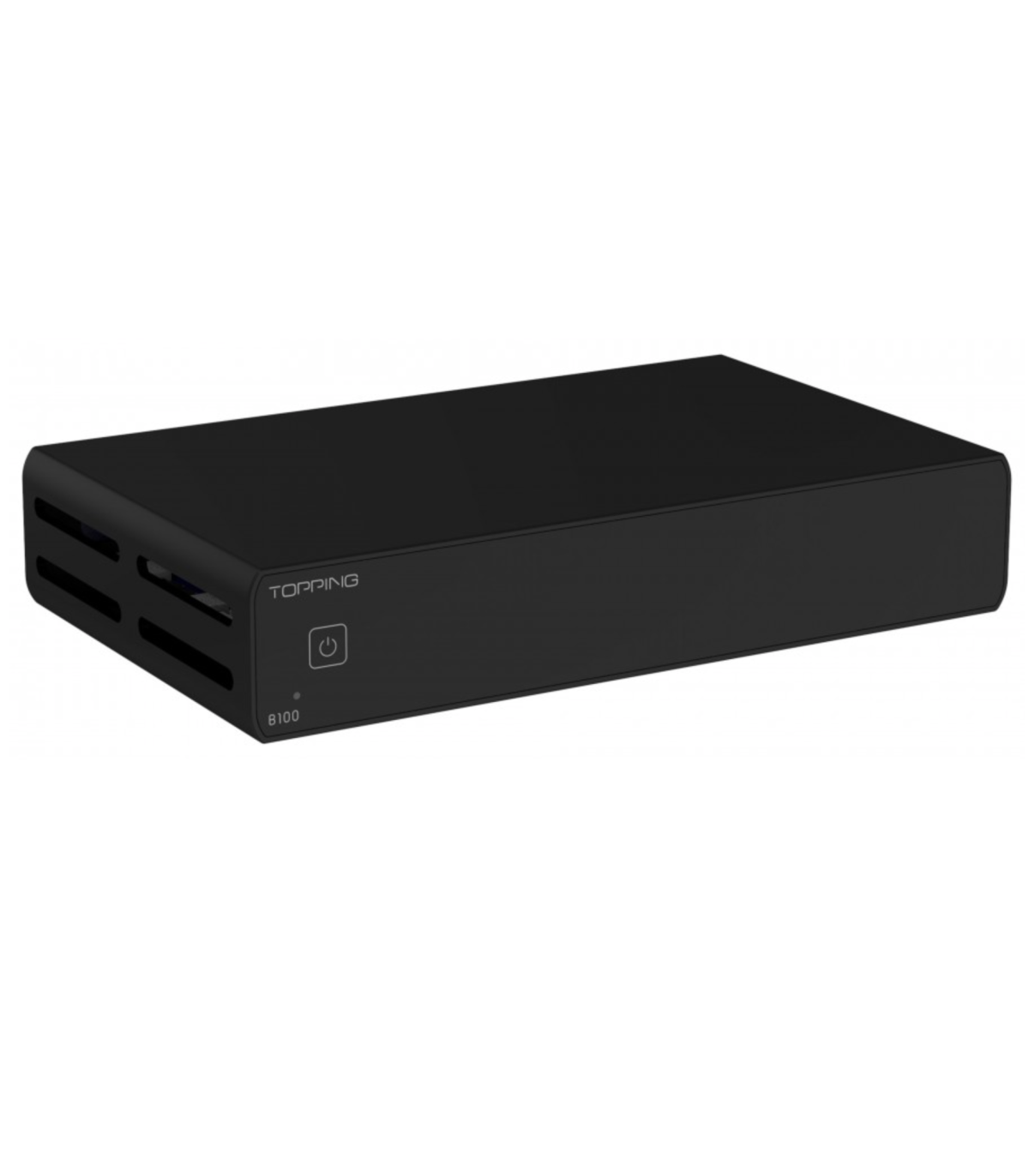

Topping g B100 Monoblock Amplifier

Mono power, pure performance: Whether you're setting up a dedicated listening room, refining a home theater, or building a reference audio system, the TOPPING B100 pure mono power amplifier lets you dedicate one amplifier per channel, reducing crosstalk and interference while maximizing channel separation for a true stereo image.

Advanced T'ang-ku-la Module
Features a three-stage feedback circuit that minimizes noise and distortion while achieving an exceptional dynamic range of up to 151 dB. This design enhances both reliability and long-term durability.

Exceptional Audio Clarity
With an SNR and DNR reaching 151 dB, the B100 reproduces every musical detail with remarkable precision, maintaining ultra-low noise levels below 0.3 µVrms (G=L).

Ultra-Low Distortion
A THD+N of less than 0.00008% ensures accurate, true-to-life sound reproduction, preserving subtle nuances for a deeply immersive listening experience in both mono and stereo configurations.

Powerful & Precise Output
Maintains extremely low distortion across all output levels, with THD under 0.00007% at 5W (4Ω/8Ω). Includes three selectable gain settings for optimal system matching.

Seamless System Integration
Easily integrates with E70 and E70 Velvet DACs via XLR, TRS, or RCA connections, forming a cohesive and high-performance audio system.

12V Trigger for Simplified Control
Equipped with a 12V trigger input for synchronized power control, allowing convenient one-touch operation across your entire setup.

TECHNICAL SPECIFICATIONS

Input type

Balanced / Unbalanced

THD+N @ 1kHz (A-wt)
Balanced: <0.00008% @ 4Ω 5W, <0.00008% @ 8Ω 5W
Unbalanced: <0.00008% @ 4Ω 5W, <0.00008% @ 8Ω 5W

THD @ 20–20kHz (90kBW)
Balanced: <0.00007% @ 4Ω 5W, <0.00007% @ 8Ω 5W
Unbalanced: <0.00007% @ 4Ω 5W, <0.00007% @ 8Ω 5W

SNR (A-wt)
Balanced: 151 dB
Unbalanced: 149 dB

Dynamic range
Balanced: 151 dB
Unbalanced: 149 dB

Frequency response
Balanced: 20Hz–40kHz (±0.1dB), 10Hz–100kHz (±0.5dB)
Unbalanced: 20Hz–40kHz (±0.1dB), 10Hz–100kHz (±0.5dB)

Output level
Balanced: 56Vpp @ 4Ω, 66Vpp @ 8Ω
Unbalanced: 56Vpp @ 4Ω, 66Vpp @ 8Ω

Noise level measured by AP (A-wt)
Balanced: <0.7uVrms @ G=L, <1.2uVrms @ G=M, <2.6uVrms @ G=H
Unbalanced: <0.9uVrms @ G=L, <2.3uVrms @ G=M, <6.2uVrms @ G=H

Actual noise level
Balanced: <0.3uVrms @ G=L, <1uVrms @ G=M, <2.4uVrms @ G=H
Unbalanced: <0.7uVrms @ G=L, <2.2uVrms @ G=M, <6.2uVrms @ G=H

Input sensitivity
Balanced: 26.6Vrms @ G=L, 8.6Vrms @ G=M, 3Vrms @ G=H
Unbalanced: 13.3Vrms @ G=L, 4.3Vrms @ G=M, 1.5Vrms @ G=H

Gain
Balanced: 0dB @ G=L, 10.4dB @ G=M, 19.9dB @ G=H
Unbalanced: 6dB @ G=L, 16.4dB @ G=M, 25.9dB @ G=H

Output impedance
Balanced: <5mΩ
Unbalanced: <5mΩ

Input impedance
Balanced: 20kΩ
Unbalanced: 5kΩ

Output power
Balanced: 100W @ 4Ω THD+N<1%, 83W @ 8Ω THD+N<10%, 70W @ 8Ω THD+N<1%
Unbalanced: 100W @ 4Ω THD+N<1%, 83W @ 8Ω THD+N<10%, 70W @ 8Ω THD+N<1%

Load impedance
Balanced: ≥4Ω
Unbalanced: ≥4Ω
