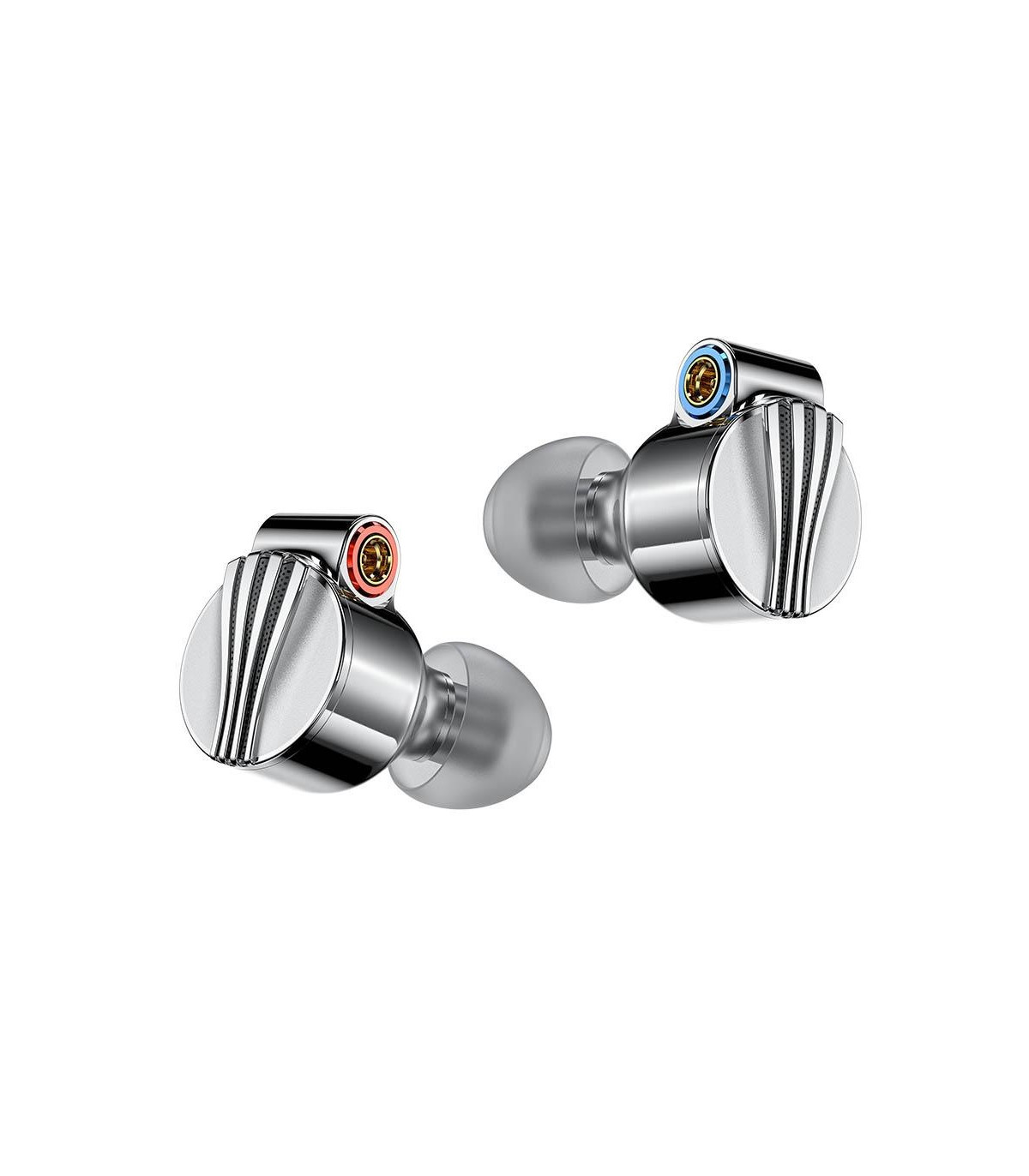

FiiO FD5 Flagship Dynamic Hi-res Beryllium-Coated DLC Diaphragm High Fidelity In-Ear Monitor


New product

277,87 €

This product is actually out-of-stock

Brand: FiiO


FD5 Flagship Dybamic In-Ear Monitors

  • Beryllium-coated DLC diaphgram
  • Front acoustic prism
  • Rear volcanic field system
  • Semi-open acoustic design
  • Interchangeable sound tubes
  • Interchangeable audio jacks

Further details about the FD5:

  • 12mm Flagship dynamic driver: N52 magnet, 1.5 Tesla magnetic flux
  • Beryllium-coated DLC diaphgram: low distortion, excellent dynamics
  • Front acoustic prism: smaller phase mismatched for more accurate imaging
  • Rear volcanic field system: enhances the diffusion of low frequencies, reduces standing waves
  • Semi-open acoustic design: balanced, beautiful and unfatiguing sound
  • Timeless industrial design: stylish faceplate, remarkable craftsmanship
  • Interchangeable sound tube: comfortable and exceptional sound
  • Interchangeable audio jack: solid stainless steel

Newly developed flagship - Large 12 mm dynamic unit

FiiO has always spared no effort in creating their flagship products.

In the Fd5 is a newly developed, large 12mm dynamic driver utilizing N52 magnets with a high magnetic flux of 1.5 Tesla - for extremely robust bass and excellent high frequency resolution.

Beryllium-coated surround + DLC diaphgram

FiiO has conducted much research and experimentation when choosing the materials for their new dynamic driver.

By combining the use of Beryllium and diamond-like carbon (DLC), they make full use of the physical rigidity and flexibility properties of the materials to reduce unneeded vibration and appropriately damp sound for improved quality.

Overall the frequency response is balanced and distortion is minimized at all frequency ranges.

High-emd audio inspired acoustic prism

In order to address the issues that come with the time delay between different sound waves, an acoustic prism system was specifically developed for the FD5. This was inspired by similar technology used for adjusting tweeters in well-known high-end audio products.

By installing a conical device close to the front end of the driver diaphgram, we can precisely control how the sound waves travel in the sound tube - bringing benefits such as eliminating high frequency standing waves and enhancing overall sound wave diffusion.

Anti-standing wave and semi-open design

A “volcanic field” was added to the rear of the FD5 in order to reduce low-frequency standing waves, reduce distortion, and overall improve the diffusion of bass waves throughout the FD5.

The FD5 also adopts a semi-open design, which relieves air pressure on the ear - leading to more comfortable and long listening sessions.

Compared with a multiple-driver IEM, in the FD5 there is only one point from which the sound is produced from a single driver - making for more accurate sound positioning.

The flagship-grade dynamic driver and carefully tuned acoustic design also combine to make the FD5 sound wonderfully pleasant to most people’s preferences.

Casting a strong voice with stainless steel

The smooth, luxurious-feeling 3D embossed stainless steel faceplate represents both form adn function - while looking striking, the robust stainless steel also reduces the harmonic distortion of sound inside the FD5. The faceplate provides a striking contrast against the chrome finish of the rest of the FD5 as well.

Interchangeable parts for unlimited possibilities

The included cable is an expanded MMCX design with 8 strands of monocrystalline silver-plated copper cable that perfectly and faithfully reproduces your music.

The cable also features interchangeable audio plugs for 2.5mm/3.5mm/4.4mm, for you to take advantage of a variety of sources.

Material: High-purity monocrystalline silver-plated copper

Wire diameter: Single wire 0.08mm, strand 24AWG, entire cable 18AWG

Wire count: 19 per strand, 8 strands, 152 total wires

Structure: Litz Type2, each wire is individually insulated.

Accessories worthy of the experience

Even the accessories have been thoughtfully considered for the FD5.

The included HB5 storage case dutifully protects your earphones, while the included MMCX clips greatly facilitates detaching the MMCX cables.

Accessories included

  • Earphone cable
  • HB5 storage case
  • Interchangeable audio jack
  • Interchangeable sound tube
  • Bass eartips (S, M, L)
  • Balanced eartips (S, M, L)
  • Vocal eartips (S, L)
  • Manual
  • Cleaning Brush


FiiO logo

About FiiO Electronics Technology Co., Ltd.

01 Brand Introduction - HiFi+Fashion

FiiO Electronics Technology Co., Ltd. was established in 2007.  It is a high-tech enterprise that combines research, development, production and sales, and its sales are mainly based on its own FiiO brand as opposed to OEM/ODM.  It focuses on digital audio, with current mainstay products being portable headphone amplifiers, DAC / amps and portable digital audio players.

FiiO: It is composed of Fi (Fidelity) from HiFi and iO (represents number 1 and 0) which indicates the sincerer feeling and more convenient life the digital tech has brought to us.

飞傲: The Chinese transliteration of FiiO, as well as representing youthful vigor and the active & innovative spirit of the company.

Audio products are meant to fulfill the spiritual pleasure of users.

  1. FiiO provides products and service related to music.
  2. We also hope to bring happiness to our users with the provided products and service, which is also the key value of FiiO.

Customer Service

  1. Good after-sales service, more reliable
  2. Great user experience, more pleasure
  3. Variety of activities, more involved

About products

  1. Affordable: FiiO products are well-known for its feature of high cost-performance. Lowering the entry level to make more customers can afford.
  2. Easy to use: FiiO pays great attention to the user experience. We are not only provide products with high quality, but also easy to use and with long lasting durability.
  3. More accessories bring more fun: Enable to play in a variety way and use under more possible environments.
  4. Updates available: Equipped with a variety of ports, it makes the music players can still connect to external amp/DAC for upgraded enjoyment.
  5. Endless transformability available: With replaceable amp module and expandable storage, the X7 can bring more playability.

02 Company Profile

Research & Development Team

  • Twenty years of R&D experience in audio products
  • Former core R&D team for audio products from OPPO
  • A team of 20 professional R&D engineers in software, hardware, industrial design, structure and electro-acoustic.

Research & Development Investment

FiiO keeps bringing in advanced equipments and high-tech talents so as to ensure the stable growth and long term competitive edge. Up till now, the team size has expanded three times than that of 2007 when we established.

Team Composition

The R&D team is made up of development dep, engineering dep and QC dep, with 60+engineers in total.

Authorized certifications

FC, CE, KC, CCC and ISO9001:2008 ensure the safety and quality of the products.

Production management

FiiO has strict requirements to production with almost “zero tolerance” even to small problems, which is strictly in compliance with the International Quality Management System ISO9001.

QC Equipment

  • a. AP audio analyzer (valued at 200,000RMB).
  • b. Life-span test platform against high & low temperature, swing and plug & unplug trial.
  • Aging test carriage towards mass production.
  • Aging test machine under high & low temperature.

Customer oriented

Driven by customers’ needs, we innovate constantly and response promptly to the market changes. We develop new products based on customers’ needs and compete for more market shares.

Company culture - Our Vision

Present the world a better “Made in China”.

Brand Spirit

  • Innovation

the earliest company that designed the minimum volume headphone amplifier. First dockable amp & DAC product. First amp specially designed for iPod/iPhone. First amp with adjustable power supply and power supplied by mobile phone battery. First multifunctional headphone amp & DAC for Android smarphone. First Hi-Res music player at a price lower than 1000RMB supporting 192K music. First Android-based Hi-res music player.

  • Quality

Repair Rate < 1%. Sound Quality Control system. Original components imported from TI, Wolfson, Maxim. Company-wide quality control. +20 quality engineers and inspectors. Complete testing facilities.

  • Service

CEO at the frontline of customer service. 100% response to enquiries. The most popular headphone amplifier brand on Head-Fi. First class website and contents in the audio industry. Interaction with and support to customers on Facebook and Microblog (twitter-like social website).

Brand Mission

FiiO designs, produces and sells high-quality products at favorable prices to those who love music and style.
