‘fo.Q’ High Damping Material at a a glance

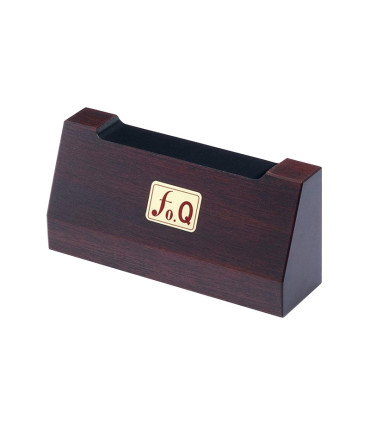

The "fo.Q IP-11" is a cable stabilizer made of a composite of organic polymer hybrid vibration-damping sheets and parquet wood heavy enough to sink in water.
It offers unprecedented performance when it comes to absorbing tiny, unnecessary vibrations that occur during playback, and significantly attenuates physical and electrical noise that accompanies vibration.
Product specifications
Material: | a processed composite of organic polymer hybrid vibration-damping sheets and parquet wood |
Size: | 100 (W) x 50 (H) mm x upper-edge thickness of 15 mm and lower-edge thickness of 27 mm (2 stabilizers) |
Weight: | 145g |
‘fo.Q’ (please read as "pho-cue") is a product applying materials developed with the support of JST (Japan Science and Technology Agency). Vibrational energy is converted to electric energy, and finally to heat energy, enabling efficient absorption. There are no rubber or heavy metal overtones, and efficient attenuation of the finest vibrations, considered difficult to remove up to now, promise you the purest and clearest tones.
Damping performance of ‘fo.Q’

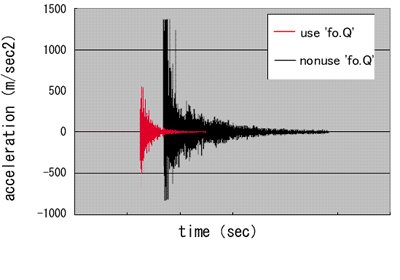

The graph to the left shows the difference in damping when ‘fo.Q’ is adhered to metal products, and the same level of vibration is applied. Using ‘fo.Q’ makes it possible to dampen the vibration of materials much more quickly than when it is not used. This benefit quickly and efficiently dampens the vibration of audio equipment, improving the audio quality and raising the signal-to-noise ratio.

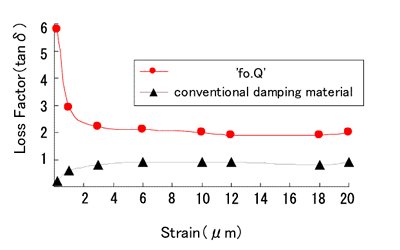

Comparison of damping performance with ‘fo.Q’
and conventional damping materials
and conventional damping materials
The damping material used in ‘fo.Q’ has at least twice the damping performance of conventional damping materials.
Additionally, with conventional damping material, damping performance falls as strain decreases, ultimately reaching zero. In contrast, the damping material used in ‘fo.Q’ features the property that as strain decreases, damping performance increases. These properties enable ‘fo.Q’ to quickly and efficiency damp the minute vibrations generated by audio equipment, making it possible to enjoy clear, flowing audio.
Loss factor is a measure of damping performance. The higher the loss factor, the better the damping performance is. Here the term “strain” refers to the vibration itself; it does not refer to strain in the audio.

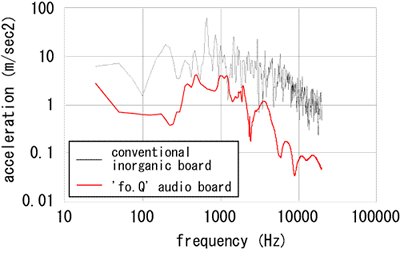

Damping performance comparison with
the conventional inorganic boards and ‘fo.Q’ audio boards
‘fo.Q’ audio boards have an average of 10 times the damping performance of conventional inorganic boards over the entire frequency band. In the low-frequency band (300 Hz and below) and the high-frequency band (4,000 Hz and above) in particular, the damping performance is extremely high.
These effects enable ‘fo.Q’ to dramatically dampen low and high-frequency noise in particular, clarifying the contours of once difficult-to-hear audio. It also eliminates distortion when audio is played at high volumes.
