Lake People G109-S Headphone Amplifier [b-Stock]

The PHONE-AMP G109-S was developed with the target to enable highest transmission quality for low- , medium- and high-impedance headphones.

Some features:
- Unbalanced inputs with gold plated RCA connectors
- DC coupled amplifiers (switchable)
- PRE-GAIN: Overall gain switchable in 3 steps
- NF trammission band exceeds 150 kHz (-3dB)
- High-grade volume control ALPS RK 27 with optimized channel balance and lowest crosstalk
- Toroidal transformer, large smoothing capacitors
- Discrete amplifier design

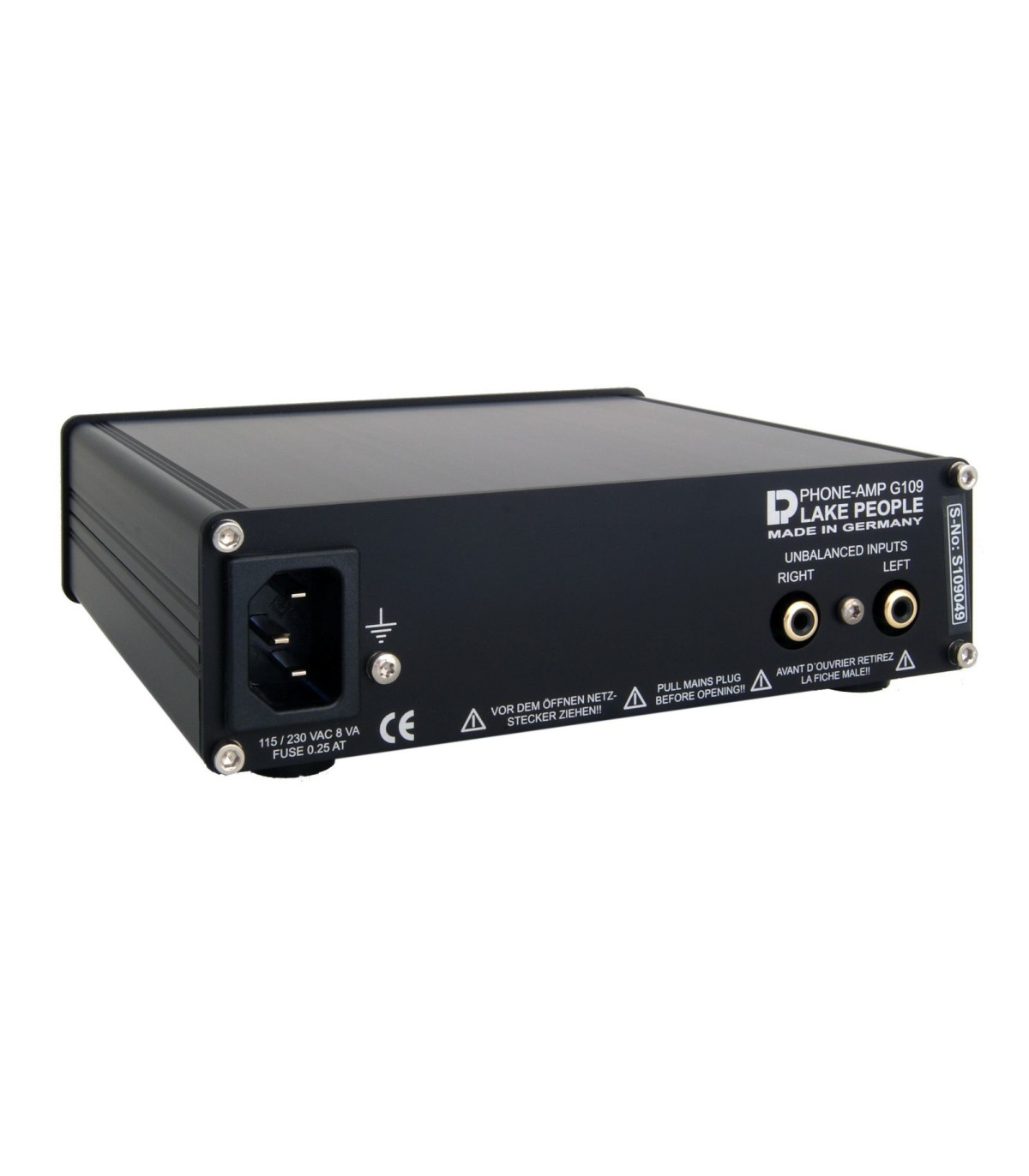

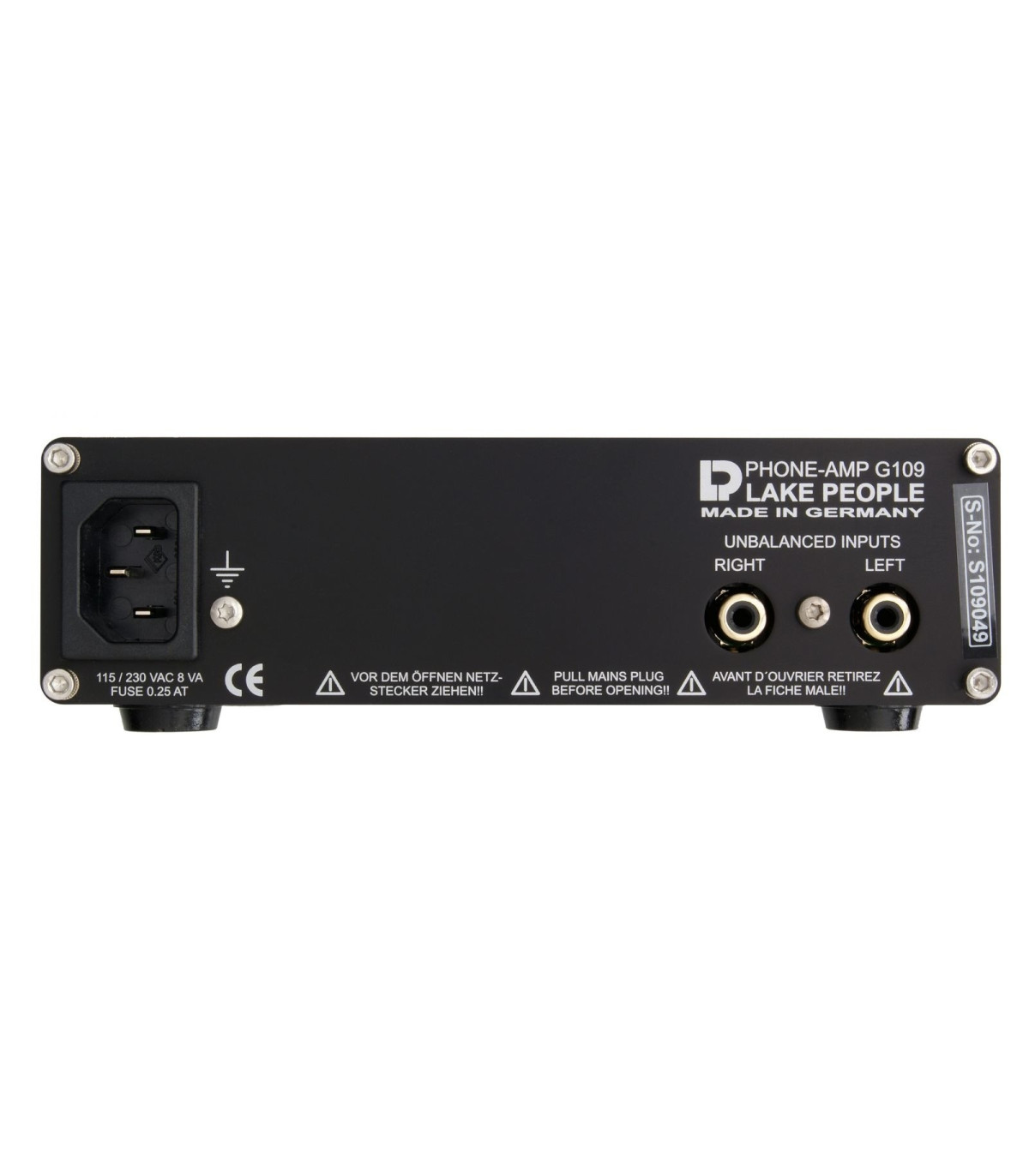

The inputs are situated on the rear panel.
They are equipped with unbalanced gold plated RCA connectors.

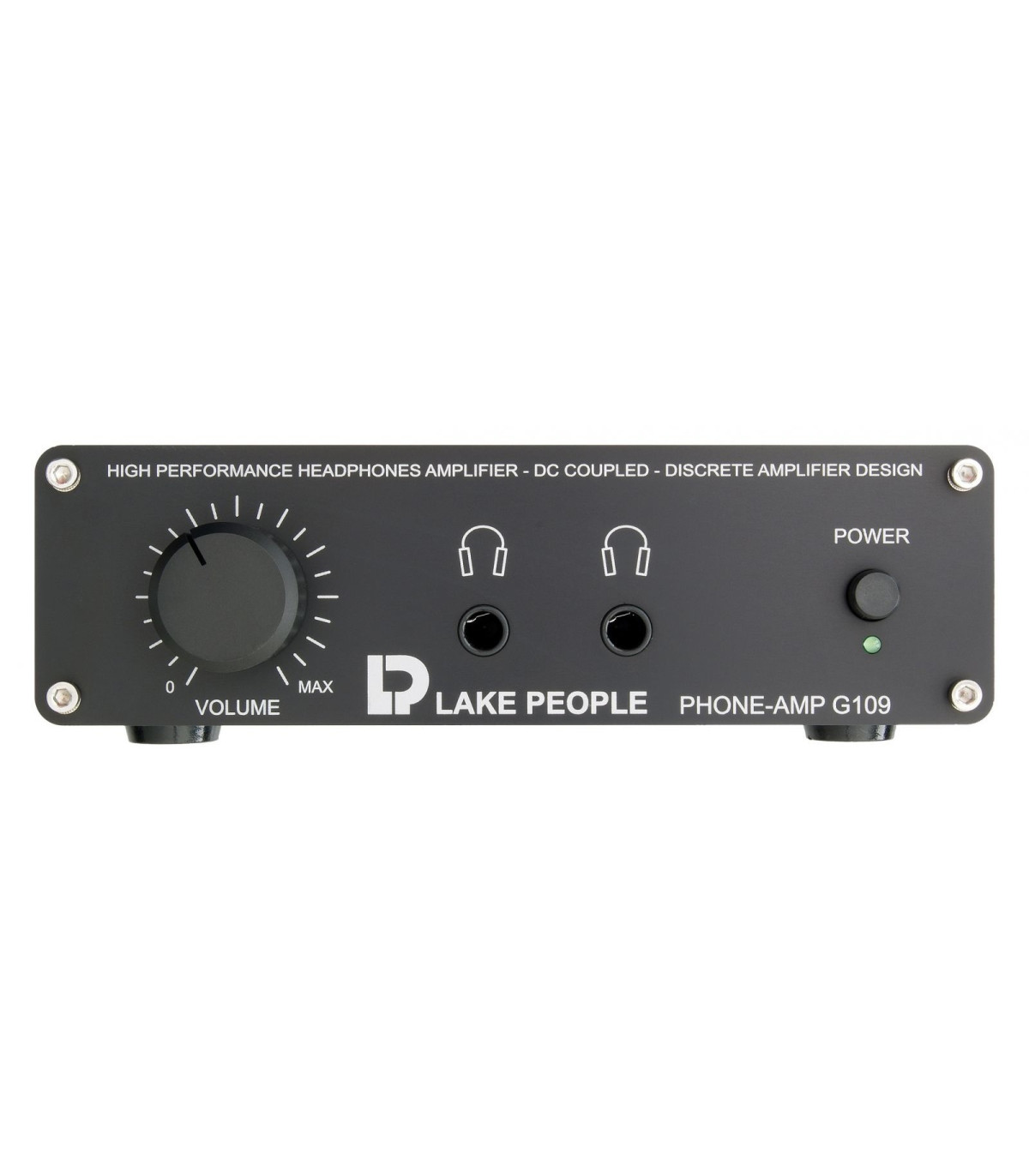

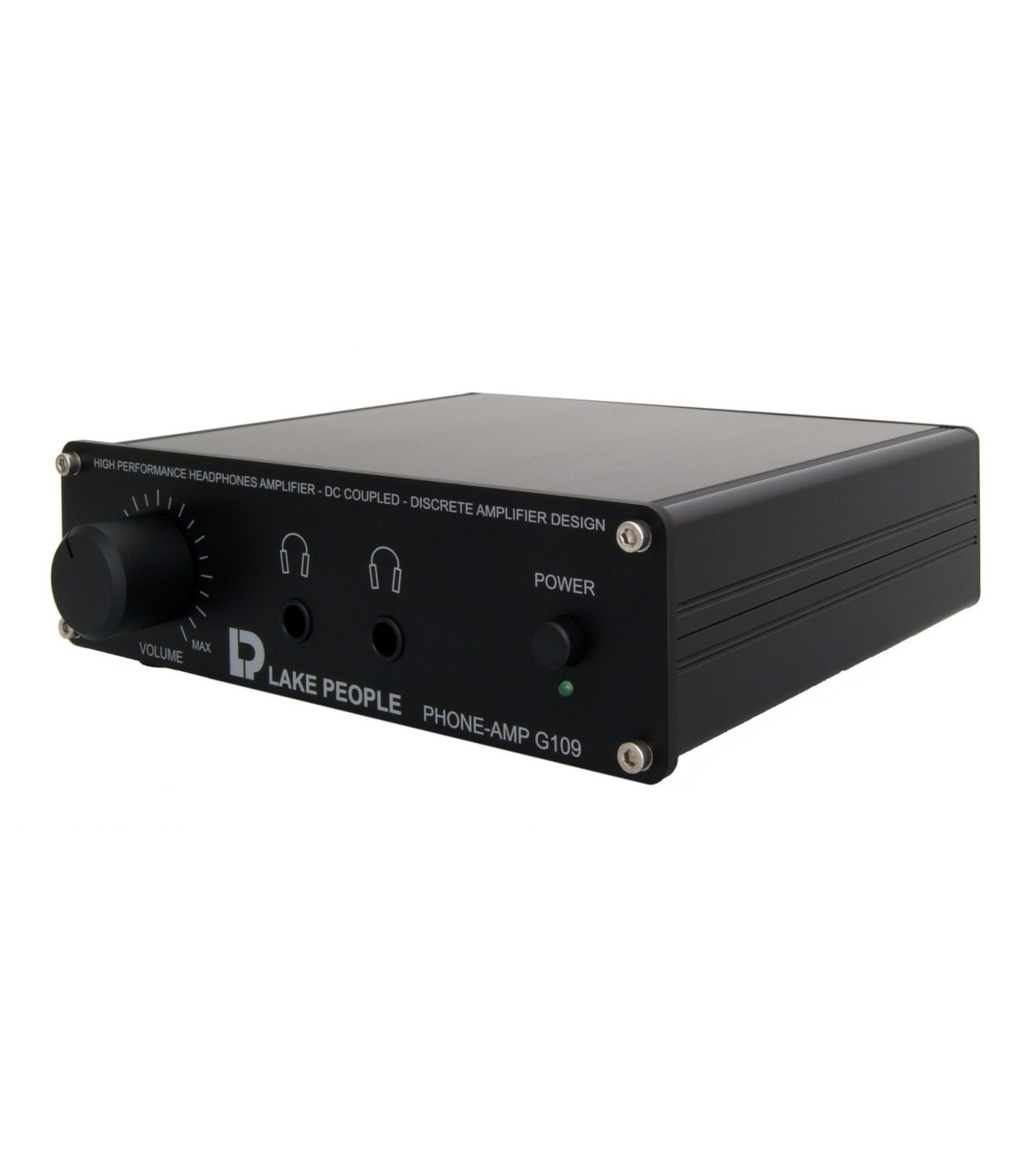

Volume control is provided by a large full metal rotary knob.
Two headphones may be connected via 1/4" jacks on the front panel.
The unit offers a built-in AC Mains power supply with IEC/CEE socket.
The complete case, front and back panels are made of black anodizes aluminium.

Technical Data:
Balanced inputs: 2 x Cinch (L / R) with priority
Impedance: 10 kohms
Amplifier Channels: 2 (Stereo)
Nom. input level: + 6 dBu
Amplifier Gain: +8 dB
... with PRE-GAIN: -4 / +8 / +14 dB
Frequency range: 0 Hz ... 150 kHz (-3 dB)
Slew Rate: >8V/usec
Dynamic range: > 129 dB (A-wtd)
Noise: < -101 dBu (A-wtd)
THD+N: < -100 dB @ 10V in 100 Ohms (1W)
< -100 dB @ 18V in 600 Ohms (5W)
Crosstalk: < -110 / -100 dB (@ 1 / 15 kHz)
Max. output level:
> 18.8 Veff in 600 ohms = 590 mW
> 13.8 Veff in 100 ohms = 1900 mW
> 10.7 Veff in 50 ohms = 2300 mW
> 7.8 Veff in 50 ohms = 1900 mW
> 3.7 Veff in 16 ohms = 410 mW
Outputs: 2 x 1/4" phone jacks
Power supply: 230 / 115 V AC 8 VA
Dimensions: 168 x 49 x 145 mm (W x H x D)
Case Material: Black anodized aluminium

Introduction to Lake People

Established in 1986, we have since become your partner for professional audio electronics. Following our motto “tools - not toys”, we achieved highest reputation during the past years amongst our customers. These are private studios, broadcasters and TV companies. Also airports, congress and exhibition centres count on the reliability of our products made in Germany. This all began under the roof of Rosgartenstrasse 13 in the city of Konstanz. Here, three young guys started with the development and manufacture of limiters and noise gates but not too successfully in the beginning. The commercial survival on a very low level was made possible by the production of headphone amplifiers. From 1989 on, the production range was extended to level matching and balancing amplifiers such successfully, that it came essential to move to larger premises.

Since 1991, the new address read: Haidelmoosweg 52. Due to the developement of the first german 20-bit A/D and D/A converters in the beginning nineties, the name Lake People resounded throughout the land. Suddenly, the company was regarded as a high-tech brand, with a highly positive effect on its public reputation. The growing know-how led to many new products in the analog and digital domain during the following years. Although some projects turned out to be flops, most devices met the customers' requirements, with the effect of continuous growth of the company. By the end of the nineties the 140 m² of Haidelmoosweg 52 went cramping.
Again, a move to new premises came necessary. As it was obvious that rental facilities would not meet the demands, we decided to put up our own building. The company site was constructed in 2000 in a new industrial park in Konstanz, Turmstrasse 7a, just a hundred metres from the lake. Also in 2000, Lake People was transformed into a Ltd. company.

---

A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee.

These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition.

B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product.

Any special comments about a B-Stock product will be noted at the beginning of the article description.
