FiiO Jade Audio LEVEL 1 Digital High-Res Integrated Amplifier

FiiO Jade Audio LEVEL 1 Digital High-Res Integrated Amplifier

FiiO Jade Audio LEVEL 1 Digital High-Res Integrated Amplifier

1 Review

Reference:

3066a

Condition:

New

FiiO Jade Audio LEVEL 1 – the new high-power FiiO T-Amp with refined sound quality, featuring digital inputs + Bluetooth LDAC, delivering 300 watts into 4 ohms

LEVEL 1 is the new control centre for loudspeakers: simply connect a Bluetooth source, a CD player or a streamer to create a complete, powerful, high-quality music system.

- 2×300W output at 4Ω

- Texas Instruments TPA3255 amplifier platform

- Bluetooth 6.0 with SBC, AAC, and LDAC support

- USB, coaxial, and line-level inputs

- Speaker, subwoofer, and pre-out connections

- Independent bass and treble controls

- RGB input and codec indicator lighting

- Aluminum chassis with real wood panels

- External 48V/5A power supply included

- Smartphone app FiiO Control can also regulate the volume of the unit

Power amplifier with Bluetooth LDAC

The LEVEL 1 is a compact desktop power amplifier built around the Texas Instruments TPA3255 platform, capable of delivering up to 2×300W while maintaining a footprint closer to a notebook than a traditional amplifier. It includes Bluetooth 6.0 with LDAC support, USB, coaxial, and line-level inputs, as well as dedicated outputs for speakers, subwoofer, and pre-out connections.

2 × 300W power output

Despite its compact size, the LEVEL 1 is designed to power a wide range of speakers effectively. It delivers up to 2×300W into 4Ω, making it suitable for bookshelf speakers, desktop monitors, and even some floorstanding models. The standard 48V/5A power supply ensures reliable everyday performance, while higher-capacity supplies can provide additional dynamic headroom when needed.

TI amplification with low distortion

At its core, the amplifier uses the Texas Instruments TPA3255 chipset. Thanks to integrated feedback architecture and high-speed error correction, it achieves very low distortion while maintaining high efficiency. This results in stable output with a signal-to-noise ratio of around 105dB and very low THD+N, preserving detail without introducing audible noise.

Audiophile-focused internal design

The internal layout is engineered for signal integrity and stability. A six-layer PCB with reinforced copper traces ensures clean power distribution, while shielded inductors reduce electromagnetic interference. Capacitors from WIMA, Nichicon, and ELNA are used in key stages to maintain tonal balance and control across the frequency spectrum.

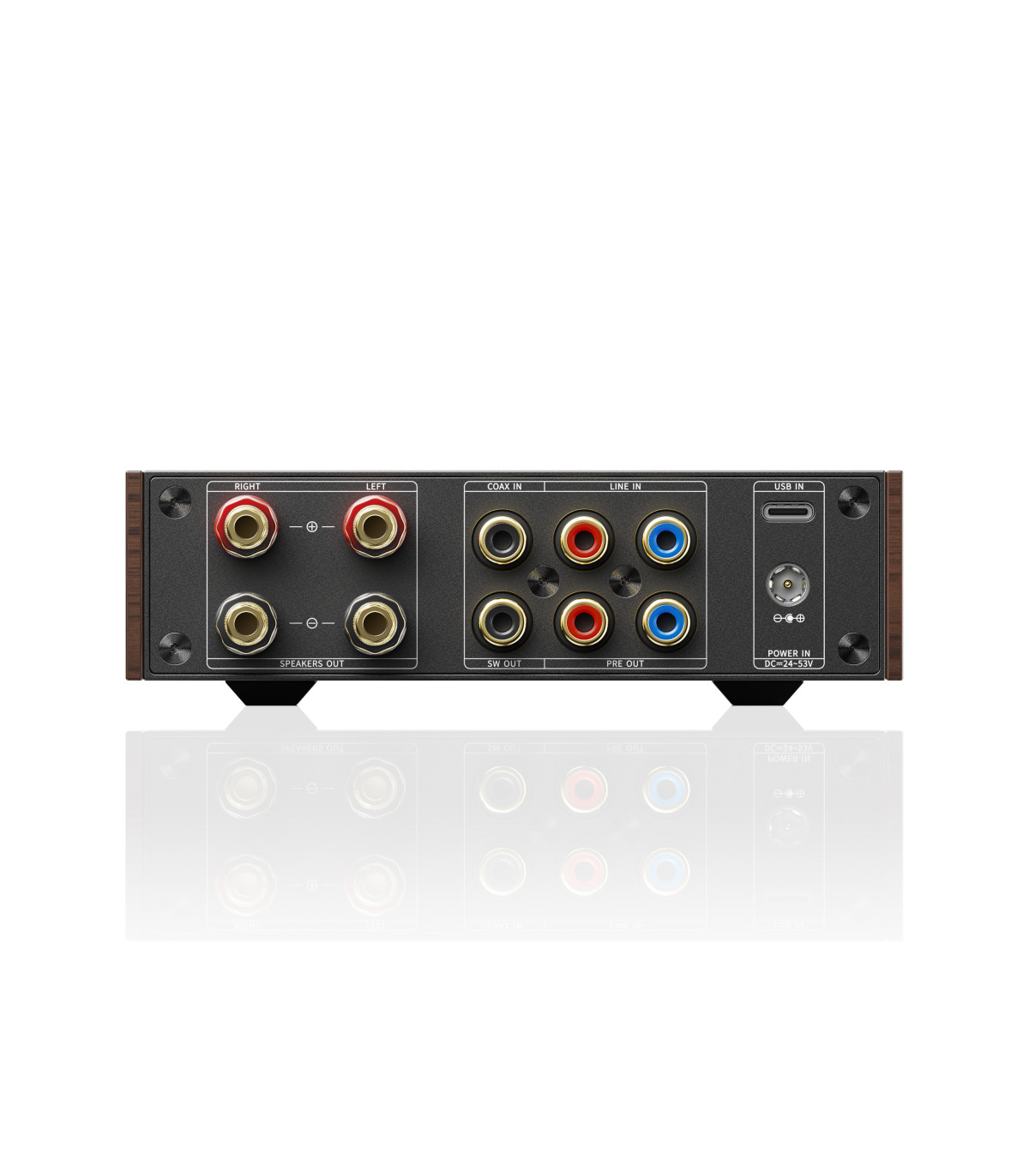

Flexible input connectivity

The LEVEL 1 supports a variety of sources, including USB, coaxial, line-in, and Bluetooth. This makes it easy to connect computers, streamers, CD players, or smartphones. USB input supports up to 24-bit/96kHz PCM playback, allowing direct digital connection without the need for an external DAC.

Subwoofer and pre-out integration

Dedicated subwoofer and pre-out outputs allow the system to expand according to user needs. You can add a powered subwoofer for extended low frequencies or connect an external amplifier for more complex setups. This flexibility makes it suitable for both simple stereo systems and more advanced configurations.

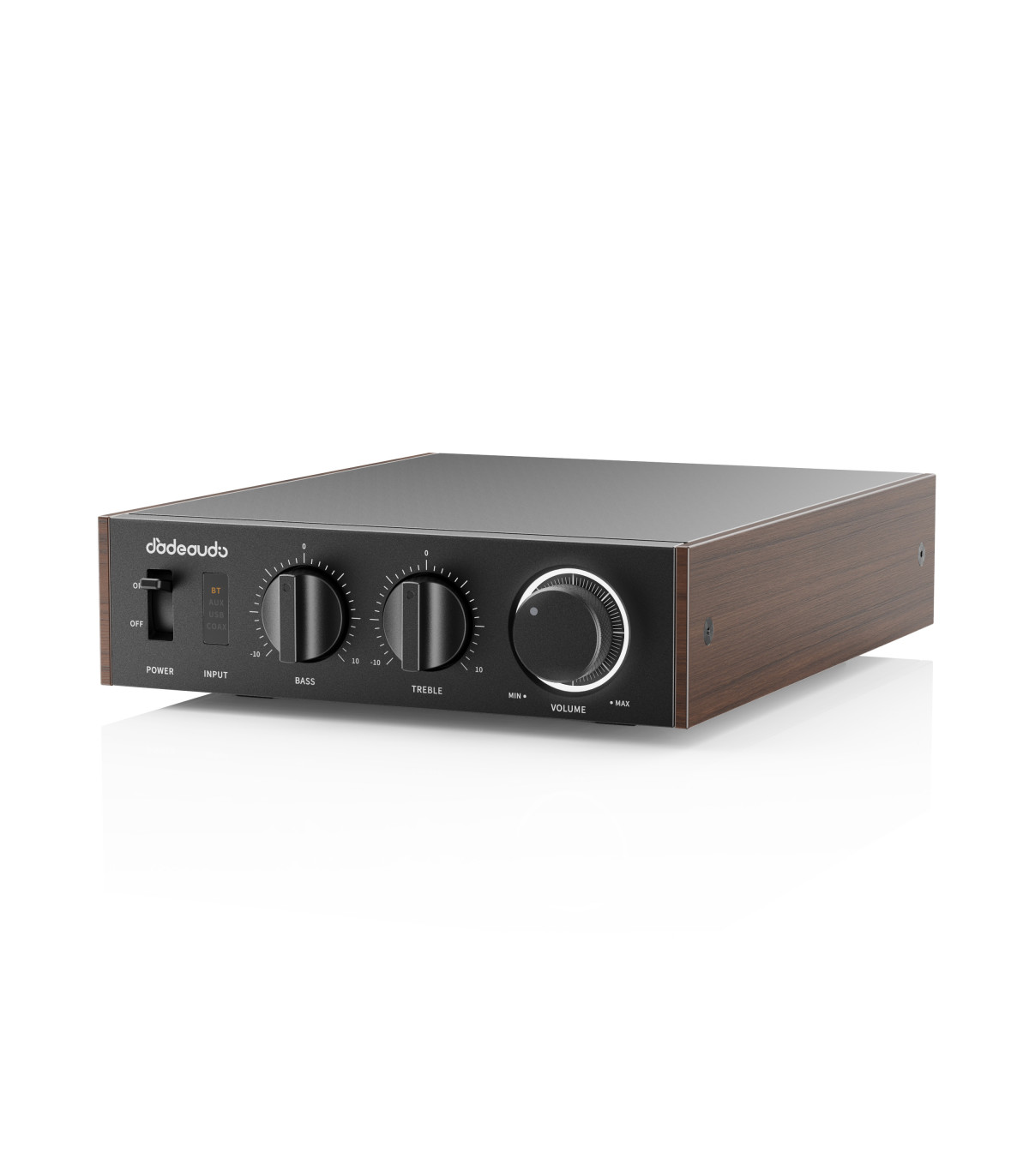

Manual tone controls

The front panel features independent bass and treble knobs, offering direct control over tonal balance. Adjustments are smooth and intuitive, allowing quick sound customization based on speakers, recordings, or listening preferences without accessing menus or software.

Bluetooth with LDAC support

Bluetooth 6.0 provides wireless connectivity with support for SBC, AAC, and LDAC codecs. With LDAC capable of transmitting up to 990 kbps, more musical detail is preserved compared to standard Bluetooth, making it a practical option for higher-quality wireless listening.

Metal and wood construction

The chassis combines aluminum alloy with real wood side panels, giving the unit a solid and refined appearance on any desk or shelf. This construction also enhances durability and helps with heat dissipation during extended use.

High-current external power supply

The included 48V/5A power adapter is designed for stable current delivery with low ripple noise. This contributes to cleaner output, improved dynamic control, and consistent performance, especially when driving more demanding speakers.

Specifications

Amplifier chip: Texas Instruments TPA3255

Bluetooth chip: BT8961

Bluetooth codecs: SBC / AAC / LDAC

Input voltage: DC 24–53V

Inputs: Line-in / USB / Coaxial / Bluetooth

Outputs: Speaker out

USB input: up to 24-bit / 96kHz PCM

Output power: 300W + 300W at 4Ω (THD+N < 10%)

Signal-to-noise ratio: 105dB

Dimensions: 181 × 133 × 36 mm (7.1 × 5.2 × 1.4 in)

Weight: 676 g (1.49 lb)

What’s included

LEVEL 1 ×1

AC power cable ×1

48V 5A power adapter ×1

Warranty card ×1

Quick start guide ×1
