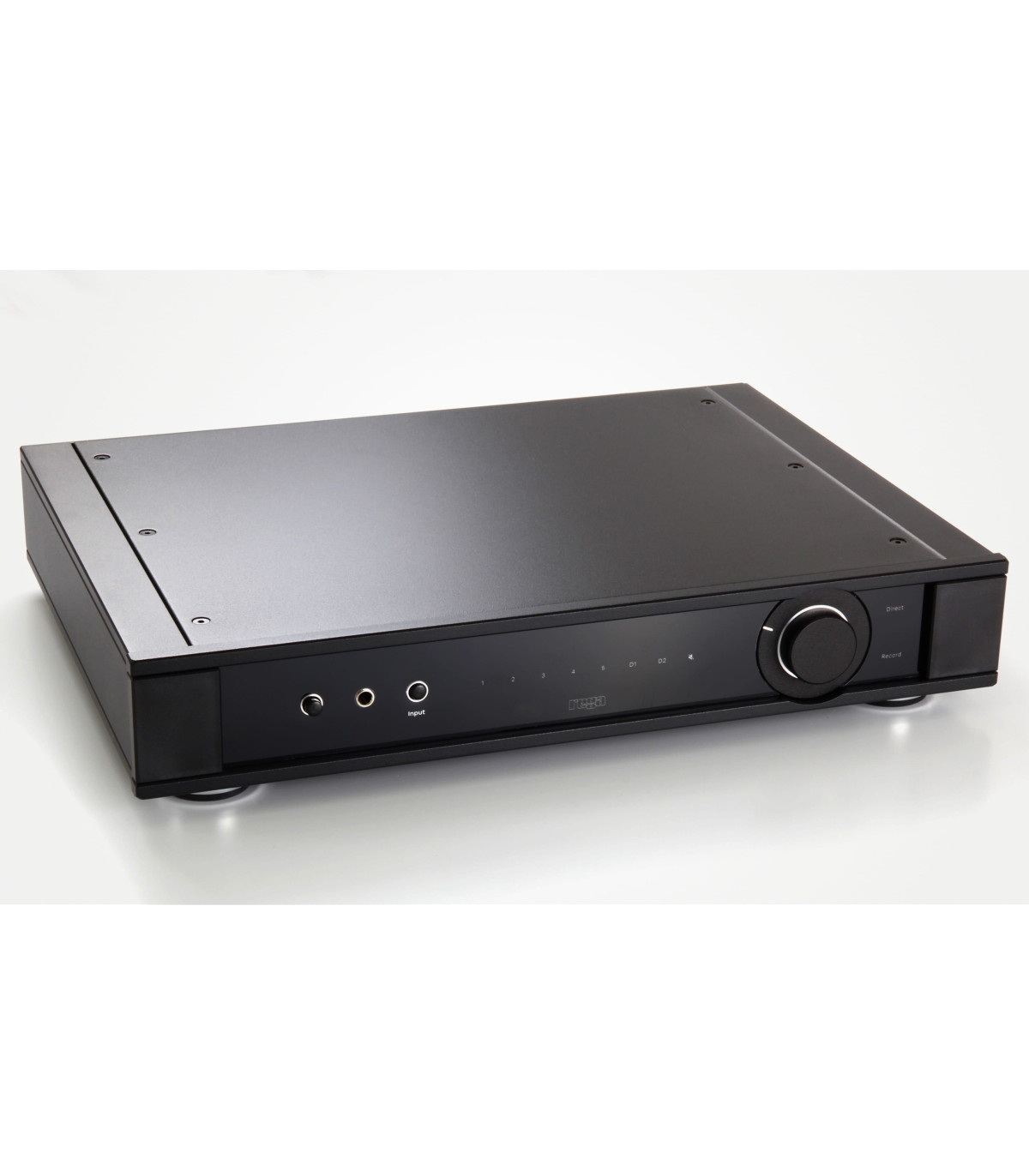

Rega Elicit MK5 Integrated Amplifier

Reference:

1625

Condition:

New

Read moreShow less

€2,205.74

Shipped within about 7-12 days

This article it's not in stock but can be ordered and it will take a number of days indicated into the Blue tab below, to be shipped to you. Please verify the availability for immediate shipping of other eventual versions of the same product.

Quantity

Brand:

Rega

Add to wishlist

Description

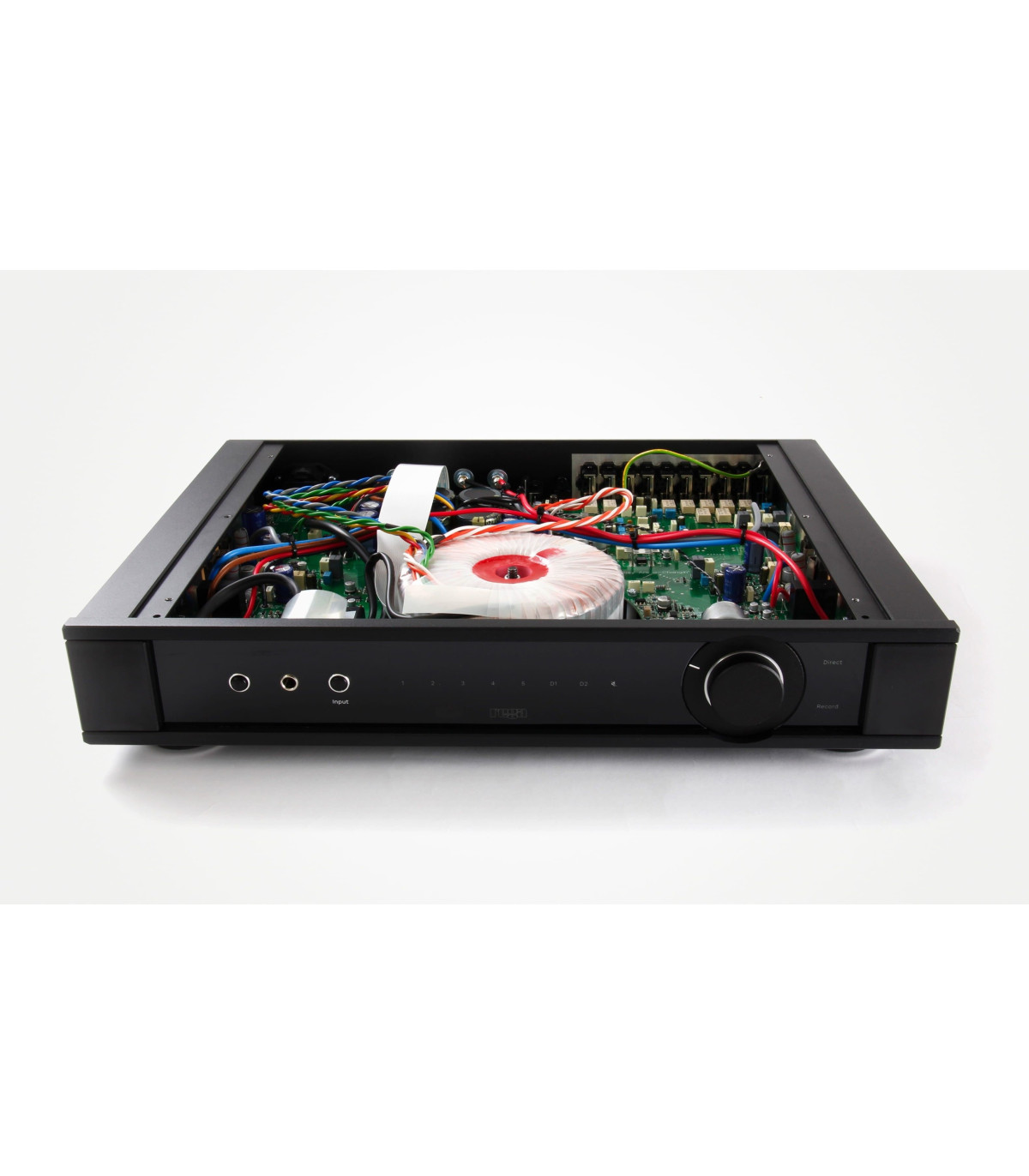

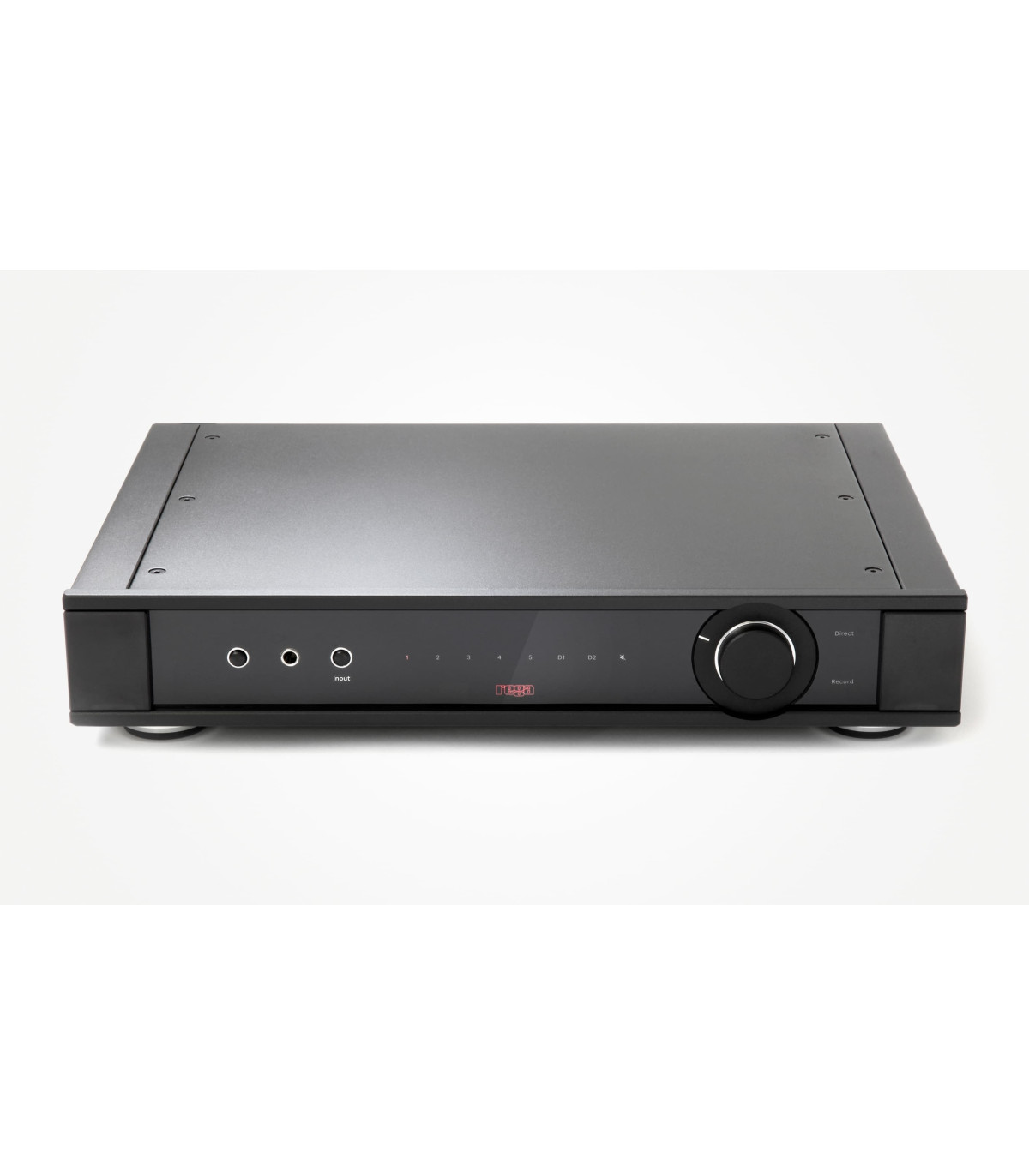

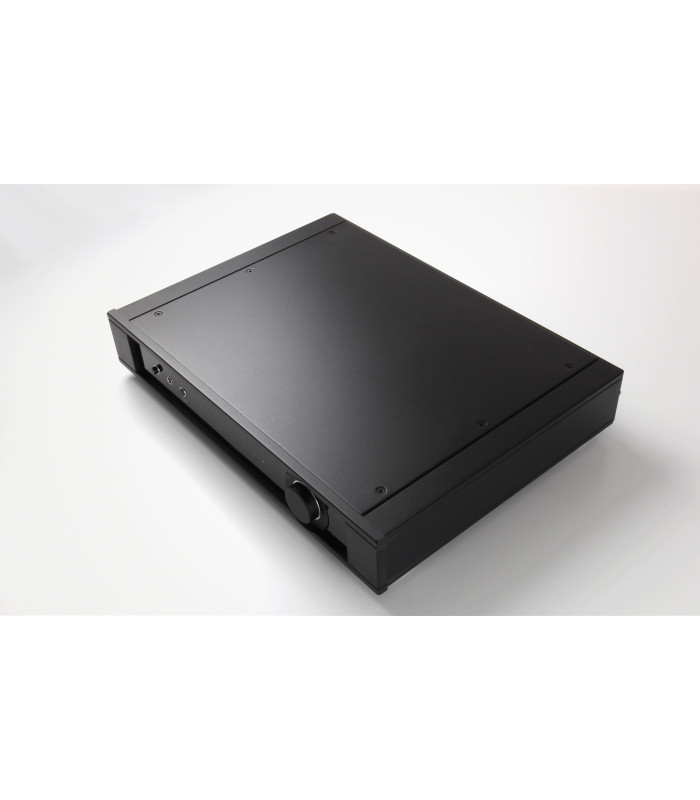

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω). Our engineers have designed a new Rega DAC circuit offering digital connectivity and greater integration with a variety of other products. We have taken great care to incorporate a high quality MM phono stage and the headphone input has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path.

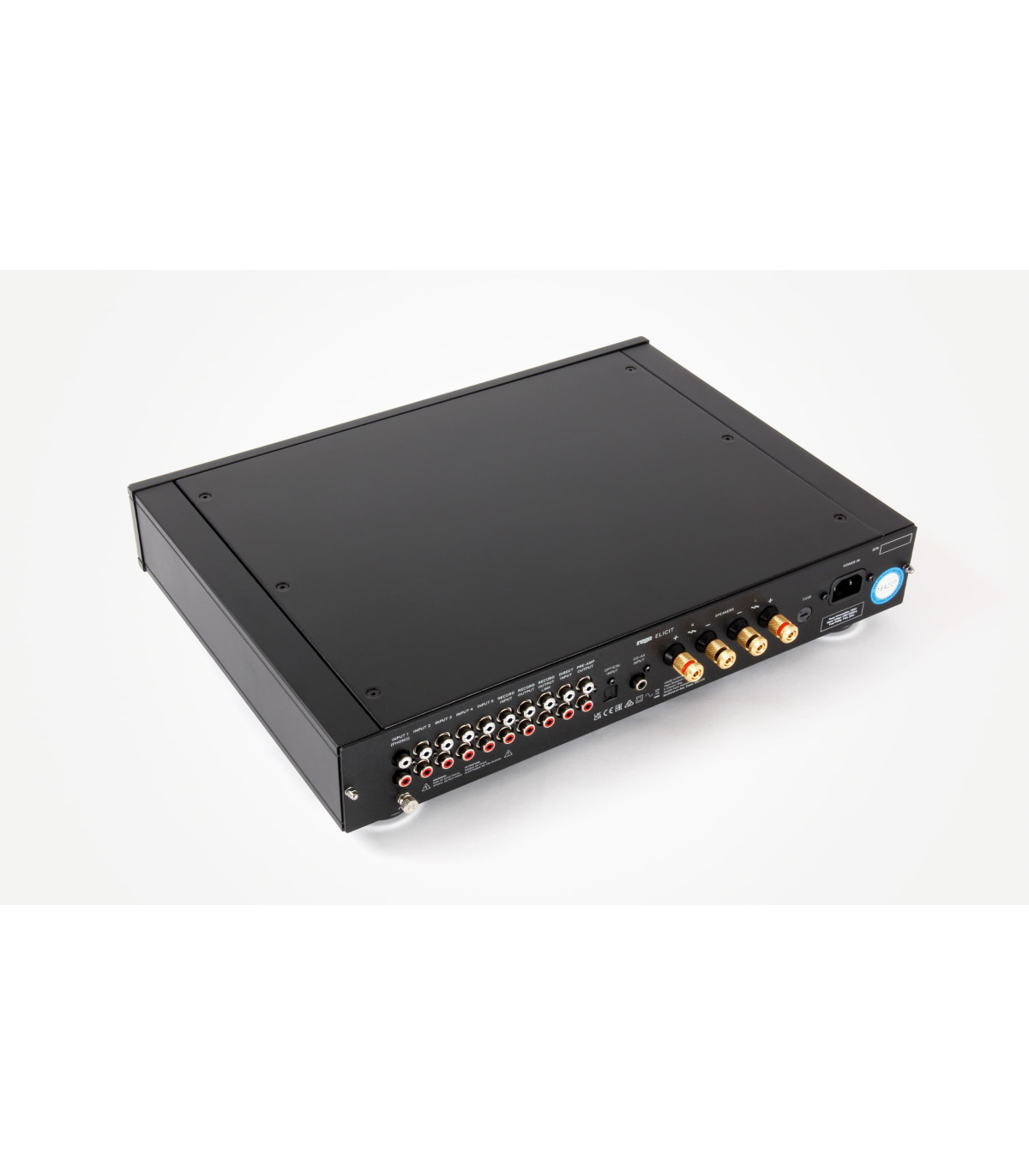

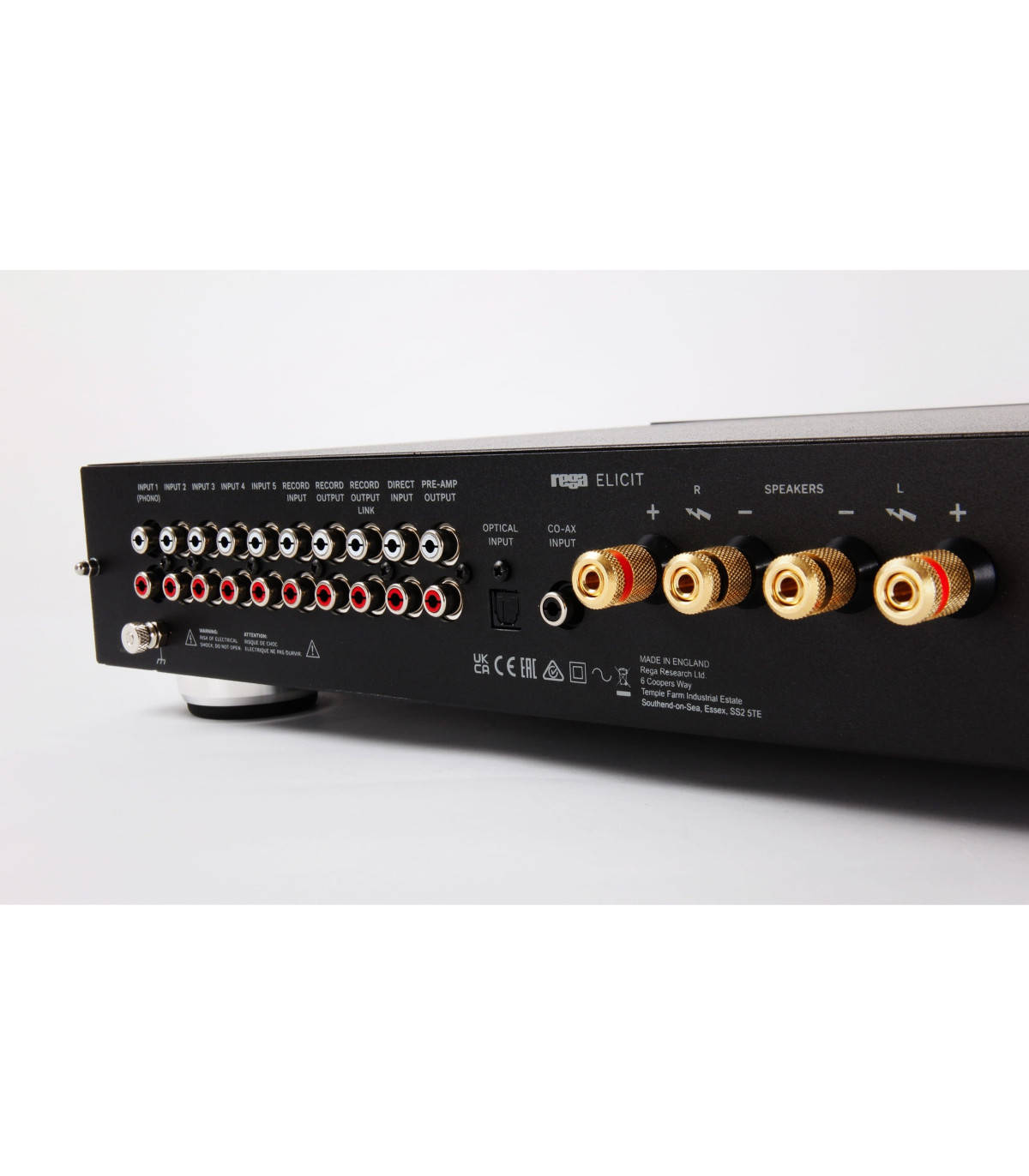

The new Elicit MK5 calls on decades of electronic design experience. It is a complex blend of three of our most successful products which promises to deliver big on sound, power, features and style. The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options. In addition to line, digital, and a high-quality moving magnet (MM) phono input, you will also find pre-out, Direct in, Record loop functionality and the high-performance headphone input.

Key features:

105 W per channel into 8 Ω
High quality moving magnet phono stage
2 x Digital inputs - 1 x optical and 1 x Co-Axial
High performance Rega DAC circuit for digital inputs
4 Line level inputs
Headphone input
Direct Input
Record input
New advanced pre-amplifier

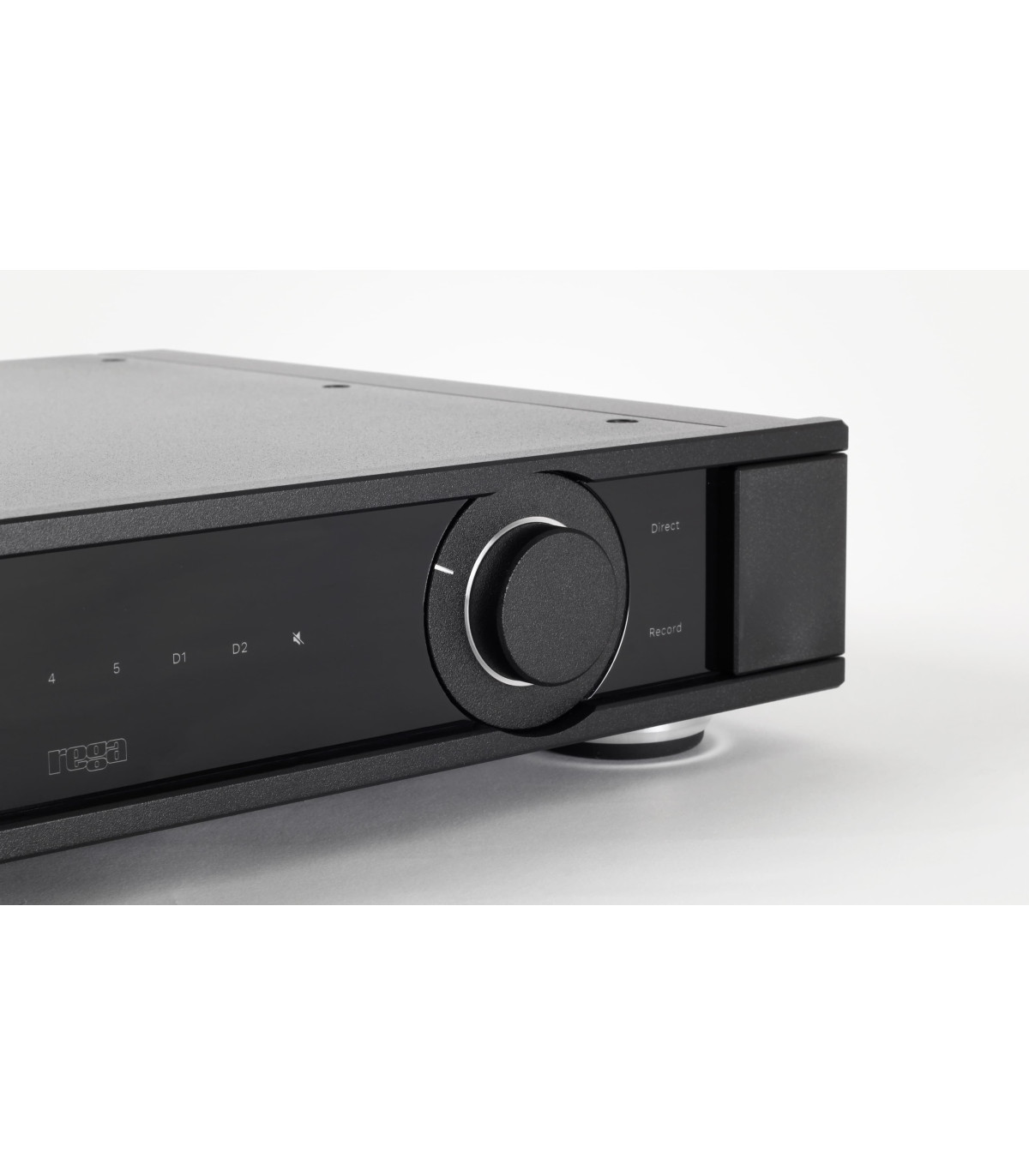

Alps volume potentiometer
Thermal Cut-Out

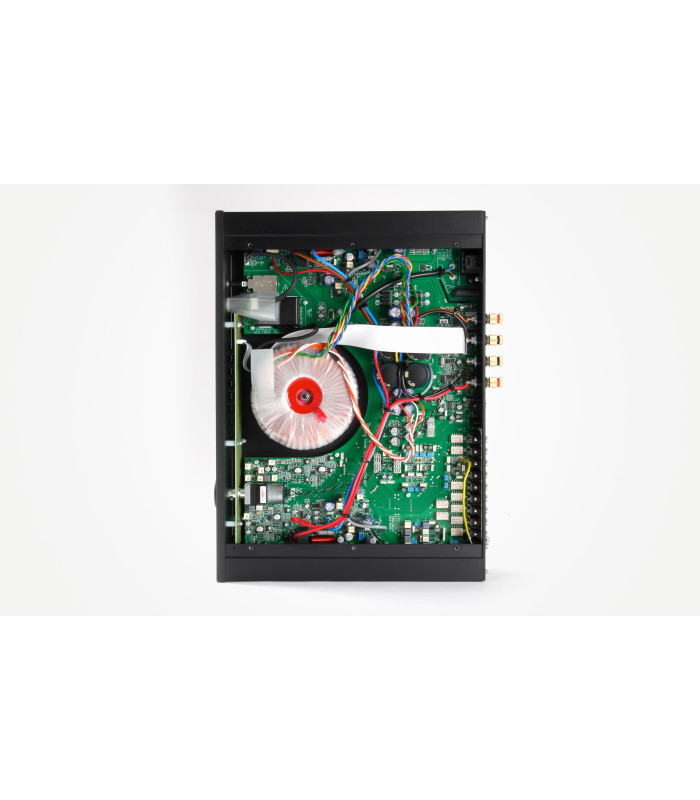

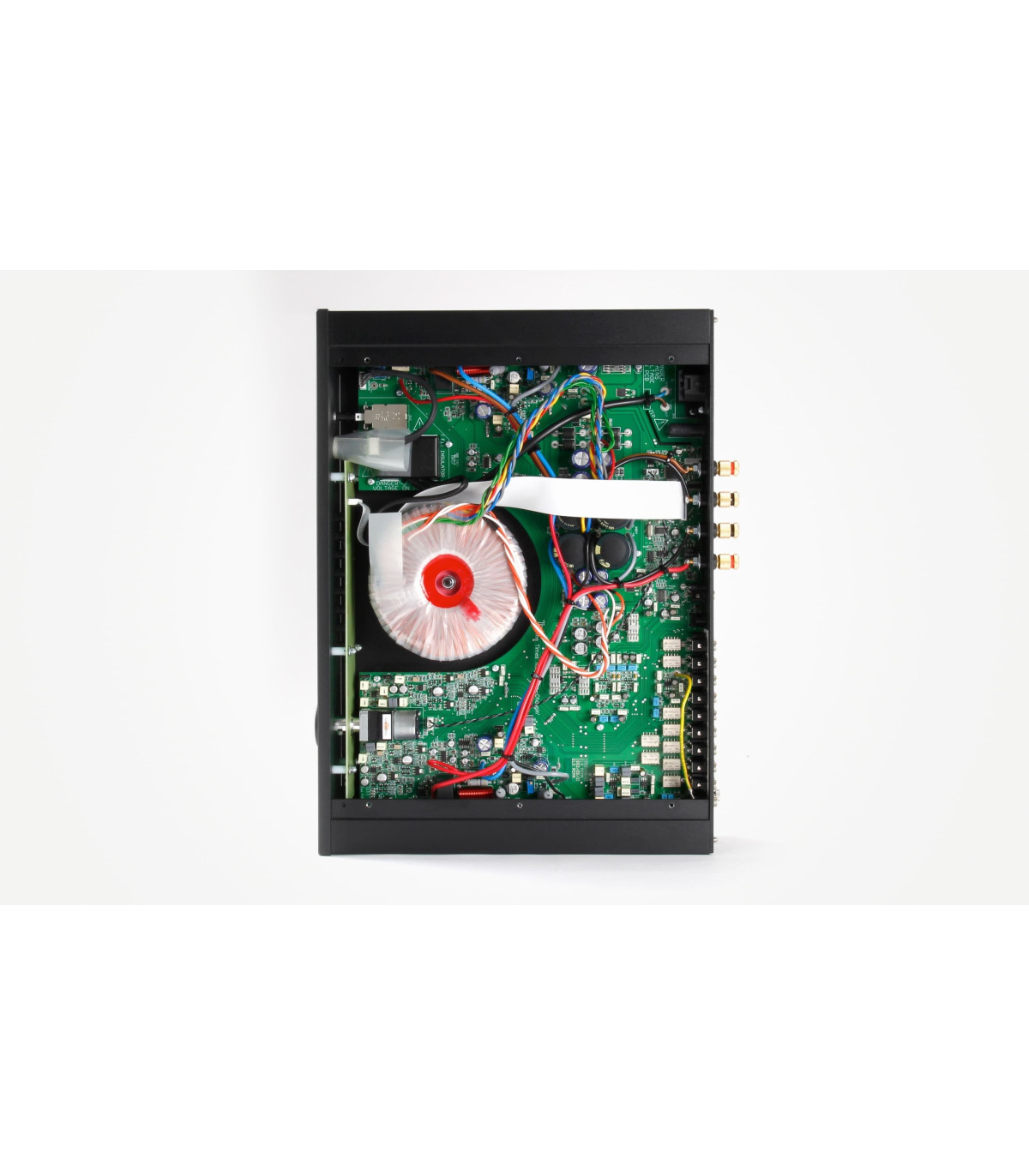

The Elicit MK5 now shares other design features taken directly from the highly acclaimed Aethos amplifier. You will find the same discrete FET based pre-amplifier circuit, plus an Alps volume potentiometer has been introduced to further improve sonic and technical performance. As you would expect, special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors, and Sanken output transistors are used throughout the design.

The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. The new Elicit MK5 calls upon decades of award-winning experience in amplifier and digital circuit design which culminates in a perfectly engineered balance of reliability, connectivity and above all, accurate music reproduction.

TECHNICAL SPECIFICATIONS

Power Outputs at rated 230/115 V Supply voltage

105 W per channel into 8 Ω

127 W per channel into 6 Ω

162 w per channel into 4 Ω

Dimensions (W × H × D): 432 x 82 x 340

Weight: 12.5Kg

Supported Sampling Rates kHz: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Supported Bit Depths: 16 to 24 bit

Read moreShow less

Product Details

Reference 1625

Designer

The first Rega - A star is born

Roy was now working for Ford as a technical editor but spent most of his free time installing friend's hi-fi equipment and building loudspeakers to sell. He became a part time retailer and found he had to spend a ridiculous amount of time repairing new turntables before his conscience and common sense would allow him to sell them to others! Out of frustration and a strong feeling he could do better, the Planet turntable was born. Roy and a partner registered "Rega" (Tony RElph, Roy GAndy). In 1973 and for a couple of years, Roy stayed at Ford and made turntables in the evening, helped by his partners: mum (who agreed to help out for two weeks and stayed for fifteen years!) and a succession of lads. The first turntables were sold through Cosmocord in the UK and a year later under the Rega name in West Germany, Denmark and France.

Roy was now able to leave Ford; he collected a redundancy check and promptly blew it on a factory in Rochford. Soon after the partnership with Tony Relph split, Roy swapping his share of Rega. Terry Davies joined as Rega's financial administrator.

In 1975 the Planar 2 was developed and quickly took its place in the market as the finest budget turntable. In June 1977 HI-FI News and Record Review announced the Planar 3 saying "The complete unit is worth a look"! Rega's usual blaze of non-publicity.

By 1980 Rega employed thirteen staff, exported to twelve countries, had twenty UK dealers and there were those dreaded 'waiting lists', mainly by eager customers shop-hopping!

In 1980 Roy found an old mill (Park Street) in a residential area in Westcliff-on-Sea, Essex. The building had been deserted for twenty years and judging by the rot, seemed to have a millstream still running through it! Rega snapped it up for £30,000 and turned it into a compact but highly functional hi-fi factory, liberally painted bright green.

In 1983 after five years of dabbling and two years of intensive development, the RB300 and RB250 tonearms were produced. For ten years Rega had used Japanese and Danish manufactured arms on the turntables but after some searching Roy found a casting company prepared to work with him to develop an entirely new production method enabling the one-piece tube to be cast.

Rega won an international award for the RB300 casting, presented by Modern Metals 'awarded in open competition for excellence in the field of Aluminium Die Casting'. In their accompanying letter they wrote: 'we are still trying to figure out how you produce such a long cored hole so accurately'. This made up for never winning any prizes breeding budgies!

For five years, Rega sold a cartridge, the R100, made to specification in Japan. This was followed by the RB100, which was designed and developed by Rega. However, the cartridge had inevitable design limitations as it was being manufactured by an outside company.

In March 1988 the Bias and Elys cartridges went into production in house and sales exceeded 1000 in the first month, five times more than anticipated! The cartridges were a vital step on the way to a complete Rega system.

Completing the system...

In the summer of 1989 the Ela loudspeaker was introduced. Designed and developed at Rega, they were originally produced in Denmark but soon thereafter were manufactured in house.

In 1991, a period of dramatic expansion was heralded with the move into the world of electronics and the launch of two amplifiers, the Elex and the Elicit. The reason for producing these two amplifiers was simple; Rega was presented with a design it could not resist! Most importantly, the amplifiers fit into the company policy - which is to manufacture high quality, specialist hi-fi components that are reliable, consistent and sensibly priced. This development completed the Rega system.

A new factory was built in 1992 on the Temple Farm Industrial Estate in Southend-on-Sea under Roy's design and guidance to house the production of loudspeakers and amplifiers and to ensure room for further developments.

2014....

Over the past 40 years we have come a very long way. Now selling to more than 40 export markets and producing on average 2000 turntables alone every month, Rega now employ's almost 90 people in our purpose built 30,000 sq ft design and manufacturing facility in Essex, England.

Rega continues to grow and develop new products, all of which strictly follow those early Rega virtues of excellent build quality, long life and amazing value for money all backed up by a lifetime warranty against manufacture defects.
