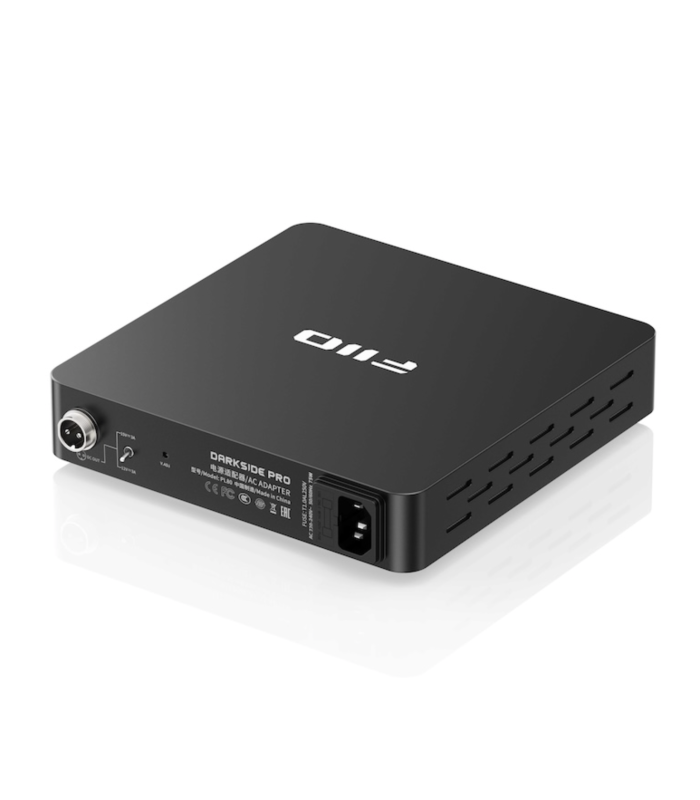

FiiO DARKSIDE PRO Low-Noise Linear Power Supply

FiiO DARKSIDE PRO – Linear Power Supply for Ultra-Silent HiFi Audio

The FiiO DARKSIDE PRO is a premium low-noise regulated linear power supply designed specifically for audiophile HiFi systems. Part of FiiO’s Power Purification series, the DARKSIDE PRO delivers an ultra-quiet, “pitch-black” noise floor, allowing the true character of your music to emerge with exceptional clarity and detail. Whether powering a high-end DAC, amplifier, or streamer, the DARKSIDE PRO transforms your desktop audio chain into a cleaner and more dynamic listening experience.

At its core is a 75W audiophile-grade toroidal transformer, built using a grain-oriented silicon steel circular core. This design minimizes eddy currents, reduces magnetic leakage, and ensures a smooth, uniform coil structure for a perfectly consistent magnetic field. The 75W power reserve easily handles demanding dynamic transients, delivering solid bass and a clear, well-defined soundstage—performance that switching power supplies simply cannot match.

The DARKSIDE PRO features a fully discrete NMOS voltage regulation circuit with dual high-current IRFZ34NPBF MOSFETs in parallel. This topology lowers internal resistance, improves dynamic range, and ensures extremely fast transient response, while also minimizing heat generation. Output noise is exceptionally low: Vrms ≤17μV (A-weighted) at 12V and Vrms ≤30μV (A-weighted) at 15V, making the DARKSIDE PRO one of the quietest linear power supplies available for desktop audiophile systems.

High-quality audiophile components are used throughout. A Japanese Shindengen D15XB60 bridge rectifier minimizes micro-interference caused by current fluctuations. The capacitor bank includes 5 ELNA capacitors, 7 Rubycon filter capacitors, and 2 WIMA film capacitors, effectively reducing power supply noise. Internal wiring uses monocrystalline silver-plated copper DC cables, reducing transmission losses and shielding against electromagnetic interference (EMI) for improved detail and resolution.

Switching between 12V and 15V output is managed by an integrated relay that precisely matches the transformer’s secondary voltage to the selected setting, maximizing efficiency and reducing heat during operation. A precision potentiometer allows fine voltage adjustment to perfectly match connected devices. A self-resetting fuse provides intelligent overcurrent protection for safe, long-term use.

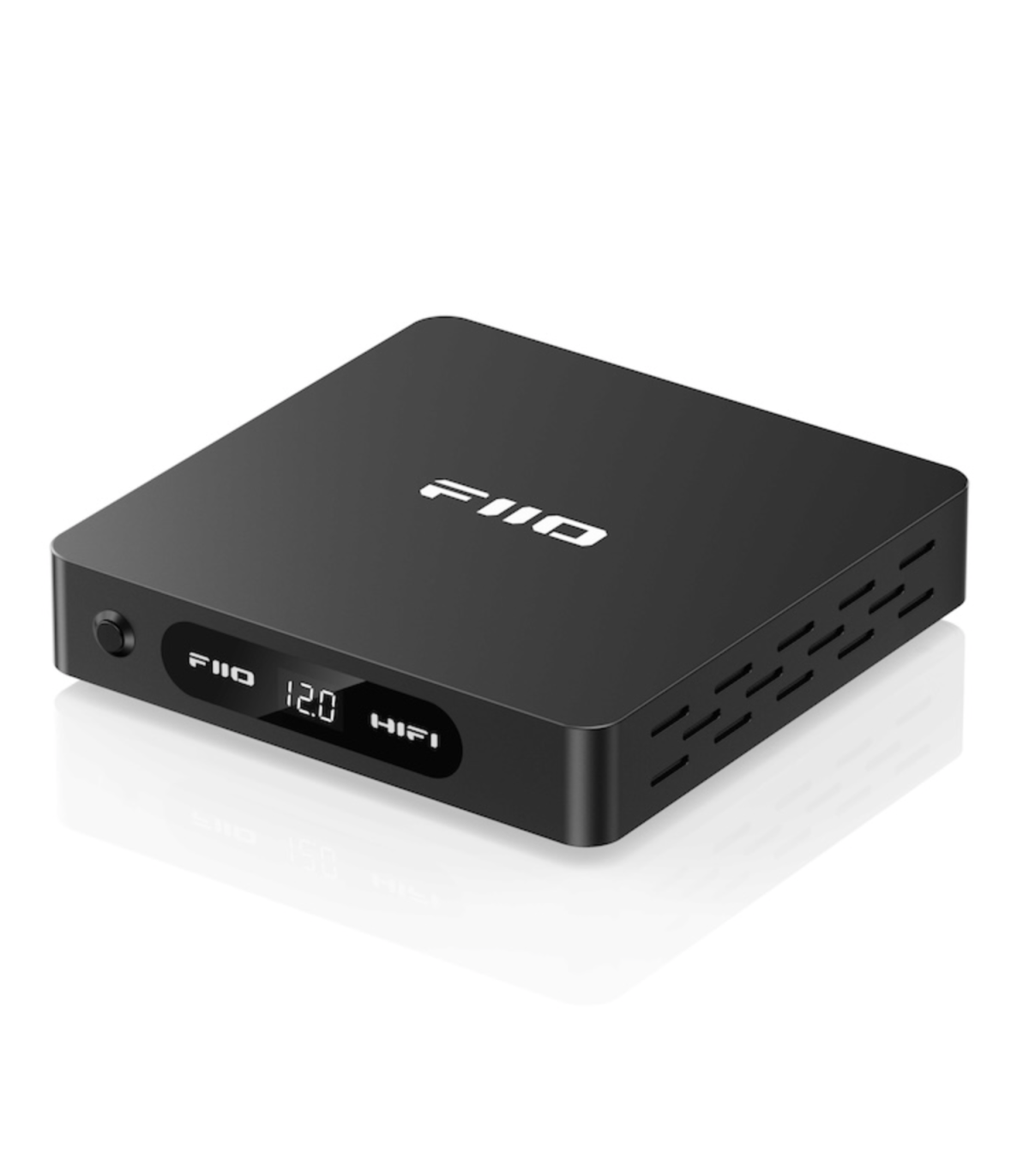

The DARKSIDE PRO is housed in a durable unibody aluminum chassis, sharing the minimalist design language of the FiiO K13 series. The metal enclosure eliminates resonance and blocks electromagnetic interference, while integrated ventilation grilles ensure stable, low-temperature operation even during extended use. The front panel features an LED display showing the output voltage in real time.

It is compatible with a wide range of FiiO devices, including K11, K11 R2R, K13 R2R, K15, K19, R9, R7, TT13, K5 Pro, K7 series, Q7, and all FiiO portable players powered via Type-C (adapter sold separately). The FiiO DARKSIDE PRO is the ultimate upgrade for any audiophile seeking a cleaner, quieter power foundation for their HiFi system.

Specifications

Model: DARKSIDE PRO (PL80)

Color: Black / Silver

Dimensions: 188 × 188 × 42.3 mm

Weight: approx. 2200 g

Transformer: 75W audiophile-grade toroidal

Transformer core: grain-oriented silicon steel

Rectifier: Shindengen D15XB60 bridge

Voltage regulation: fully discrete NMOS with parallel IRFZ34NPBF MOSFETs

Capacitors: 5× ELNA + 7× Rubycon + 2× WIMA

Internal DC wiring: monocrystalline silver-plated copper

AC input: 220–240V~ / 100–120V~, 50/60Hz

DC output: 12V / 15V (relay switching)

Output current: 0–3A

Output noise (12V): Vrms ≤17μV (A-weighted)

Output noise (15V): Vrms ≤30μV (A-weighted)

DC output interface: GX16-2 connector

Voltage switching: integrated relay

Fine voltage adjustment: precision potentiometer (Baoter 3296)

Overcurrent protection: self-resetting fuse

Chassis: heavy-duty unibody aluminum

Compatible devices: FiiO K11, K11 R2R, K13 R2R, K15, K19, R9, R7, TT13, K5 Pro, K7 series, Q7, and FiiO portable players with Type-C power*

Package contents

DARKSIDE PRO ×1

DC power cable ×1

AC power cable ×1

Spare fuse ×1

Quick start guide ×1

Warranty card ×1

*DC to Type-C adapter sold separately.
