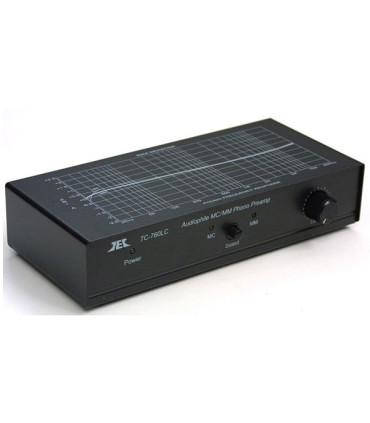

The new TC-760LC aims to be the better sounding budget MM/MC preamplifier. It also has additional features like an output level control, ability to connect MM and MC turntables simultaneously (selecting between them at the push of a switch), and selectable hi/lo MC input inpedance make the TC-760LC the better value; superior specs make it the better choice as well. A price way below its competitors, like the NAD PP-2, provides the frosting on this particular cake.
We include free of charge a stereo patch cord (for connection to a receiver or minisystem) and a mini-plug adaptor for use with computers.
Specifications: - 12 volt DC operation; will work anywhere in the world - 60 day defective exchange warranty - Total harmonic distortion: <0.005% - RIAA freq response 20hz-20,000hz +/- 0.5dB - S/N ratio >82dB MM / >75dB MC ; gain MM 38dB / MC 58dB - Input sensitivity; MC 600uV, MM 3.0mV - Dimensions (cm., l x a x p): 7,8 x 3,8 x 9 - selectable hi range (100 ohm) / lo range (20 ohm) MC input impedance - CE certified; nice packaging suitable for gifting - gold plated jacks and black anodized metal casing - ground wire terminal; LED power indicator - includes AC adaptor, RCA cable and miniplug adaptor - Dimensions 180mm x 73mm x 37mm

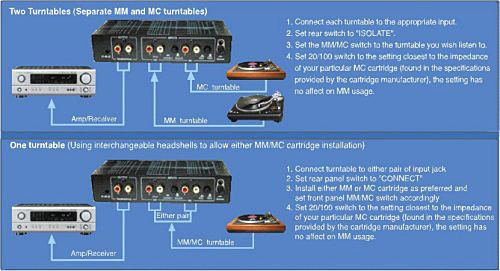

If connecting to a computer, simply substitute it in the diagram below for the amp/receiver shown below. Use the sound card's LINE INPUT jack, NOT the MIC IN.
