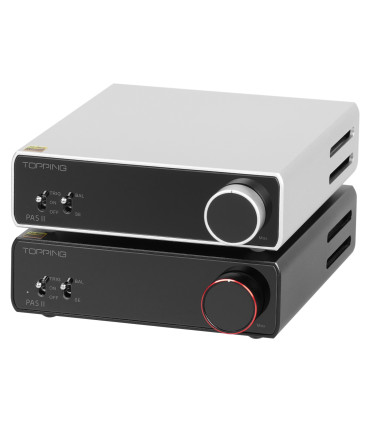

Topping PA5 Class D Balanced Amplifier

Fully balanced

The newly developed Class D amplification circuit uses multiple novel optimization techniques to fully push the performance and output power to the maximum. The new circuit provides crisp, clean and deep sound with completely inaudible noise floor. The fully balanced structure makes PA5 II no more hum, no more noise, no more ground loop.

The PA5 II is capable of delivering up to 140 W x 2 for 4 Ohm loads at 10% distortion, and 125W x 2 for 4 ohm loads, even when the standard is raised to 1% distortion. Similarly, the PA5 II can output 100W x 2 for a 4 ohm load at 1% distortion. High output and low distortion characteristics make PA5 II series amplifiers sufficient to meet the needs of most speakers and use occasions.

Specifications

Inputs: Single-ended stereo RCA; Balanced Jack 6.35mm TRS

Output: Speaker terminals

Trigger: 12V

Balanced input specifications:

THD+N (@ 1kHz, A-Weighted): < 0.0004% @ 4Ω 5W // < 0.0003% @ 8Ω 5W

THD+N (@ No-Weighted, 20kBW): < 0.0015% @ 4Ω 5W // < 0.0006% @ 8Ω 5W

SNR: 124dB (@ max out, 1kHz, A-Weighted)

Dynamic range: 124dB (@ 1kHz, A-Weighted)

Frequency response: 20Hz - 40kHz (±0.3dB)

Output level: 65Vpp @ 4Ω // 68Vpp @ 8Ω

Noise: < 15µVrms (@ A-Weighted)

Crosstalk: -106dB (@ 1kHz)

Input sensitivity: 2.6Vrms

Gain: 19.2dB

Channel balance: 0.1dB

Output power: 2x100W @ 4Ω, THD+N < 10% // 2x100W @ 4Ω THD+N < 1% // 2x85W @ 8Ω, THD+N < 10% // 2x65W @ 8Ω, THD+N <1%

Single-ended input specifications:

THD+N (@ 1kHz, A-Weighted): < 0.0005% @ 4Ω 5W // < 0.0004% @ 8Ω 5W

THD+N (@ No-Weighted, 20kBW): < 0.0015% @ 4Ω 5W // < 0.0006% @ 8Ω 5W

SNR: 121dB (@ sortie max, 1kHz, A-Weighted)

Dynamic range: 121dB (@ 1kHz, A-Weighted)

Frequency response: 20Hz - 40kHz (±0.3dB)

Output level: 65Vpp @ 4Ω // 68Vpp @ 8Ω

Noise: < 15µVrms (@ A-Weighted)

Crosstalk: -90dB (@ 1kHz)

Input sensitivity: 1.3Vrms

Gain: 25dB

Channel balanced: 0.1dB

Output power: 2x100W @ 4Ω, THD+N < 10% // 2x100W @ 4Ω THD+N < 1% // 2x85W @ 8Ω, THD+N < 10% // 2x65W @ 8Ω, THD+N <1%

General specifications

Supply voltage: 38VDC 3A

Power consumption: < 0.5W

Dimensions: 129*166*41mm

In the box: Topping PA5 II, Power supply
