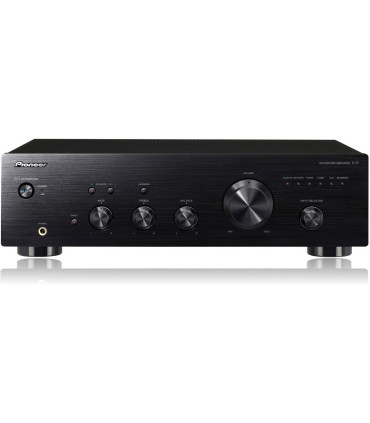

The A-10 Direct Energy Design amplifiers with Symmetrical Construction offer class-leading, high quality sound, wrapped in understated, technical elegance.
The front panel comes with control knobs for Volume, Bass/ Treble/ Balance and Input Source selection. A range of tactile buttons finetune Loudness, Direct Mode and Speaker A/B. The rear panel provides immediate connectivity to Aux-In, Network, Recorder, Speaker A + B and 'Source Direct Mode' devices.
Product highlights at a glance:
- 50W + 50W (4 Ω, 20Hz - 20kHz)
- Phono MM input
- Auto Power Down.
AUDIO FEATURES
- Direct Energy Design Amp
- Symmetrical Power Amp
- Clean Ground Construction
- Isolated Power Supply
- Source Direct Mode
- Speaker A, B, A+B Selector
- Auto Power Down
CONNECTIONS
- Analogue Audio Input (PHONO (MM), TUNER, SACD/CD, AUX, NETWORK, RECORDER)
- Audio Output (RECORDER, PHONES)
- AC Inlet
OTHER FEATURES
- 50 W + 50 W (20 Hz-20 kHz, 0.1 % THD, 4 ohms)
- 30 W + 30 W (20 Hz-20 kHz, THD 0.05 %, 8 ohms)
- THD: 0.01 % (Rated Output -3 dB, 8 ohms, 1 kHz)
- Guaranteed Speaker Impedance (2 Speaker Terminals): 4-16 ohms (A or B), 8-32 ohms (A+B), 4-16 ohms (Bi-Wiring)
- Frequency Response: 5 Hz-100 kHz, 0 dB/-3 dB, 20 Hz-20 kHz, ±0.5 dB (RIAA Eqalisation) MM
- Power Requirements: AC 220-230 V 50 Hz
- Power Consumption: 135 W
- Power Consumption During Standby: 0.3 W
DIMENSIONS & WEIGHT
- Dimensions (W x H x D): 435 x 128 x 360 mm
- Weight: 6.7 kg
