Acoustic Revive DSIX-1.0PA - RCA Digital cable with Digital Signal IsoLation Exciter box, 1 meter lenght.
Revolution Digital Transmission
The DSIX has a beneficial effect on digital signal transmission (such as SACD, Esoteric Link and upsampling etc) using two balanced digital cables.
Product Specification
Circuit System two stage single ended push-pull amplifier equipped with charge pump
Input impedance 47K ohm
Input voltage 0.2~5V p-p
Output voltage 1.75V p-p (75 load),3.5V p-p (no load)
Output impedance 75 ohm
Output signal phase : Positive aspect
DC input voltage 12V (range of working voltage : 10V~15V)
DC power consumption : 65mA (Receiving signal) , 100mA (no signal)

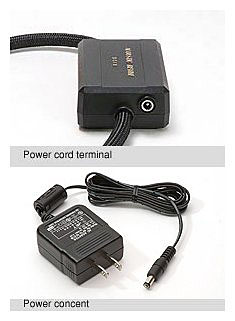

AC power consumption 1W (working with Attachment AC adaptor)
Cable length : 1m
adaptor cable length : 1.5m
Weight : 250g (body)
Principle/Structure

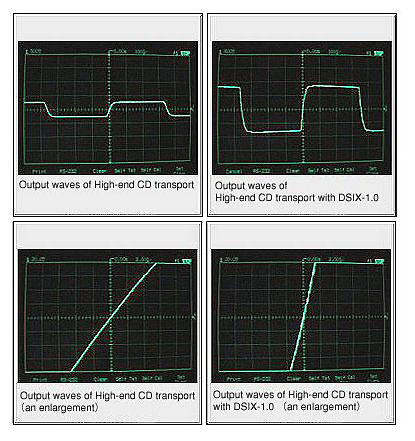

DSIX is an abbreviation for "Digital Signal Isolation Exciter". DSIX is unique and has a groundbreaking performance. DSIX electrically isolates the signal loop from equipment (ex., CD transport and converter, DVD player and pre-amplifier) by the use of the isolation transformer, this cuts off noise interference. The result of this is that the throw rate, which indicates the start up speed of a digital shape wave is up to five times faster and transmission energy is up to twelve times more in a circuit equipped with DSIX.
Jitter reduction and the difference to other similar devices.
DSIX reduces the jitter of the entire system, other similar devices can only reduce the jitter locally by reducing jitter from the output to the input signals.
So the device for reducing jitter has an effect of decreasing the jitter of the device itself, but it could not reduce the jitter of the entire system. And some of devices certainly decrease jitter but throw the common mode noise.
DSIX can separate and use the voltage signal without taking the current and completely cuts off noise increasing the throw rate of the transmission signals. It completely eliminates factors which create jitter between the connected equipment therfore increasing the entire quality of the digital signal. DSIX allows equipment or systems to perform at their full potential.
We use our digital cable COX-1.0F for DSIX.
It is possible to improve sound quality even if the quality of the digital cable is low. DSIX has a superior method for reducing jitter, we use the digital cable COX-1.0F that has already established a high reputation in the field of digital cables. The COX-1.0F is a single core cable that completely eliminates associated noise current.
DSIX uses high quality materials like the newly developed flexible teflon coated OFC tube which ensures perfect shielding, a natural silk absorber in order to achieve the ultimate signal transmission and super-annealed copper wire. Therefore the combination of the COX-1.0F and the DSIX makes it possible to obtain a new previously unachieved quality level of digital signal transmission.
Beneficial effect on all digital links.
DSIX can be used not only for CD transport to D/A converter, but also for other applications like surround sound standards ex. 'Dolby Digital' or 'dts'. It makes superb improvements for signal to noise ratio, sound quality, dynamic range and channel separation. In addition big improvements for digital copies are obtained allowing you to make CD / DAT / MD etc copies with very little loss in sound quality.
High Quality Parts.
Only high quality parts are used to manufacture DSIX including Beyschlag resistors, Alpha resistors and Sanyo OS capacitors.
Can be made to your specification (ex. BNC terminal, Cable length).
The standard connector plugs for DSIX are RCA type but you can also have BNC connectors - DSIX can be made to your specification, please ask for details and a quotation.
Audio Excellence Award 2005 TOP Prize for Cables categories
VISUAL GRAND-PRIX 2005 TOP Prize for accessories category
MJ Technology of the Year for accessories category
HiVi Best Buy 2005 Winter / 2004 Summer TOP Prize for accessories category
Acoustic Revive at a glance
Acoustic Revive: Once you listen to it, you know the difference. The accessory and cable that not only changes sounds. The true accessory and cable manufacturer that revives the sound to most natural and real sound.
Acoustic Revive is a Japan producer of audio hi-end accessories and cables designed and engineered to obtain the best results today available. Construction quality is superb so they are also used in the major recording company.
The Japanese school of hi-end accessories for the fine optimization of an audio system, is here. Acoustic Revive takes audio tweaking very seriously, introducing materials and techniques extremely advanced:
- Using aerospace materials like the Duraluminium or physiological materials like natural quartz.
- Doing deep cryogenic treatments that, modifying the molecule structure, better the signal transmission.
- Employ demagnetizing treatments, to cancel the influence of the magnetic fields.
- Dimension and design basing on the Gold Section.
- Introduce the so-called "virtual grounding" concept.
When an audio hi-end system is treated with Acoustic Revive accessories, it sounds more detailed, natural, smooth, and also more deep, powerful and dynamic. Every Acoustic Revive product is 100% "Made in Japan".
Click here to download the Acoustic Revive brochure in Adobe pdf format.
Acoustic Revive products will not be shipped outside of Italy due to national distribution agreements restrictions.
|
